Advance Tabco  |  SKU: FS-WM-100EF  |  UPC: 747545211439

Advance Tabco FS-WM-100EF Hand Sinks

$7,571.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Troubleshooting manual Installation & operation Installation manual 2
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

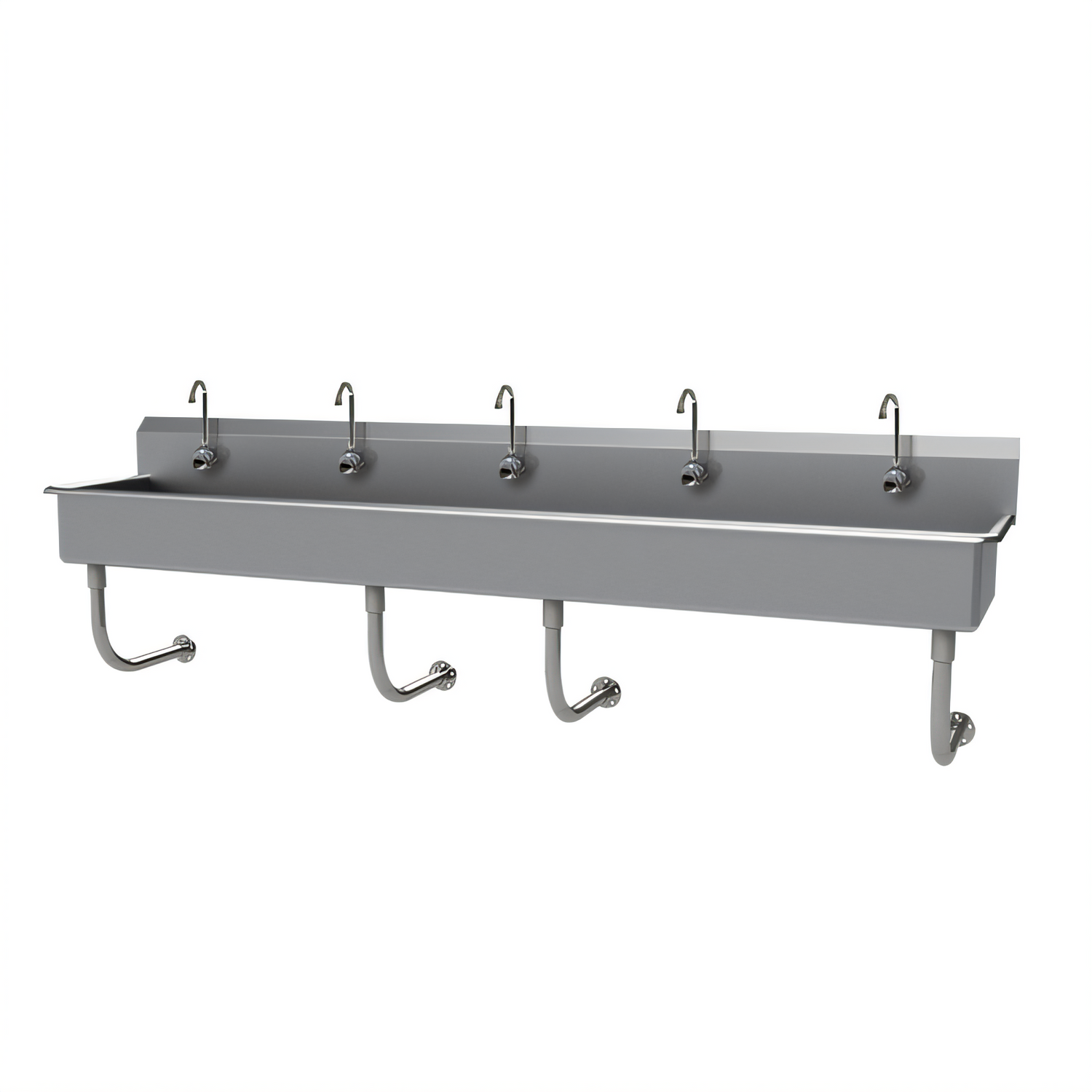

Advance Tabco 100" 5-Station Wall-Mounted Multi-Wash Hand Sink – Electronic Faucets

Model FS-WM-100EF  |  14-Gauge Type 304 Stainless Steel  |  NSF Listed

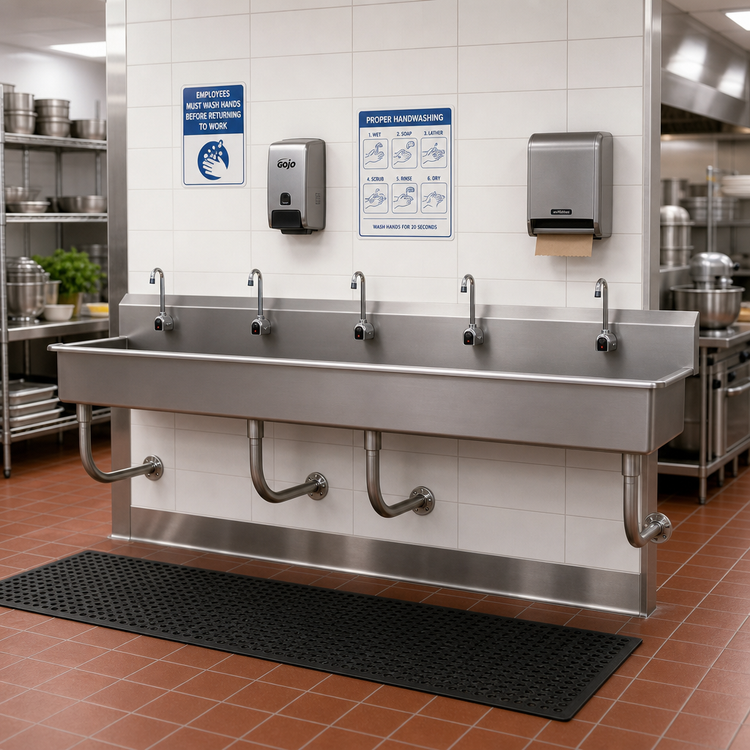

Give busy prep areas, production lines, and labs a dedicated, high-capacity hand-wash zone that’s easy to sanitize and even easier to use. This 5-station Advance Tabco multi-wash sink combines rugged 14-gauge stainless steel construction with touch-free K-175 electronic faucets, delivering exceptional durability, hygiene, and clearance underneath for carts, bins, or wheelchair access.

Why You’ll Love It

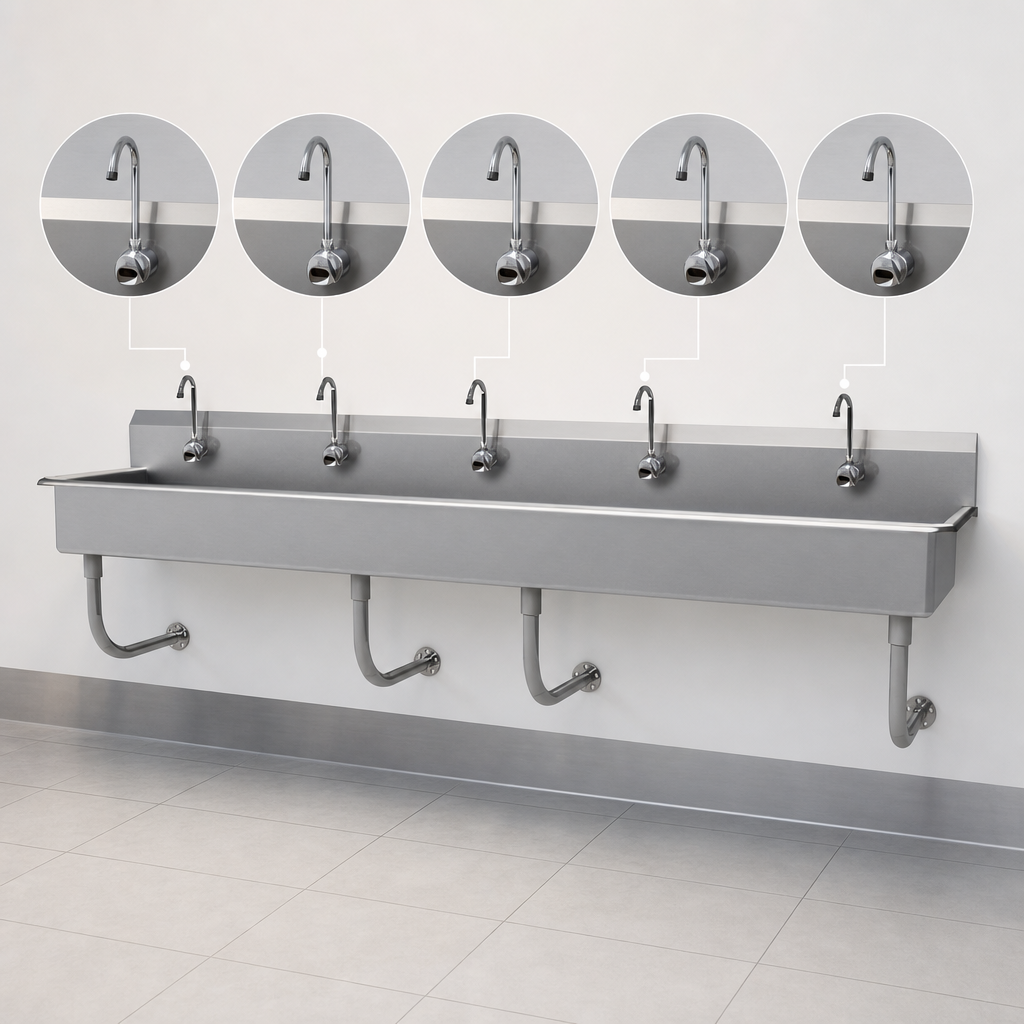

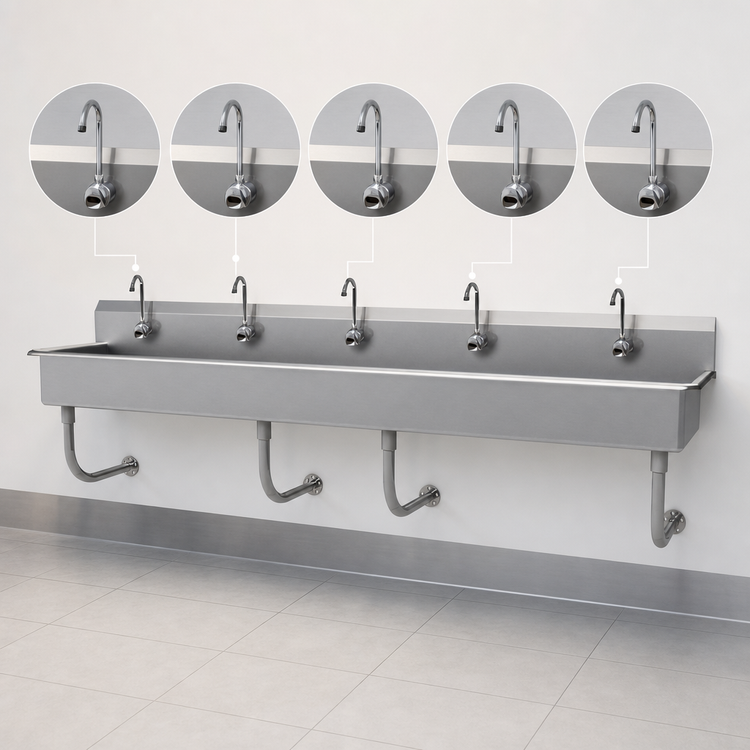

  • Hands-free operation: (5) K-175 splash-mounted sensor faucets help reduce cross-contamination.
  • Heavy-duty build: 14-gauge, type 304 stainless steel is TIG-welded and finished to a smooth satin sheen.
  • Generous capacity: 100" long bowl offers ample elbow room for multiple users at once.
  • Deep, splash-containing design: 16" front-to-back x 8" deep bowl plus an 8 ½" backsplash.
  • Clean, open underside: Tubular stainless steel wall supports and Z-brackets leave the floor clear for quick mopping.
  • (2) 3 ½" K-6 rear basket drains with removable strainers speed up water evacuation and stop debris.
  • NSF certified for hand-washing applications in foodservice, healthcare, manufacturing, and more.

At-a-Glance Specs

Stations / Faucets 5 electronic, splash-mount K-175 faucets
Overall Dimensions (W × D × H) 100" × 19 ½" × 29 ½"
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8 ½"
Drain(s) (2) 3 ½" rear basket drains (K-6)
Material / Gauge 14-ga 304 stainless steel sink & 1 5/8" Ø tubular supports
Mounting Wall mounted – stainless steel Z-brackets & tubular supports included
Electrical 100-240 VAC adapter (UL-listed) powers faucet control box
Shipping Weight Approx. 128 lb
Certifications NSF, Lead-Free (NSF/ANSI 61, Section 9)

Quick Installation Notes

  • Mount Z-brackets 42 ½" from finished floor to bracket top for recommended hand-washing height.
  • Provide 3/8" NPT hot and cold connections for each faucet control box.
  • All hardware, drains, faucets, and wall supports ship with the sink — just add supply lines and trap.

Consult local plumbing and electrical codes; professional installation is strongly recommended.

Prop 65 Notice: This equipment contains components such as faucets that may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

100.0in

Depth

19.5in

Shipping Weight

128.0lbs

Features

multi-station

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (5) electronic faucets, 100"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
