Advance Tabco FS-WM-100-F Hand Sinks
Description

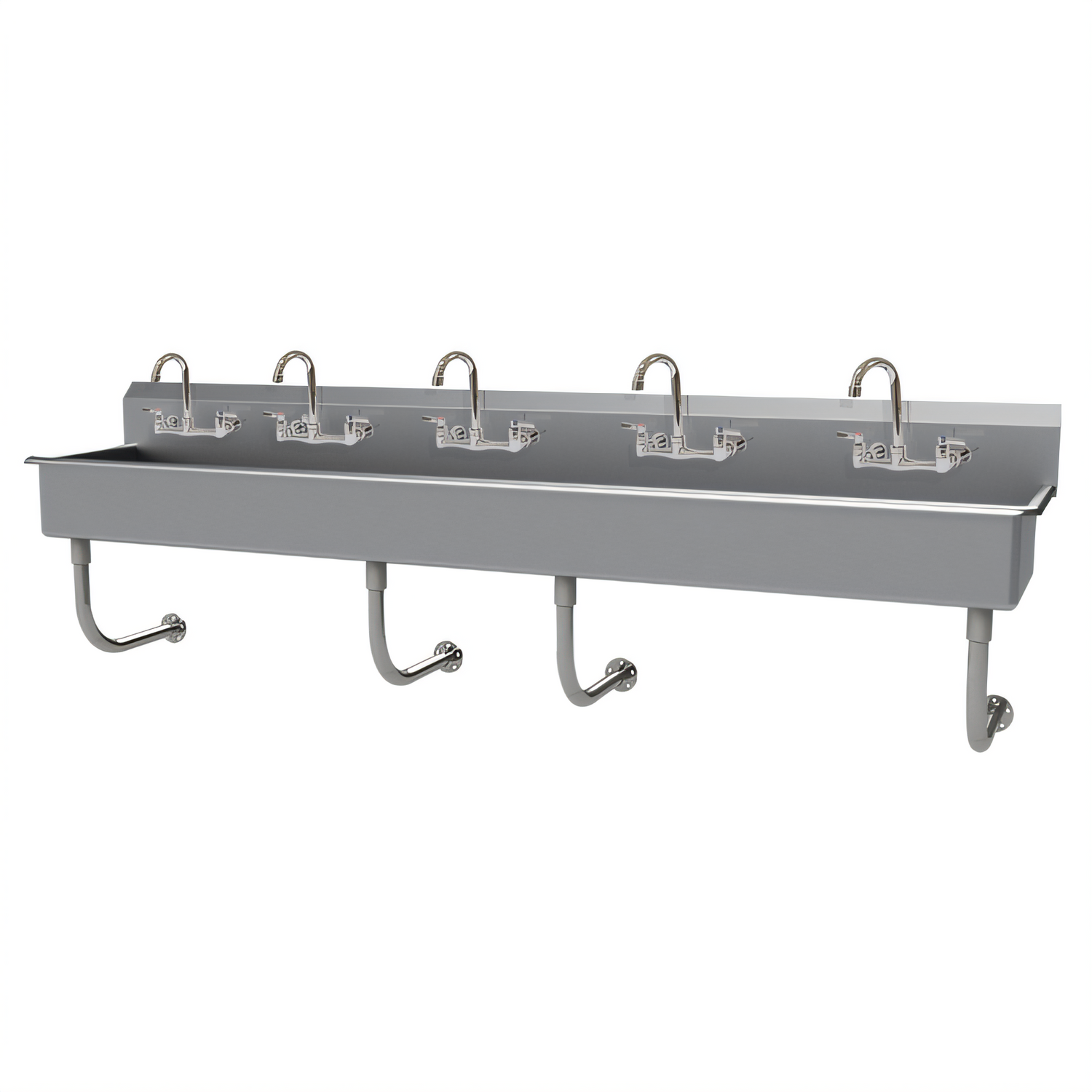

Advance Tabco FS-WM-100-F Multi-Station Hand Sink
100" Wall-Mounted • 5 Stations • 14 ga 304 Stainless SteelDesigned for high-volume hand-washing in commercial kitchens, schools, laboratories and other sanitation-critical environments, this Advance Tabco 5-person wall sink combines heavy-duty 14-gauge 304 stainless steel with time-saving installation features and NSF certification. Five manual gooseneck faucets, integral 8 ½" backsplash and dual rear basket drains are factory-installed so you can uncrate, mount and plumb in record time.
Why You’ll Love It
- Five K-159 8 ½" gooseneck faucets included – no extra kits to buy.
- One-piece 14 ga type 304 stainless steel bowl & backsplash withstands the daily abuse of busy work-rooms.
- 8" on-center splash-mount holes are pre-punched for each faucet set.
- Full 100" width provides simultaneous access for up to five users.
- 8" deep, 16" front-to-back bowl helps contain splashing and meets most health-department codes.
- 8 ½" high backsplash protects walls and speeds clean-up.
- (2) 3 ½" K-6 rear basket drains included for fast drainage and easy debris capture.
- TIG-welded “Z” wall brackets & 1 5⁄8" tubular stainless supports keep the area beneath the sink completely open for carts, bins or foot traffic.
- Satin-brushed finish resists corrosion and wipes down quickly.
- NSF listed for food-service sanitation compliance.
Technical Specs
| Model | FS-WM-100-F |
|---|---|
| Stations / Faucets | 5 manual gooseneck faucets (K-159) |
| Overall Dimensions | 100" W × 19 ½" D × 29 ½" H |
| Bowl Size (one piece) | 16" front-to-back × 8" deep |
| Backsplash Height | 8 ½" |
| Faucet Mounting | Splash-mount, 8" on center (pre-punched) |
| Drain(s) | (2) 3 ½" K-6 rear basket drains |
| Material & Gauge | 14-gauge type 304 stainless steel |
| Wall Supports | 1 5⁄8" tubular 304 stainless steel with “Z” mounting brackets |
| Finish | Satin-brushed |
| Certifications | NSF |
| Shipping Weight | Approx. 160 lb. |
Fast, Hassle-Free Installation
- Mounting “Z” brackets are factory-welded—just locate studs, lag into place and slide the sink down.
- Tubular wall supports provide full clearance underneath for storage or ADA walkway requirements.
- All faucet and drain hardware ships pre-installed; simply connect your ½" water lines and 1 ½" waste.
⚠️ California Prop 65: This product can expose you to chemicals, including lead, known to the State of California to cause cancer or birth defects. For more information, visit www.p65warnings.ca.gov.
