Advance Tabco FS-WM-100-ADA Hand Sinks
Advance Tabco FS-WM-100-ADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FS-WM-100-ADA Hand Sinks
Description

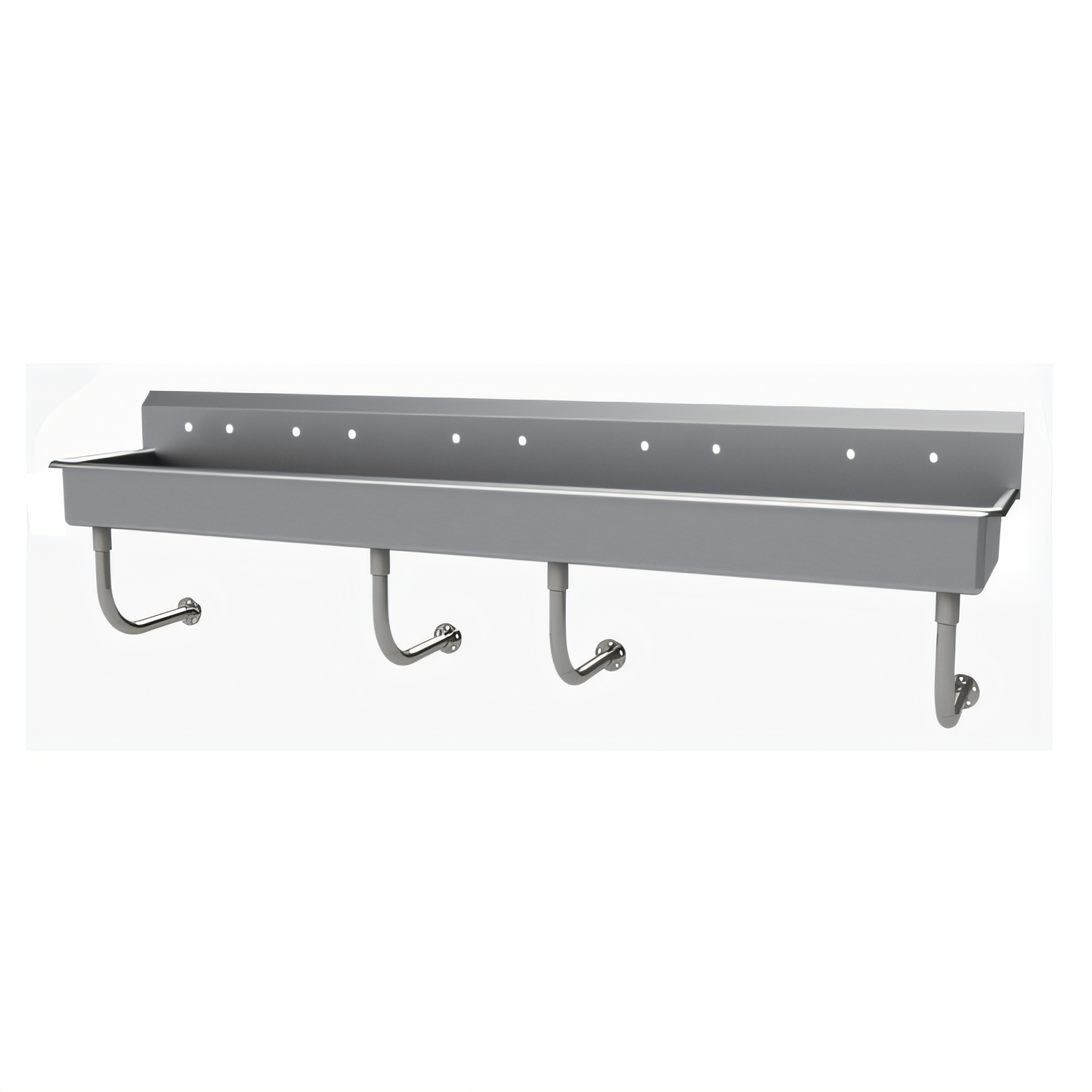

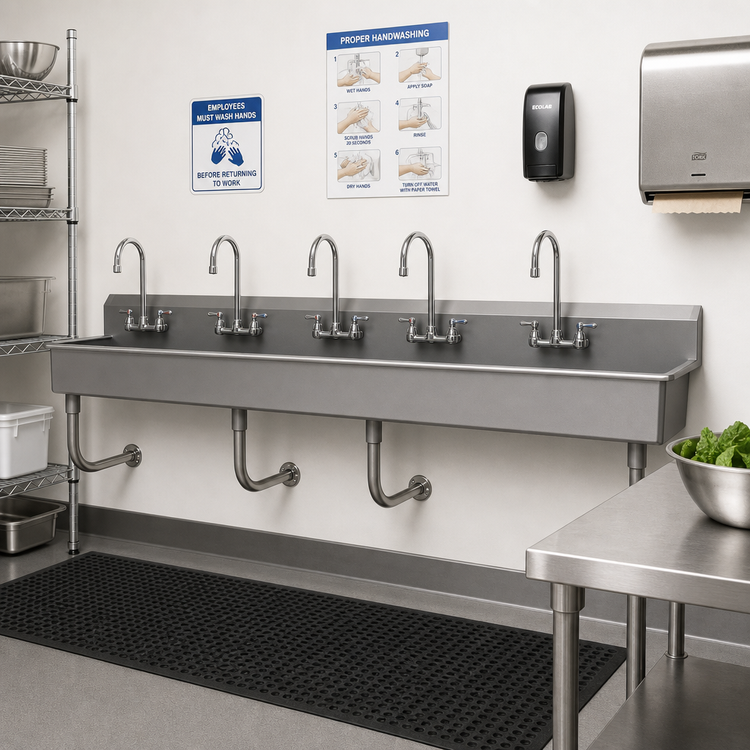

Advance Tabco 100" ADA Multi-Wash Hand Sink – 5 Station, Wall Mounted
Model FC-WM-100-ADA (sink only – faucets sold separately)Give staff and guests fast, convenient access to hand-washing with this heavy-duty, five-station stainless-steel sink. Built to Advance Tabco’s exacting standards, the unit installs flush to the wall, clears floor space for wheelchairs or cleaning equipment, and meets NSF sanitation and ADA accessibility requirements.
Why You’ll Love It

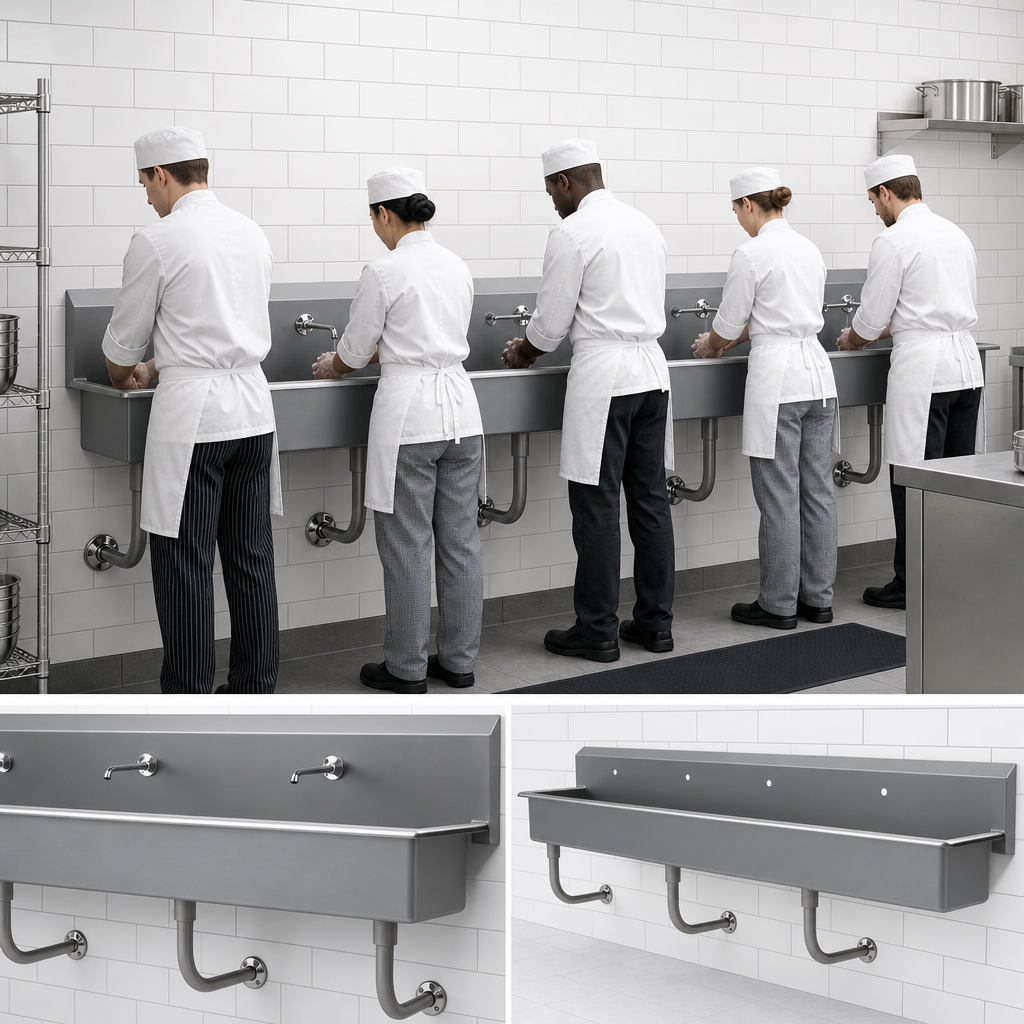

- Five user stations keep lines moving in high-traffic kitchens, schools, stadiums, and manufacturing plants.
- ADA-compliant 5" bowl depth and open knee clearance accommodate seated users.
- 8-1/2" high backsplash with five sets of 8"-on-center splash-mount faucet holes for effortless fixture selection.
- Rugged 14 gauge 304 stainless steel resists corrosion, dents, and everyday wear.
- 1-5/8" tubular stainless steel wall supports provide rock-solid stability and leave the floor unobstructed.
- Includes 3-1/2" K-6 rear basket drain for reliable debris capture and easy cleaning.
- Fully TIG-welded seams are blended to a satin finish for a professional look.
- NSF listed for food-service sanitation and safety.
Specifications
| Number of Stations | 5 |
|---|---|
| Overall Dimensions | 100" W × 19-1/2" D × 25-1/2" H |
| Bowl Dimensions (each) | 16" front-to-back × 5" deep |
| Backsplash Height | 8-1/2" |
| Faucet Holes | 5 sets, 8" O.C., pre-punched (1-1/4" dia.) |
| Drain | 3-1/2" rear basket drain (included) |
| Material / Gauge | 304 stainless steel, 14 ga. |
| Mounting Hardware | Stainless “Z” wall brackets & tubular supports |
| Certifications | NSF, ADA compliant |
Installation & Plumbing Tips
- Mount “Z” brackets 42-1/2" above finished floor, then slide sink down into place.
- Two rear supports lock into the wall for a rigid, wobble-free installation.
- Connect waste line to the included 3-1/2" basket drain; supply lines attach to the faucets you select.
- Compatible with wrist-blade, sensor, knee, or foot-valve 8" O.C. splash-mount faucets (not included).
Need faucet recommendations or rough-in drawings? Ask our product experts—we’re happy to help.
