Advance Tabco  |  SKU: FS-WM-100-ADA-F  |  UPC: 747545215635

Advance Tabco FS-WM-100-ADA-F Hand Sinks

$4,528.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

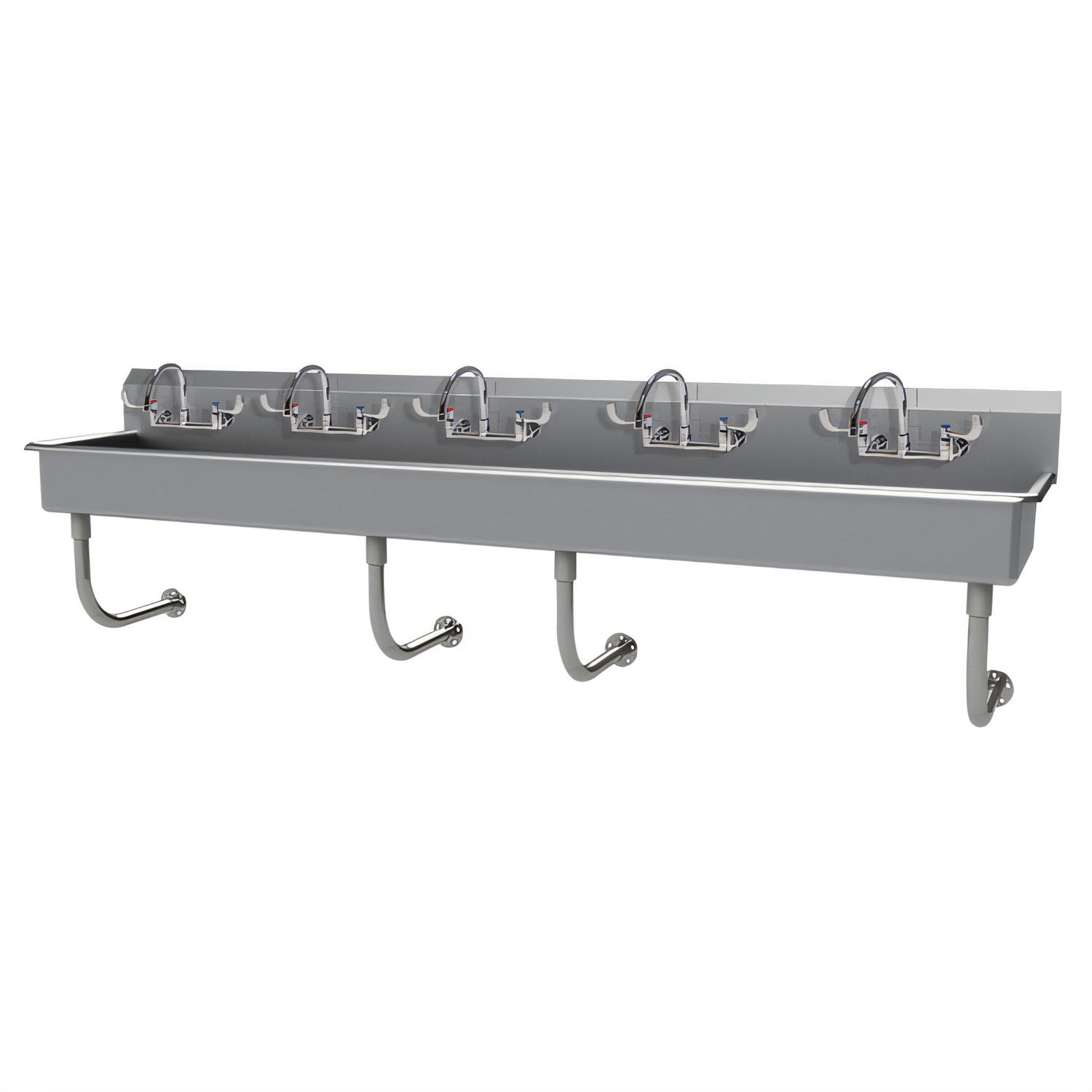

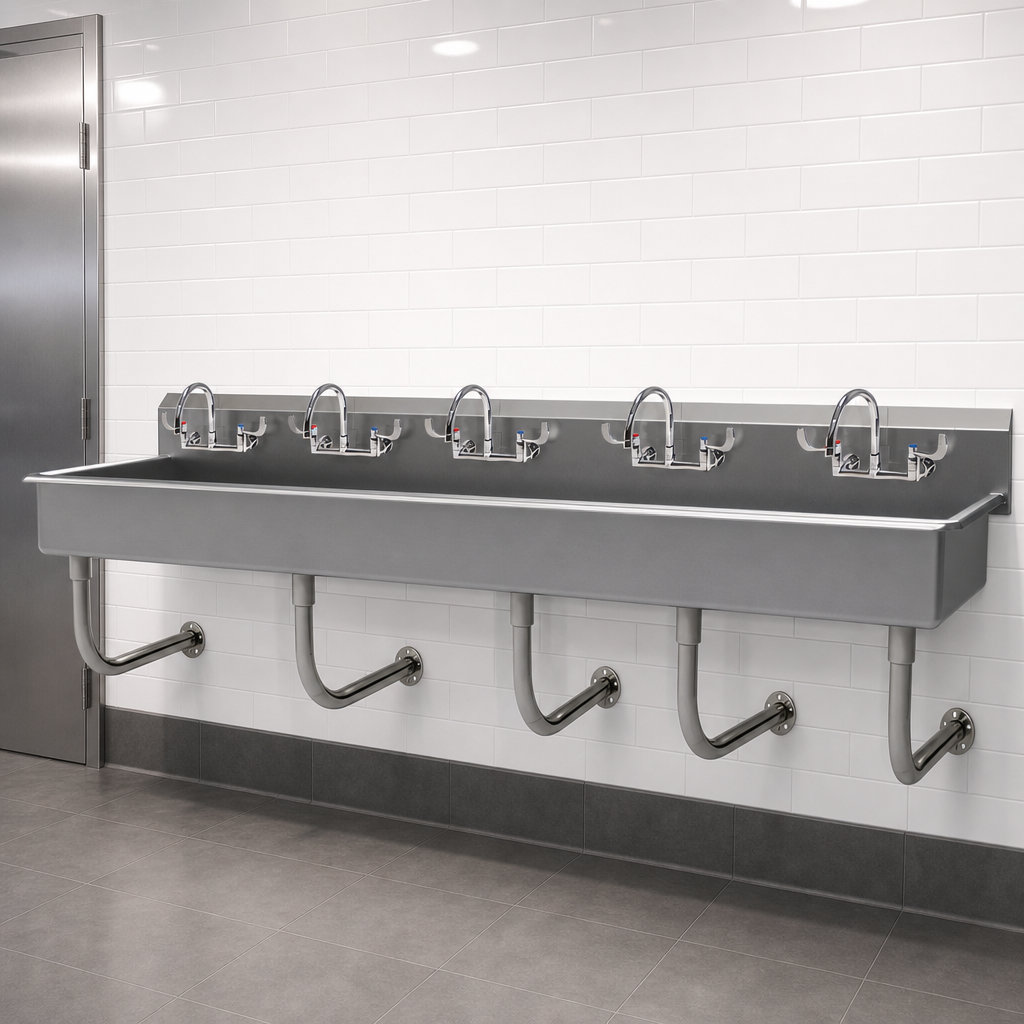

Advance Tabco 100" ADA Five-Station Wall-Mounted Multiwash Hand Sink

Model FC-WM-100-ADA-F | Includes (5) Wrist-Blade Gooseneck Faucets

Engineered for high-traffic hand-washing in schools, manufacturing plants, and food-service facilities, this Advance Tabco five-station sink delivers rugged durability, full ADA knee-clearance, and the hygiene benefits of touch-free wrist-blade activation – all in one space-saving wall mount design.

Why You’ll Love It

  • Five user stations keep service lines moving during peak periods.
  • ADA-compliant 5" deep bowl and open under-sink clearance for wheelchair access.
  • Heavy-duty 14 ga. type 304 stainless steel resists corrosion and stands up to daily sanitizing.
  • (5) 8 ½" high gooseneck faucets with easy-turn wrist blades – perfect for gloved or soiled hands.
  • Integral 8 ½" backsplash with pre-punched 8" on-center faucet holes for a watertight install.
  • Dual 3 ½" basket drains speed up water evacuation and simplify plumbing connections.
  • TIG-welded seams blended to a satin finish for a professional look that’s simple to clean.
  • Tubular stainless steel “Z” wall supports provide rock-solid mounting while preserving floor space.
  • NSF Listed for food-service use and Prop 65 compliant.

Technical Specs

Stations / Faucets 5 stations  |  Includes (5) wrist-blade manual faucets
Overall Dimensions 100" W × 19 ½" D × 25 ½" H (to rim)
Bowl Dimensions (each) 16" front-to-back × 5" deep
Backsplash Height 8 ½"
Faucet Hole Pattern (5) sets – 8" on center, splash-mount
Drain (2) 3 ½" rear basket drains with strainers
Material / Finish 14 ga. type 304 stainless steel, satin finish
Mounting Hardware Stainless steel “Z” brackets & tubular wall supports included
Certifications NSF Listed, ADA compliant, Prop 65

Easy Installation

The sink ships with factory-installed faucets, wall “Z” brackets, and detailed rough-in drawings. Mount brackets 42 ½" from the finished floor, slide the sink into place, connect water supplies and drains, and you’re ready for service.

California Prop 65 Notice: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

100.0in

Depth

19.5in

Shipping Weight

135.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Bowl Width (left to right)

20" & up

Style

wall mounted

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, includes (5) faucets with wrist blades, 100"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (5) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
