Advance Tabco  |  SKU: FS-WM-1-ADA  |  UPC: 747545211828

Advance Tabco FS-WM-1-ADA Hand Sinks

$2,413.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

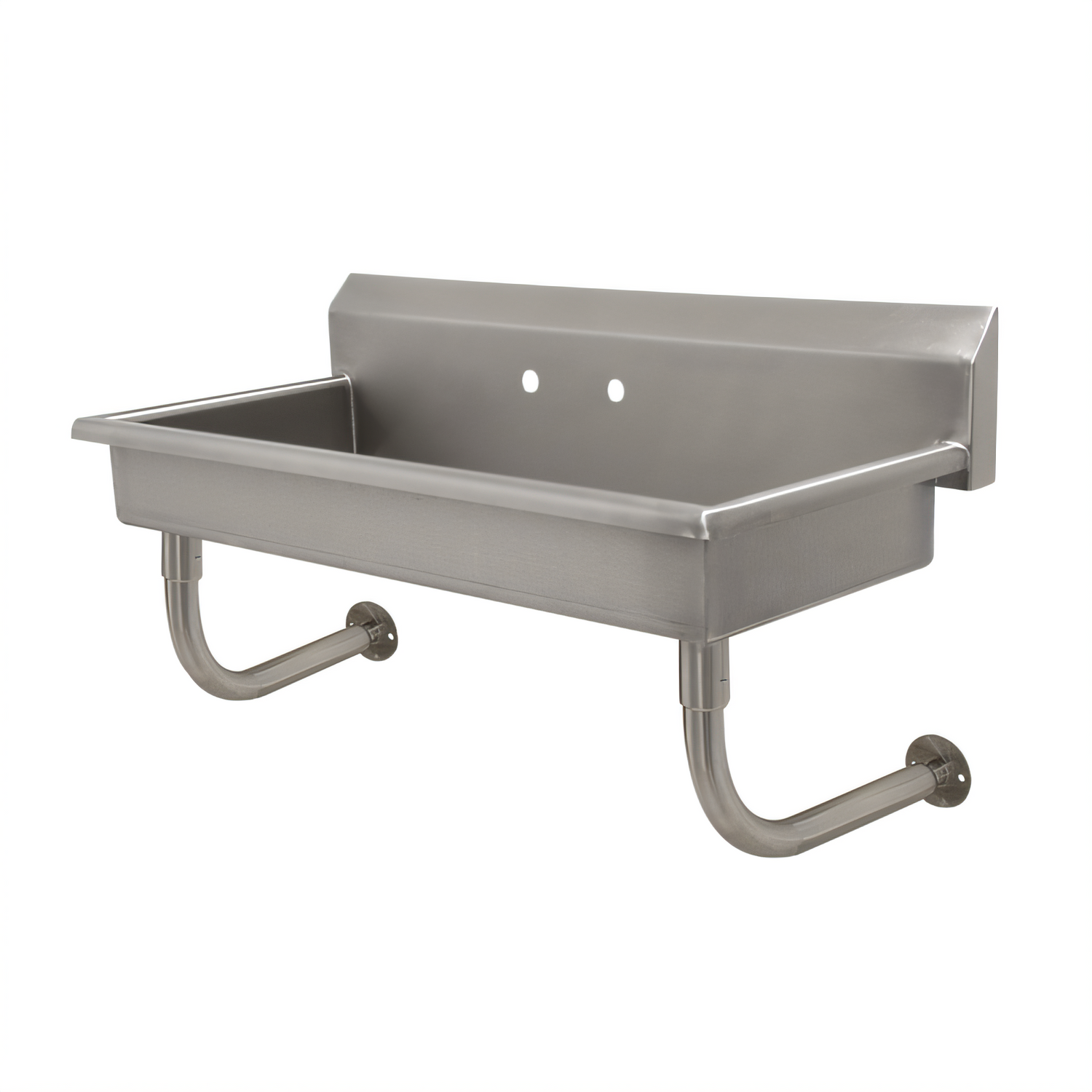

Advance Tabco FS-WM-1-ADA Wall-Mounted Service Sink – 40″

Single-station, ADA-compliant utility/hand sink – 14 ga. 304 SS, faucet ready

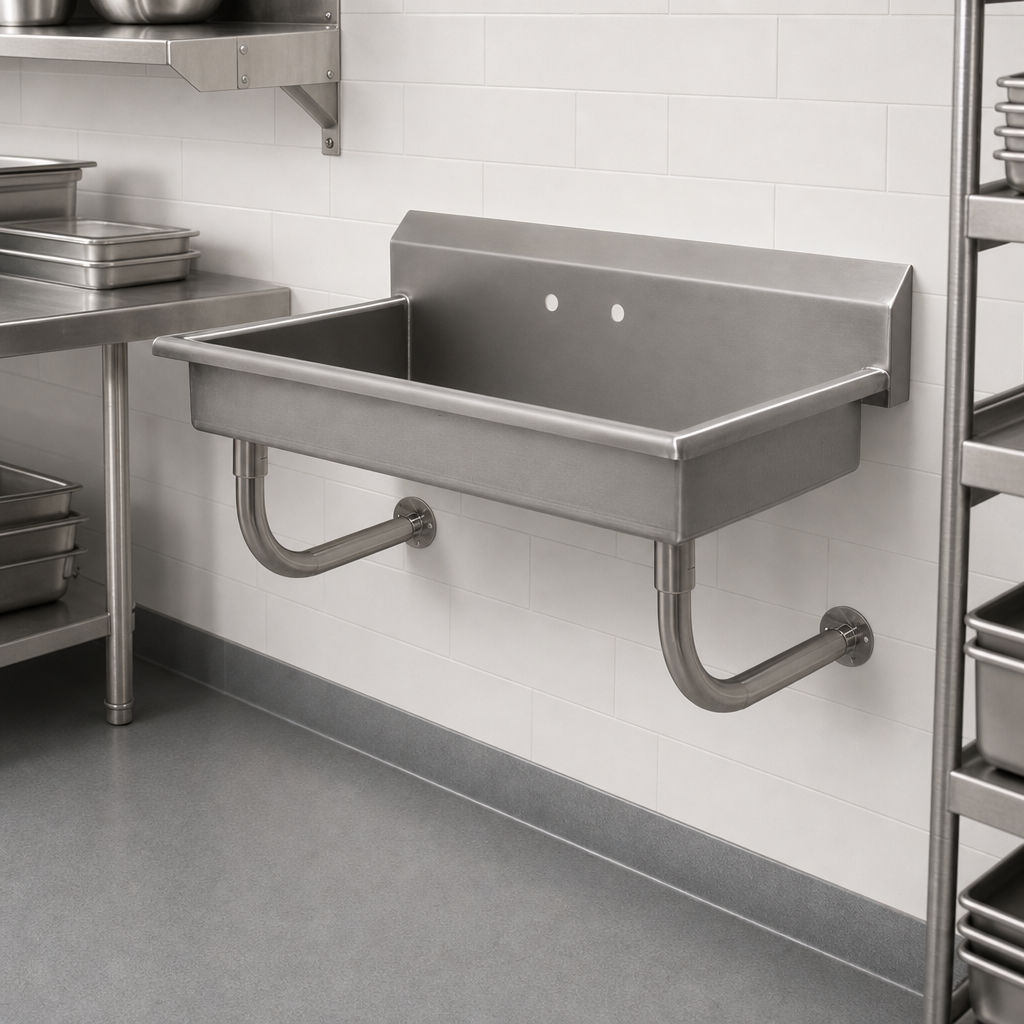

Built for heavy-duty commercial applications, the Advance Tabco FS-WM-1-ADA delivers uncompromising durability in a compact, wall-mounted design that meets ADA knee-clearance requirements. A generous 40 inch width and 5 inch deep bowl make this one-station sink perfect for janitorial closets, prep areas, laboratories, or any space where a rugged stainless steel service sink is required.

Key Features
  • 14 gauge type 304 stainless steel – resists corrosion, dents, and chemicals.
  • One-piece TIG-welded construction with satin-blended seams for a hygienic surface.
  • 37″ W × 16″ D × 5″ H bowl accommodates buckets, pitchers, and large ware.
  • 8½″ high backsplash with (1) set of 8″ on-center faucet holes – ready for your choice of splash-mount faucet (sold separately).
  • Includes K-6 3½″ rear basket drain with strainer plate.
  • (2) heavy-duty tubular stainless steel wall supports keep the area below clear for wheelchair access and easy floor cleaning.
  • (2) stainless steel “Z” brackets for secure wall anchoring.
  • NSF listed for food-service sanitation.
  • Fully ADA compliant when installed per guidelines.
  • Ships at just 77 lb for easier handling on site.
Specifications
Model FS-WM-1-ADA
Overall Dimensions 40″ W × 19½″ D × 25½″ H
Bowl Dimensions 37″ W × 16″ D × 5″ H
Backsplash Height 8½″
Material / Thickness Type 304 stainless steel / 14 gauge (2.0 mm)
Faucet Provision (2) 1⅛″ holes, 8″ on-center (splash mount)
Drain 3½″ rear basket drain (K-6) with strainer
Mounting Wall-mounted via (2) stainless “Z” brackets & tubular supports
Shipping Weight ≈ 77 lb  / 15 cu. ft.
Listings & Compliance NSF, ADA
What’s in the Box
  • FS-WM-1-ADA stainless steel sink body
  • (2) stainless steel “Z” wall mounting brackets
  • (2) tubular stainless steel wall supports
  • K-6 3½″ rear basket drain with removable strainer
  • Installation instructions

Faucet, P-trap, supply lines, and mounting hardware for wall brackets are not included.

Perfect For
  • Janitorial & mop closets
  • Commercial kitchens & prep areas
  • Laboratories & healthcare facilities
  • Schools, stadiums, and public venues
  • Any location requiring ADA-accessible hand or service washing

Install according to local plumbing codes and ADA guidelines for proper knee clearance: 34″ maximum rim height, 27″ minimum vertical clearance, and 30″ minimum horizontal clearance beneath the bowl.

California Prop 65 Notice: Adding a faucet to this sink may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.5in

Shipping Weight

77.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Faucet

faucet not included

Bowl Height (rim to drain)

5" deep

Specifications

Service Sink, splash mount faucet provision, wall mounted, 40"W x 19-1/2"D x 25-1/2"H (overall), 37"W x16"D x 5" deep (bowl size), 8-1/2"H backsplash, punched with (1) set of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
