Advance Tabco  |  SKU: FS-WM-1-ADA-F  |  UPC: 747545215734

Advance Tabco FS-WM-1-ADA-F Hand Sinks

$2,521.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

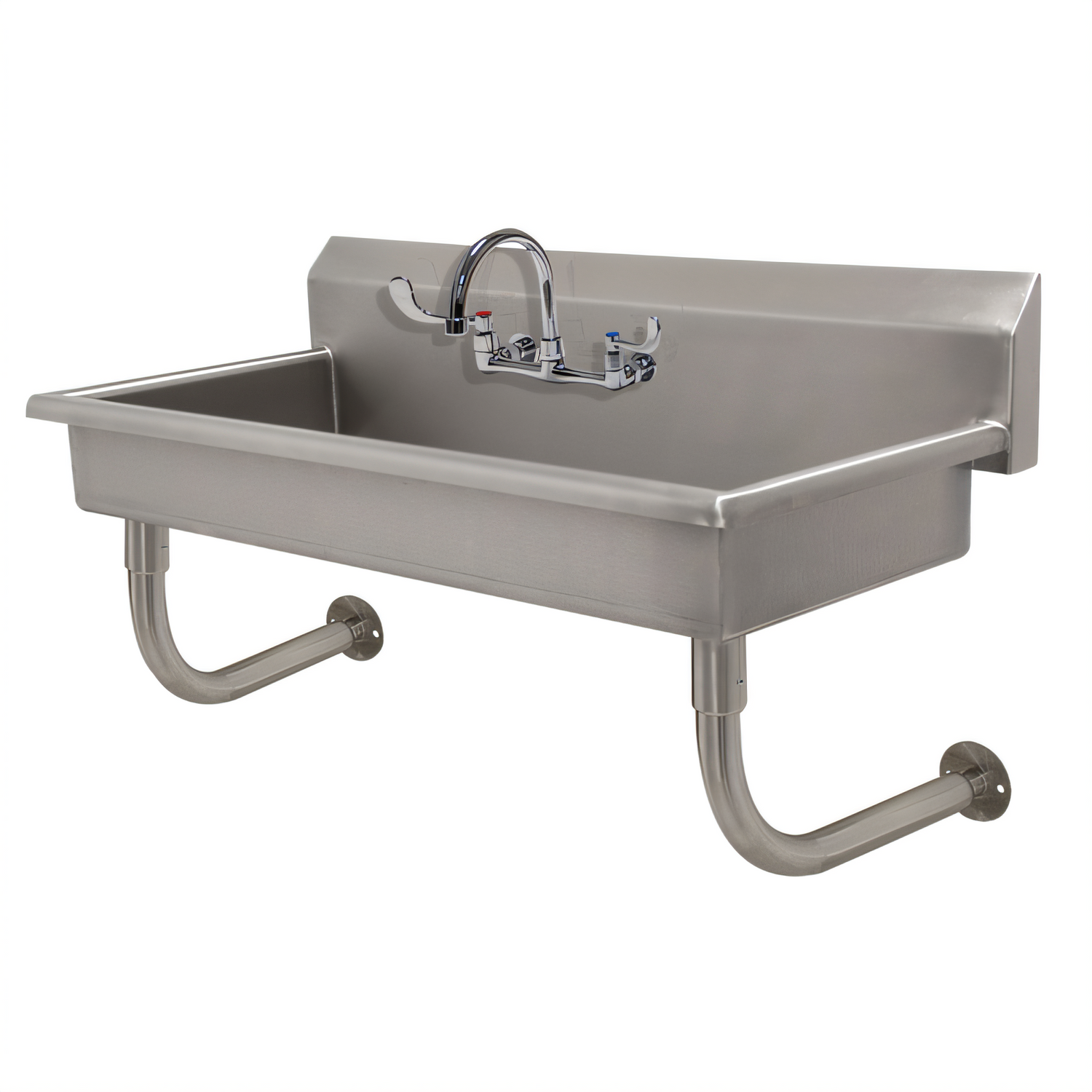

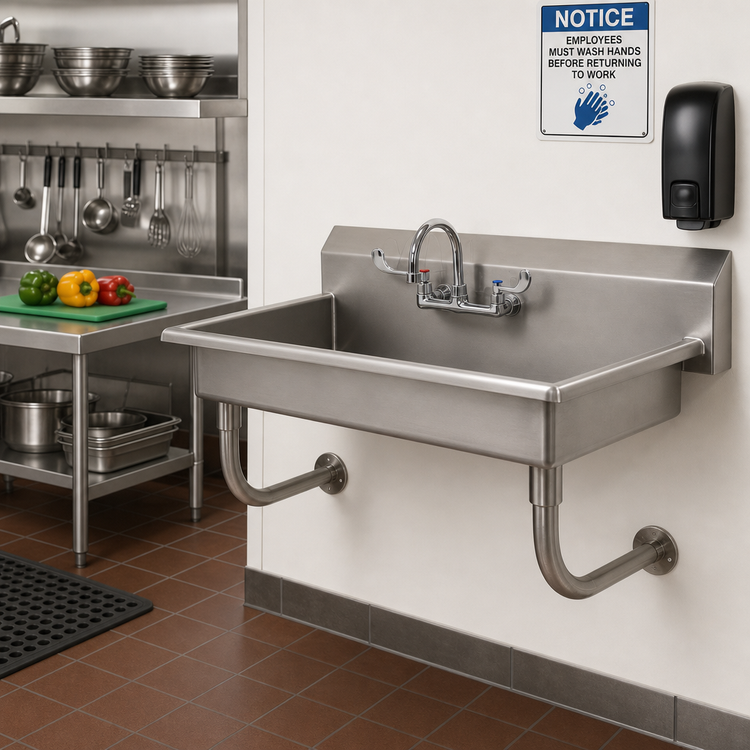

Advance Tabco FS-WM-1-ADA-F Wall-Mounted Service Sink

1-Station • 14-Gauge 304 Stainless Steel • Faucet & Drain Included

Built to handle the rigors of commercial use while meeting ADA accessibility requirements, this wall-mounted service sink from Advance Tabco delivers long-lasting performance in a compact 40 inch footprint. The package arrives complete with a splash-mount gooseneck faucet featuring wrist blades, stainless steel wall supports, and a 3 ½ inch rear basket drain—so you can install and start using the sink right away.

Key Features

  • Heavy-duty 14 ga. type 304 stainless steel construction resists corrosion and dents.
  • One-piece TIG-welded bowl for a hygienic, easy-clean surface.
  • Generous 37" W × 16" D × 5" deep bowl handles bulky containers and mop buckets.
  • 8 ½" high integral backsplash protects walls from splashes.
  • Pre-punched (1) set of 8" O.C. faucet holes; splash-mount gooseneck faucet with wrist handles included.
  • (2) 1 5⁄8" Ø tubular stainless steel wall brackets provide full clearance underneath for wheelchair access.
  • 3 ½" rear basket drain with strainer included for fast, reliable drainage.
  • NSF listed for sanitation and ADA compliant when installed per guidelines.

Specifications

Overall Dimensions 40" W × 19 ½" D × 25 ½" H
Bowl Size 37" W × 16" D × 5" H
Backsplash Height 8 ½"
Faucet Centers 8" on-center (splash mount)
Material & Gauge 14 ga. type 304 stainless steel
Drain Opening 3 ½" rear basket drain (included)
Wall Support (2) 1 5⁄8" Ø tubular 304 stainless steel brackets
Net Weight 77 lb
Certifications NSF, ADA compliant

Ideal Applications

  • Janitorial & utility rooms
  • Commercial kitchens & food prep areas
  • Laboratories & maintenance shops
  • Healthcare & educational facilities

What’s in the Box

  • FS-WM-1-ADA-F one-station service sink

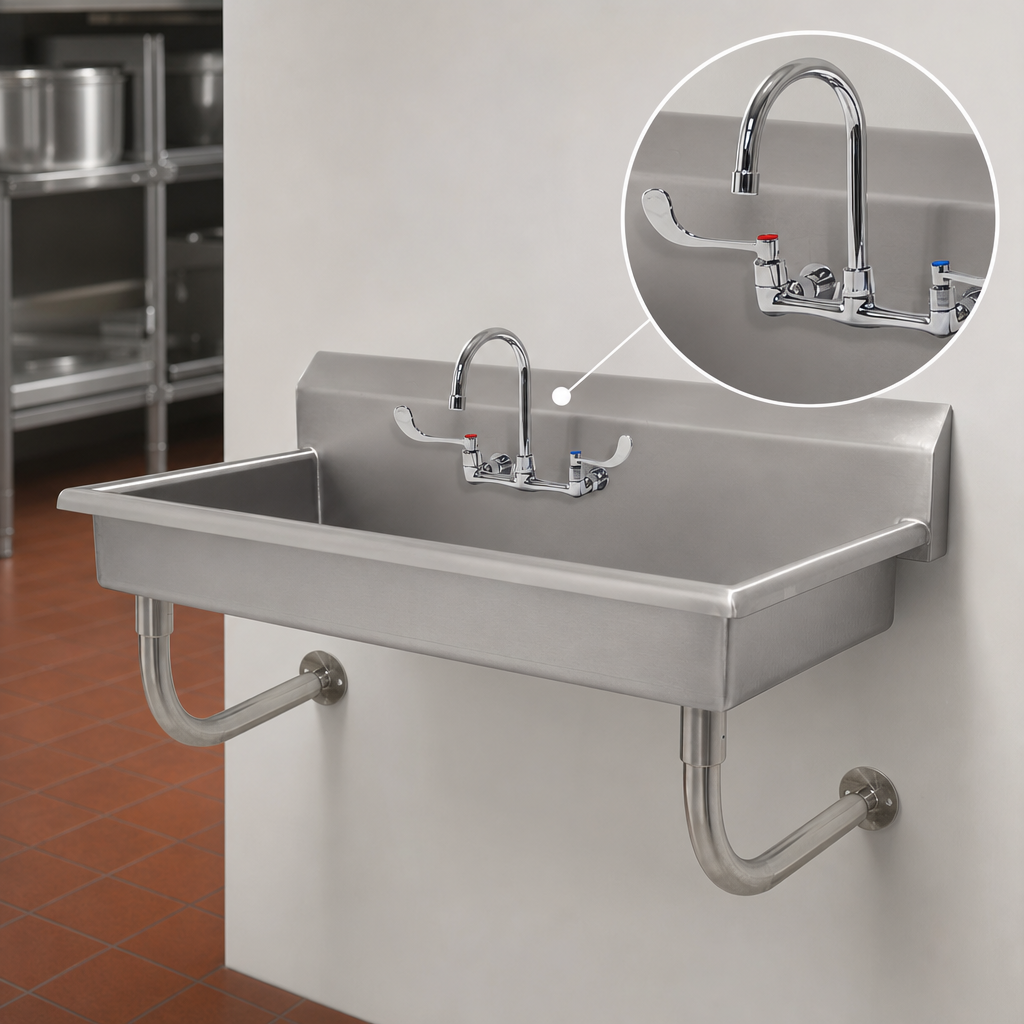

  • K-161-LU 6" gooseneck faucet with wrist blades (8" O.C.)
  • (2) stainless steel “Z” wall brackets
  • 3 ½" rear basket drain with strainer
  • Installation hardware & instructions

Installation Notes

Mount “Z” brackets 42 ½" above finished floor to the top of the bracket, then slide sink onto brackets and secure. Connect 3⁄8" NPT water supplies to the faucet and plumb drain to waste line. Follow all local codes for ADA clearance (minimum 30" clear width underneath).

Certifications & Compliance

  • NSF/ANSI Standard 2 – Food Equipment
  • ADA compliant when installed to section 306 & 606 of the ADA Standards for Accessible Design
PROP 65 WARNING: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.5in

Shipping Weight

79.0lbs

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, includes faucet with wrist blades, 40"W x 19-1/2"D x 25-1/2"H (overall), 37"W x16"D x 5" deep (bowl size), 8-1/2"H backsplash, punched with (1) set of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
