Advance Tabco  |  SKU: FS-FM-80KV  |  UPC: 747545215246

Advance Tabco FS-FM-80KV Hand Sinks

$5,316.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Optional mixing valve Parts list Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

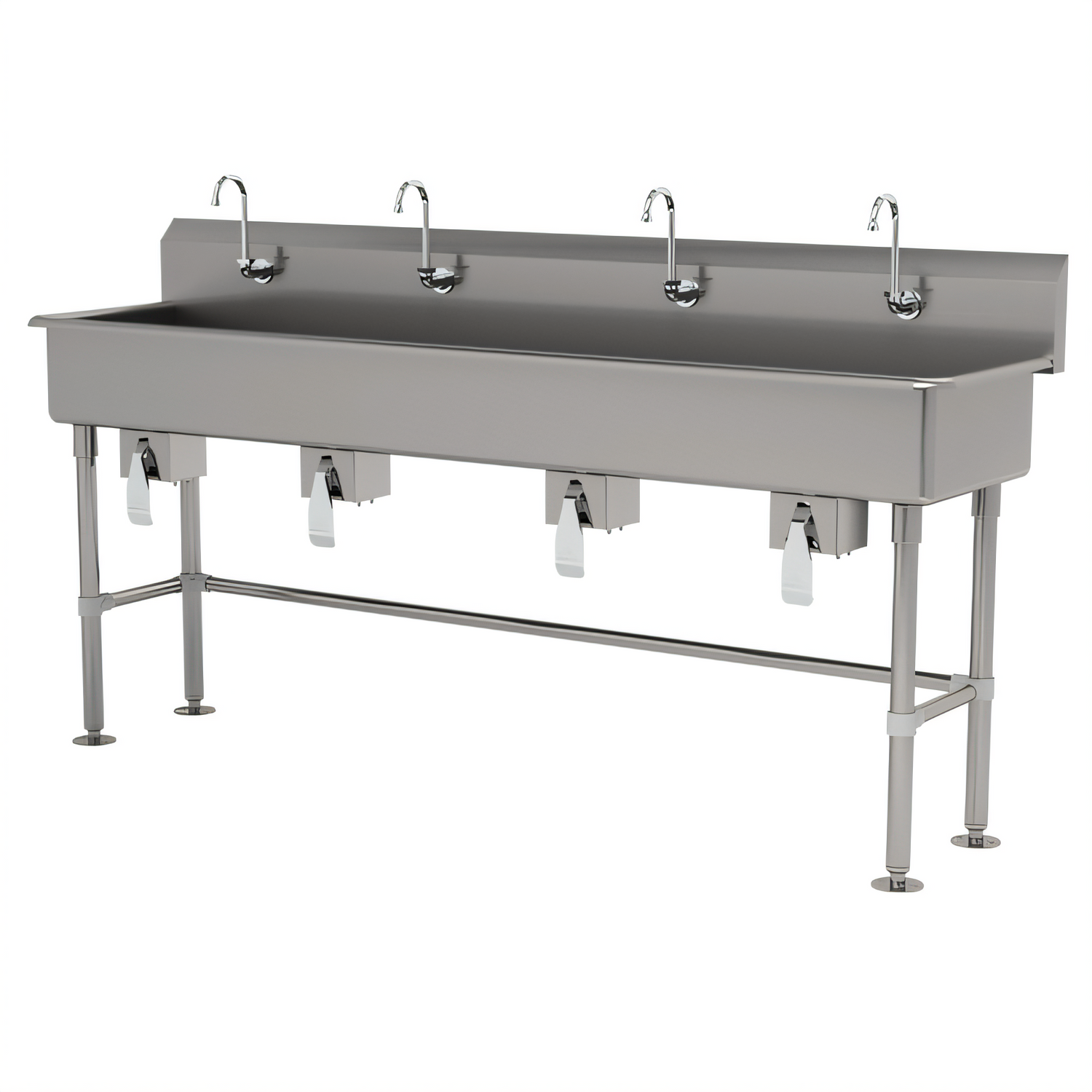

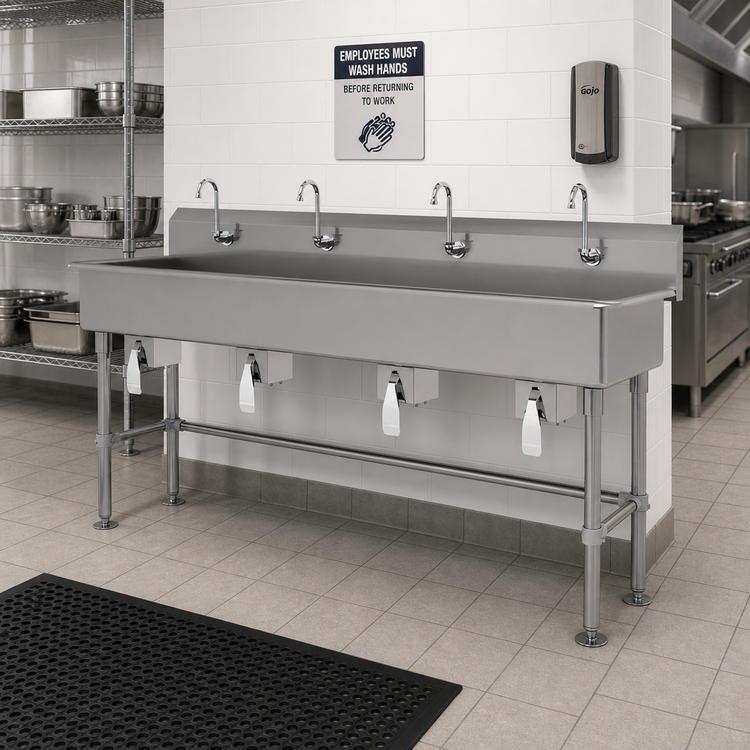

Advance Tabco FS-FM-80KV Multi-Wash Hand Sink

Four-Station • Floor Mounted • Knee Operated

Built for the busiest prep and production areas, the 80" Advance Tabco FS-FM-80KV delivers four completely hands-free wash stations in one rugged, free-standing unit. Knee valves activate the water flow, minimizing touch points and maximizing sanitation, while the heavy-duty 14 gauge, type 304 stainless steel construction stands up to years of commercial abuse.

Key Features

  • Four single-hole stations with included 3 ½" gooseneck spouts
  • (4) 7-PS-32 knee valves for completely touch-free operation
  • 16" front-to-back × 8" deep bowl helps contain splashes
  • 8 ½" high integral backsplash with stainless steel “Z” mounting brackets
  • 1 5⁄8" Ø tubular 304 SS legs with side & rear adjustable cross-bracing and flanged feet
  • TIG-welded seams blended to a uniform satin finish
  • K-6 rear basket drain with 3 ½" strainer included
  • NSF listed; faucet components meet NSF/ANSI 61 Section 9 & AB1953 lead-free requirements

Specifications

Model FS-FM-80KV
Stations 4
Overall Dimensions 80" W × 19 ½" D × 42 ½" H
Bowl Size (each) 16" F-B × 8" Deep
Backsplash Height 8 ½"
Material / Gauge 14 ga. Type 304 Stainless Steel
Legs / Feet 1 5⁄8" Ø 304 SS tubular legs, flanged feet
Faucet Holes (4) single-hole punches
Valves Included (4) 7-PS-32 knee valves
Spouts Included (4) K-121 gooseneck spouts
Drain K-6 3 ½" basket drain, 1 ½" IPS
Shipping Weight ≈ 160 lb
Certifications NSF

Perfect For

  • High-volume commercial kitchens & commissaries
  • Food processing and packaging lines
  • Brewery, winery & beverage production areas
  • Laboratories & pharmaceutical clean rooms
  • School, stadium & institutional locker rooms

What’s Included

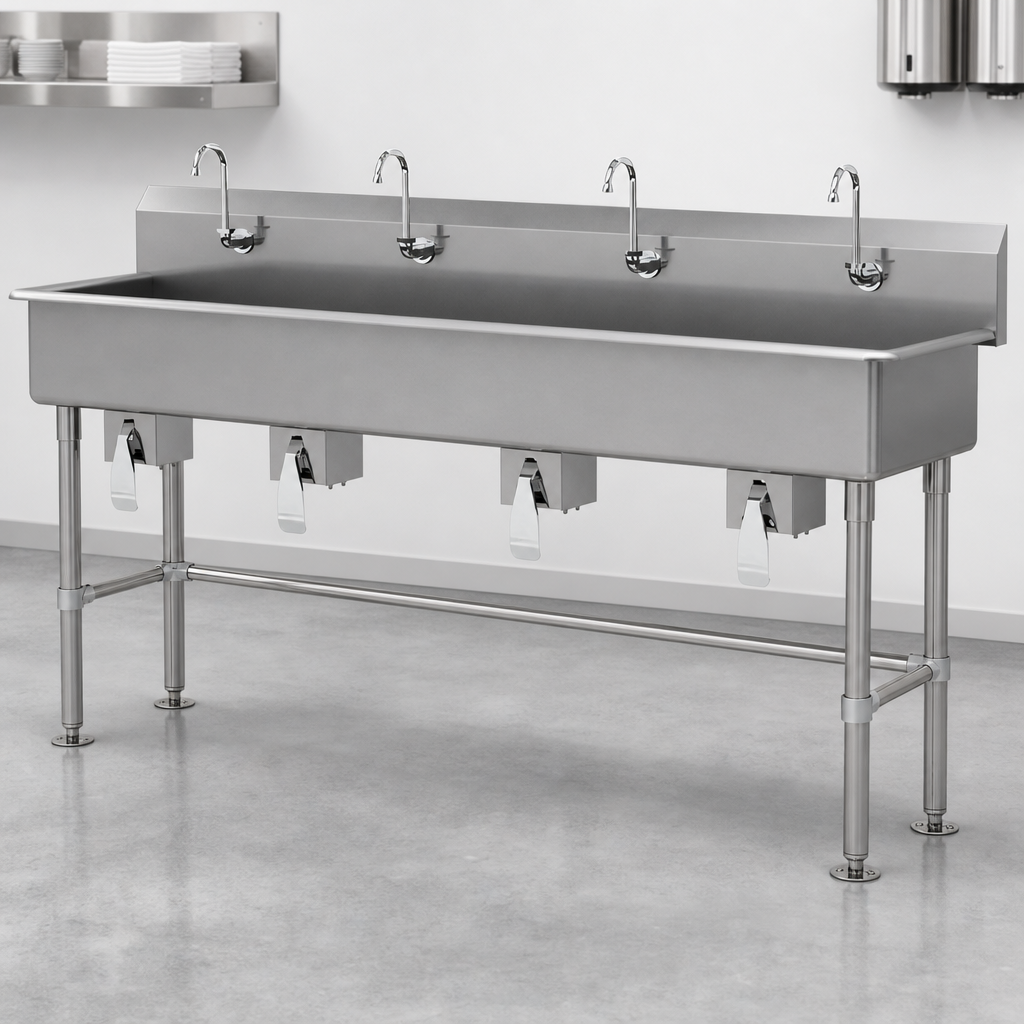

  • (1) 80" four-station sink body with integrated backsplash
  • (4) 7-PS-32 knee valves with mounting hardware
  • (4) K-121 3 ½" gooseneck spouts
  • (1) K-6 rear basket drain with strainer plate
  • (2) Stainless steel “Z” wall brackets

Popular Accessories (sold separately)

  • K-425 thermostatic mixing valve for tempered water supply
  • K-13 stainless steel wall-mount soap dispenser
  • K-411 replacement strainer plate
  • TA-19 adjustable stainless steel flanged bullet feet
California Prop 65 Notice: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Looking for a different size or configuration? Ask about Advance Tabco Smart Fabrication™ custom sinks.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

80.0in

Depth

19.5in

Shipping Weight

160.0lbs

Style

freestanding

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, with knee valve, 80"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF
