Advance Tabco FS-FM-80FV Hand Sinks
Description

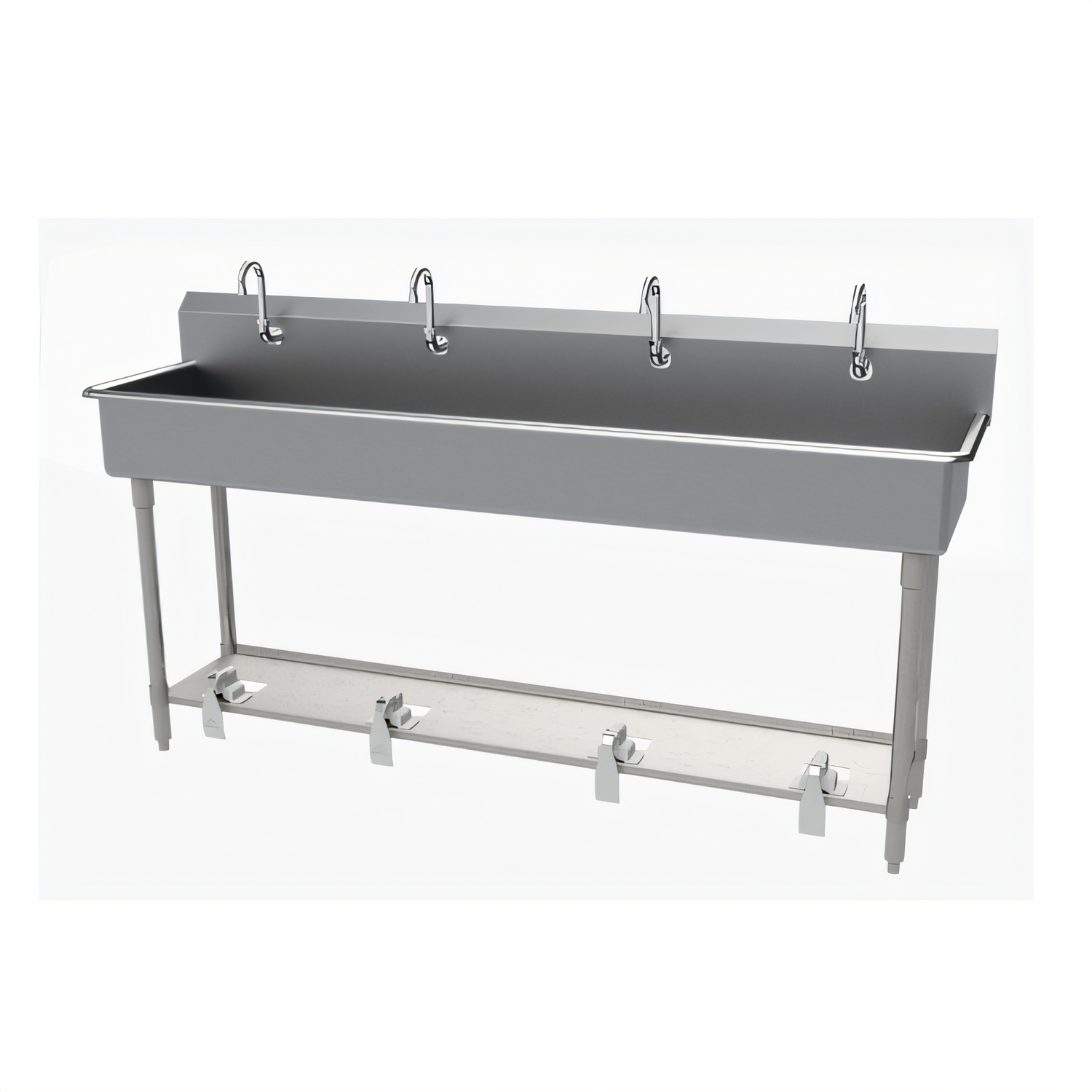

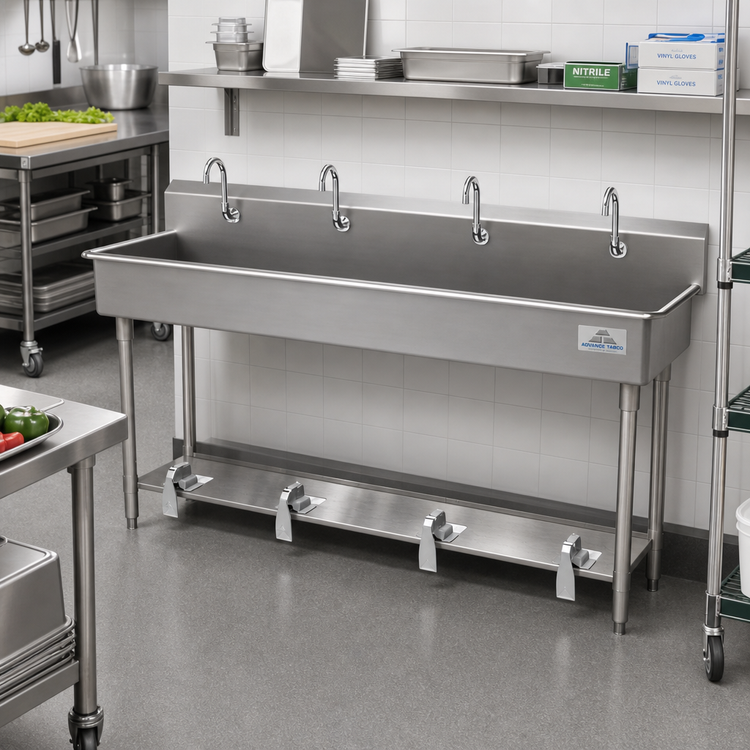

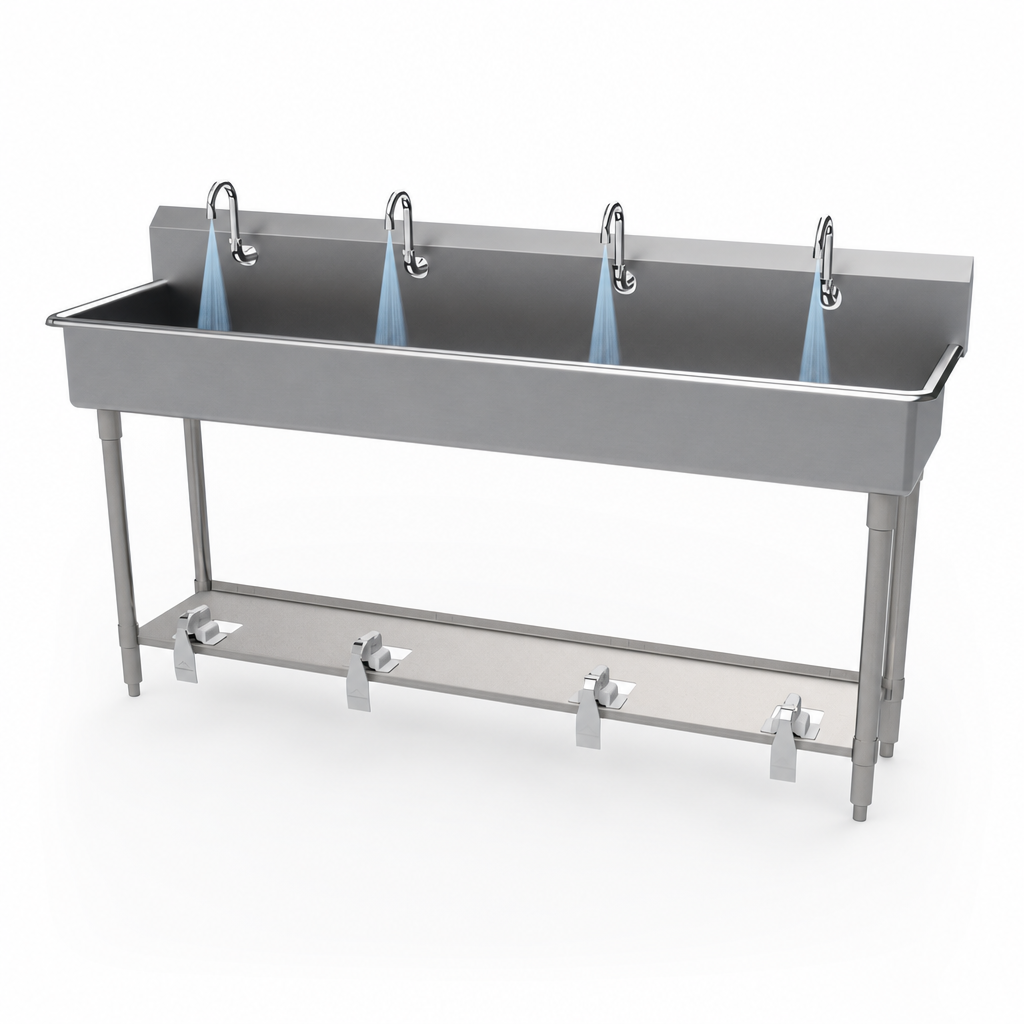

Advance Tabco FS-FM-80FV 80" Four-Station Toe-Push Hand Sink
14-Gauge 304 Stainless Steel • Splash-Mount Gooseneck Faucets • NSFEngineered for busy commercial environments, the FS-FM-80FV delivers reliable, hands-free hand-washing for up to four users at once. Heavy-duty 14-gauge stainless steel, integral toe-push valves and a generous 80 inch length make it the perfect multi-station solution for foodservice, healthcare and industrial sanitation points.
Key Benefits
- Hands-free control — each station features a K-104 toe-push mixing valve to minimize cross-contamination.
- Four pre-punched splash-mount faucet holes supplied with K-121 3 ½" gooseneck spouts.
- Extra-deep 8" bowls (16" front-to-back) to reduce splash-out during vigorous washing.
- 8 ½" high integral backsplash protects surrounding walls and speeds clean-up.
- Rugged 14-gauge type 304 stainless steel construction resists corrosion and denting.
- 1 5⁄8" O.D. tubular stainless legs with adjustable flanged feet and pedal support bar for rock-solid stability.
- All TIG-welded seams are satin-finished to blend with adjacent surfaces.
- NSF certified; faucet components meet NSF 61/9 and AB1953 lead-free requirements.
What’s Included
- (1) 80" four-station floor-mounted sink body
- (4) K-104 toe-push valves with pedal brackets
- (4) K-121 splash-mount gooseneck spouts
- (1) K-6 3 ½" rear basket drain with strainer
- Stainless steel tubular legs, rear support shelf & adjustable flanged bullet feet
Technical Specifications
| Model | FS-FM-80FV |
|---|---|
| Number of Stations | 4 |
| Overall Dimensions | 80" W × 19 ½" D × 42 ½" H (to top of backsplash) |
| Bowl Size (each) | 16" front-to-back × 8" deep |
| Backsplash Height | 8 ½" |
| Material & Gauge | 14-ga Type 304 stainless steel |
| Legs | 1 5⁄8" O.D. stainless tubes with flanged feet |
| Activation | Toe-push valves (hands-free) |
| Drain | 3 ½" rear basket drain, 1 ½" IPS outlet |
| Approximate Weight | 168 lb |
| Certifications | NSF, Lead-Free (NSF 61/9) |
Ideal Applications
- High-volume restaurant prep areas & commissaries
- Food-processing and packaging plants
- Hospitals, laboratories & clean rooms
- School cafeterias, stadiums & event venues
Need a different length, ADA configuration or additional accessories such as wall-mount soap dispensers or strainer plates? Contact us for custom Advance Tabco fabrication options.
