Advance Tabco FS-FM-80-ADA Hand Sinks
Description

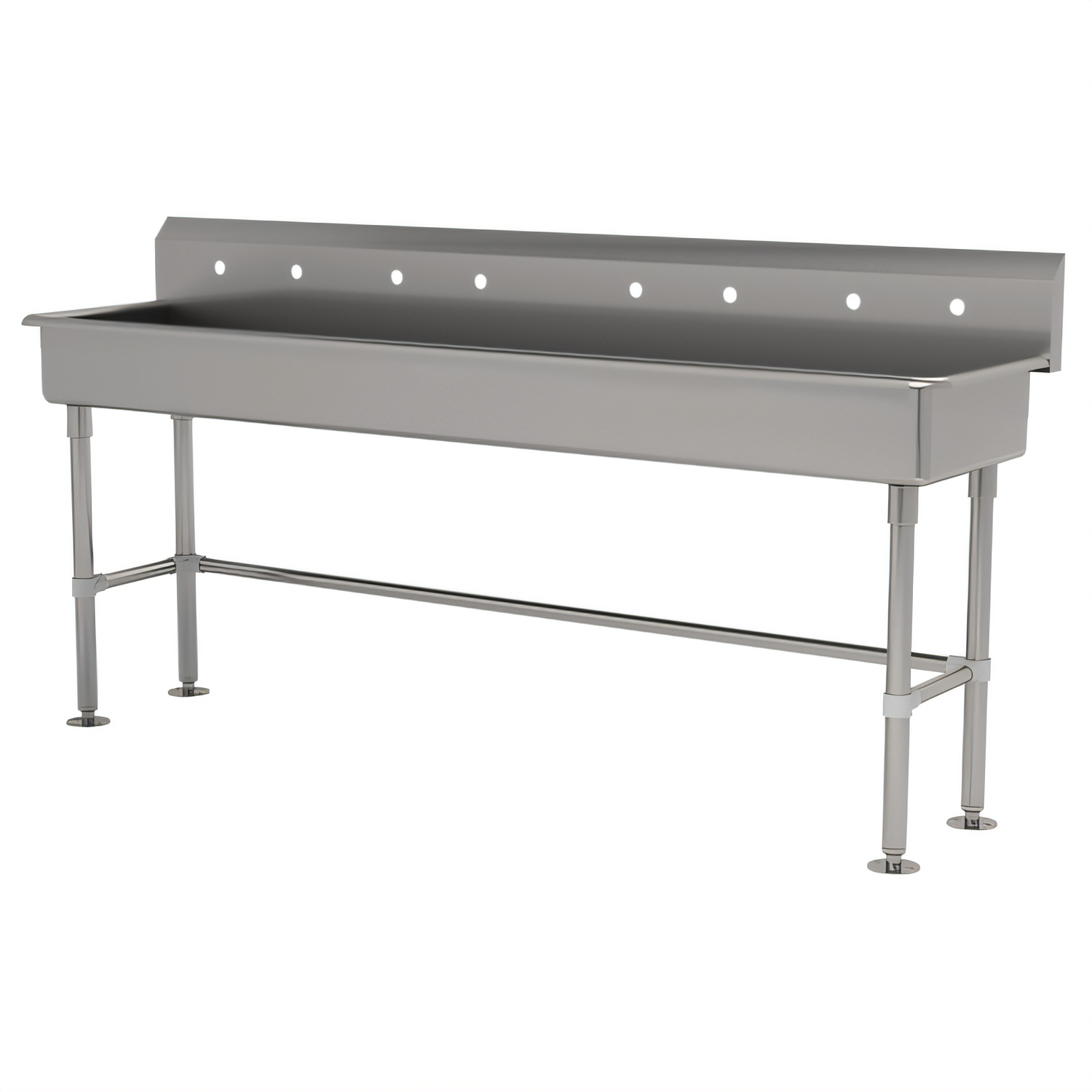

Advance Tabco 80" ADA Multi-Wash Hand Sink – 4 Station
Model FS-FM-80-ADA | 14-Gauge 304 Stainless Steel | Sink Only – Faucets Sold SeparatelyBuilt for demanding, high-traffic environments, this free-standing Advance Tabco multi-wash sink offers four simultaneous hand-washing stations in a compact footprint. Its rugged, all-stainless construction, ADA compliant bowl depth and NSF listing make it a smart solution for schools, cafeterias, healthcare facilities and anywhere impeccable hygiene is essential.
Key Benefits

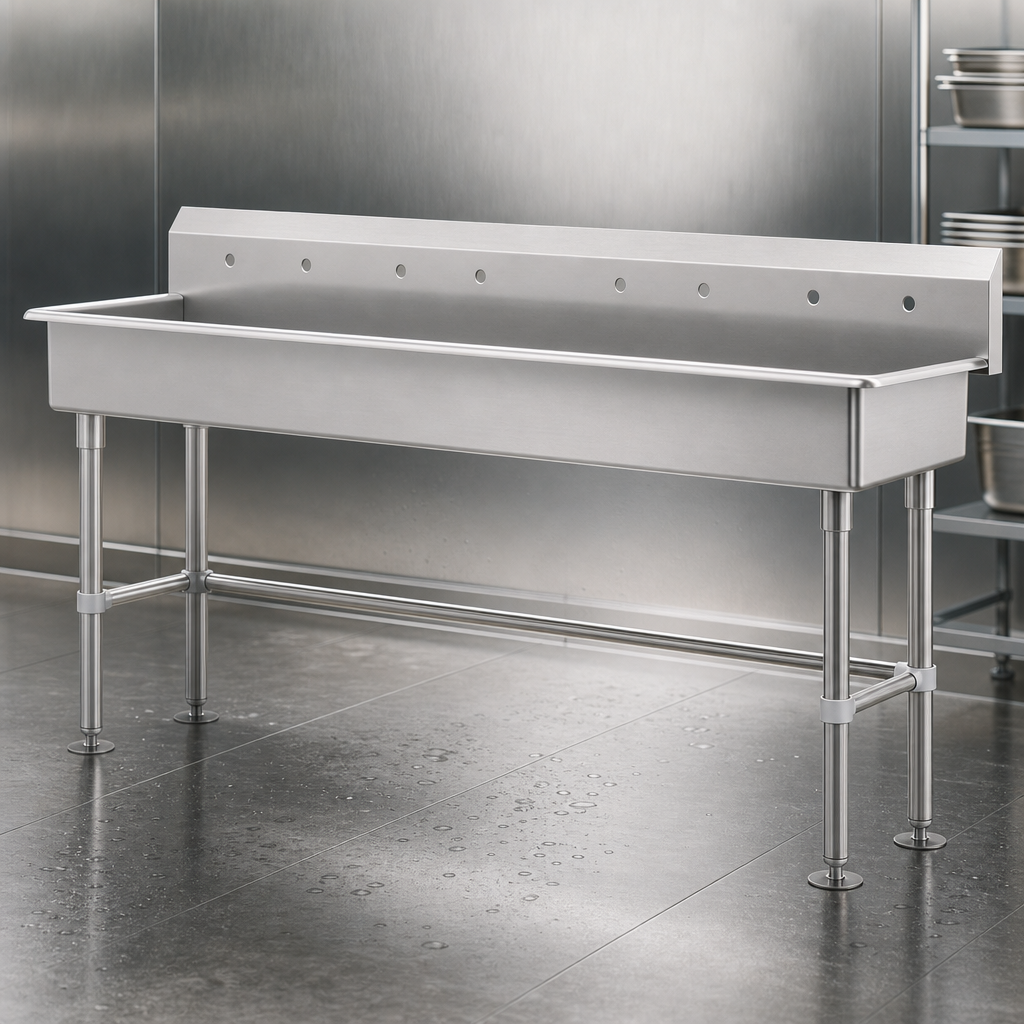

- Heavy-duty 14 ga. type 304 stainless steel top and bowl withstand daily commercial use.
- 80" wide, four-station configuration speeds up hand-washing and reduces wait times.
- Ergonomic 5" deep x 16" front-to-back bowls meet ADA requirements for reach and clearance.
- 8-1/2" high backsplash guards walls and arrives pre-punched with four 8" O.C. faucet hole sets for splash-mount gooseneck faucets.
- Includes a 3-1/2" rear basket drain with strainer to capture solids and keep plumbing clear.
- Free-standing base features 1-5/8" tubular stainless steel legs, adjustable cross-bracing and flanged feet for secure floor mounting.
- Stainless steel “Z” wall brackets supplied for extra support when installed against a wall.
- NSF listed for food-service sanitation and fully ADA compliant for accessible design.
Faucets, supply lines and P-trap are not included and must be ordered separately. Compatible with any 8" on-center splash-mount faucet set.
Technical Specifications
| Overall Width | 80" |
|---|---|
| Overall Depth | 19 1/2" |
| Overall Height | 42 1/2" |
| Working Height | 34" |
| Bowl Size (each) | 16" F/B × 5" Deep |
| Number of Stations | 4 |
| Backsplash Height | 8 1/2" |
| Faucet Punching | (4) Sets – 8" O.C. |
| Drain Opening | 3 1/2" rear basket drain (included) |
| Material Thickness | 14 gauge |
| Material Type | 304 stainless steel |
| Certifications | NSF, ADA |
| Approx. Shipping Weight | 130 lb |
Why Choose Advance Tabco?
- TIG-welded seams are blended for a sanitary, easy-clean satin finish.
- USA-made quality backed by factory support and decades of fabrication expertise.
- Trusted by food-service professionals, laboratories and institutions worldwide.
