Advance Tabco FS-FM-60FV Hand Sinks
Description

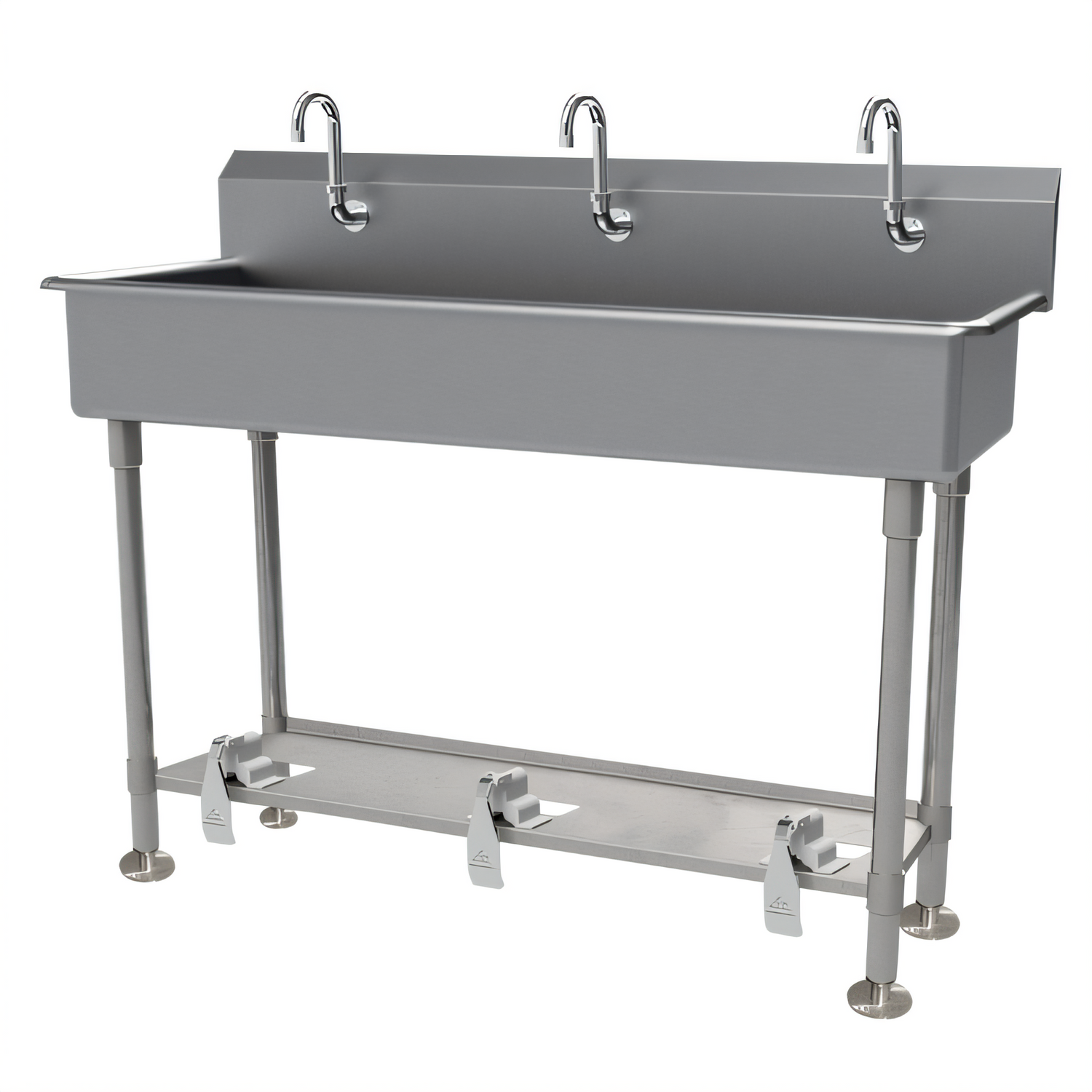

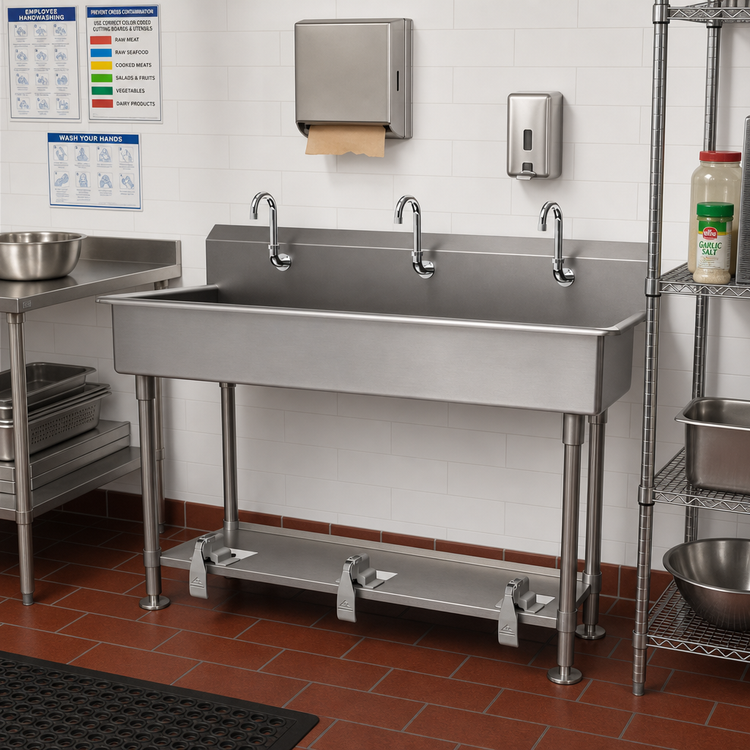

Advance Tabco FS-FM-60FV Multi-Wash Hand Sink
3-Station • Floor Mounted • Toe-Push OperatedProvide fast, sanitary hand-washing for up to three users at once with this heavy-duty 60" Advance Tabco multi-station sink. Hands-free toe pedals, all-welded 14 gauge 304 stainless steel and NSF certification make it the perfect choice for food production areas, medical labs, manufacturing plants and any environment where hygiene and durability are non-negotiable.
Why You’ll Love It
- Hands-free operation – three K-104 toe-push valves with matching gooseneck spouts keep hands off the controls.

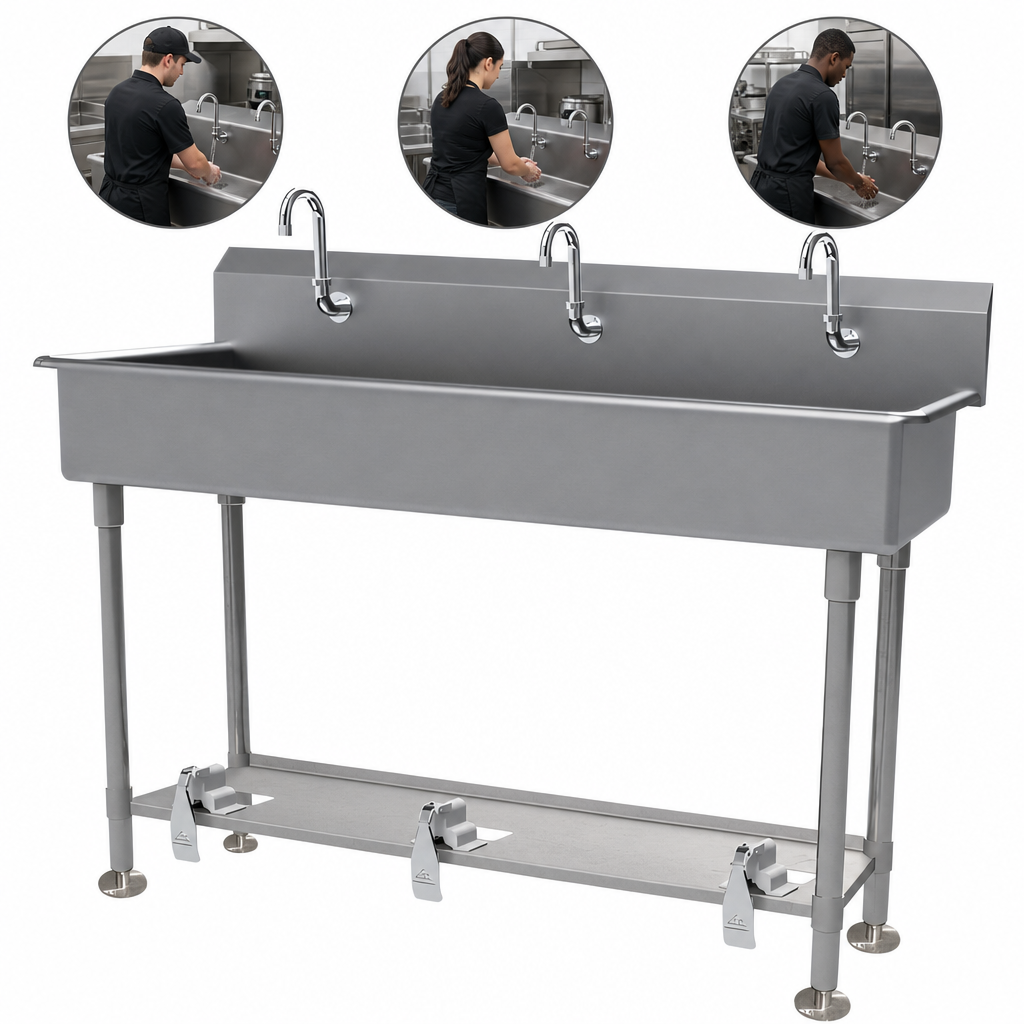

- Room for three – 60" wide trough design eliminates wait lines during peak shifts.
- Industrial strength – 14 ga. type 304 stainless steel resists dents, corrosion and harsh cleaners.
- Clean, splash-free zone – 8-1/2" high backsplash contains water, while the 3-1/2" basket drain removes debris.
- Rock-solid support – 1-5/8" tubular stainless legs with flanged feet and a pedal support bar for zero flex.
- Ships ready to plumb – faucet holes pre-punched, valves, spouts, drain and wall “Z” brackets included.
- NSF listed – meets rigorous sanitation standards for commercial installations.
Technical Specifications
| Model | FS-FM-60FV |
|---|---|
| User Capacity | 3 Persons |
| Overall Dimensions | 60" W × 19-1/2" D × 42-1/2" H (to top of backsplash) |
| Bowl Size (interior) | 60" W × 16" F-B × 8" Deep |
| Backsplash Height | 8-1/2" |
| Material & Finish | 14 ga. 304 Stainless Steel, TIG-welded, satin finish |
| Faucet / Valve Type | (3) Splash-mount single-hole gooseneck spouts with K-104 toe-push valves |
| Drain | K-6 3-1/2" rear basket drain, 1-1/2" IPS outlet |
| Legs & Feet | 1-5/8" Ø tubular 304 SS legs, flanged feet; adjustable pedal support bar |
| Weight | 140 lb. (shipping) |
| Certifications | NSF, NSF/ANSI 61 Section 9 (faucets) |
What’s in the Box
- Advance Tabco FS-FM-60FV three-station sink
- (3) K-104 stainless toe-push valves
- (3) K-121 splash-mount 3-1/2" gooseneck spouts
- K-6 rear basket drain & strainer plate
- (2) Stainless “Z” wall brackets
- Integrated pedal support bar
Ideal Applications
- Food & beverage processing facilities
- Commissary and central kitchens
- Pharmaceutical & biotech labs
- Industrial & manufacturing plants
- Educational, correctional & institutional kitchens
Need a different size or valve style? Contact us for custom Advance Tabco configurations and accessories.
