Advance Tabco  |  SKU: FS-FM-60-ADA

Advance Tabco FS-FM-60-ADA Hand Sinks

$3,322.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

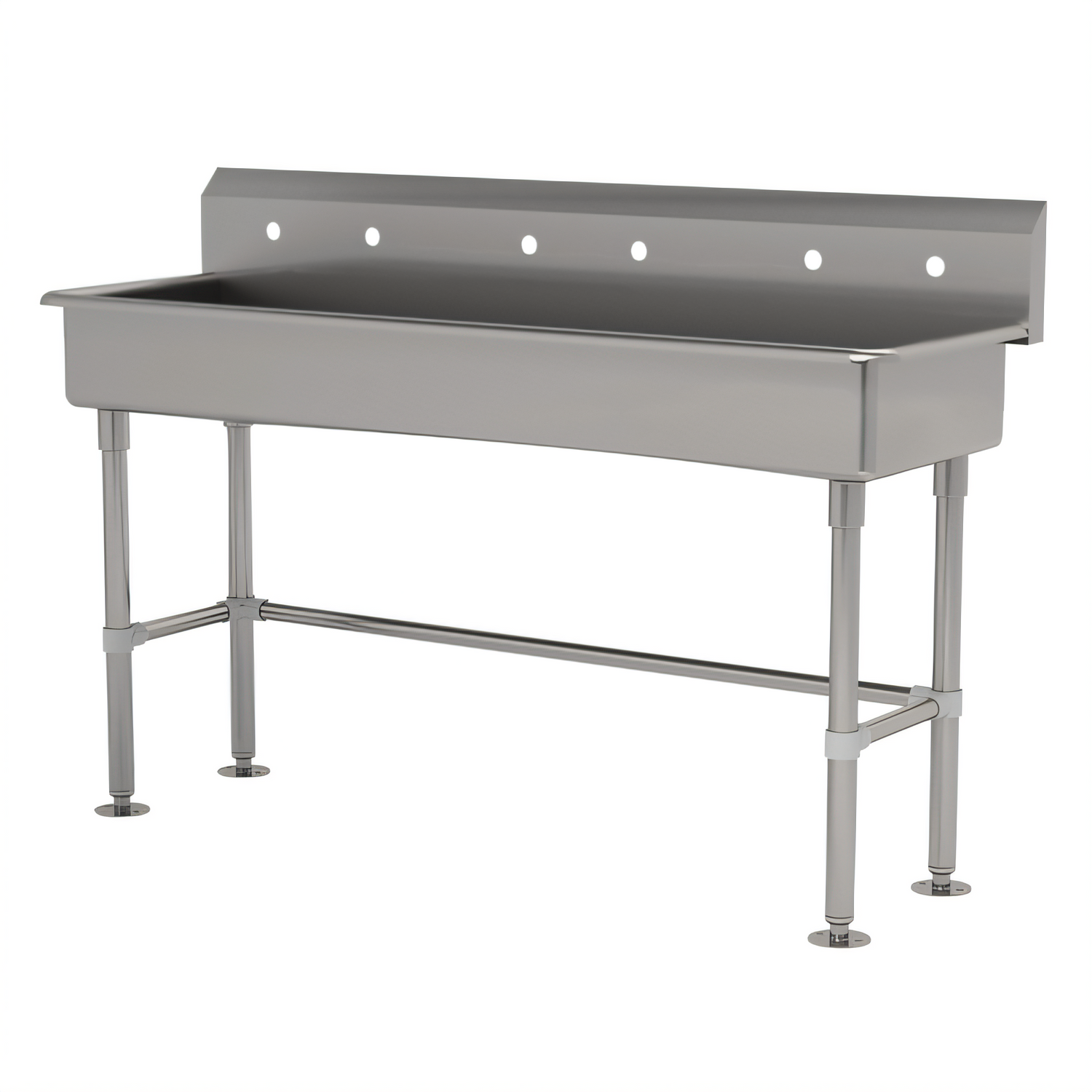

Advance Tabco 3-Station ADA Multi-Wash Hand Sink – 60" Wide

Model: FS-FM-60-ADA (sink only – faucets sold separately)

Give every team member fast, sanitary access to hand-washing with this rugged, three-person sink. Built from heavy 14-gauge type 304 stainless steel, the Advance Tabco FS-FM-60-ADA stands up to the most demanding commercial, institutional and industrial environments while meeting NSF and ADA requirements.

Key Features

  • 14-gauge, type 304 stainless steel construction resists corrosion and repeated chemical wash-downs.
  • ADA series 5" deep bowl (16" front-to-back) provides wheelchair clearance without sacrificing capacity.

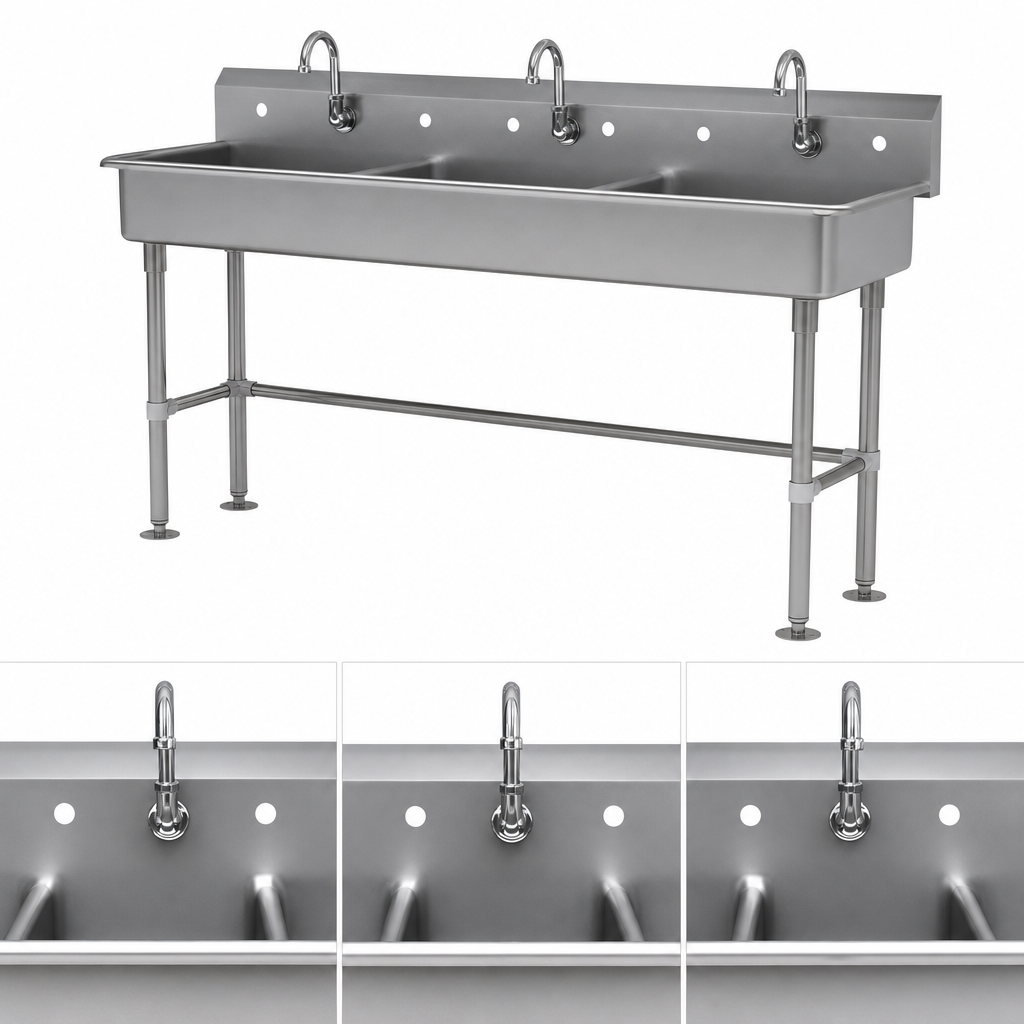

  • Three user stations spread across a 60" width to maximize throughput in busy areas.
  • 8 1/2" high integral backsplash, factory-punched with three sets of 8" on-center faucet holes for splash-mount fittings.
  • 3 1/2" K-6 rear basket drain (included) keeps solids out of your waste line.
  • Tubular 1 5/8" stainless steel legs with adjustable cross-bracing and flanged feet for a rock-solid, free-standing installation.
  • Stainless steel “Z” wall brackets add extra stability and help maintain proper ADA height.
  • NSF listed for food-service hygiene and ADA compliant for accessible design.

Ideal Applications

  • Food processing plants & commissaries
  • Restaurant prep & dish rooms
  • Healthcare & laboratory clean areas
  • School, university & institutional kitchens

Specifications

Overall Width 60" (1524 mm)
Overall Depth 19 1/2" (495 mm)
Overall Height 42 1/2" (1080 mm) to top of backsplash
Bowl Size (each station) 16" front-to-back x 5" deep
User Stations 3
Backsplash 8 1/2" H, punched 8" O.C. (3 sets of holes)
Drain 3 1/2" rear basket drain (included)
Material / Gauge 14-ga type 304 stainless steel
Mounting (4) tubular legs with flanged feet & (2) stainless “Z” wall brackets
Certifications NSF, ADA

What’s Included

  • (1) 60" three-station stainless steel sink
  • (4) tubular support legs with flanged feet
  • Adjustable stainless steel cross-bracing
  • (2) stainless steel wall “Z” brackets
  • (1) 3 1/2" K-6 basket drain

Faucets, supply lines and P-trap are sold separately, allowing you to select the manual, wrist-blade, knee, toe-kick or electronic activation style that best suits your operation.

California Proposition 65: Faucet components purchased separately for use with this sink may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

42.5in

Width

60.0in

Depth

19.5in

Shipping Weight

91.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet not included

Style

freestanding

Bowl Height (rim to drain)

5" deep

Features

multi-station

Bowl Width (left to right)

20" & up

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, (3) person, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (3) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF, ADA compliant
