Advance Tabco FS-FM-40KV Hand Sinks
$3,810.00
Unit price
/
Unavailable
Description

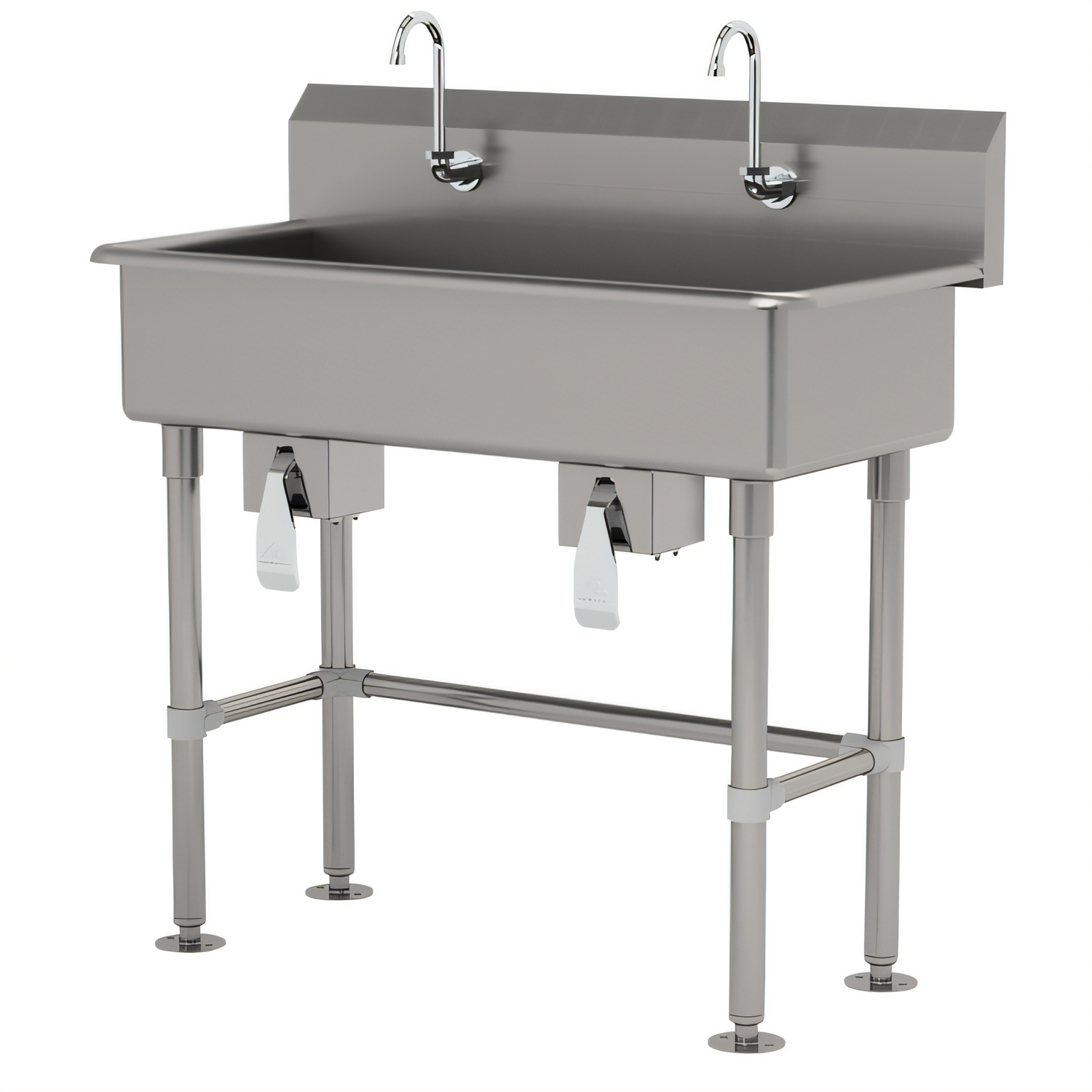

Advance Tabco FS-FM-40KV Two-Station Knee-Operated Hand Sink
40" floor-mounted multi-wash sink – 14 gauge 304 stainless steelBuilt for high-traffic environments that demand speed, sanitation and durability, the FS-FM-40KV delivers truly hands-free hand-washing. Two knee valves activate splash-mounted gooseneck spouts, while the rugged 14 ga. stainless body, legs and cross-bracing stand up to the toughest commercial abuse.
Key features & benefits

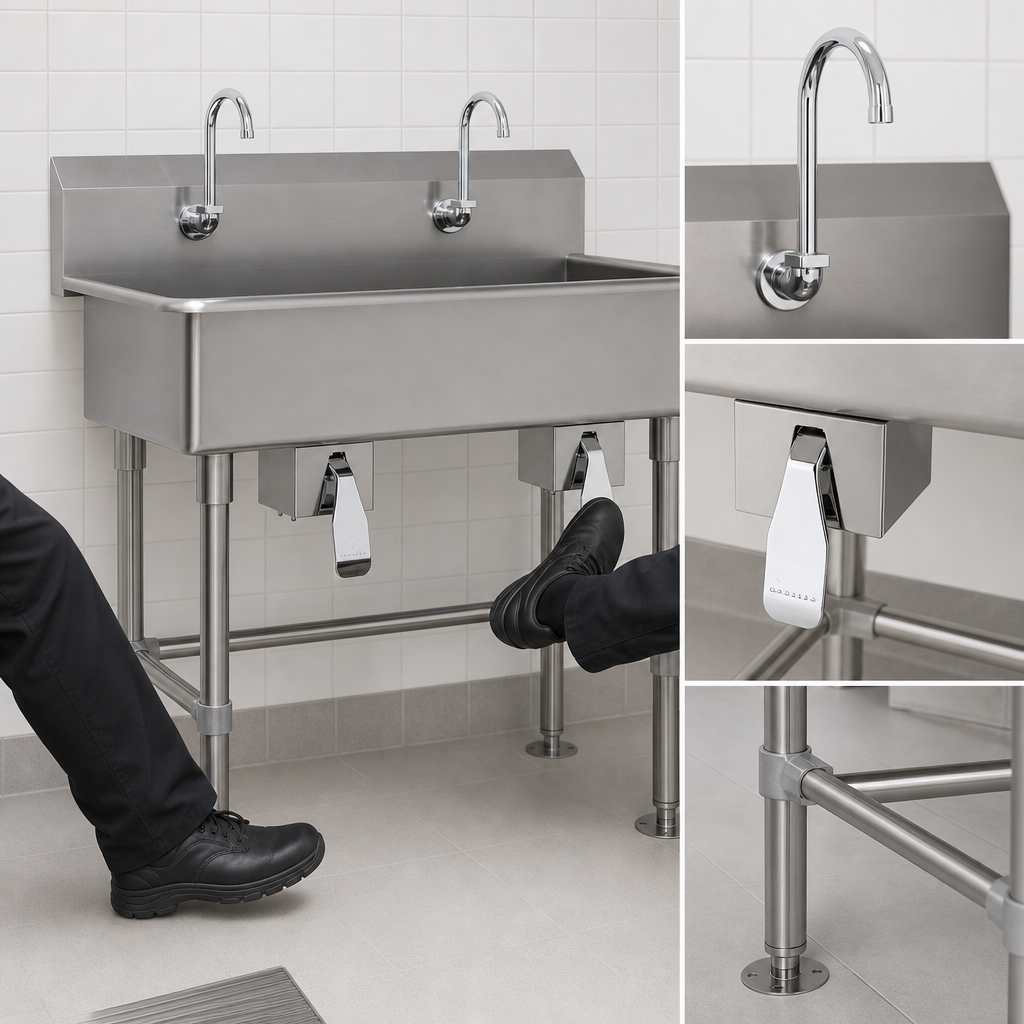

- Hands-free operation – includes two 7-PS-32 knee valves for touch-less water activation.
- Splash-mounted faucets – sink is factory-punched with (2) single holes and supplied with K-121 3 1⁄2" gooseneck spouts.
- Heavy-duty 14 ga. type 304 stainless steel – resists corrosion, chemicals and dents.
- Generous bowl size – 16" front-to-back x 8" deep for comfortable, splash-free washing.
- 8 1⁄2" backsplash – protects surrounding surfaces and keeps water where it belongs.
- Sturdy floor stand – 1 5⁄8" tubular stainless steel legs, rear & side adjustable cross-bracing and flanged feet for rock-solid stability.
- Rear basket drain included – K-6 3 1⁄2" drain with strainer prevents clogs.
- NSF listed & lead-free compliant – meets NSF/ANSI Standards and AB1953 requirements for potable water components.
Technical specifications
| Model | FS-FM-40KV |
|---|---|
| Stations | 2 |
| Overall dimensions (WxDxH) | 40" x 19 1⁄2" x 42 1⁄2" |
| Bowl dimensions (each) | 16" front-to-back x 8" deep |
| Backsplash height | 8 1⁄2" |
| Material & thickness | 14 ga. (2.0 mm) type 304 stainless steel |
| Faucet holes | (2) single 1 1⁄4" holes on 4" centers |
| Valve type | (2) 7-PS-32 knee valves, chrome plated |
| Spouts | (2) K-121 3 1⁄2" splash-mount gooseneck spouts |
| Drain | K-6 3 1⁄2" basket drain, rear outlet, 1 1⁄2" NPT |
| Legs & feet | 1 5⁄8" Ø 304 SS tubular legs with adjustable cross-bracing & flanged feet |
| Shipping weight | ≈ 106 lb (48 kg) |
| Certifications | NSF, faucets conform to NSF 61/9 & AB1953 lead-free |
Ideal for
- Food prep areas & commissaries
- Production kitchens & bakeries
- Schools, stadiums & concessions
- Laboratories & pharmaceutical plants
Optional accessories (sold separately)
- K-425 thermostatic mixing valve for tempered water delivery
- K-13 wall-mount stainless steel soap dispenser
- K-411 strainer plate for basket drain
- TA-19 adjustable flanged bullet feet
Need a custom length, ADA configuration or electronic sensor operation? Contact us for Smart Fabrication™ quotes.
California Prop 65 Warning: Components supplied with faucets may expose you to chemicals
including lead, known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information, visit
www.p65warnings.ca.gov.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
42.5in
Width
40.0in
Depth
19.5in
Shipping Weight
106.0lbs
Bowl Width (left to right)
20" & up
Faucet
faucet included
Bowl Height (rim to drain)
8" deep
Bowl Depth (front to back)
15" - 19" front-to-back
Features
multi-station
Style
freestanding
Specifications
Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, with knee valve, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF
