Advance Tabco FS-FM-40FV Hand Sinks
$4,018.00
Unit price
/
Unavailable
Description

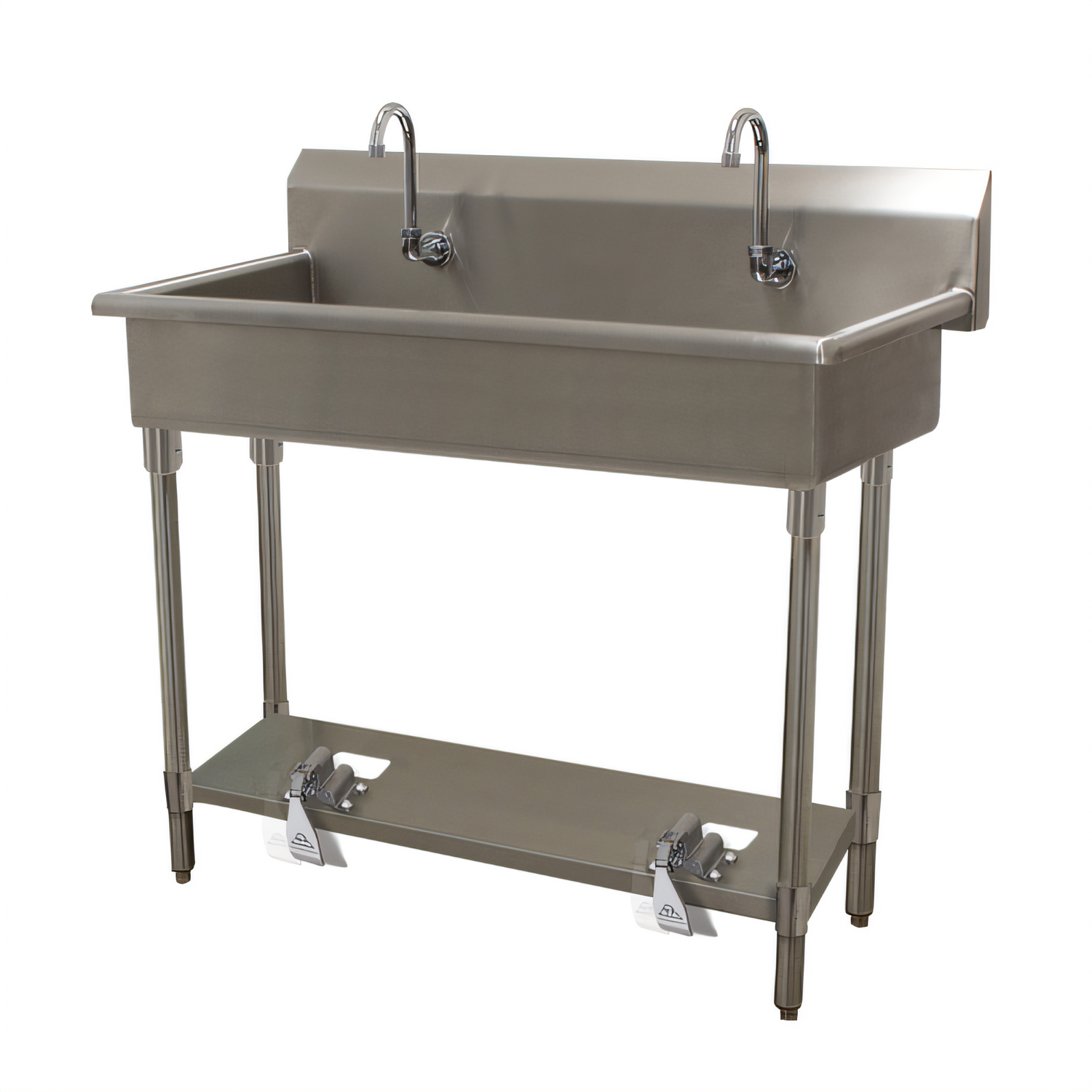

Advance Tabco FS-FM-40FV Multi-Wash Hand Sink
40" Two-Station • Floor Mounted • Toe-Push OperatedBuilt for busy food-service, healthcare and industrial environments, the Advance Tabco FS-FM-40FV delivers reliable, completely hands-free hand-washing in a compact 40 inch footprint. Heavy-duty 14 ga. Type 304 stainless steel, TIG-welded seams and a full-height backsplash stand up to the harshest daily sanitation routines, while toe-operated valves keep hands off every shared touch point.
Why You’ll Love It

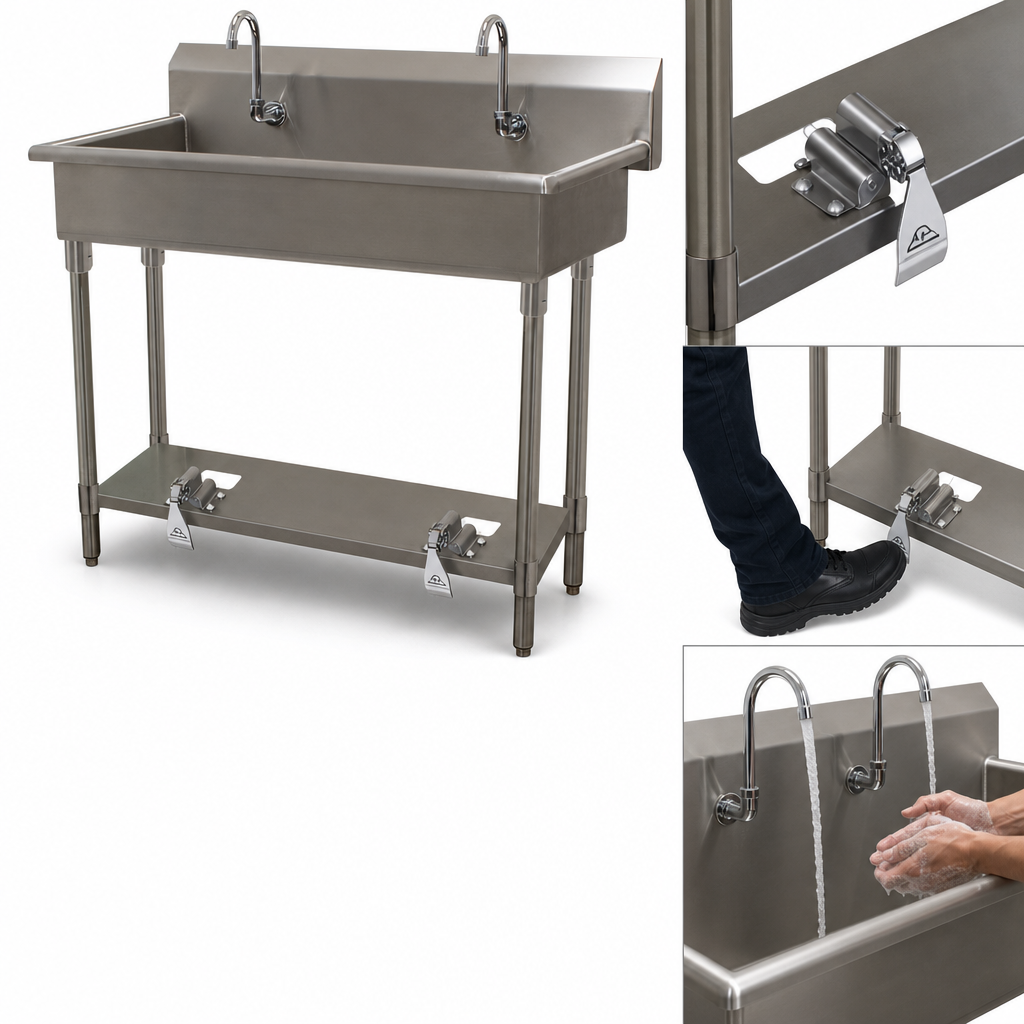

- Hands-free toe-push valves (2 × K-104) minimize cross-contamination.
- Two splash-mounted 3-1/2" gooseneck spouts (K-121) provide generous clearance for thorough washing.
- Rugged 14 ga. 304 stainless steel sink body & 1 5⁄8" tubular legs resist dents, corrosion and chemicals.
- 16" front-to-back × 8" deep bowls handle high-volume use without excessive splashing.
- 8-1⁄2" high backsplash with (2) single-hole punches stops water from damaging walls.
- Pedal-mount support shelf stabilizes valves and supply lines for years of trouble-free service.
- 3-1⁄2" rear basket drain (K-6) with strainer plate included.
- Adjustable flanged feet simplify leveling on uneven floors.
- NSF listed; faucets comply with NSF/ANSI 61 & AB-1953 lead-free requirements.
Technical Specifications
| Model | FS-FM-40FV |
|---|---|
| Number of stations | 2 |
| Operation | Toe-push foot valves (hands-free) |
| Overall dimensions (W × D × H) | 40" × 19-1⁄2" × 42-1⁄2" |
| Bowl dimensions (each) | 16" front-to-back × 8" deep |
| Backsplash height | 8-1⁄2" |
| Faucet holes | (2) single-hole punches – 1 per station |
| Spouts included | 2 × K-121 3-1⁄2" gooseneck, splash-mount |
| Foot valves | 2 × K-104 toe-push valves |
| Drain | K-6 3-1⁄2" rear basket drain with strainer |
| Construction | 14 ga. Type 304 stainless steel, all TIG welded |
| Legs / feet | 1 5⁄8" O.D. tubular 304 SS legs with adjustable flanged feet |
| Shipping weight | Approx. 120 lb / 30 cu. ft. |
| Certifications | NSF |
Ideal For
- Restaurant & commissary kitchens
- Food processing & packaging areas
- Laboratories & clean rooms
- Healthcare, pharma & biotech facilities
- Industrial wash-up stations
California Prop 65 Warning:
This product can expose you to chemicals, including lead, which are known to the
State of California to cause cancer, birth defects or other reproductive harm.
For more information visit the official Prop 65 website.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
42.5in
Width
40.0in
Depth
19.5in
Shipping Weight
106.0lbs
Bowl Depth (front to back)
15" - 19" front-to-back
Bowl Width (left to right)
20" & up
Style
freestanding
Features
multi-station
Faucet
faucet included
Bowl Height (rim to drain)
8" deep
Specifications
Multiwash Hand Sink, splash mount faucet provision, with toe-operated push valve, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF
