Advance Tabco FS-FM-40EFADA Hand Sinks
Description

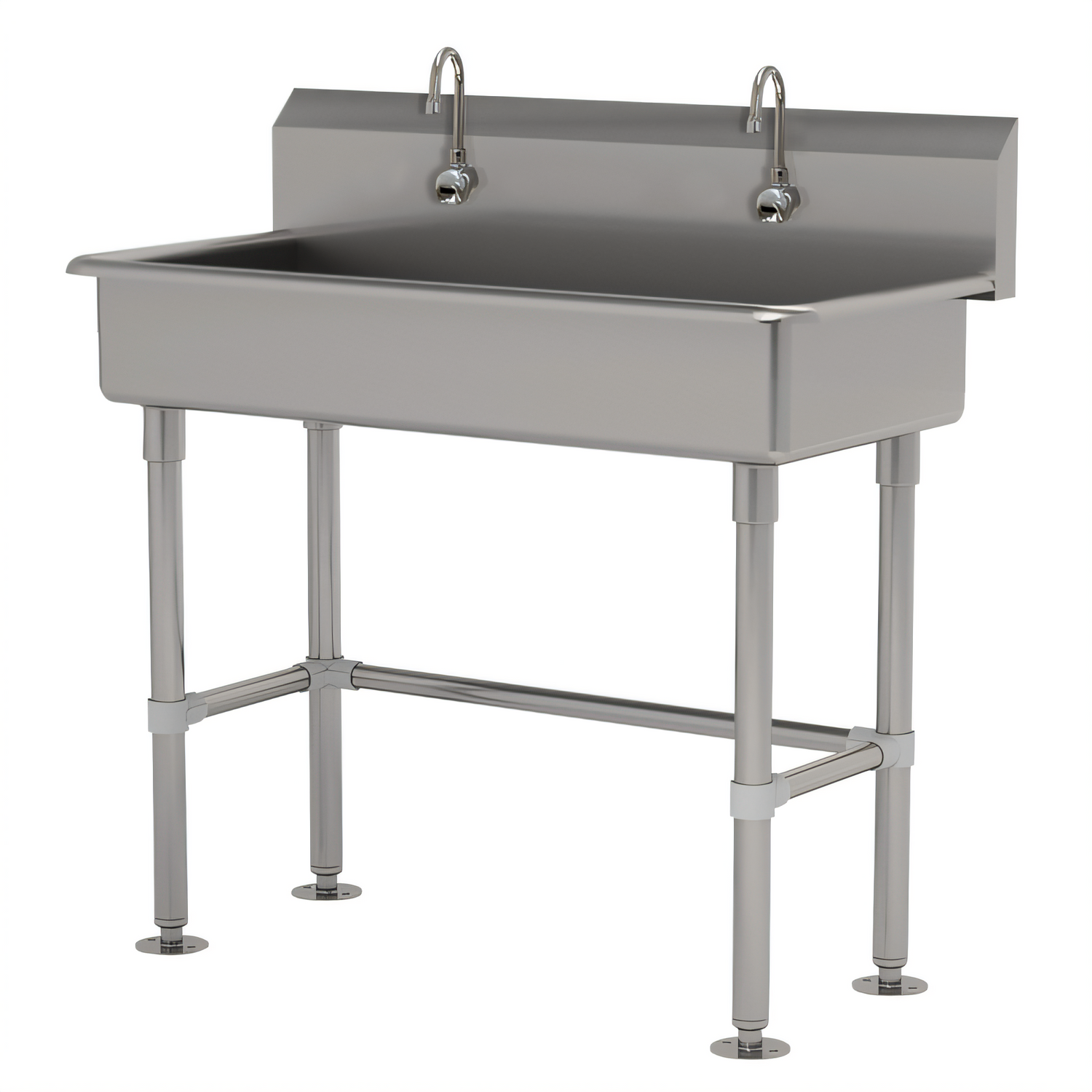

Advance Tabco ADA Multi-Wash Hand Sink – 40" 2-Station, Electronic Faucets
Model FS-FM-40-EFADA | 14-Gauge 304 Stainless SteelA rugged, free-standing solution for high-traffic hand-washing areas. Built from heavy-duty 14-gauge stainless steel and supplied with two touch-free electronic faucets, this Advance Tabco Multi-Wash sink is NSF listed, ADA compliant and ready for the toughest commercial environments.
Key Benefits
- Hands-free hygiene – dual K-175 sensor-activated faucets minimize cross-contamination.
- ADA 5" deep bowls and 34" rim height provide easy wheelchair access.
- 8 ½" backsplash keeps surrounding walls dry and sanitary.
- TIG-welded, 14-gauge type 304 stainless steel resists corrosion and everyday abuse.
- Sturdy 1 ⅝" tubular legs with cross-bracing and flanged feet for rock-solid stability.
- Pre-punched single faucet holes – faucets and 3 ½" basket drain ship installed.
- NSF listed for food-service sanitation.
What’s Included
- (2) K-175 electronic, hands-free faucets (battery pack & control box)
- (1) 3 ½" K-6 rear basket drain with strainer
- (2) Stainless steel “Z” wall brackets for secure mounting
- Tubular leg set with adjustable cross-bracing hardware
Technical Specifications
| Overall width | 40" (1016 mm) |
|---|---|
| Overall depth | 19 ½" (495 mm) |
| Overall height | 42 ½" (1080 mm) to top of backsplash |
| Bowl size (each) | 16" front-to-back × 5" deep |
| Backsplash height | 8 ½" |
| Stations | 2 |
| Material / thickness | 14-ga type 304 stainless steel, satin finish |
| Faucet holes | (2) single Ø1 ⅜" holes (splash-mount) |
| Drain | 3 ½" rear basket drain (included) |
| Legs | 1 ⅝" O.D. stainless tubing, flanged feet, adjustable cross-brace |
| Certifications | NSF Listed, ADA Compliant, Prop 65 |
Perfect For
- Commercial kitchens & commissaries
- Food processing plants
- Healthcare & laboratory hand-wash stations
- Schools, stadiums & public venues
Installation Notes
Mount wall “Z” brackets at 42 ½" from finished floor to top of bracket. Unit ships knocked-down; some assembly and field plumbing are required. Supply lines, P-trap and wall fasteners are supplied by installer.
