Advance Tabco  |  SKU: FS-FM-40EF

Advance Tabco FS-FM-40EF Hand Sinks

$4,512.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

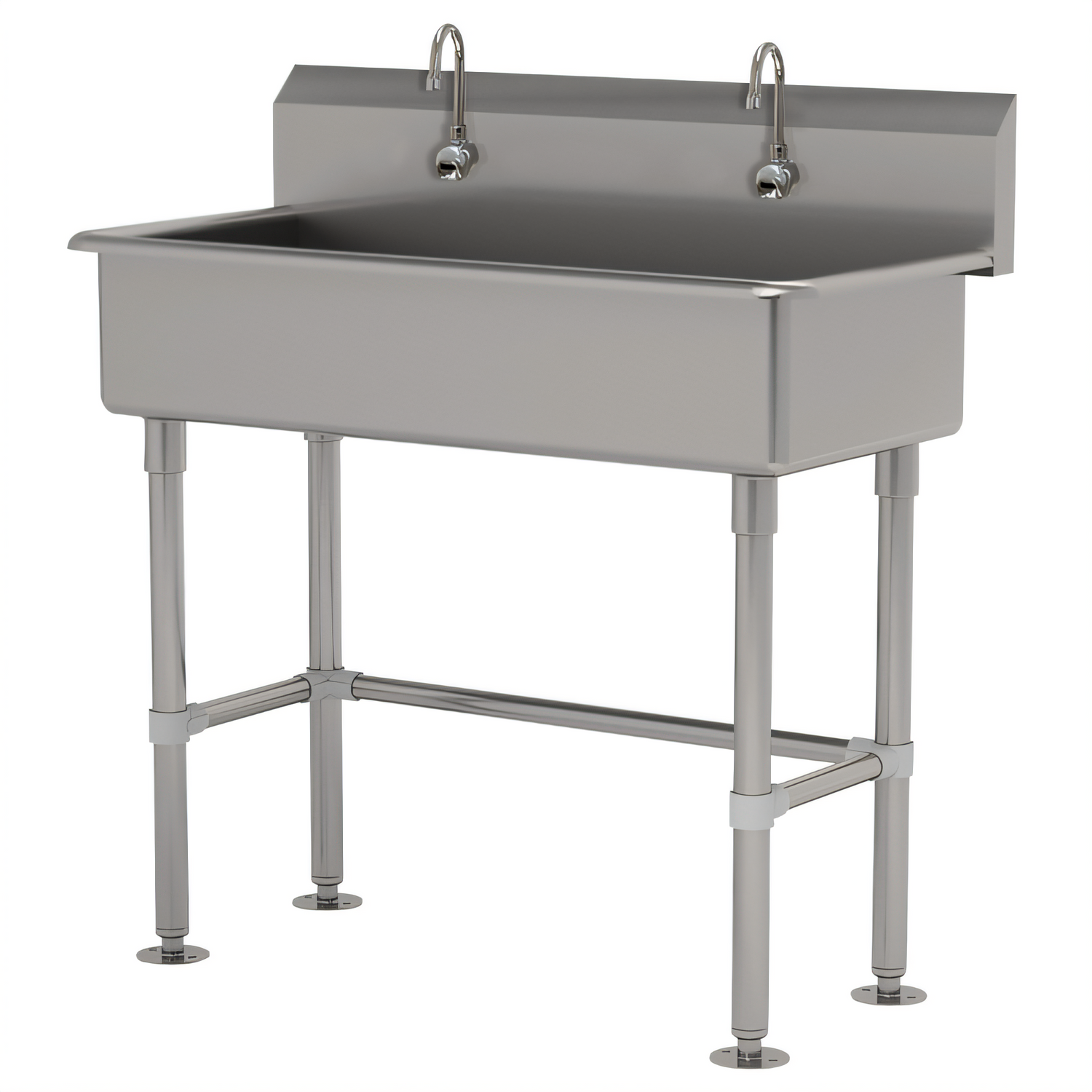

Advance Tabco FS-FM-40EF Multi-Station Hand Sink

40 in. – 2 User – Touch-Free Electronic Faucets

Built for the busiest prep rooms, healthcare facilities and manufacturing floors, this rugged two-station sink combines heavy-gauge stainless steel construction with hands-free operation for superior hygiene and long-term performance.

Key Features

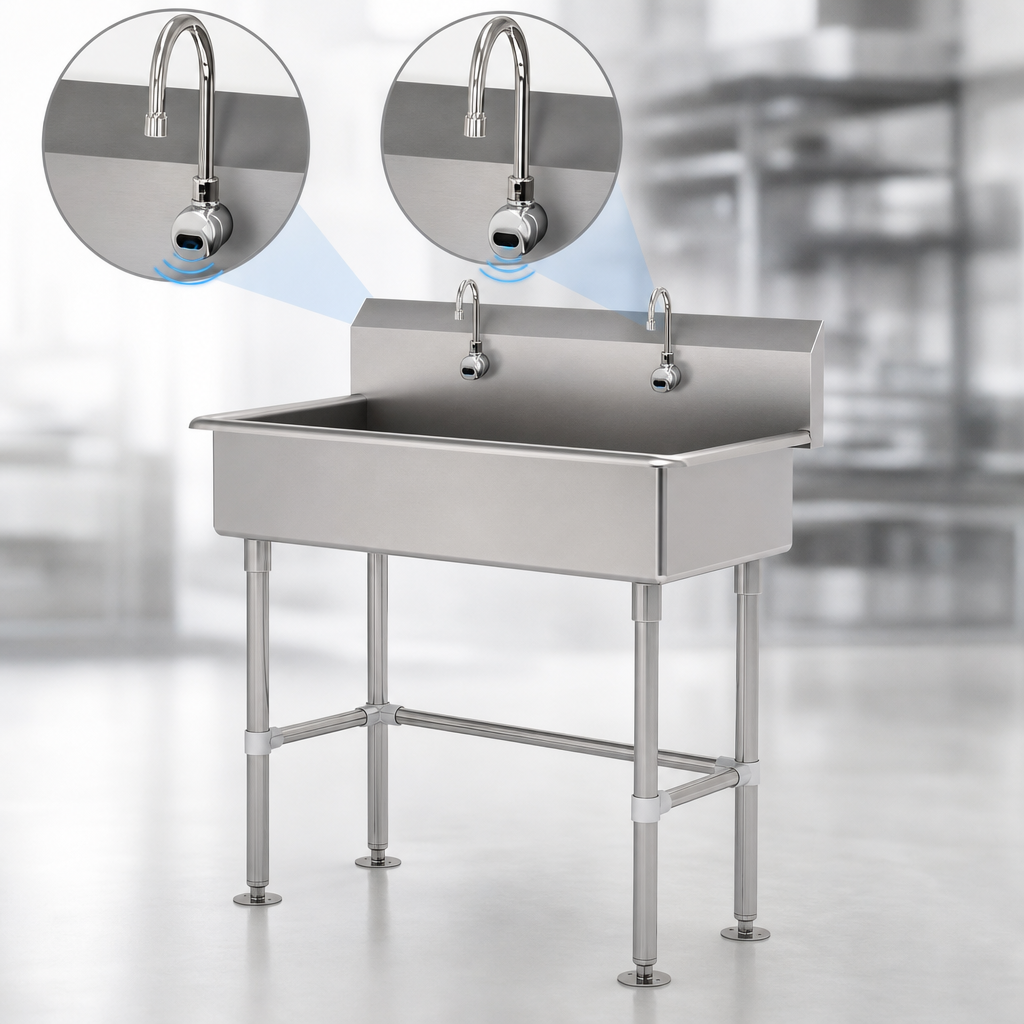

  • Includes (2) K-175 electronic sensor faucets for completely touchless hand-washing.
  • 14 gauge type 304 stainless steel sink body—40 % thicker than 18 ga. units.
  • Generous 16 in. front-to-back × 8 in. deep bowls minimize splash-back and fit large pans or utensils.
  • 8-1/2 in. high backsplash with splash-mount punchings keeps walls dry and sanitary.
  • 1-5/8 in. O.D. tubular stainless steel legs with adjustable cross-bracing and flanged feet for floor anchoring.
  • 3-1/2 in. rear basket drain captures debris for fast clean-out.
  • All TIG-welded construction; welds are blended to a uniform satin finish.
  • Stainless steel “Z” wall brackets supplied for extra rigidity during installation.
  • NSF certified—meets strict public health and food-service standards.

Specifications

Model FS-FM-40EF
Users 2 Stations
Overall Dimensions 40" W × 19-1/2" D × 42-1/2" H
Bowl Size (each) 16" F/B × 8" D
Backsplash Height 8-1/2"
Faucet Mount (2) single holes, splash-mount
Included Faucets (2) K-175 electronic sensor faucets, 0.5 gpm
Drain 3-1/2" rear basket drain
Material 14 ga 304 stainless steel
Legs & Feet 1-5/8" tubular 304 SS, cross-braced, flanged feet
Finish Satin, blended welds
Certifications NSF

What’s Included

  • Advance Tabco FS-FM-40EF sink body
  • (2) K-175 touch-free faucets with control boxes & supply hoses
  • (1) 3-1/2" stainless steel basket drain assembly
  • Tubular stainless steel legs, cross-bracing & flanged feet
  • (2) Stainless steel “Z” wall brackets
  • Installation hardware & instructions
California Prop 65 Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

Specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

87.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Style

freestanding

Bowl Height (rim to drain)

8" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, with (2) electronic faucets, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF
