Advance Tabco  |  SKU: FS-FM-40

Advance Tabco FS-FM-40 Hand Sinks

$2,974.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

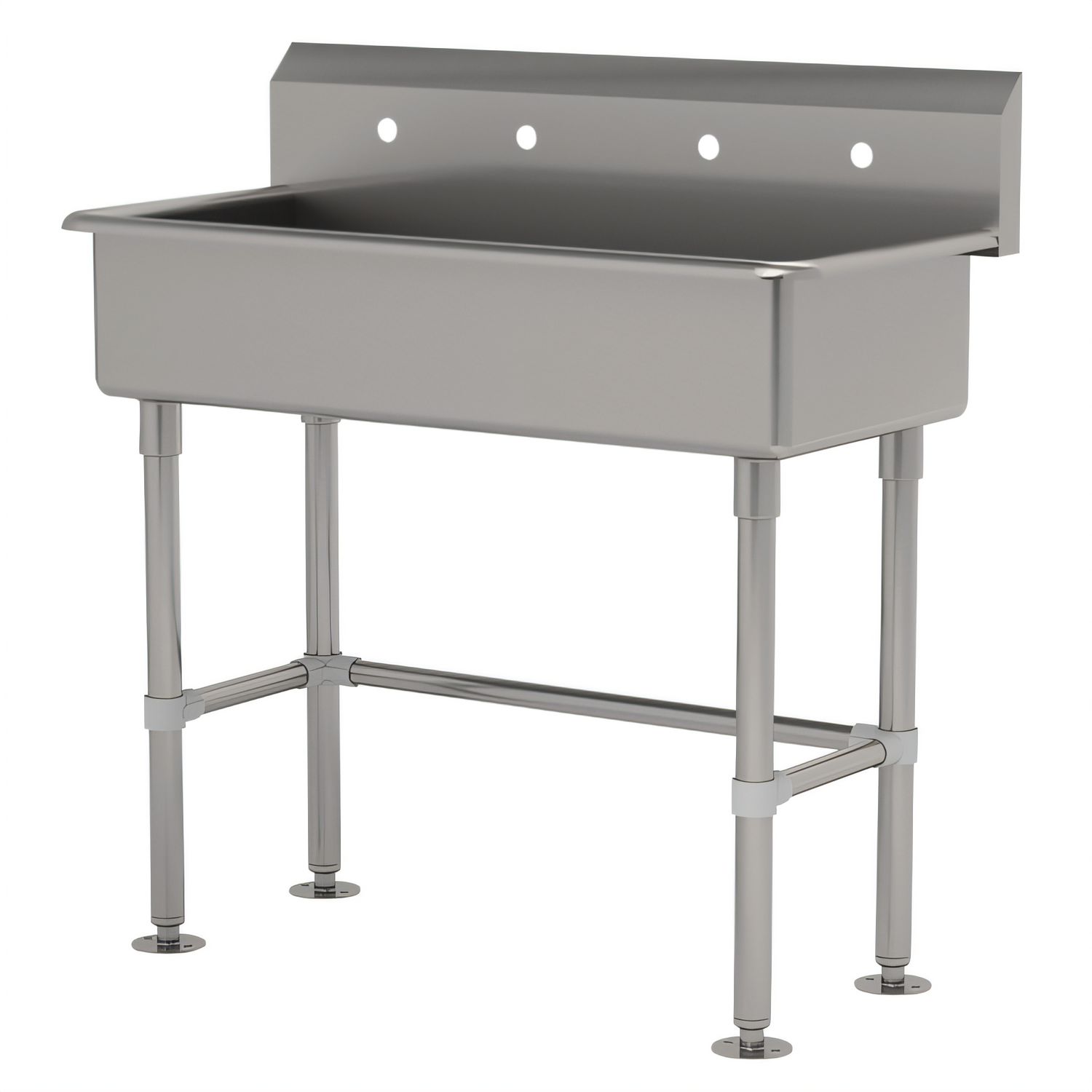

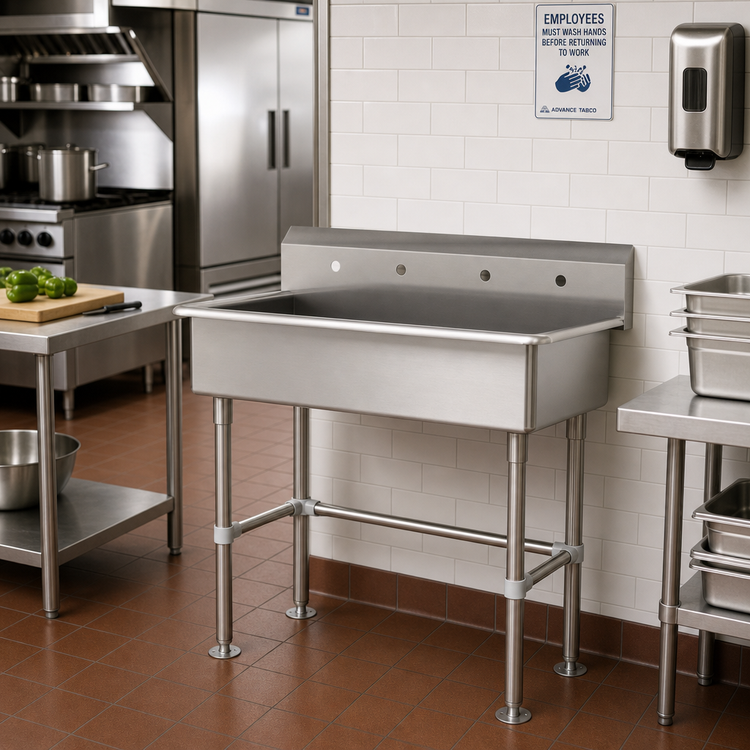

Advance Tabco 40″ Multi-Wash Hand Sink – 2 Station, 14-Gauge 304 SS

Model: FS-FM-40 (Faucets Not Included)

Built for the busiest prep areas, this free-standing Advance Tabco multi-station sink delivers two generous hand-wash positions in a compact 40 inch footprint. Heavy-duty 14 gauge 304 stainless steel, an 8½ inch backsplash, and factory-punched 8″ O.C. faucet holes make it a rugged, code-ready solution for commercial kitchens, laboratories, and industrial applications.

Key Features
  • 2-station design with individual 16″ front-to-back x 8″ deep bowls

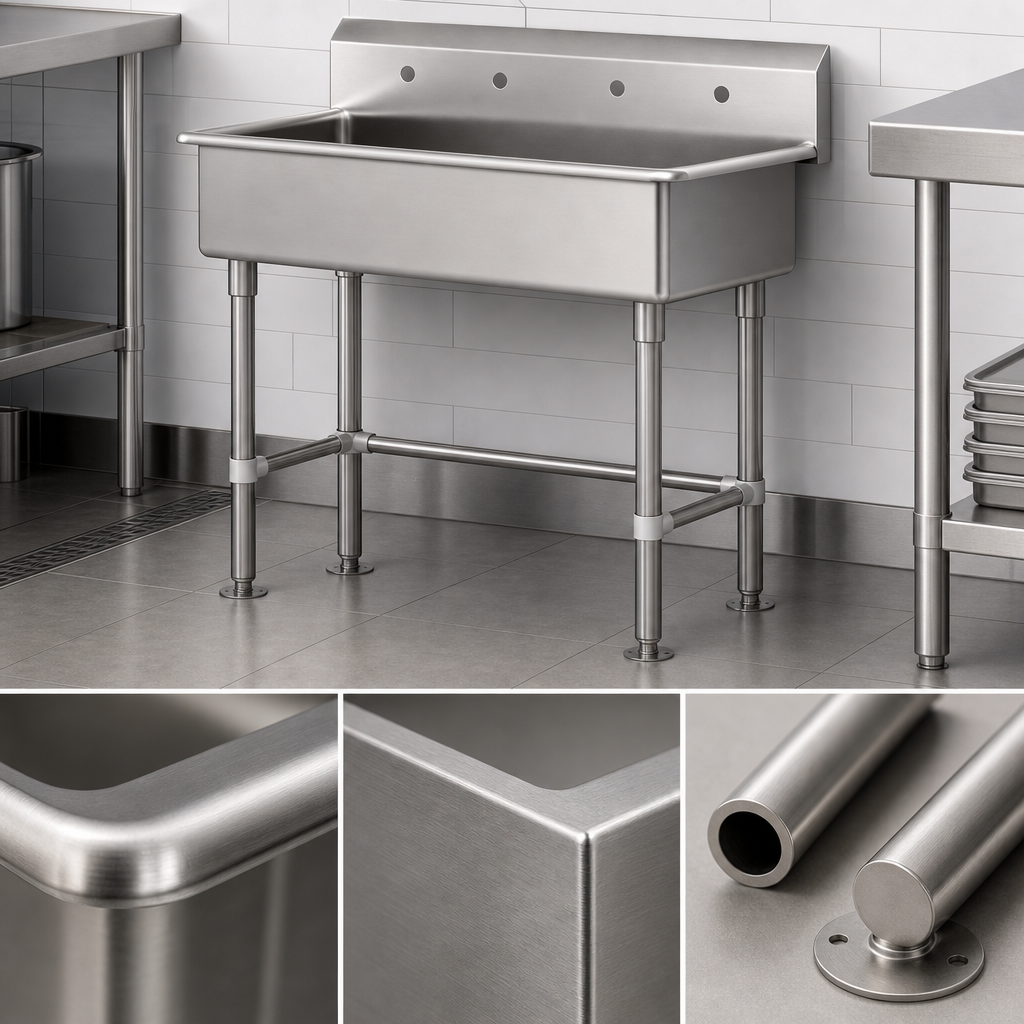

  • Heavy 14-gauge type 304 stainless steel top, bowl & backsplash
  • 8½″ high integral backsplash with (2) sets of 8″ on-center faucet punchings
  • 3½″ K-6 rear basket drain (included)
  • 1 5⁄8″ Ø stainless steel tubular legs with adjustable cross-bracing & flanged feet
  • TIG-welded construction; welds blended to a sanitary satin finish
  • Stainless steel “Z” wall brackets supplied for added stability
  • NSF listed for food-service hand-washing compliance
At-a-Glance Specifications
Overall Width 40″ (1016 mm)
Overall Depth 19 1⁄2″ (495 mm)
Overall Height 42 1⁄2″ (1080 mm) to top of backsplash
Bowl Count / Stations 2
Bowl Size (each) 16″ F-B x 8″ deep
Backsplash Height 8 1⁄2″
Faucet Punching (2) sets – 8″ centers, splash-mount
Drain Opening 3 1⁄2″ rear basket drain (included)
Material & Finish 14 ga 304 SS, satin finish
Legs & Feet 304 SS 1 5⁄8″ tubular legs with flanged feet & adjustable cross-brace
Certifications NSF
What’s Included
  • (1) 40″ two-station sink assembly
  • (1) 3½″ K-6 rear basket drain
  • (2) Stainless steel “Z” wall brackets
  • Stainless tubular leg set with cross-bracing & flanged feet
Faucets & plumbing connections are not included. Select compatible 8″ splash-mount faucets to complete installation.

Advance Tabco reserves the right to modify product design and specifications without prior notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

87.0lbs

Style

freestanding

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet not included

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF
