Advance Tabco | SKU:
FS-FM-40-ADA
Advance Tabco FS-FM-40-ADA Hand Sinks
$2,952.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FS-FM-40-ADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FS-FM-40-ADA Hand Sinks
$2,952.00
Unit price
/
Unavailable
Description

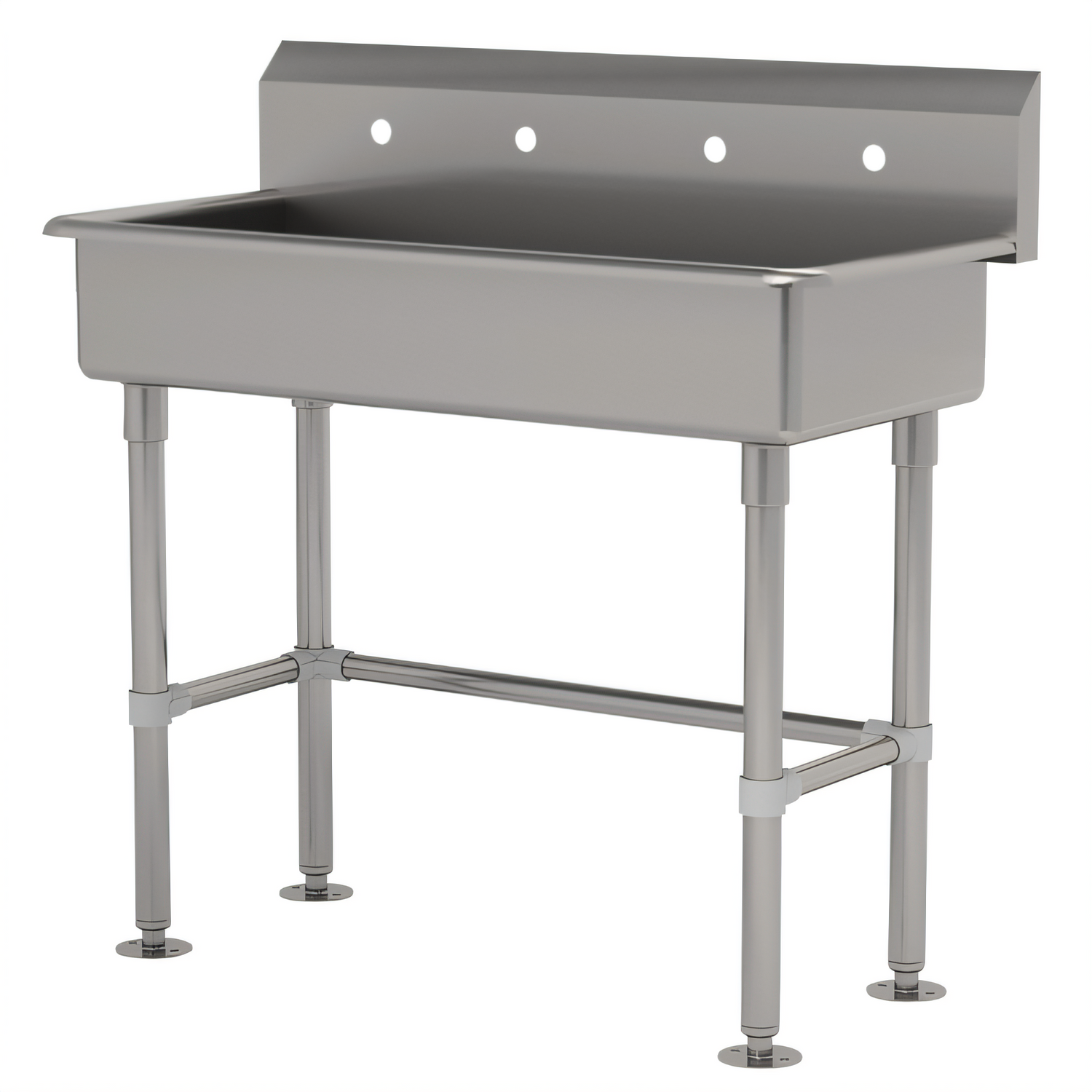

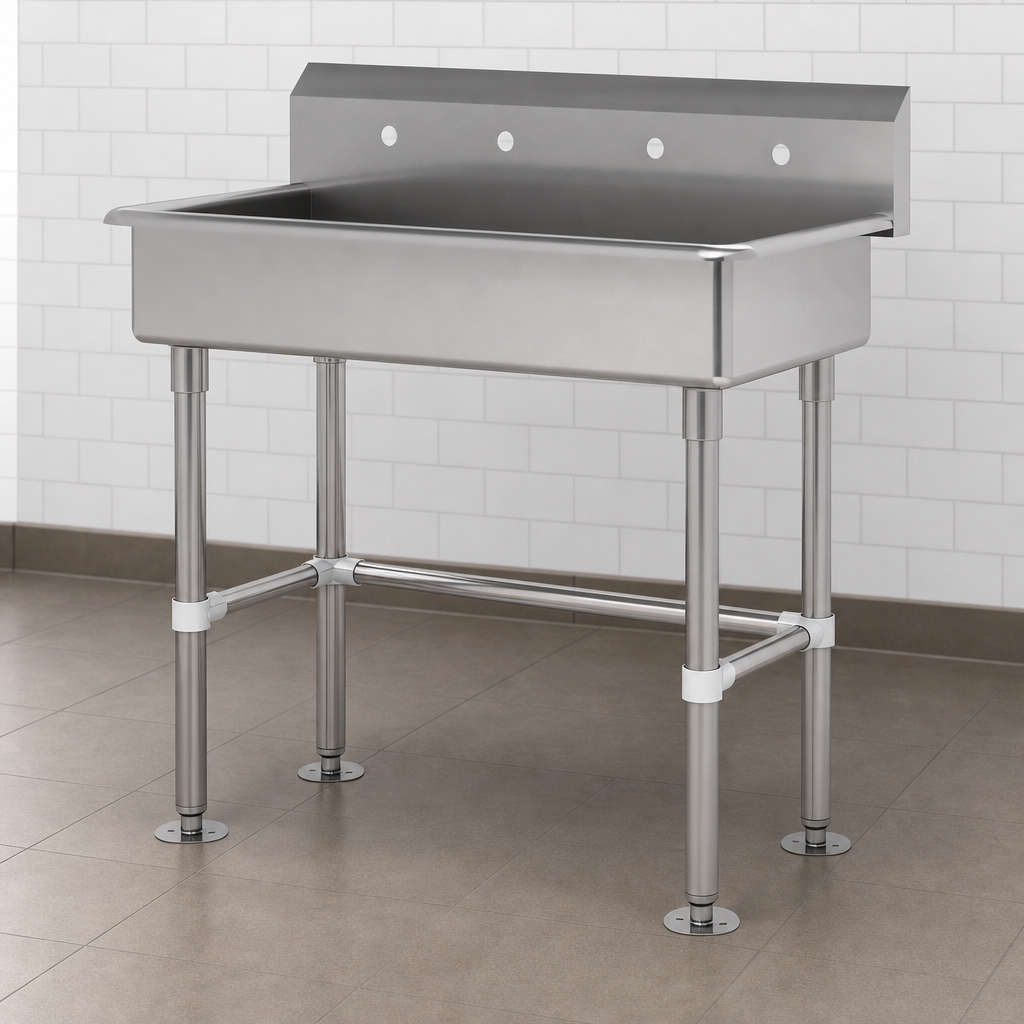

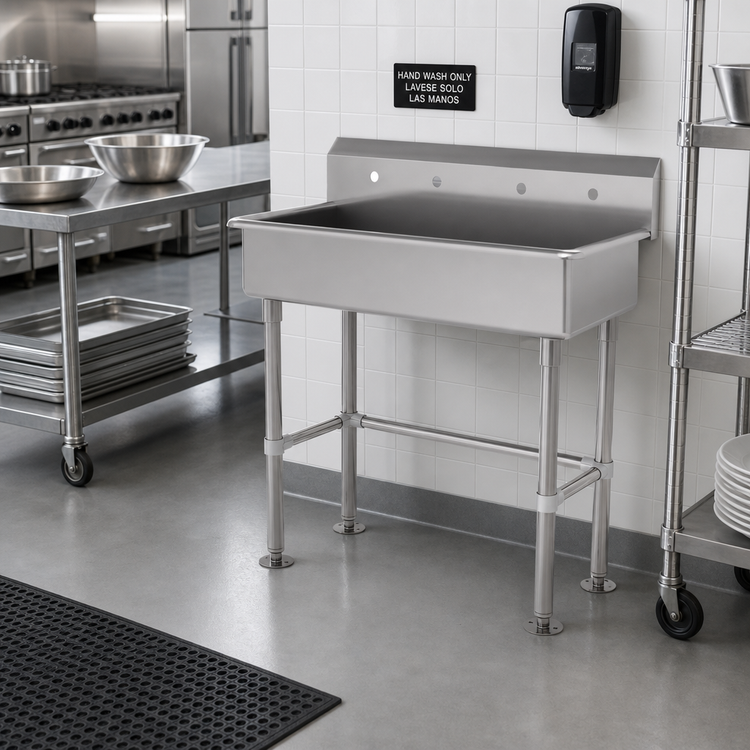

Advance Tabco 40" Multi-Wash Hand Sink – 2 Station, ADA, 14 Ga 304 SS
Model: FS-FM-40-ADA (faucets sold separately)Give two users fast, code-compliant hand-washing in a single, space-saving fixture. Built from heavy-duty 14 gauge 304 stainless steel, this Advance Tabco Multi-Wash sink is NSF listed, ADA compliant, and ready for the toughest commercial, institutional, or industrial environments.
Key Features
- Two hand-wash stations in a compact 40 in. footprint
- ADA bowl depth – 5 in. – for wheelchair accessibility when installed to spec
- 8 ½ in. integral backsplash keeps nearby surfaces dry & is pre-punched for faucets (8 in. O.C.)
- 14 gauge type 304 stainless steel sink body, TIG-welded & satin-finished for long service life
- 1 ⅝ in. tubular 304 stainless steel legs with adjustable cross-bracing & flanged feet for rock-solid support
- “Z” wall mounting brackets included for quick, secure installation
- 3 ½ in. K-6 rear basket drain supplied – plumbing connection ready right out of the box
- NSF Listed & fully ADA compliant
At-a-Glance Specifications
| Overall width | 40 in. (1016 mm) |
|---|---|
| Overall depth | 19 ½ in. (495 mm) |
| Overall height | 42 ½ in. incl. backsplash |
| Bowl size (each) | 16 in. F-B × 5 in. deep |
| Backsplash height | 8 ½ in. |
| Faucet holes | (2) sets, 8 in. on-center, 1 ⅛ in. dia |
| Drain opening | 3 ½ in. rear basket (included) |
| Material | 14 ga 304 stainless steel |
| Legs / feet | 1 ⅝ in. Ø SS legs, flanged feet, adjustable cross-brace |
| Shipping weight | ≈ 69 lb (31 kg) |
| Certifications | NSF, ADA |
What’s Included
- Sink assembly with integral backsplash
- (2) “Z” wall brackets
- (4) tubular stainless steel legs & hardware
- Adjustable cross-bracing
- (1) 3 ½ in. K-6 rear basket drain
Splash-mount faucets, supplies, and traps are not included and are available separately.
Ideal For
- Food-service kitchens & prep areas
- Schools, universities, and laboratories
- Industrial facilities & warehouses
- Healthcare & long-term care hand-wash stations
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF, ADA Compliant
Height
42.5in
Width
40.0in
Depth
19.5in
Shipping Weight
69.0lbs
Style
freestanding
Faucet
faucet not included
Bowl Depth (front to back)
15" - 19" front-to-back
Bowl Width (left to right)
20" & up
Features
multi-station
Bowl Height (rim to drain)
5" deep
Specifications
Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF, ADA compliant
