Description

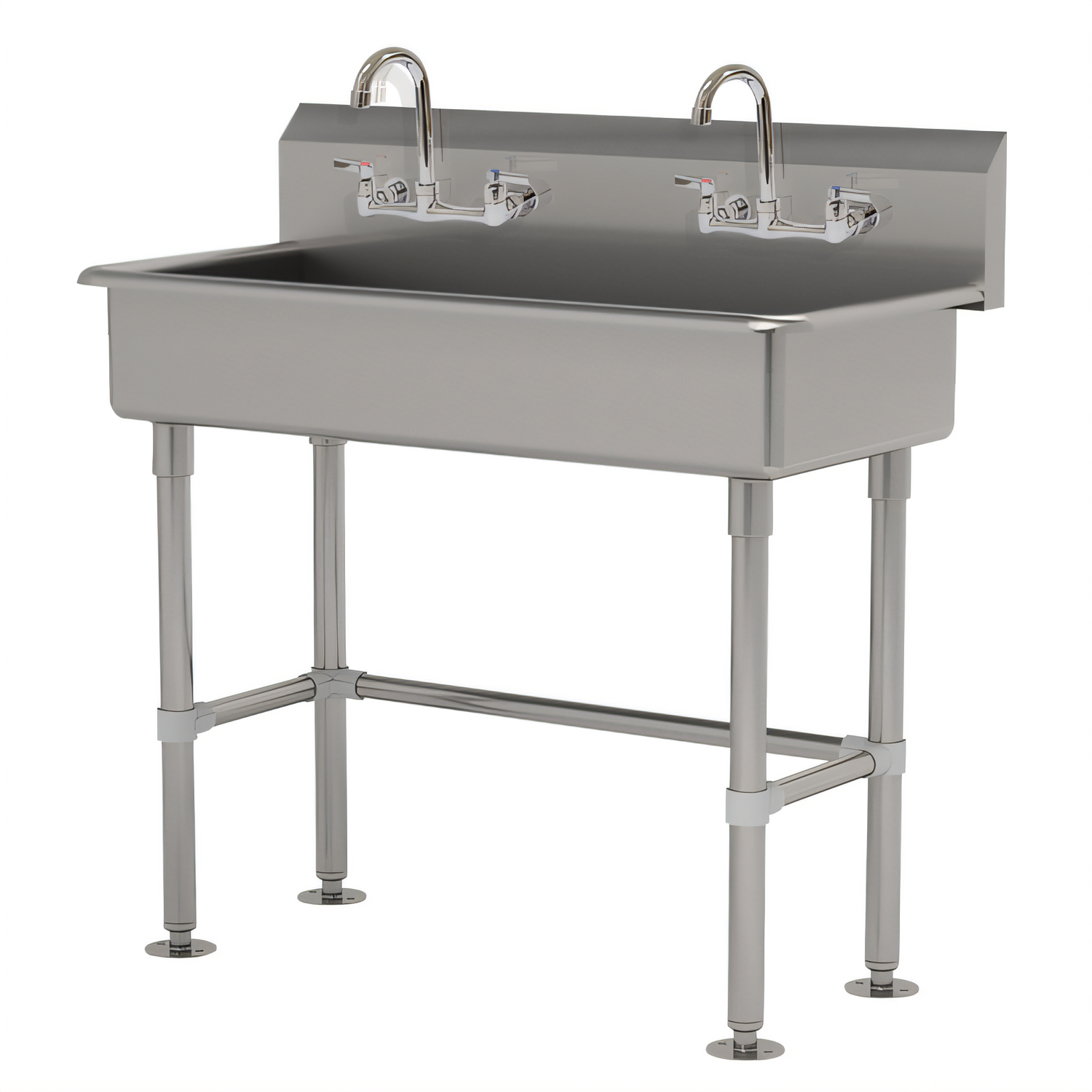

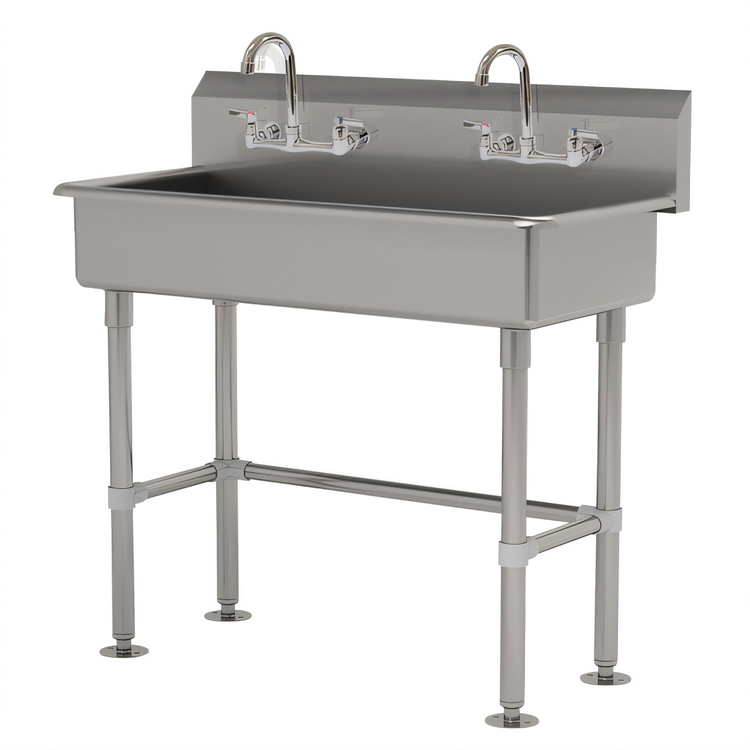

Advance Tabco 40" ADA Two-Station Multiwash Hand Sink

Model: FS-FM-40-ADA-F • Includes (2) wrist-blade faucets

A space-saving, two-person hand-washing station engineered for demanding commercial settings. Heavy-duty 14-gauge 304 stainless steel, ADA-compliant 5" deep bowl, and factory-installed gooseneck faucets make this sink a ready-to-install solution for restaurants, production facilities, schools, and healthcare environments.

Why You’ll Love It

  • Ready to use – arrives with two 8 ½" gooseneck faucets with wrist blades and a 3 ½" rear basket drain.
  • ADA compliant 5" bowl depth and knee clearance meet current accessibility standards.
  • Rugged 14-gauge 304 stainless steel resists corrosion, impact, and frequent sanitation chemicals.
  • 8 ½" high backsplash, pre-punched with 8" O.C. faucet holes, contains splashes and simplifies installation.
  • Stainless steel tubular legs with flanged feet provide rock-solid floor support; “Z” wall brackets add extra stability.
  • TIG-welded construction with blended seams for a clean, easy-to-wipe satin finish.
  • NSF listed for sanitation and built in the USA by Advance Tabco.

At-a-Glance Specs

Stations / Faucets 2
Overall Dimensions 40" W × 19 1/2" D × 42 1/2" H
Bowl Size (each) 16" front-to-back × 5" deep
Backsplash 8 1/2" H, punched (2) sets of 8" O.C. holes
Material & Gauge 14-ga. Type 304 stainless steel
Drain 3 1/2" rear basket drain (included)
Legs / Feet 1 5/8" Ø stainless tubular legs with flanged feet
Mounting Hardware Stainless “Z” wall brackets supplied
Compliance NSF listed, ADA compliant
Faucet Type (2) Manual 8 1/2" gooseneck faucets with wrist blades

Recommended installation height: 42 1/2" from finished floor to top of backsplash.

California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

73.0lbs

Style

freestanding

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, includes (2) faucets with wrist blades, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF, ADA compliant
