Advance Tabco FS-FM-2219FV Hand Sinks
Description

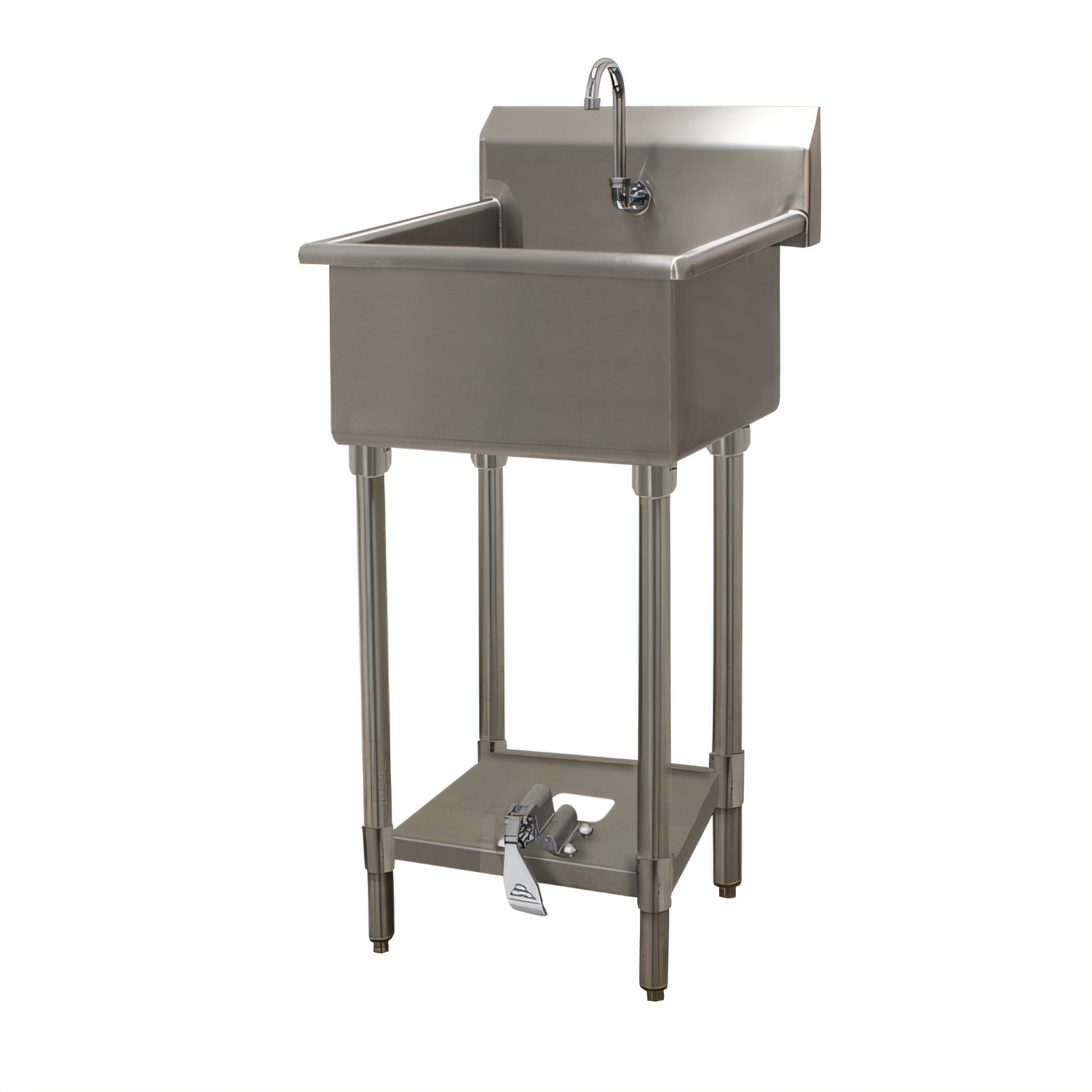

Advance Tabco FS-FM-2219FV Toe-Push Floor-Mounted Service Sink
14-gauge type 304 stainless steel • 20" x 19-1/2" x 10" bowl • NSFBuilt for the rigors of daily clean-up work, this single-station service sink pairs heavy-duty 14 ga stainless steel construction with a hygienic toe-push faucet valve—keeping hands free and work areas sanitary. Ideal for janitorial closets, animal care, food-service facilities and anywhere you need reliable, code-compliant utility washing.
Key Features

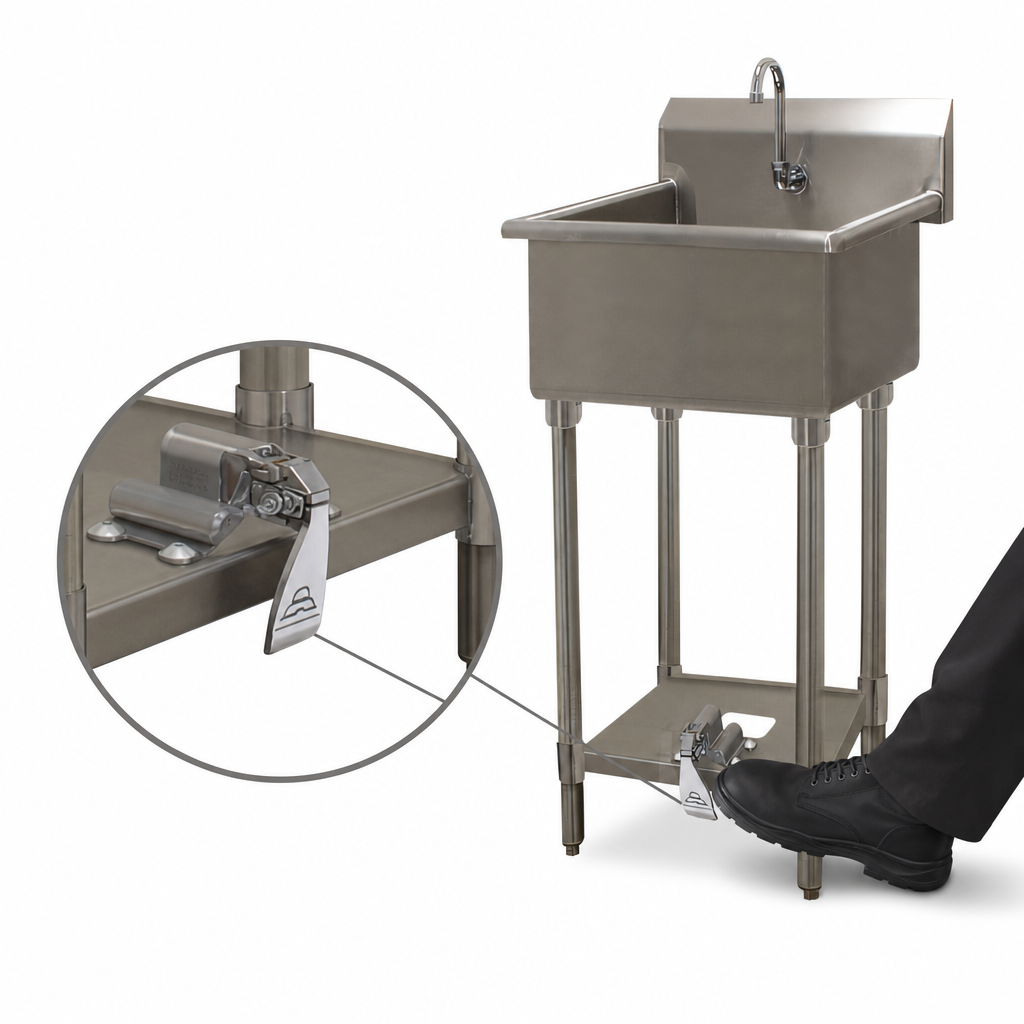

- Hands-free operation – K-104 stainless steel toe-push valve with built-in tempering & check valves.
- Includes K-121 splash-mount gooseneck spout (single 1-3/8" faucet hole pre-punched).
- Extra-heavy 14 ga type 304 stainless steel bowl & backsplash, TIG-welded and satin-finished.
- 8-1/2" integral backsplash helps contain splashes and protects walls.
- Roomy 20" W x 19-1/2" D x 10" deep bowl handles bulky buckets and mop heads.
- 3-1/2" rear basket drain (K-6) with strainer plate included.
- Four 1-5/8" O.D. tubular stainless steel legs with adjustable flanged feet for secure floor anchoring.
- Stainless steel support shelf & rear “Z” wall bracket add rigidity and ease installation.
- NSF listed; faucet components comply with NSF 61/9 & AB 1953 lead-free standards.
Technical Specifications
| Model | FS-FM-2219FV |
|---|---|
| Station(s) | 1 (single-bowl) |
| Overall width (left-to-right) | 23" |
| Overall front-to-back | 23" |
| Bowl size (W × D × H) | 20" × 19-1/2" × 10" |
| Backsplash height | 8-1/2" |
| Material / gauge | Type 304 stainless steel / 14-ga |
| Faucet mounting | Single hole, splash-mount |
| Included faucet parts | K-104 toe-push valve & K-121 gooseneck spout |
| Drain | 3-1/2" rear basket drain with strainer (K-6) |
| Legs & feet | 1-5/8" tubular SS legs, adjustable flanged bullet feet (TA-19) |
| Construction | TIG-welded, satin finish, stainless steel gussets & support shelf |
| Shipping weight / cube | Approx. 94 lb • 21 ft³ |
| Certifications | NSF, NSF 61/9, AB 1953 |
What’s in the Box
- Service sink body with pre-installed backsplash
- Four stainless steel legs with flanged feet
- Stainless steel support shelf & rear “Z” wall mounting bracket
- K-104 toe-push valve assembly
- K-121 3-1/2" gooseneck spout
- K-6 rear basket drain & strainer plate
- Pedal bracket & hardware
- Installation guide
Need extra accessories such as soap dispensers or replacement valves? See Advance Tabco’s full line of options in the parts catalog.
