Advance Tabco FS-FM-120KV Hand Sinks
Description

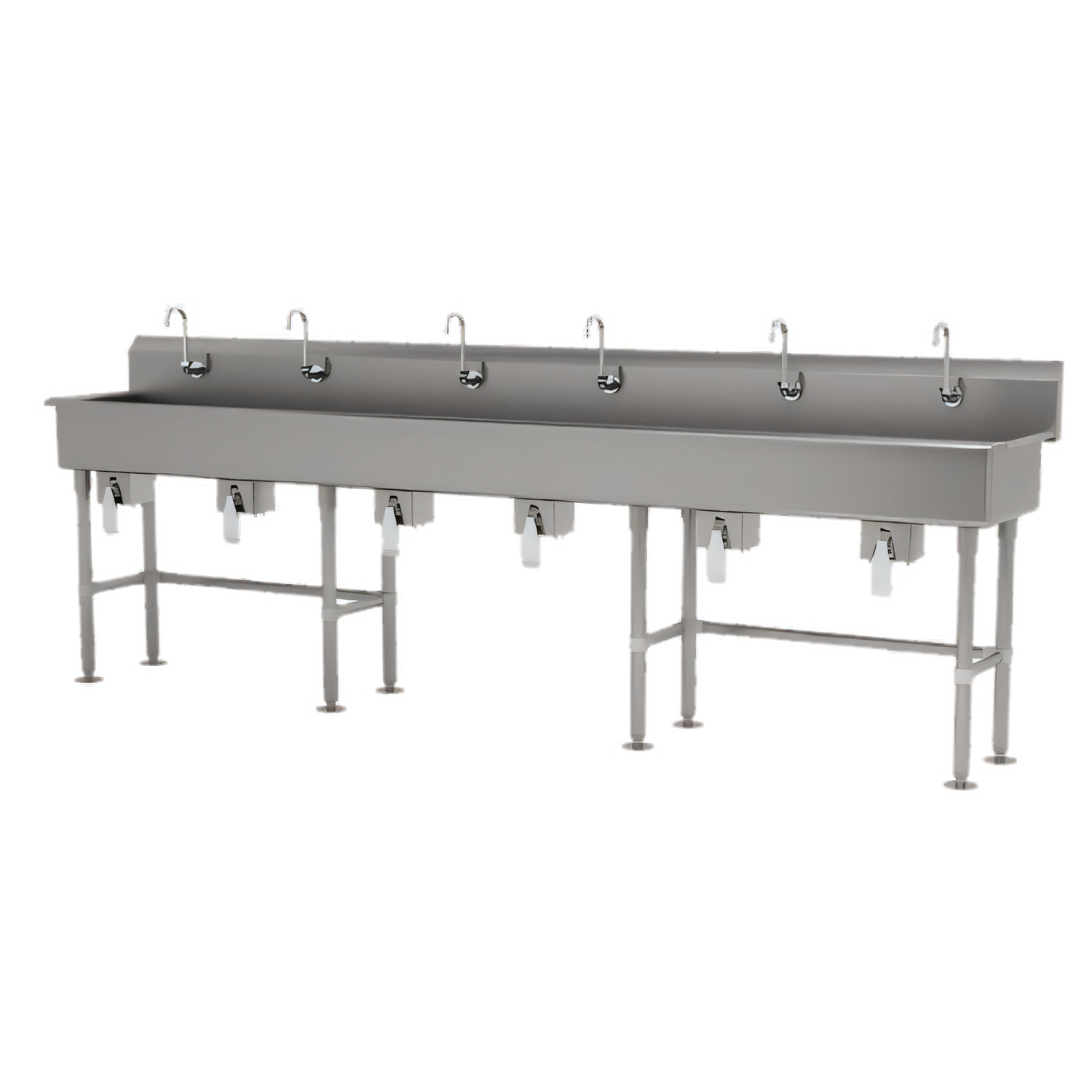

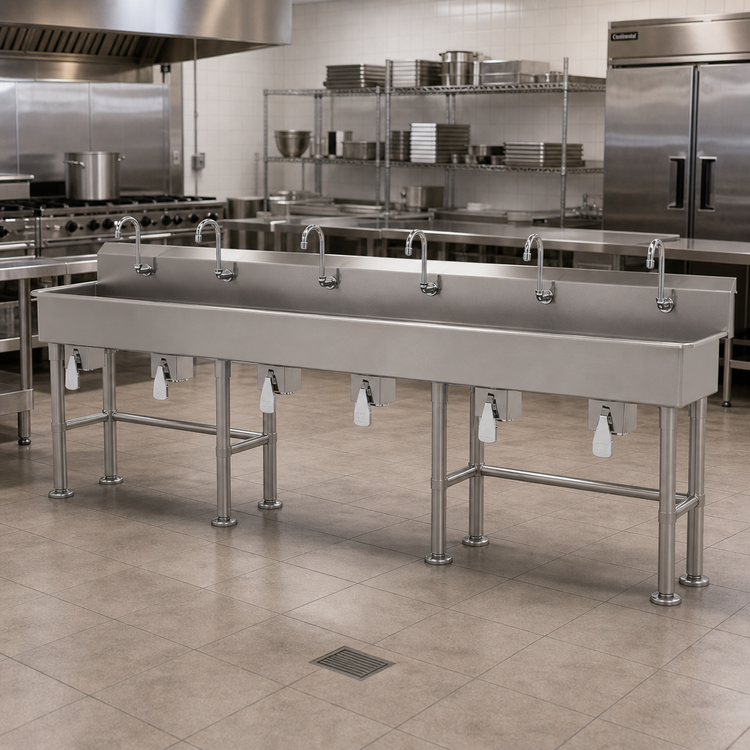

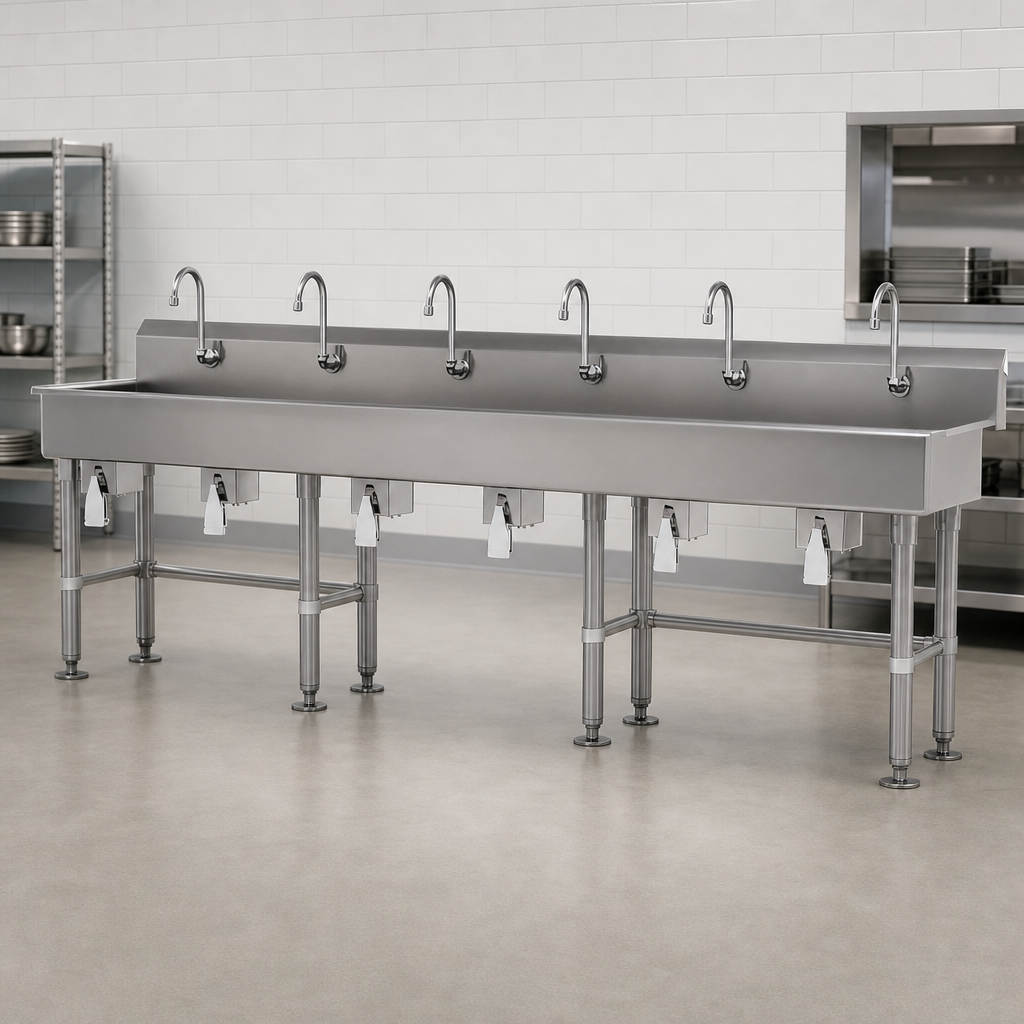

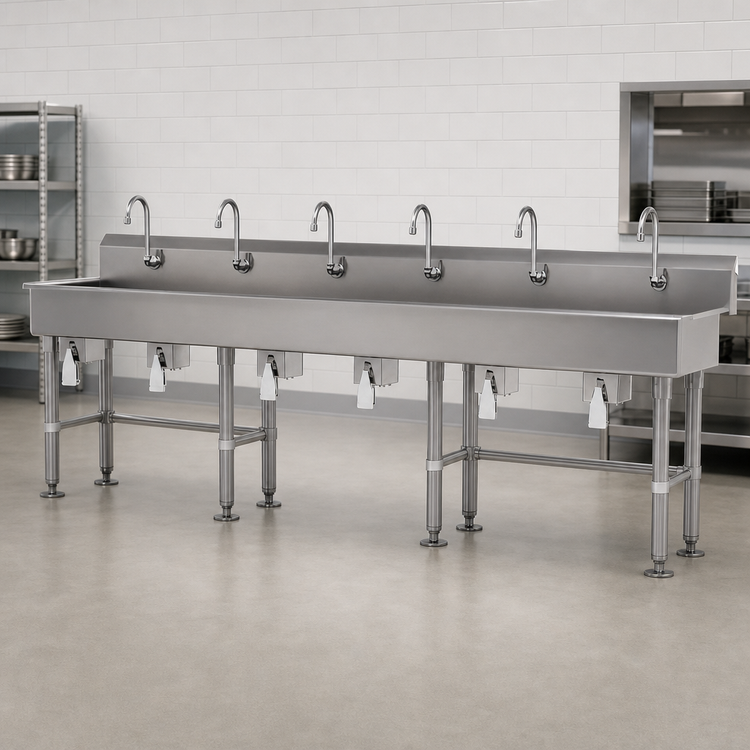

Advance Tabco FS-FM-120KV Six-Station Knee-Operated Hand Sink
120" L x 19 1/2" D x 42 1/2" H • 14 ga 304 Stainless Steel • NSFGive up to six team members a dedicated, hands-free wash area with this heavy-duty, floor-mounted multi-wash sink from Advance Tabco. Engineered from rugged 14-gauge type 304 stainless steel and fitted with knee valves, it delivers sanitation, durability, and easy compliance in high-volume foodservice, industrial, and laboratory environments.
Key Features
- Six individual stations with single-hole splash mounts and 3 1/2" gooseneck spouts (model K-121 included).
- Hands-free operation via six 7-PS-32 knee valves — reduces cross-contamination.
- Oversized 8 1/2" backsplash keeps surrounding areas dry and sanitary.
- 8" deep, 16" front-to-back bowl provides generous room for thorough handwashing.
- Three rear-mounted 3 1/2" basket drains (K-6) with 1 1/2" I.P.S. connection simplify plumbing.
- 1 5/8" OD tubular stainless steel legs with adjustable cross-bracing and flanged feet for rock-solid floor mounting.
- All-TIG-welded construction; welds are blended to a smooth, satin commercial finish.
- NSF listed; faucets conform to NSF 61/9 and AB 1953 lead-free requirements.
Specifications
| Model | FS-FM-120KV |
|---|---|
| Stations | 6 |
| Overall Dimensions | 120" W × 19 1/2" D × 42 1/2" H |
| Bowl Dimensions (each) | 16" F/B × 8" deep |
| Backsplash Height | 8 1/2" |
| Material / Gauge | 14 ga type 304 stainless steel |
| Included Spouts | (6) K-121 splash-mount gooseneck spouts |
| Included Valves | (6) 7-PS-32 knee valves, lead-free |
| Included Drains | (3) K-6 basket drains, 3 1/2" |
| Shipping Weight | ≈ 248 lb |
| Certifications | NSF |
What’s in the Box
- Advance Tabco FS-FM-120KV six-station sink body
- (6) Knee valve assemblies (7-PS-32)
- (6) Splash-mount gooseneck spouts (K-121)
- (3) 3 1/2" rear basket drains (K-6)
- Stainless steel tubular legs with adjustable cross-bracing & flanged feet
- (2) Stainless steel “Z” wall brackets
- Installation hardware and documentation
Ideal Applications
- High-volume restaurants & commissaries
- Food & beverage production lines
- Laboratories & clean rooms
- School & stadium concession areas
- Industrial wash-down stations
Need tempered water? This unit is compatible with the Advance Tabco K-425 thermostatic mixing valve (sold separately).
