Advance Tabco FS-FM-120FV Hand Sinks
Description

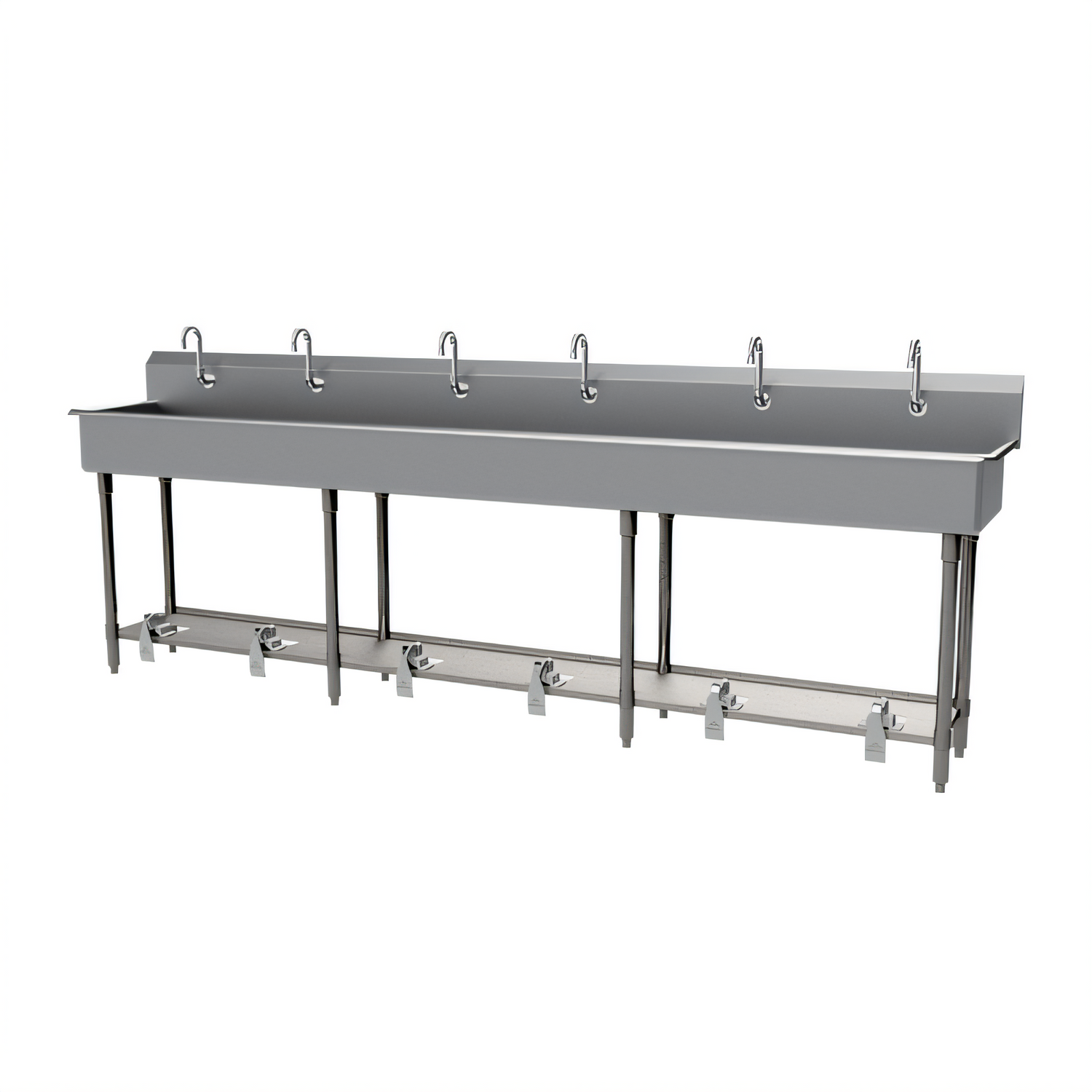

Advance Tabco FS-FM-120FV Six-Station Toe-Push Multi-Wash Hand Sink
120" W x 19-1/2" D x 42-1/2" H • 14-Gauge 304 Stainless Steel • NSF ListedGive every team member quick, sanitary access to hand-washing with this heavy-duty, six-station sink from Advance Tabco. A rugged 14-gauge type 304 stainless build, six foot-activated valves and gooseneck spouts, plus built-in wall and floor supports make the FS-FM-120FV the long-term solution for high-volume foodservice, healthcare, laboratory or industrial environments.
Key Features
- Hands-free toe-push operation – six K-104 valves reduce cross-contamination
- Six splash-mount K-121 gooseneck spouts (single-hole punched)

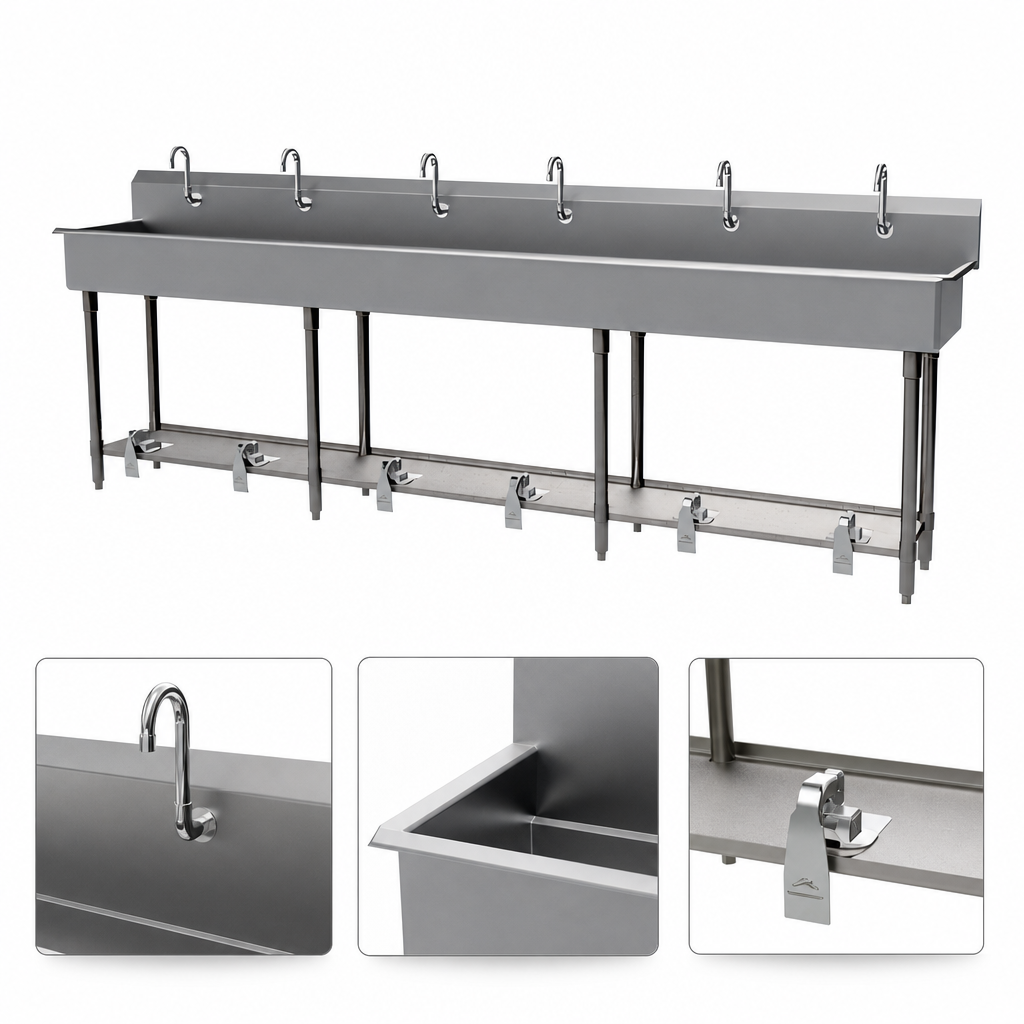

- 120" wide, 6-person layout maximizes throughput in peak periods
- 14-gauge type 304 stainless steel sink body with TIG-welded, satin-finished seams
- 8-1/2" high integral backsplash contains splashes and mounts fixtures
- (3) K-6 rear basket drains (3-1/2") included – 1-1/2" IPS outlet
- 1-5/8" tubular stainless steel legs with adjustable flanged feet & pedal support bracket
- Three stainless steel “Z” wall brackets for rock-solid installation
- NSF certified; faucets comply with NSF 61/9 & AB 1953 lead-free standards
At-a-Glance Specifications
| Model | FS-FM-120FV |
|---|---|
| Stations / Spouts | 6 |
| Operation | Toe-push (foot) valves, one per station |
| Overall Dimensions | 120" W × 19-1/2" D × 42-1/2" H |
| Individual Bowl Size | 16" front-to-back × 8" deep |
| Backsplash Height | 8-1/2" |
| Drains | (3) 3-1/2" basket drains, rear outlet |
| Material | 14-ga 304 stainless steel (sink & legs) |
| Finish | Satin polish |
| Shipping Weight | Approx. 252 lb |
| Certifications | NSF |
Ideal For
- High-volume food prep & dish rooms
- Dairies, commissaries & meat-processing plants
- Hospitals, clinics & clean-room facilities
- School and university cafeterias
- Industrial manufacturing & R&D labs
Optional Accessories (sold separately)
- K-13 wall-mount stainless steel soap dispensers
- K-411 strainer plates for 3-1/2" drains
- TA-19 adjustable stainless flanged bullet feet
Need custom sizing, additional faucets or knee-operated valves? Contact us for a Smart Fabrication™ quote.
