Advance Tabco  |  SKU: FS-FM-120EFADA

Advance Tabco FS-FM-120EFADA Hand Sinks

$9,804.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

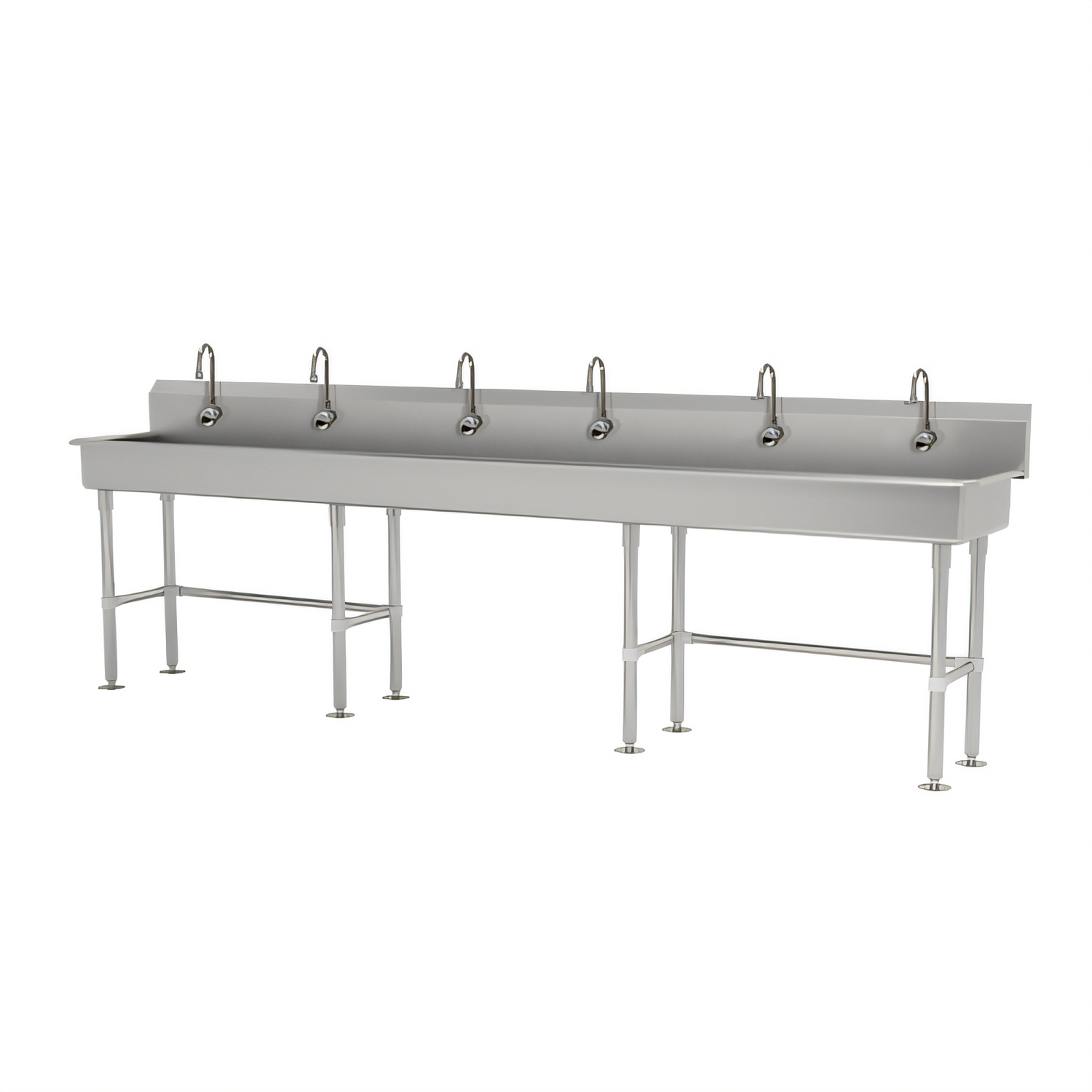

Advance Tabco 120" ADA Multi-Station Hand Sink – 6 Touch-Free Faucets

Model FS-FM-120-EFADA | 14 ga 304 Stainless Steel

Engineered for the busiest facilities, this 6-station Advance Tabco hand-washing sink combines rugged 14-gauge type 304 stainless steel with fully electronic, hands-free K-175 faucets. The ADA-compliant 5" deep bowl, generous 120" width and built-in rear support brackets make it the go-to choice for schools, healthcare, food-service and industrial washrooms where hygiene, accessibility and durability are non-negotiable.

Why You'll Love It
  • Six touchless K-175 electronic faucets reduce cross-contamination and water waste.
  • ADA compliant 5" bowl depth allows comfortable wheelchair access.
  • One-piece 14 ga 304 stainless steel body with satin finish resists corrosion and abuse.
  • 8 ½" rear backsplash with single-hole punches protects walls and simplifies faucet service.
  • (3) 3 ½" rear basket drains speed water evacuation and trap debris.
  • 1 5⁄8" O.D. tubular stainless legs with adjustable cross-bracing & flanged feet for secure floor anchoring.
  • Stainless-steel “Z” wall brackets included for additional load support.
  • Factory TIG-welded seams blended to a smooth, easy-to-clean finish.
  • NSF listed for food-service sanitation.
Technical Specifications
Stations / Users 6
Overall Dimensions (W × D × H) 120" × 19 ½" × 42 ½"
Bowl Size (per sink) 16" front-to-back × 5" deep
Backsplash Height 8 ½"
Material / Gauge Type 304 Stainless Steel, 14 ga
Faucets Included (6) K-175 Hands-Free Electronic Faucets
Drain Assemblies (3) K-6 3 ½" Basket Drains (rear mounted)
Mounting Floor-standing legs with flanged feet & stainless “Z” wall brackets
Compliance NSF Certified, ADA Compliant
Power Each faucet ships with 120 V AC adapter (one per faucet)
Finish Satin polished, easy-clean surfaces
Shipping Knocked down; legs, brackets, drains & faucets included

Looking for custom lengths, extra options or knee-valve operation? Reach out — Advance Tabco’s Smart Fabrication™ team can build it.

California Proposition 65: This product can expose you to chemicals (including lead) known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

42.5in

Width

120.0in

Depth

19.5in

Shipping Weight

200.0lbs

Style

freestanding

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, with (6) electronic faucets, 120"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, includes (3) 3-1/2" rear basket drains, 14 gauge 304 stainless steel construction, NSF, ADA Compliant
