Advance Tabco FS-FM-120 Hand Sinks
Description

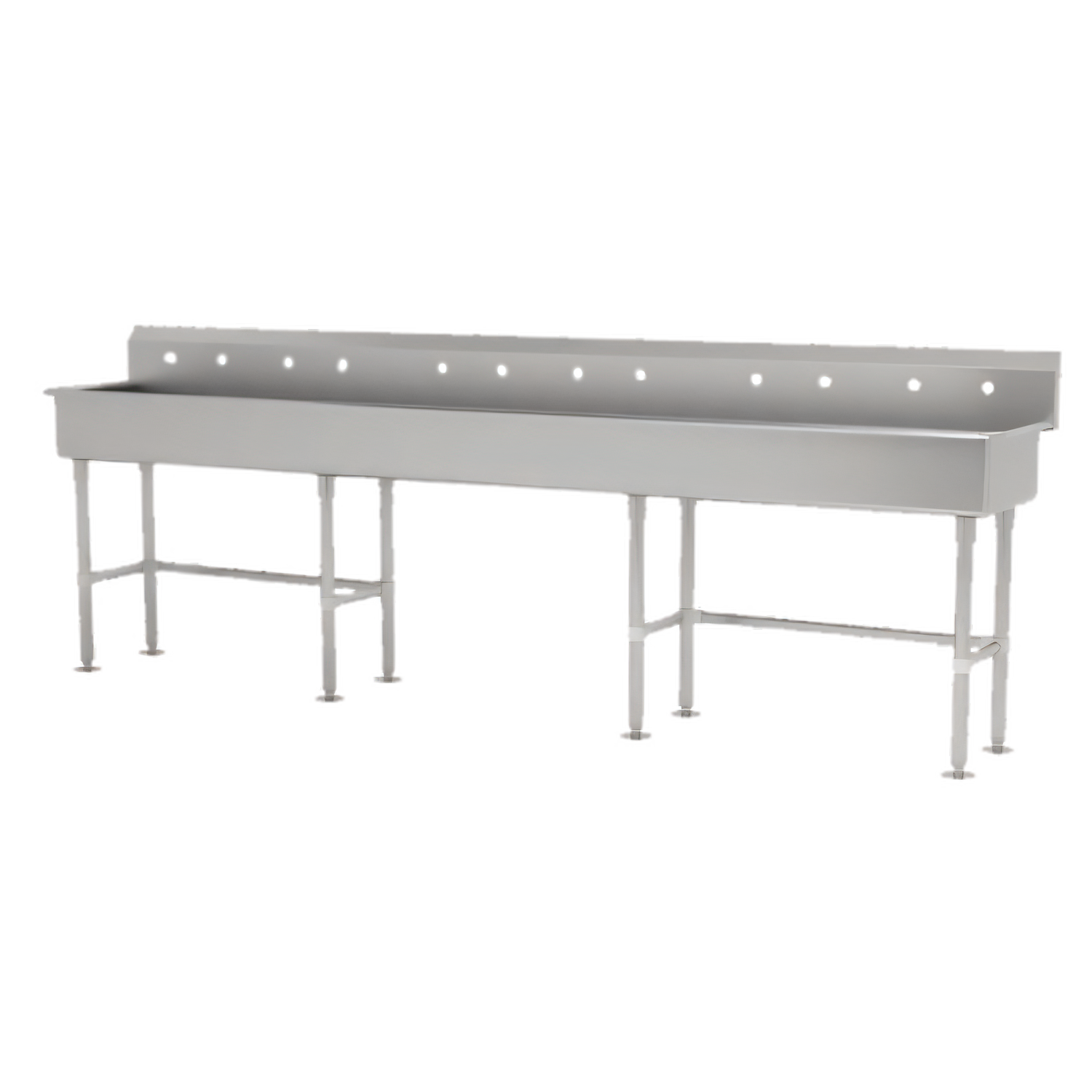

Advance Tabco 120" Multi-Wash Hand Sink
6-Station • 14 Ga 304 Stainless Steel • Model FC-FM-120 (No Faucets)Give up to six users simultaneous, hygienic hand-washing in one durable, free-standing unit. Engineered for the rigors of busy commercial kitchens, production plants, laboratories and school cafeterias, this heavy-gauge Advance Tabco sink arrives NSF-approved and ready for fast plumbing hook-up.
Key Features & Benefits
- Accommodates 6 users at once – perfect for high-traffic areas.
- 120" W x 19-1/2" D x 42-1/2" H overall footprint (34" working height + 8-1/2" backsplash).
- Spacious bowls: 16" front-to-back x 8" deep minimize splash and mess.
- 14-gauge type 304 stainless steel top, sides & bowl – extra-thick for dent & corrosion resistance.
- Fully TIG-welded; welds blended to a smooth satin finish for easy clean-up.
- 8-1/2" high integral backsplash
• Pre-punched with (6) sets of 8"-OC faucet holes for splash-mount mixing faucets (sold separately). - (3) 3-1/2" K-6 rear basket drains included – keeps solids out of the plumbing line.
- 1-5/8" tubular 304 SS legs with adjustable cross-bracing & flanged feet for floor anchoring.
- Factory supplied stainless steel “Z” wall brackets add extra rigidity.
- NSF certified – meets the latest food-safety and sanitation standards.
Ideal For
- High-volume foodservice kitchens
- Meat & poultry processing rooms
- Brewery & beverage production
- School & university cafeterias
- Industrial or pharmaceutical labs
Technical Specifications
| Model # | FC-FM-120 (manual faucet version, faucets not included) |
|---|---|
| Stations | 6 |
| Overall Dimensions | 120" W × 19-1/2" D × 42-1/2" H |
| Working Rim Height | 34" |
| Bowl Size (each) | 16" F-B × 8" D |
| Backsplash Height | 8-1/2" (integral, one-piece) |
| Faucet Mount | (6) sets of 8" on-center holes, 1-1/8" dia. |
| Drain Assemblies | (3) 3-1/2" rear basket drains (K-6) |
| Material & Finish | 14 Ga 304 stainless steel, satin finish |
| Legs / Feet | 1-5/8" O.D. tubular 304 SS with flanged feet & adjustable cross-bracing |
| Certifications | NSF |
| Country of Origin | USA |
Important Note: Faucets, supply lines and p-trap are not included. Always install in accordance with local plumbing codes.
Need Help with Faucets or Knee Valves?
Compatible Advance Tabco gooseneck faucets (K-159 series), electronic or knee-operated valves are available separately. Contact our team for a complete, ready-to-plumb package.
