Advance Tabco FS-FM-120-ADA-F Hand Sinks
Description

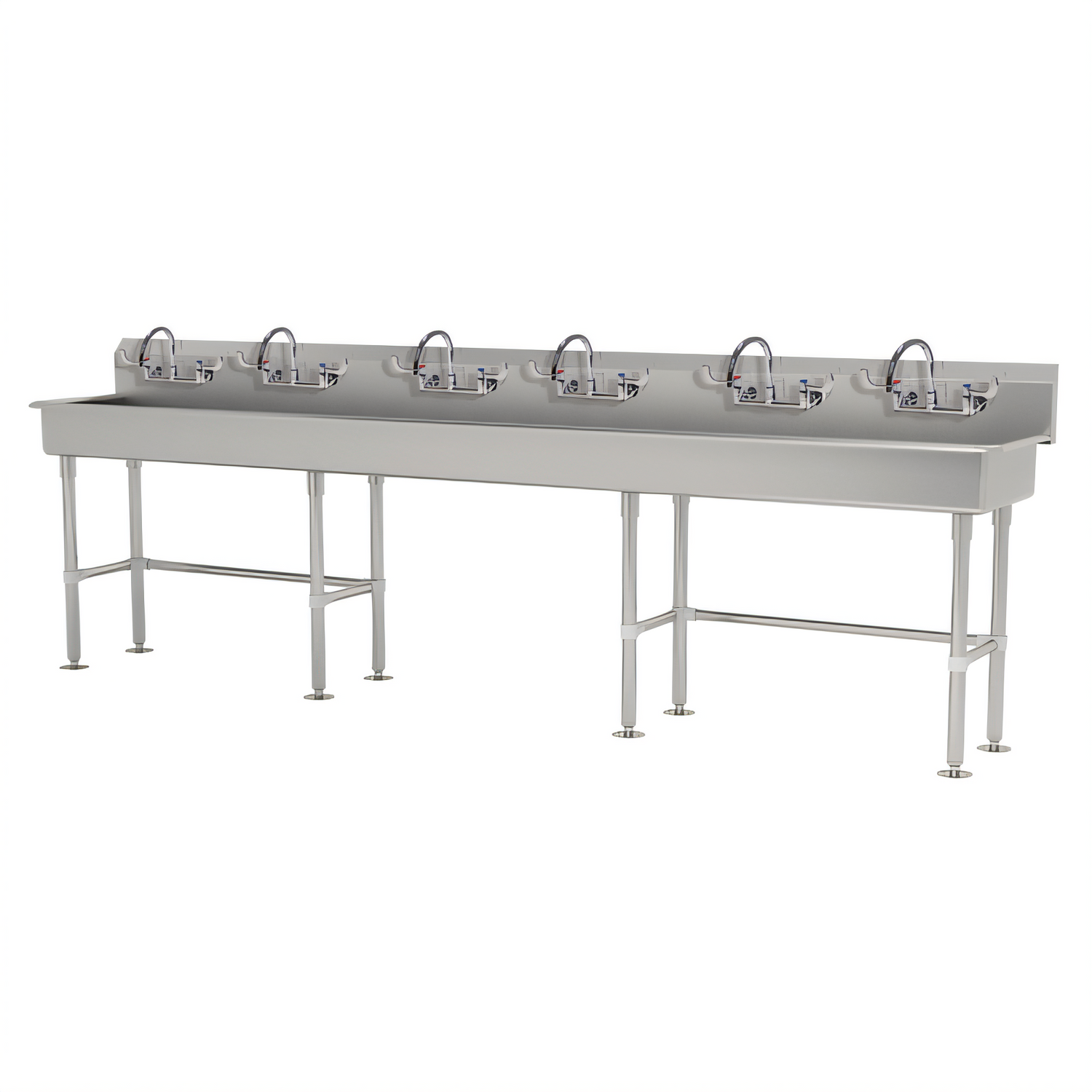

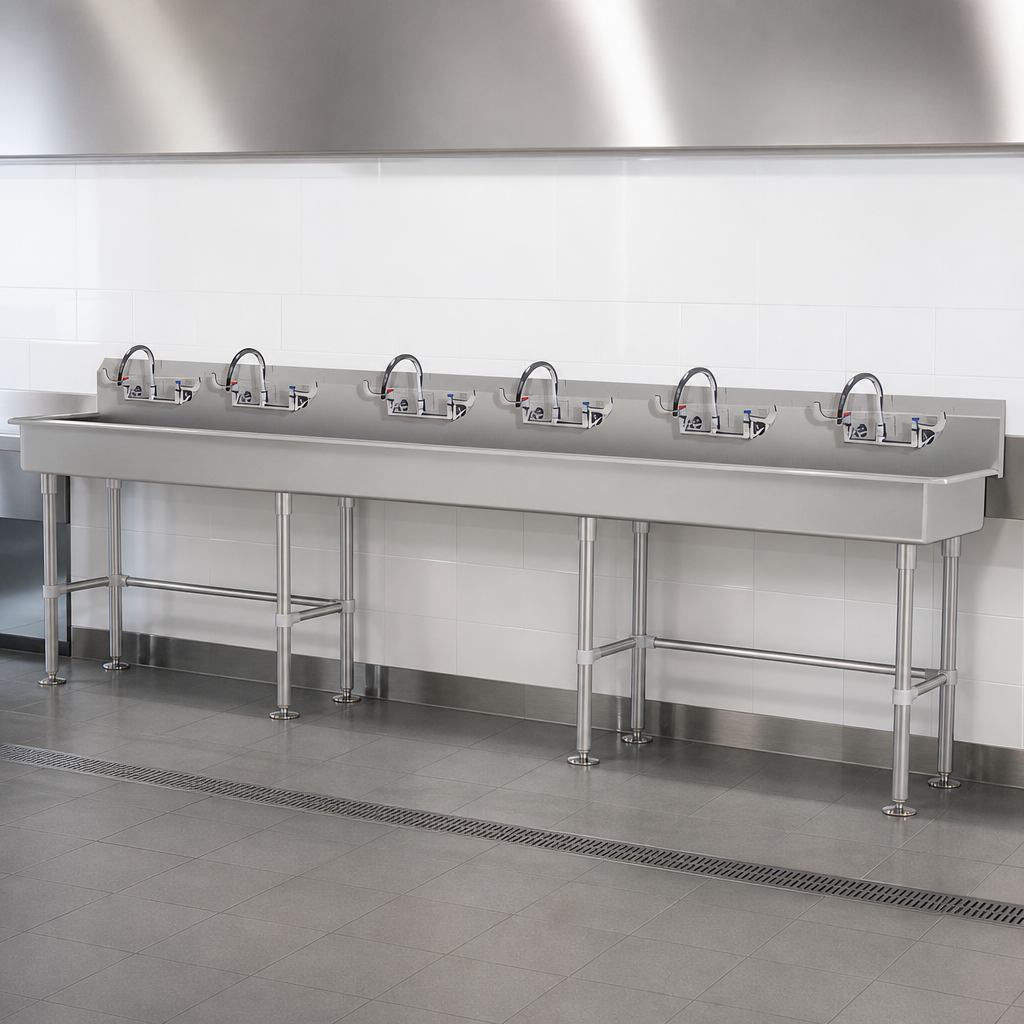

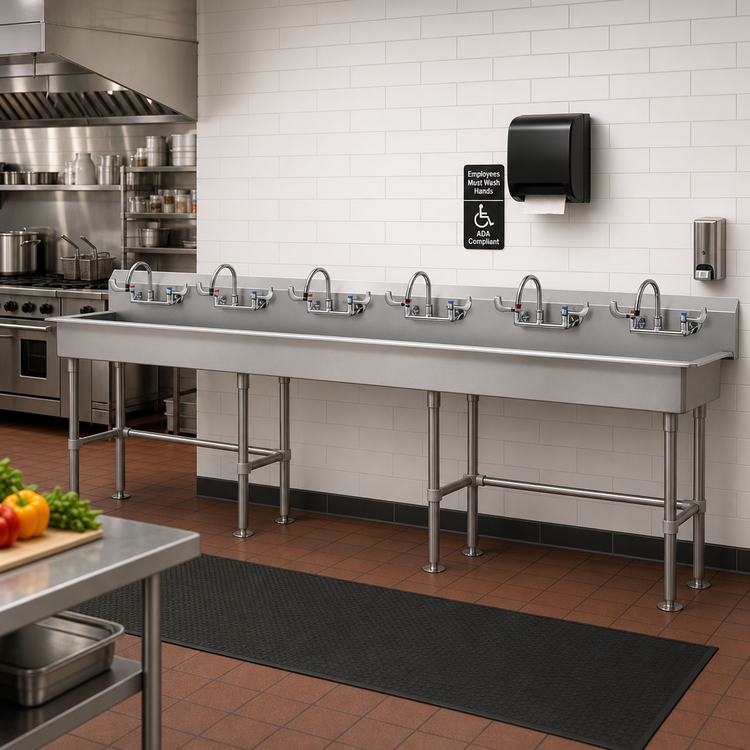

Advance Tabco 120" 6-Station ADA Multi-Wash Hand Sink
Model FS-FM-120-ADA-F | 14 ga 304 Stainless Steel | Includes Wrist-Blade FaucetsGive every team member quick, code-compliant access to hand-washing with this heavy-duty, six-station sink from Advance Tabco. Built from extra-rugged 14-gauge 304 stainless steel, the unit ships ready to install with wall brackets, tubular legs, three basket drains and six ADA-approved wrist-blade faucets—perfect for foodservice, healthcare, labs and high-volume production environments.
Key Features
- Extra-wide 120" design accommodates six users at once—ideal for peak traffic periods.
- ADA-compliant 5" deep bowl and open knee space for wheelchair accessibility.
- (6) 8-1/2" gooseneck faucets with wrist blades (K-161-LU) for sanitary, hands-free operation with gloves.
- Integral 8-1/2" backsplash with 8" on-center faucet punchings contains splashes and simplifies rough-in.
- All TIG-welded 14 ga type 304 stainless steel—corrosion-resistant and built for decades of service.
- Tubular 1-5/8" Ø stainless steel legs with adjustable flanged feet and cross-bracing for rock-solid stability.
- (3) 3-1/2" rear basket drains included; plumb once for efficient outflow.
- NSF Listed • ADA Compliant • Satin-blended welds for a hygienic finish.
Technical Specifications
| Stations / Faucets | 6 / 6 |
|---|---|
| Overall Dimensions | 120" W × 19-1/2" D × 42-1/2" H (to top of backsplash) |
| Individual Bowl Size | 16" front-to-back × 5" deep |
| Backsplash Height | 8-1/2" |
| Material Thickness | 14-gauge (0.078") 304 stainless steel |
| Faucet Centers | 8" O.C., splash-mount |
| Drains | (3) 3-1/2" K-6 rear basket drains w/ strainers |
| Mounting Hardware | Stainless steel “Z” wall brackets, legs & cross-bracing |
| Certifications | NSF, ADA, Proposition 65 |
Perfect For
- School cafeterias & culinary classrooms
- Hospital & clinic hand-wash corridors
- Food-processing & packaging facilities
- Laboratories & clean-room entry points
What’s Included
- (1) Advance Tabco FS-FM-120-ADA-F sink assembly
- (6) K-161-LU 8-1/2" gooseneck faucets with wrist blades
- (3) 3-1/2" basket drains with strainers
- (2) Stainless steel “Z” wall brackets
- (8) Tubular legs with adjustable flanged feet & cross-bracing
- Installation & operation manual
Quick Install Tips
- Mount “Z” wall brackets 42-1/2" from finished floor to bracket top for proper ADA height.
- Connect 3/8" NPT hot & cold supplies to each faucet; use silicone or plumber’s putty on drains.
- Level legs via adjustable flanged feet; tighten cross-bracing clamps once level.
Specifications are subject to change without notice as Advance Tabco continually improves product design.
