Advance Tabco  |  SKU: FS-FM-100FV  |  UPC: 747545216519

Advance Tabco FS-FM-100FV Hand Sinks

$6,364.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

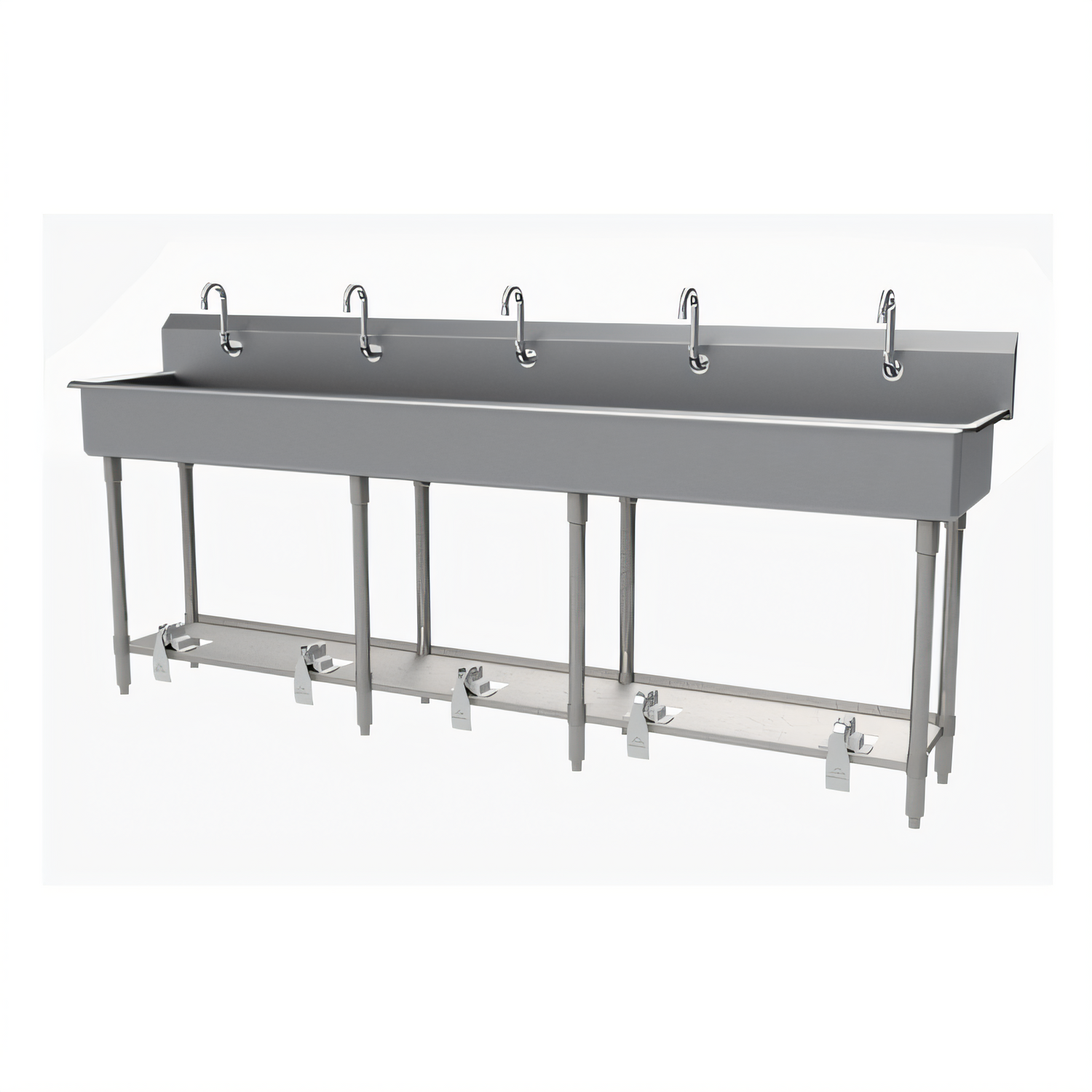

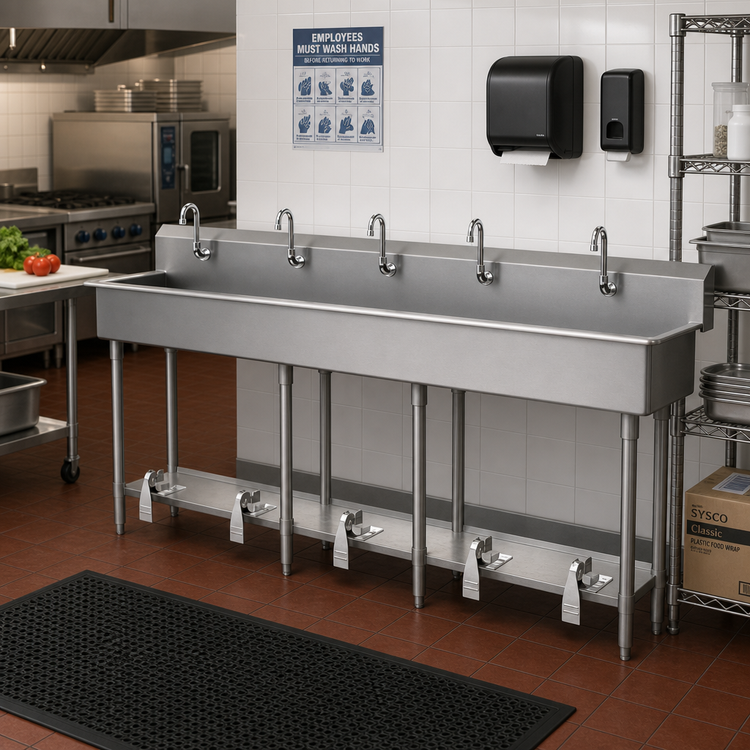

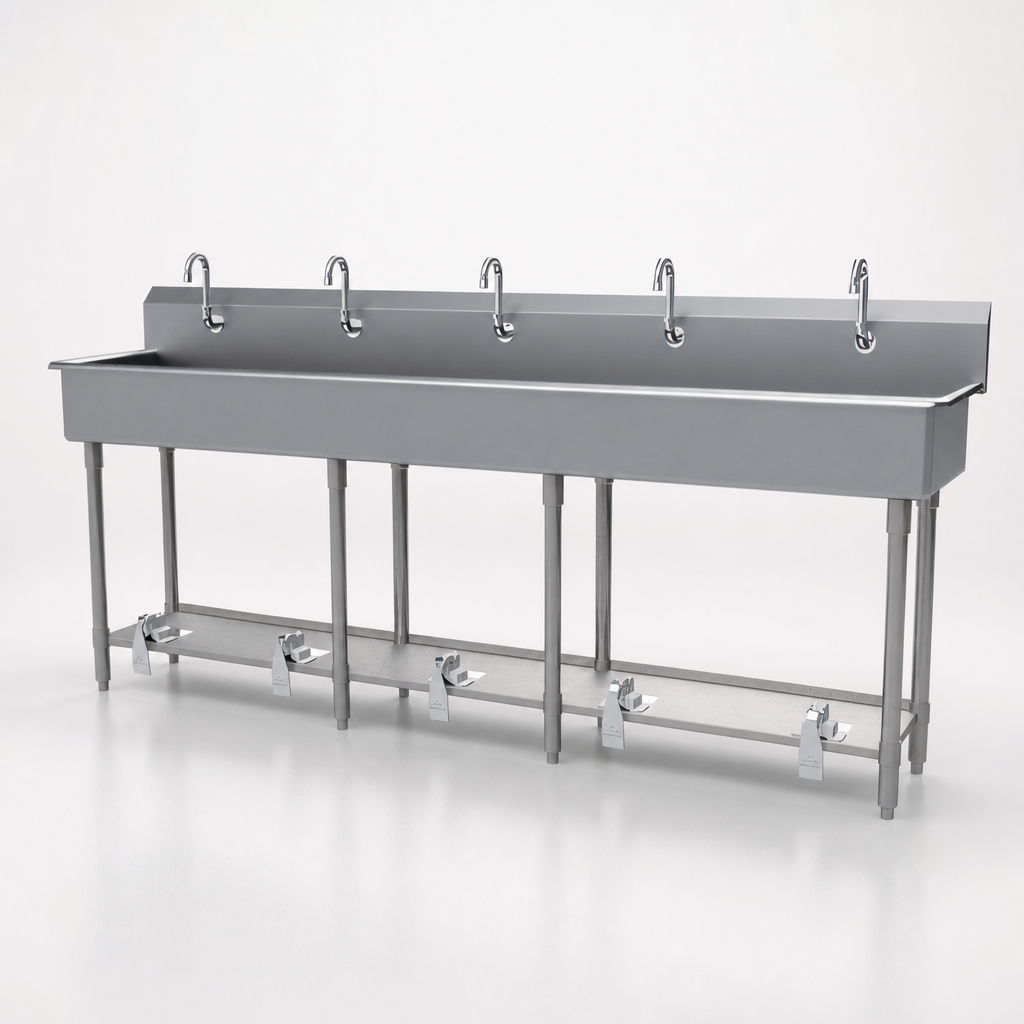

Advance Tabco FS-FM-100FV Five-Station Toe-Push Hand Sink

100" floor-mounted multi-wash station – 14 ga. type 304 stainless steel

Engineered for high-volume hand-washing, the Advance Tabco FS-FM-100FV delivers rugged performance, sanitary design, and true hands-free operation. Five independent stations, each with its own toe-push valve and splash-mount gooseneck spout, help your team move quickly while maintaining food-safety and HACCP compliance.

Key Features

  • Hands-free toe-push operation – includes five K-104 valves & pedal bracket support
  • Five K-121 splash-mount 3 ½" gooseneck spouts pre-punched in backsplash
  • 14 gauge, type 304 stainless steel sink body with satin finish – built to take daily abuse
  • 8 ½" high backsplash confines splashing and speeds clean-up
  • 16" front-to-back bowl with 8" working depth for comfortable ergonomics
  • 1 5/8" Ø tubular stainless steel legs with adjustable flanged feet for rock-solid floor mounting
  • Welded stainless “Z” wall brackets and undershelf with rear turn-up add stability & storage
  • Two K-6 rear basket drains (3 ½") included – no need to source separately
  • TIG-welded construction, blended seams, and coved corners for easy sanitation
  • NSF listed; faucet components meet NSF 61/9 & AB 1953 lead-free requirements

At-a-Glance Specifications

Overall width 100 in. (2540 mm)
Overall depth 19 1/2 in. (495 mm)
Overall height 42 1/2 in. (1080 mm) to top of backsplash
Bowl size (ea.) 16 in. front-to-back × 8 in. deep
Backsplash height 8 1/2 in.
Stations 5 individual hand-wash stations
Operation Toe-push valves (foot pedal)
Faucet provision Splash-mount, single hole x 5, pre-punched
Material thickness 14 ga. (2.0 mm) type 304 stainless steel
Shipping weight Approx. 226 lb (103 kg)
Certifications NSF, NSF 61/9, AB 1953

Perfect For

  • Commercial & institutional kitchens
  • Food-processing & packaging plants
  • Breweries, wineries & beverage production
  • Laboratories & pharmaceutical facilities
  • Schools, stadiums & other high-traffic venues

Optional Accessories & Replacement Parts

  • K-06 splash-mount faucet kit
  • K-13 stainless steel wall-mount soap dispenser
  • K-411 strainer plate for 3 ½" drain
  • TA-19 adjustable stainless bullet feet
  • K-104 toe-push valve assembly  |  K-121 gooseneck spout (individual)

Need custom sizing, additional plumbing rough-in information, or ADA compliance guidance? Contact our product specialists – we’re happy to help.

California Prop 65 Notice: This product may expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

208.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Faucet

faucet included

Bowl Width (left to right)

20" & up

Style

freestanding

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, with toe-operated push valve, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF
