Advance Tabco  |  SKU: FS-FM-100

Advance Tabco FS-FM-100 Hand Sinks

$4,280.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco FS-FM-100 Multi-Station Hand Sink

100"-Wide • 5 User Stations • 14 Ga. 304 Stainless Steel

Built for the busiest food-service and industrial wash areas, the Advance Tabco FS-FM-100 delivers five full-size hand-washing stations in one rugged, easy-to-install unit. Heavy-duty 14 gauge type 304 stainless steel, all-TIG-welded seams, and tubular leg framing ensure long service life, while a full 8 inch bowl depth and high backsplash keep water where it belongs. Simply add your choice of splash-mount faucets (sold separately) and you’re ready for code-compliant, NSF-listed hygiene.

Key Features & Benefits

  • 5 independent hand-washing stations in a single 100" long sink – ideal for high-volume operations.
  • Rugged 14 gauge, type 304 stainless steel construction stands up to daily commercial use.
  • Full-size bowls: 16" front-to-back x 8" deep for comfortable, splash-free washing.

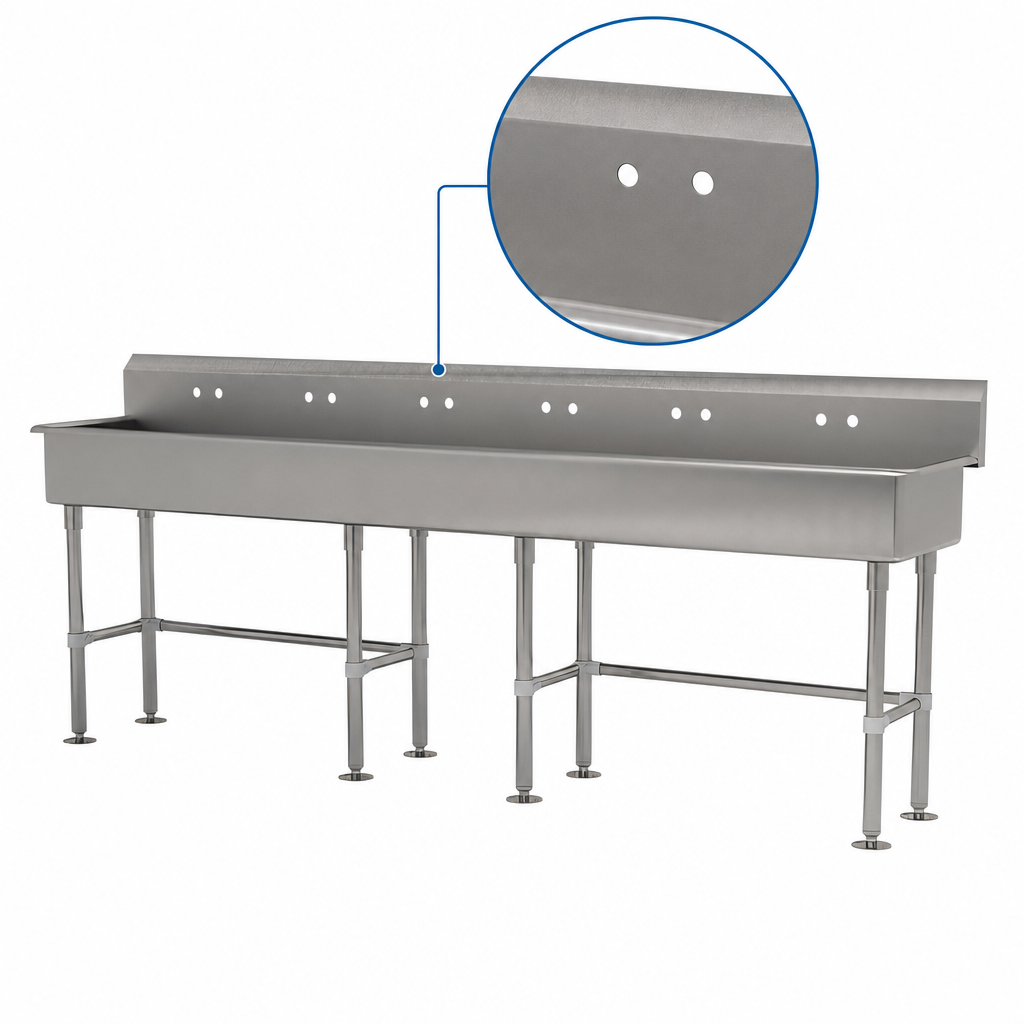

  • 8-1/2" high backsplash is pre-punched with (5) sets of 8" on-center holes for splash-mount faucets.
  • Tubular 1-5/8" Ø stainless steel legs with adjustable cross-bracing and flanged feet for rock-solid floor anchoring.
  • (2) 3-1/2" K-6 rear basket drains speed wastewater removal and resist clogging.
  • All TIG-welded seams are blended to a satin finish for a professional look and easy cleanup.
  • NSF listed for guaranteed food-safety compliance.

Technical Specifications

Brand / Series Advance Tabco – Smart Fabrication™ Multi-Wash
Model No. FS-FM-100 (sink only, faucets sold separately)
Stations 5
Overall Dimensions 100" W × 19-1/2" D × 42-1/2" H (to top of backsplash)
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8-1/2"
Faucet Mounting (5) sets of 8" O.C. holes in backsplash
Drain Fittings (2) 3-1/2" K-6 basket drains (rear)
Material / Gauge 14 ga. type 304 stainless steel sink & 1-5/8" Ø tubular legs
Finish Satin – welded areas blended to match adjoining surfaces
Compliance NSF Listed
Shipping Weight Approx. 170 lb

Faucets, supply lines and P-traps are not included and must be sourced separately to meet local plumbing codes.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

170.0lbs

Style

freestanding

Faucet

faucet not included

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Bowl Height (rim to drain)

8" deep

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF
