Description

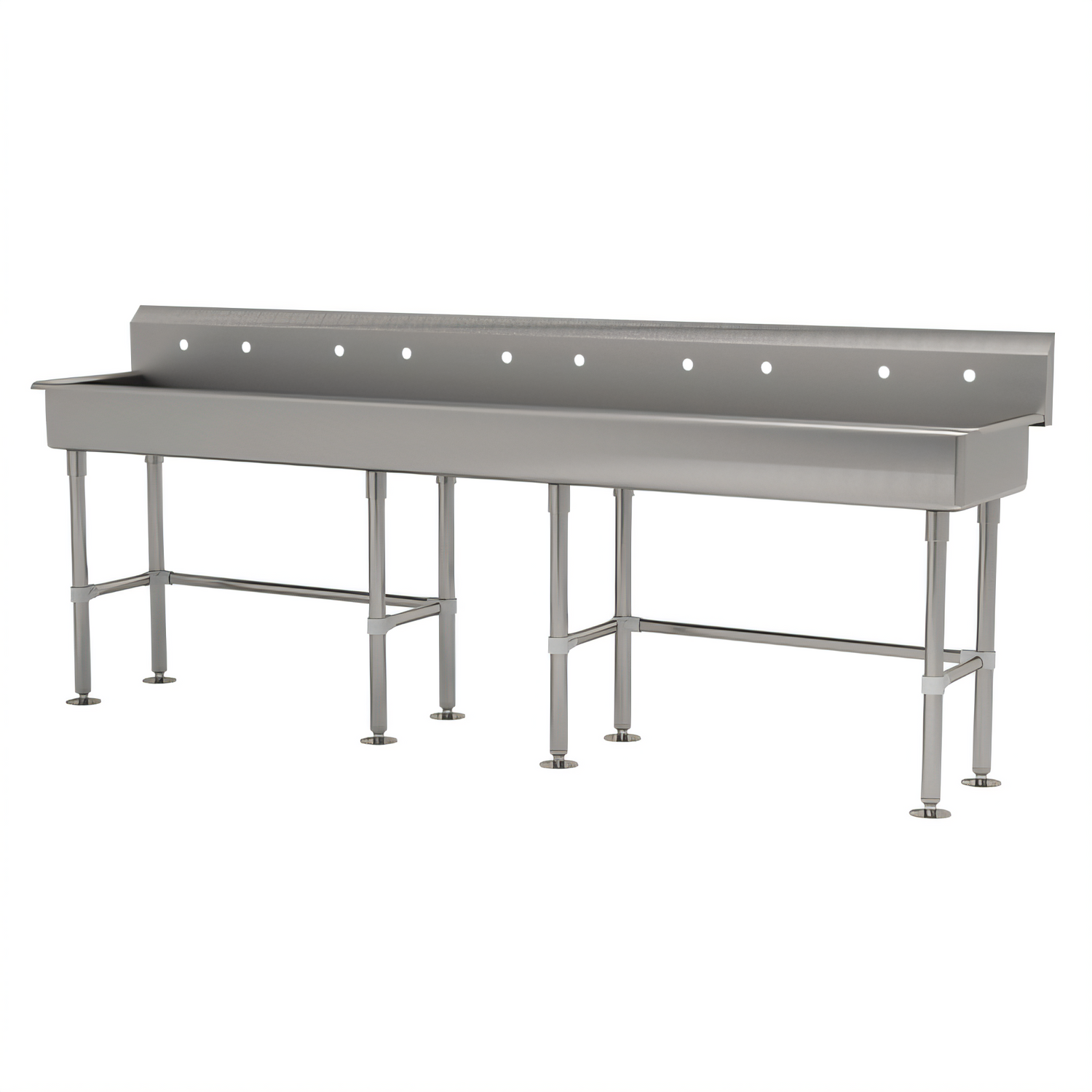

Advance Tabco FS-FM-100-ADA Multi-Station Hand Sink – 5 Stations
100" W x 19-1/2" D x 42-1/2" H • 14 ga 304 Stainless • ADA & NSF CertifiedBuilt for the busiest commercial environments, this Advance Tabco 5-station trough sink delivers dependable hand-washing capacity, heavy-duty construction and full ADA compliance in one sleek, easy-to-sanitize package.
Why You’ll Love It
- Extra-wide 100" continuous bowl serves up to five users at once.

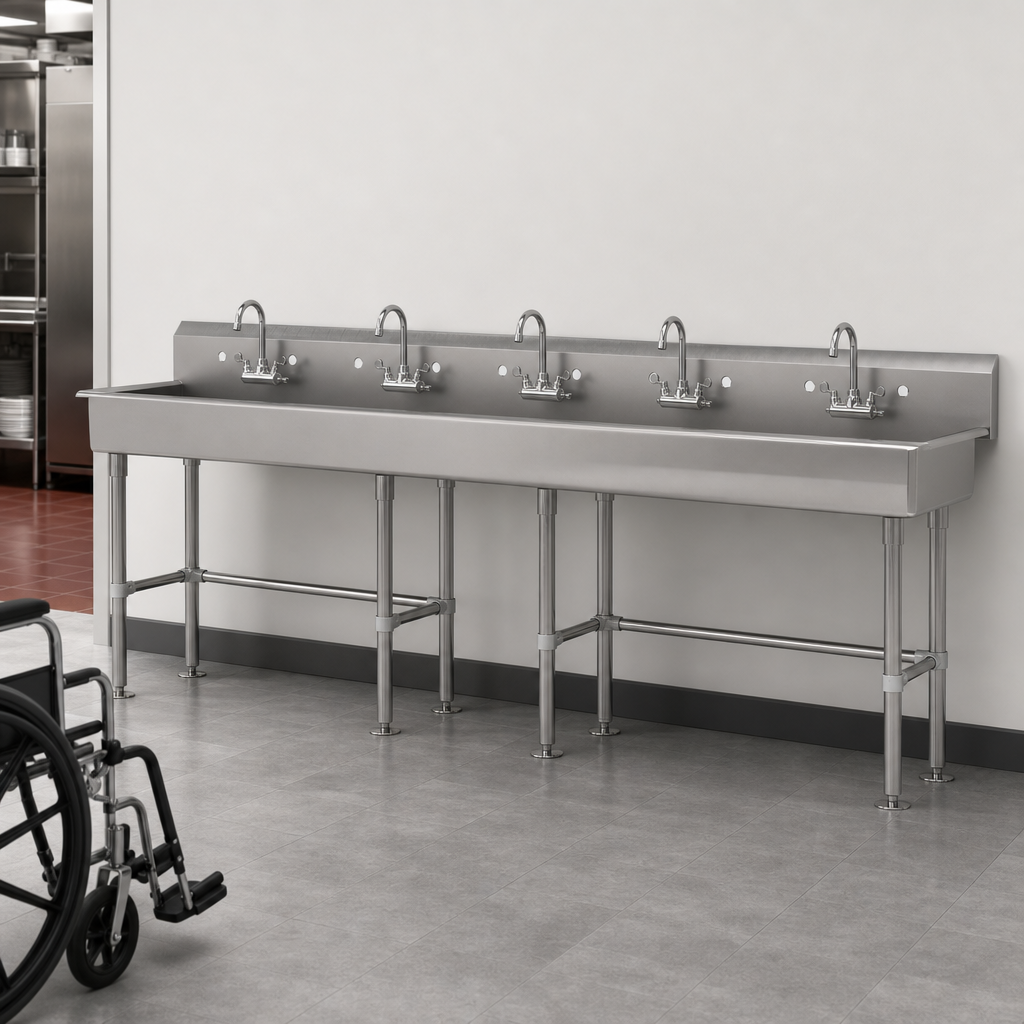

- ADA compliant 5" deep bowl (16" front-to-back) provides comfortable wheelchair access.
- Crafted from 14 gauge type 304 stainless steel for maximum strength and corrosion resistance.
- Integral 8-1/2" backsplash contains splashes and houses faucet punchings.
- (5) sets of 8" on-center openings accept standard splash-mount faucets (sold separately).
- 3-1/2" rear basket drain included for quick, clog-resistant water removal.
- 1-5/8" Ø tubular stainless steel legs with adjustable cross-bracing and flanged feet for rock-solid stability.
- Stainless steel “Z” wall brackets add extra support and simplify installation.
- TIG-welded seams are blended to a sanitary satin finish.
- NSF listed for food-service sanitation and safety.
Perfect For
- High-volume restaurant & hotel kitchens
- School and university dining facilities
- Food processing & packaging plants
- Manufacturing, warehouse and lab hand-wash stations
Technical Specifications
| Model No. | FS-FM-100-ADA (faucets not included) |
|---|---|
| Stations | 5 |
| Overall Dimensions | 100" W × 19-1/2" D × 42-1/2" H |
| Bowl Size | 16" front-to-back × 5" deep (single continuous bowl) |
| Backsplash Height | 8-1/2" |
| Faucet Openings | (5) sets, 8" on-center, splash mount |
| Material / Thickness | 14 ga type 304 stainless steel |
| Legs & Base | 1-5/8" Ø stainless legs, adjustable cross-brace, flanged feet |
| Drain | 3-1/2" K-6 rear basket drain supplied |
| Certifications | NSF, ADA compliant |
| Shipping Weight | Approx. 142 lb |
Faucets, supply lines and trap are sold separately. Choose any standard 8" O.C. splash-mount faucets to complete your installation.
Oversize Shipment: Please confirm doorway and hallway clearances prior to delivery.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF, ADA Compliant
Height
42.5in
Width
100.0in
Depth
19.5in
Shipping Weight
142.0lbs
Style
freestanding
Bowl Height (rim to drain)
5" deep
Bowl Depth (front to back)
15" - 19" front-to-back
Faucet
faucet not included
Bowl Width (left to right)
20" & up
Features
multi-station
Specifications
Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (5) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF, ADA compliant
