Description

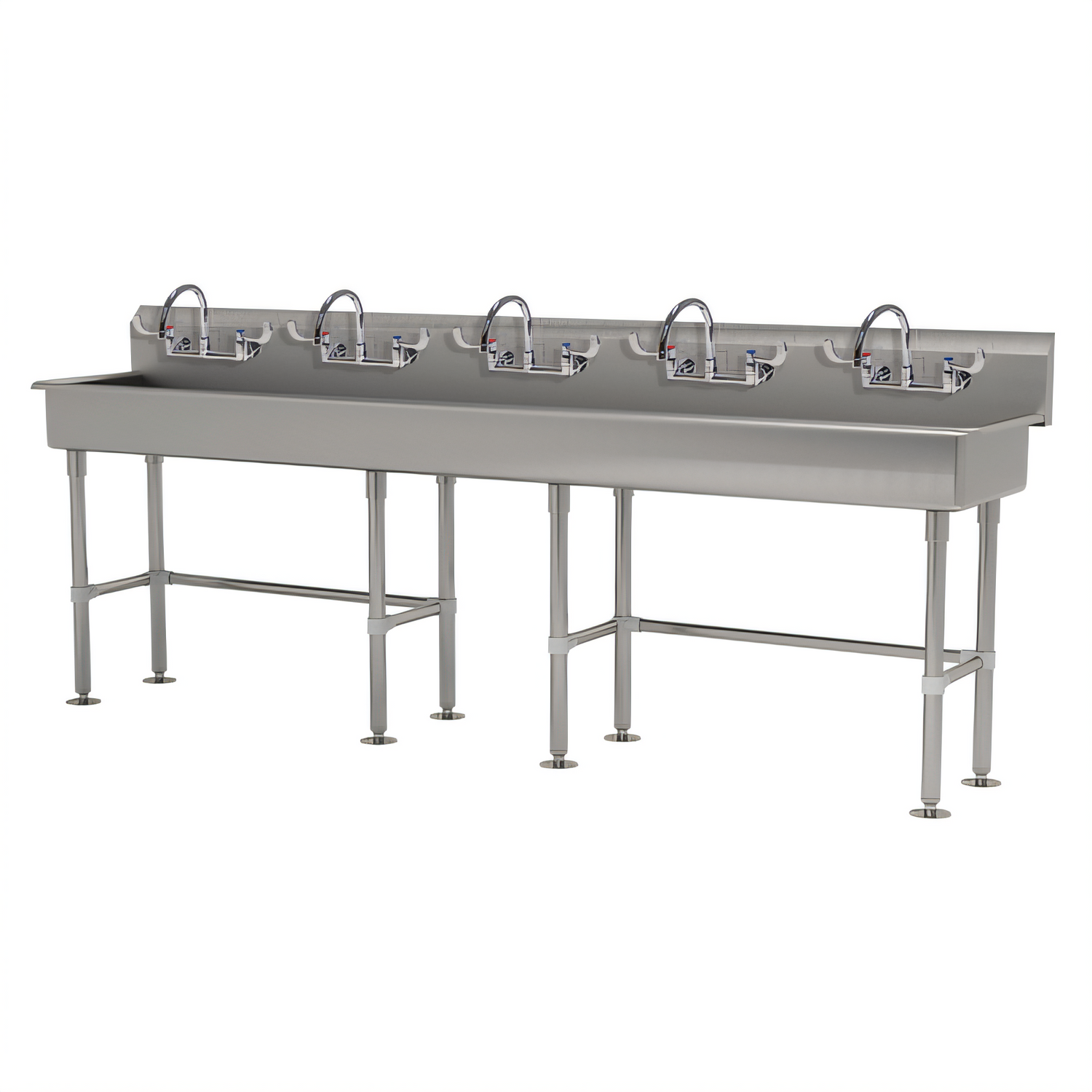

Advance Tabco 5-Station Stainless Steel Multi-Wash Hand Sink

Model FS-FM-100-ADA-F  |  14 ga. Type 304 Stainless Steel

Outfit your high-traffic kitchen, factory, laboratory or school with a single fixture that keeps the line moving and meets every health code in the book. Measuring a full 100 inches wide and supplied with five ADA-compliant wrist-blade faucets, this Advance Tabco multi-wash sink delivers rugged durability, streamlined installation and worry-free NSF sanitation.

Built for Busy Hand-Wash Zones

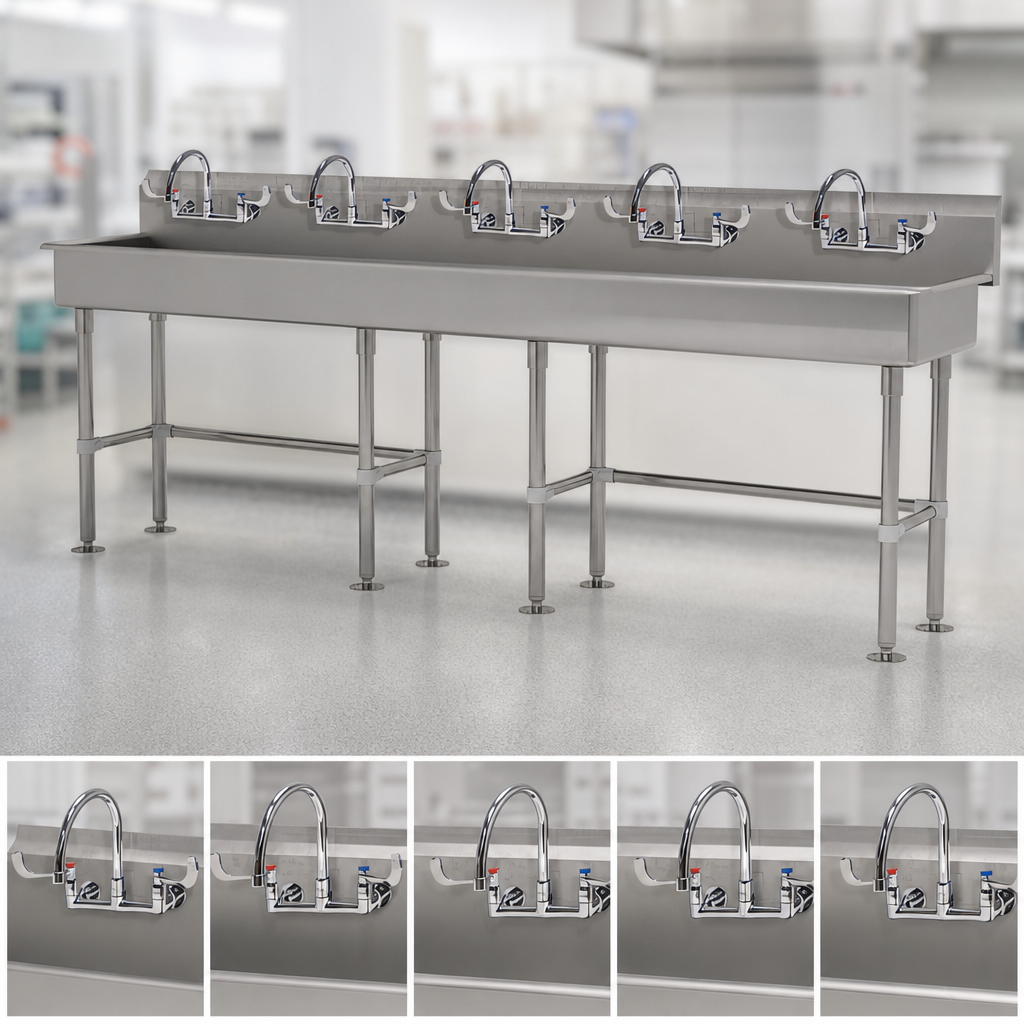

  • Five individual hand-wash stations with 8 ¼" gooseneck faucets and easy-to-operate wrist blades (K-161-LU)
  • ADA bowl depth – 5" deep, 16" front-to-back – provides knee clearance without sacrificing capacity
  • 8 ½" high backsplash with pre-punched 8" O.C. faucet holes for splash-mount plumbing
  • 14 gauge type 304 stainless steel sink body resists dents, corrosion and harsh cleaners
  • 1 5⁄8" tubular stainless steel legs with adjustable cross-bracing & flanged feet for rock-solid stability
  • Factory-installed 3 ½" rear basket drain simplifies rough-ins and keeps debris out of the waste line
  • NSF listed & fully ADA compliant – ideal for any code-driven environment

Technical Specifications

Stations 5
Overall Dimensions 100" W × 19 ½" D × 42 ½" H (to top of backsplash)
Bowl Size (each) 16" F/B × 5" D
Backsplash Height 8 ½"
Faucet Centers 8" on center (splash mount)
Faucets Included (5) K-161-LU gooseneck faucets with wrist-blade handles
Drain 3 ½" rear basket drain (K-6)
Material & Gauge 14 ga. Type 304 stainless steel
Legs / Feet 1 5⁄8" Ø tubular stainless steel legs with flanged feet; adjustable cross-bracing
Certifications NSF, ADA Compliant
Mounting Hardware Stainless steel “Z” wall brackets included

Included With Your Sink

  • (1) 5-station 100" multi-wash sink (fully TIG welded)
  • (5) 8 ½" gooseneck wrist-blade faucets
  • (1) 3 ½" rear basket drain assembly
  • (4) Tubular legs with flanged feet & adjustable cross-bracing
  • (2) Stainless steel “Z” wall brackets for secure splash mounting

Install according to local plumbing codes. Faucet inlets are 3⁄8" NPT female.

California Prop 65 Warning: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

152.0lbs

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Style

freestanding

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, includes (5) faucets with wrist blades, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (5) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 14 gauge 304 stainless steel construction, NSF, ADA compliant
