Advance Tabco FS-FM-1-ADA Hand Sinks
Advance Tabco FS-FM-1-ADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FS-FM-1-ADA Hand Sinks
Description

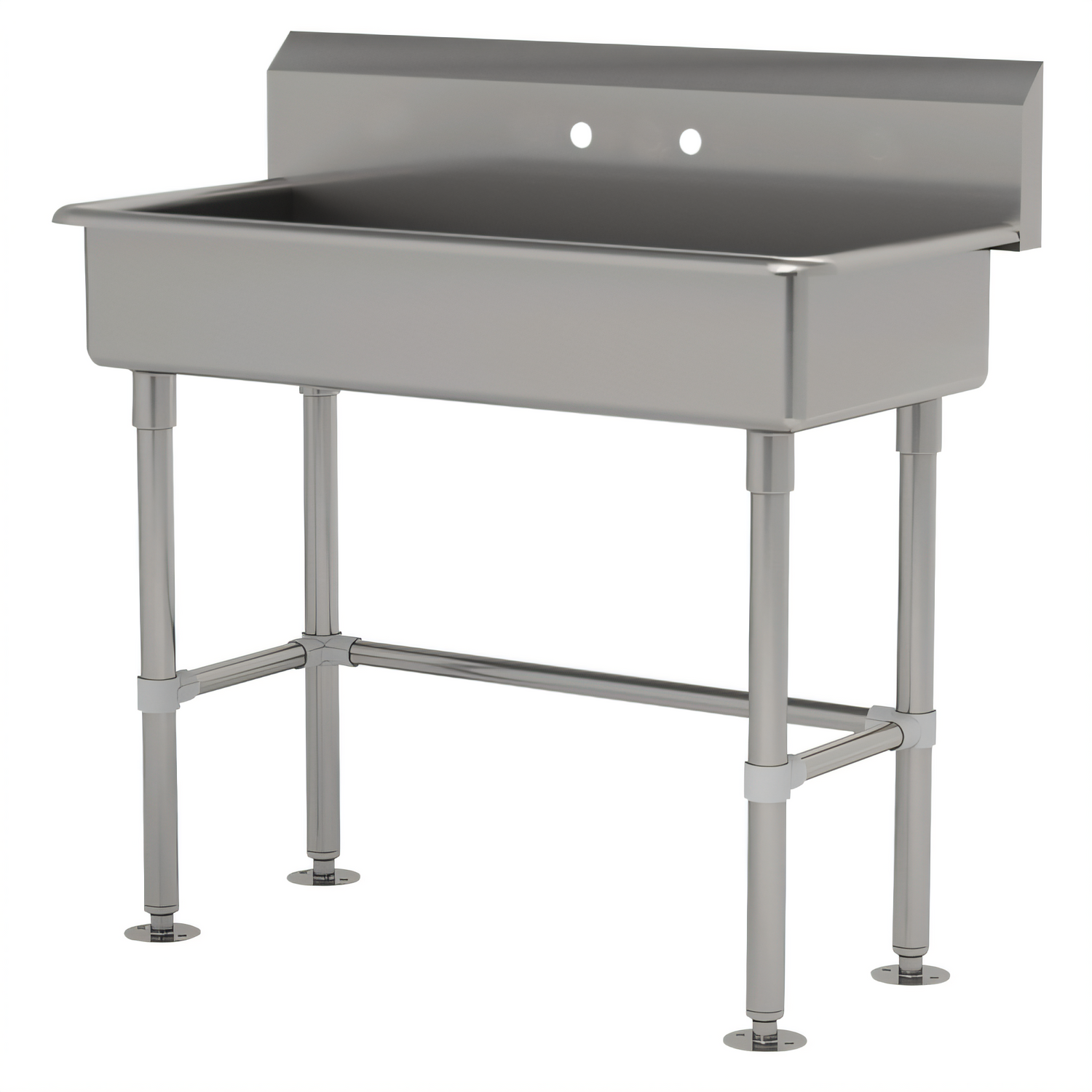

Advance Tabco FS-FM-1-ADA Service Sink
40" floor-mounted • 14-gauge type 304 stainless steel • One stationBuilt to outlast harsh, high-traffic environments, the FS-FM-1-ADA combines heavy-duty 14-gauge stainless, an 8-½" integral backsplash and a true ADA-compliant working height. Its open-leg frame with flanged feet makes installation fast while maintaining rock-solid stability.
Why you’ll love it

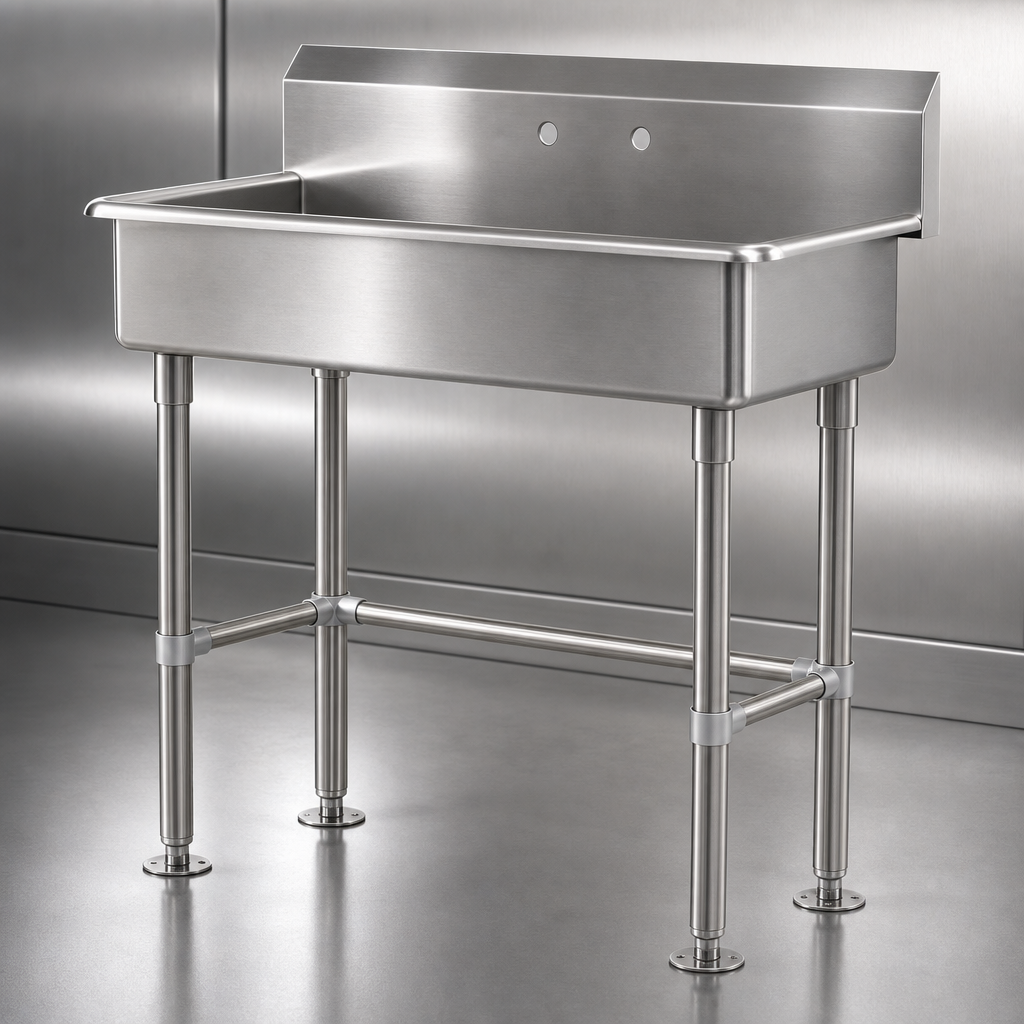

- 14-gauge type 304 stainless steel resists corrosion and dents.
- Generous 37" × 16" bowl handles bulky buckets, mops and equipment.
- 5" bowl depth minimizes splash while remaining ADA compliant.
- 8-½" high backsplash protects walls and is pre-punched 8" on-center for a splash-mount faucet.
- Tubular stainless steel legs with adjustable cross-bracing & flanged feet for secure floor mounting.
- Includes 3-½" rear basket drain (K-6) for efficient debris capture.
- All TIG-welded seams blended to a sanitary satin finish.
- NSF listed & ADA compliant—ideal for healthcare, hospitality and institutional use.
Specifications
| Model | FS-FM-1-ADA (manual faucet version) |
|---|---|
| Stations | 1 |
| Overall dimensions | 40" W × 19-1/2" D × 42-1/2" H |
| Bowl size | 37" W × 16" D × 5" Deep |
| Backsplash height | 8-1/2" |
| Faucet holes | (1) set, 8" on-center, splash-mount (faucet sold separately) |
| Drain | 3-1/2" rear basket drain included |
| Material / gauge | 14-ga 304 stainless steel |
| Legs & feet | 1-5/8" Ø tubular stainless legs, flanged feet |
| Weight | Approx. 87 lb |
| Certifications | NSF, ADA |
What’s in the box
- (1) FS-FM-1-ADA service sink
- (2) stainless steel “Z” wall support brackets
- (1) K-6 3-½" rear basket drain assembly
- Stainless tubular legs with adjustable cross-bracing & flanged feet
Popular add-ons (sold separately)
- K-161-LU 6" gooseneck splash-mount faucet with wrist handles
- K-13 stainless steel wall-mount soap dispenser
- K-06 faucet mounting kit
- TA-19 adjustable flanged bullet feet
Advance Tabco reserves the right to modify specifications without prior notice. Always verify rough-in dimensions against current installation documents before cutting utilities.
