Advance Tabco  |  SKU: FS-4-2028-24RL

Advance Tabco FS-4-2028-24RL Compartment Sinks

$6,135.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

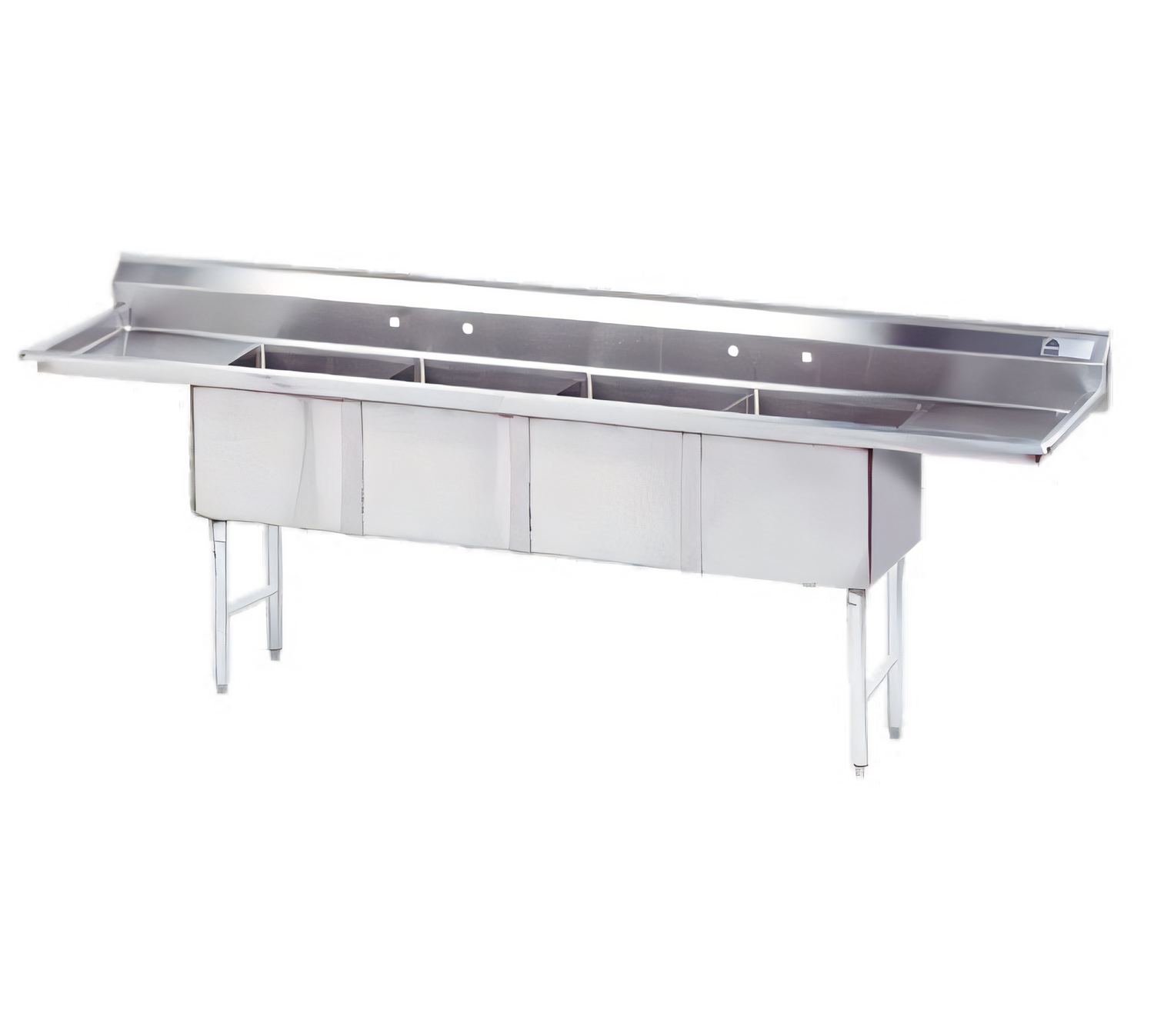

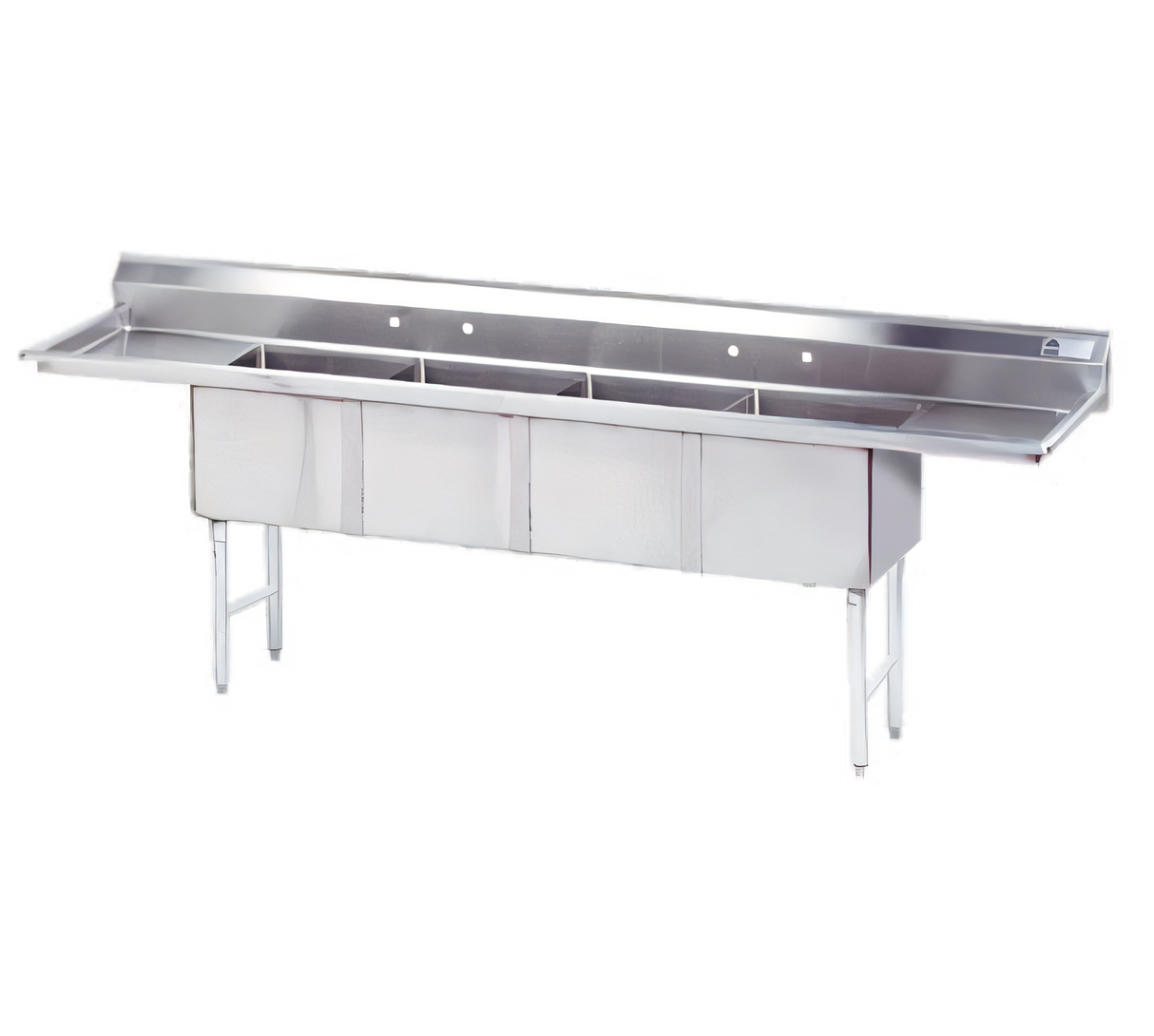

Advance Tabco FS-4-2028-24RL 4-Compartment Fabricated Sink

14 Gauge 304 Stainless Steel • 24" Left & Right Drainboards • NSF

Engineered for the heaviest back-of-house workloads, this Advance Tabco 4-compartment sink combines massive bowl capacity with dual drainboards and a rugged, fully welded 14 ga. construction that stands up to years of daily punishment.

Key Features

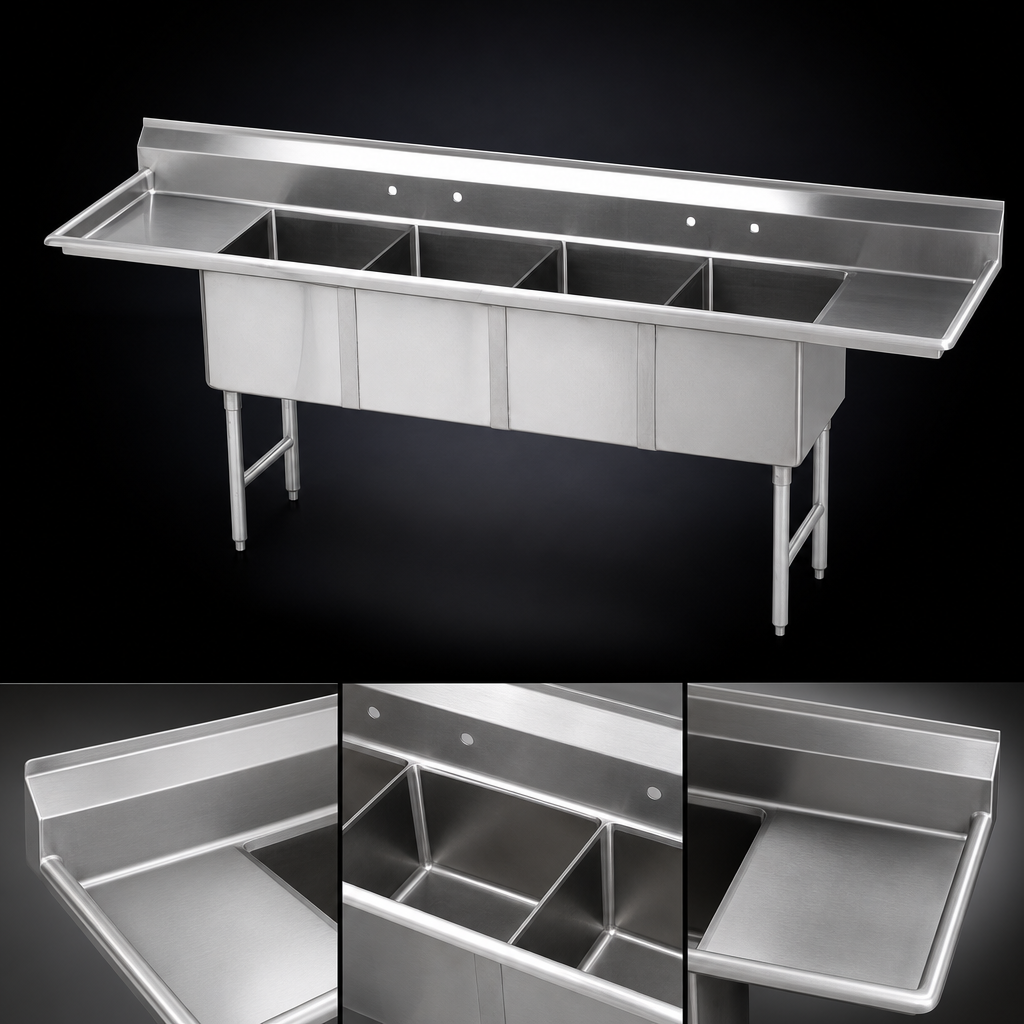

  • Four spacious 20" × 28" × 14" deep bowls handle oversized stock pots, sheet pans, and bulk prep without crowding.
  • Integrated 24" drainboards on both the left and right keep dirty and clean wares separated and the workflow moving.
  • 14 ga. type 304 stainless steel with rolled rim edges resists dents, corrosion, and everyday abuse.
  • Tile-edge 8" backsplash seats tightly against wall tile or FRP for a sanitary, splash-free install.
  • (2) sets of 8" on-center faucet punchings allow independent wash and rinse stations (faucets not included).
  • 1-5/8" Ø stainless legs with adjustable side cross-bracing deliver rock-solid stability.
  • 1" adjustable stainless steel bullet feet make quick work of leveling on uneven floors.
  • ¾" coved bowl corners and all-TIG welding meet NSF standards and clean up fast.
  • Includes four 1-1/2" IPS stainless steel basket drains—no separate drain kit required.
Specifications
Model FS-4-2028-24RL
Compartments 4
Bowl Size (each) 20" L × 28" W × 14" D
Drainboards 24" Left & 24" Right
Overall Dimensions 128" L × 34" F/B
Gauge / Material 14 ga. 304 stainless steel (sink, legs & bracing)
Backsplash 8" H with tile edge & (2) sets of 8" O.C. faucet holes
Plumbing Connections 1/2" IPS hot & cold supply, 1-1/2" IPS drains
Feet 1" adjustable stainless steel bullet feet
Certifications NSF
Approx. Shipping Weight 280 lb
Note: This sink requires two deck-mount faucets (sold separately).

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

128.0in

Depth

34.0in

Shipping Weight

280.0lbs

Compartment (front - back)

20"

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Splash Height

8"

Top Stainless Series

300 series

Top Gauge

14 gauge

Base Type

legs with side crossrails

Drainboards

with left & right-hand drainboards

Overall Length

98" - 113"

Specifications

Fabricated Sink, 4-compartment, 24" right & left drainboards, bowl size 20" x 28" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, (2) sets of 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 34" F/B x 128" L/R, NSF (requires (2) faucets)
