Advance Tabco  |  SKU: FS-3-3030-24RL

Advance Tabco FS-3-3030-24RL Compartment Sinks

$6,754.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

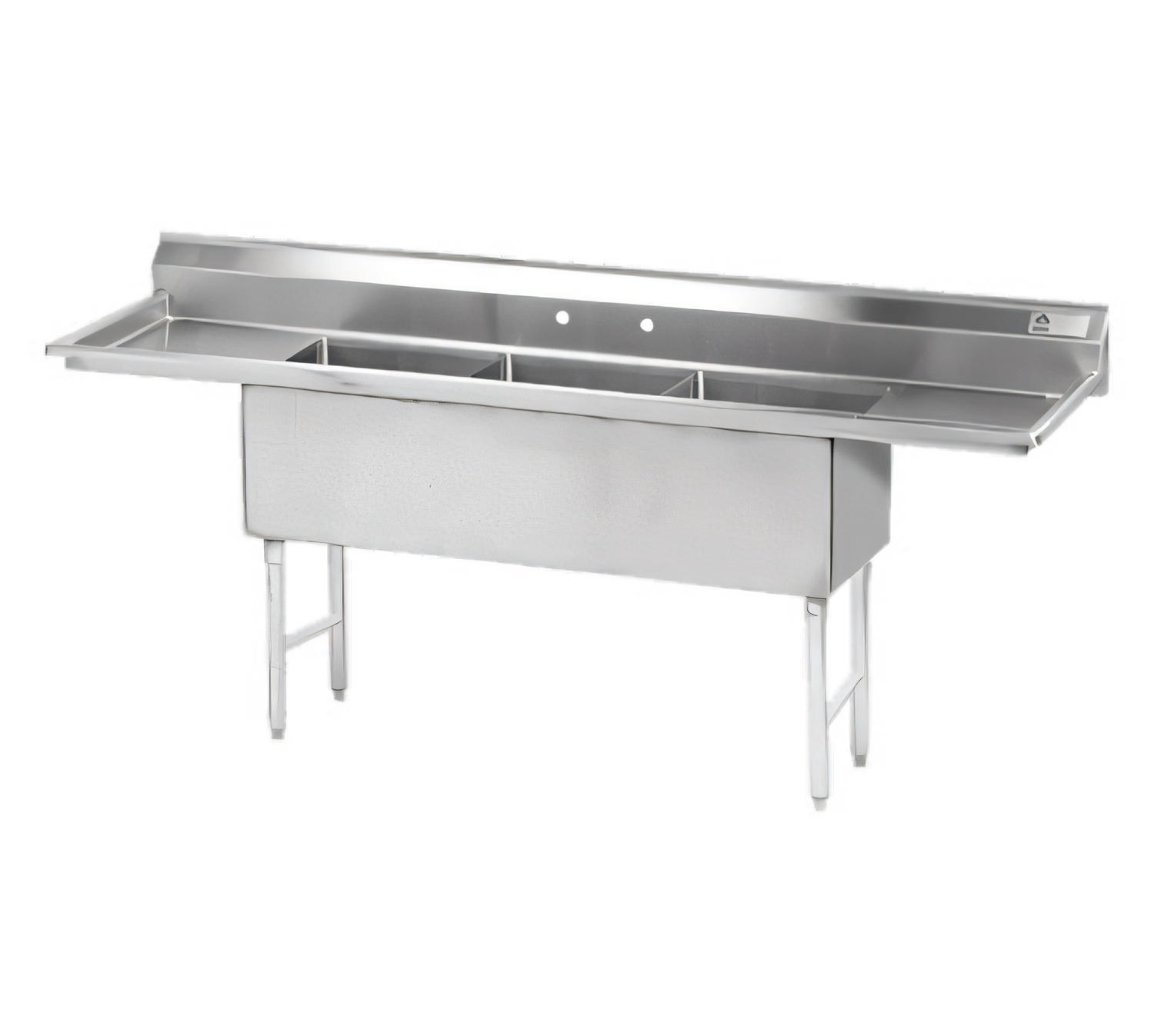

Advance Tabco SpecLine 14-Ga. 3-Compartment Fabricated Sink – 30" × 30" Bowls with 24" Drainboards

Model: FS-3-3030-24RL | 304 Stainless Steel | NSF

Built to handle the heaviest ware-washing demands, this Advance Tabco fabricated sink combines three oversized 30" × 30" bowls with full-length drainboards on both sides, giving your team the space, strength and sanitation they need to keep service running smoothly.

Key Features

  • Rugged 14-gauge, type 304 stainless steel resists corrosion, dents and daily wear
  • (3) 30" W × 30" F/B × 14" D bowls hold sheet pans, stock pots and bulky prep items
  • 24" right & left drainboards keep soiled and clean wares organized and off the worktop
  • Rolled rim edge adds structural rigidity and protects against warping
  • 9" tile-edge backsplash with pre-punched 8" on-center faucet holes for fast, watertight installation
  • 3/4" radius coved bowl corners wipe clean in seconds and meet NSF standards
  • (3) 1 1/2" IPS stainless steel basket drains centered in each bowl (included)
  • 1 5/8" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors
  • All TIG-welded seams; welds are blended to a uniform satin finish

Specifications

Compartments 3
Bowl Dimensions (W × F/B × D) 30" × 30" × 14"
Drainboards 24" Right & 24" Left
Overall Size (L × F/B) 138" L × 36" F/B
Material / Gauge 304 Stainless Steel / 14 Ga.
Backsplash 9" high, tile edge, 8" O.C. faucet holes
Plumbing Connections 1/2" IPS hot & cold supplies
Drains 1 1/2" IPS basket type (3 included)
Legs & Bracing 1 5/8" Ø S/S legs with adjustable side cross-bracing
Feet 1" adjustable stainless steel bullet feet
Certifications NSF
Note: This unit requires two splash-mount faucets (not included).

Looking for a custom configuration? Ask about Advance Tabco Smart Fabrication™ for made-to-order sink solutions.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

138.0in

Depth

36.0in

Shipping Weight

565.0lbs

Sink Depth (rim - drain)

14"

Compartment Width (side - side)

30"

Base Type

legs

Drainboards

with left & right-hand drainboards

Splash Height

8-1/2"

Base Construction

stainless steel

Overall Length

109" - 170"

Compartment (front - back)

30"

Top Stainless Series

300 series

Top Gauge

14 gauge

Specifications

Fabricated Sink, 3-compartment, 24" right & left drainboards, bowl size 30" x 30" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 138" L/R, NSF (requires 2 faucets)
