Advance Tabco FS-3-3024-36L Compartment Sinks
Description

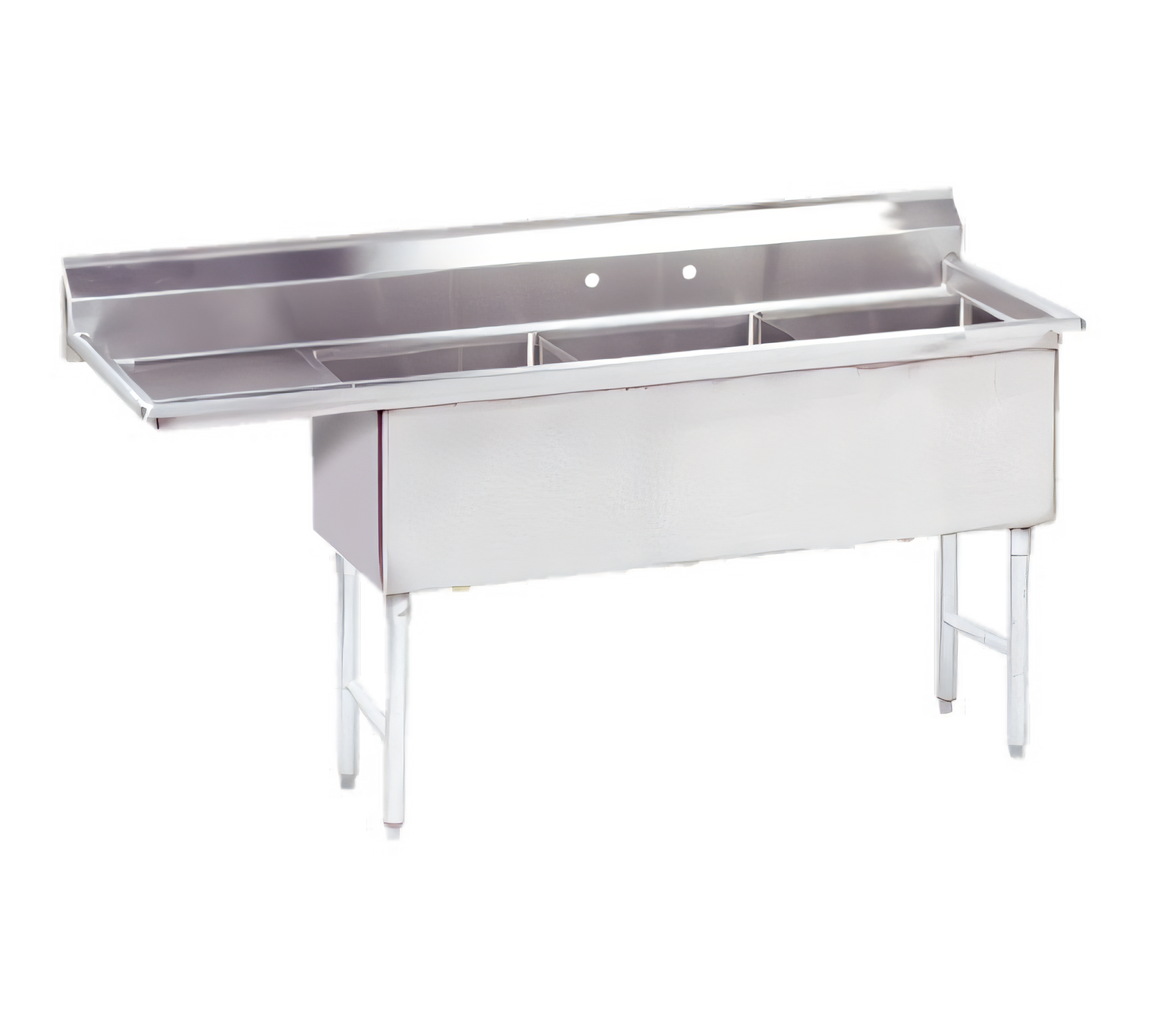

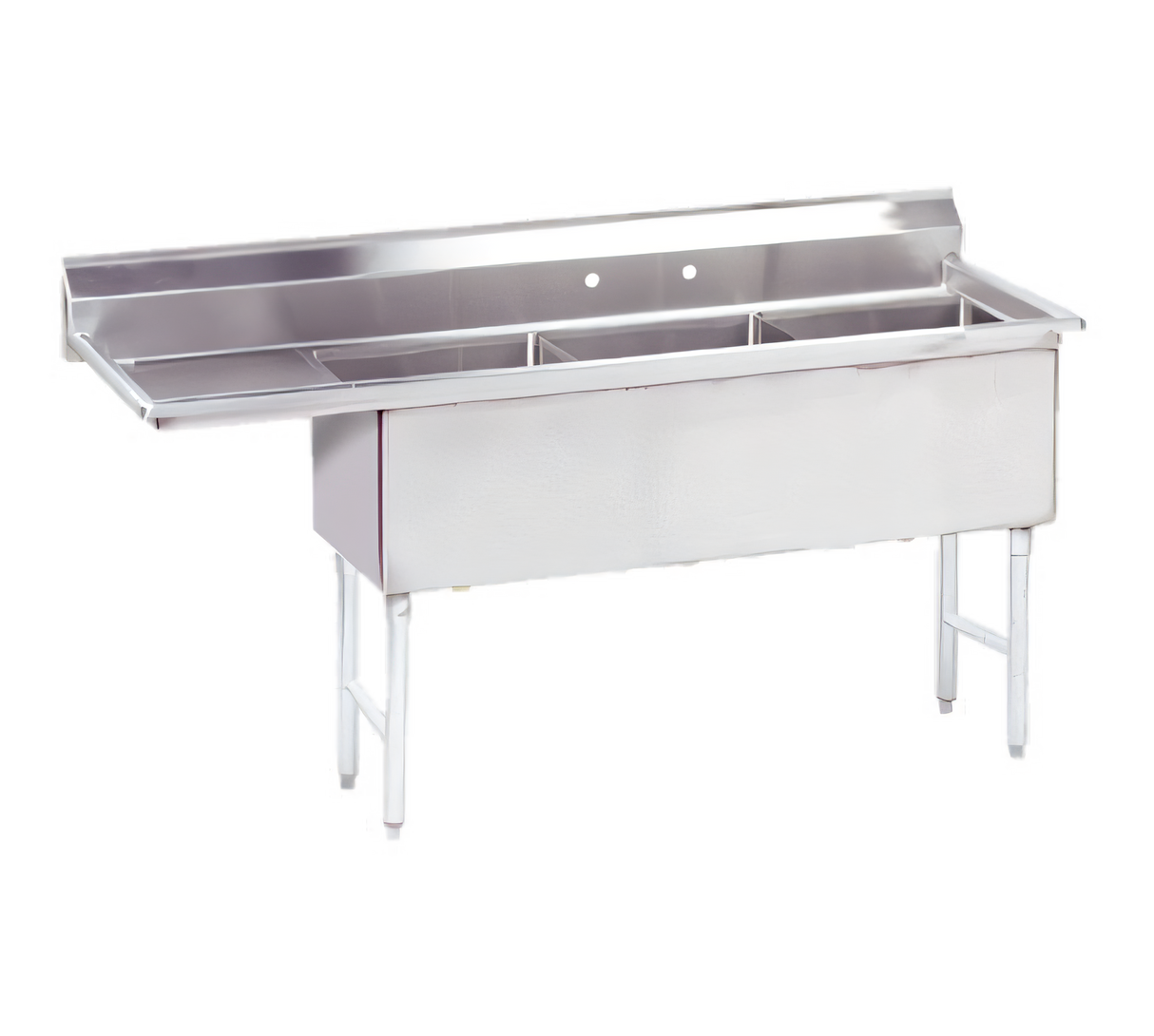

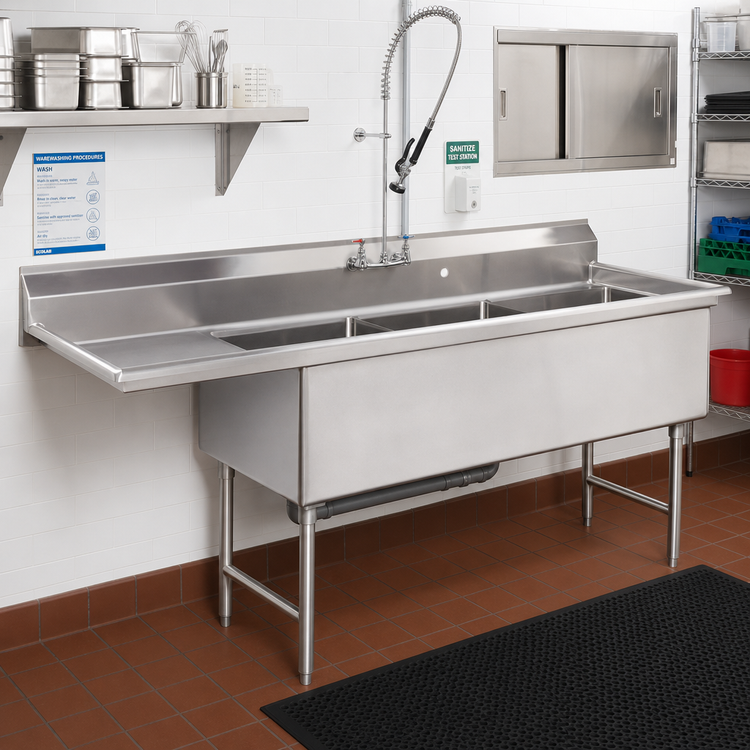

Advance Tabco 3-Compartment Fabricated Sink – 36" Left Drainboard
Model FS-3-3024-36L | 14 Ga. 304 Stainless Steel | NSF ListedBuilt for the rigors of high-volume foodservice, this heavy-duty Specline sink from Advance Tabco delivers exceptional capacity, rugged durability, and simple sanitation compliance in one seamless workstation.
Key Features
- Entire unit fabricated from 14 gauge, type 304 stainless steel – resists corrosion & everyday abuse.

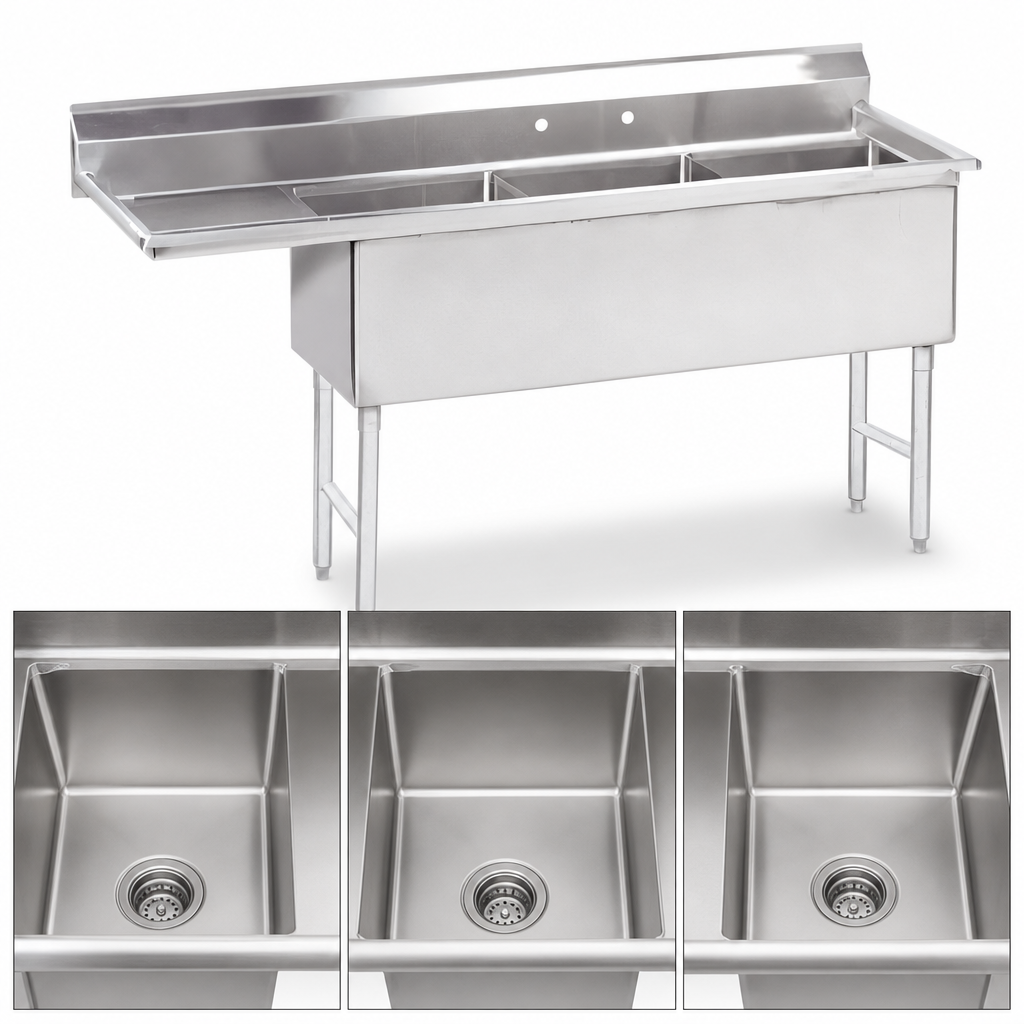

- (3) Oversized bowls – 30" L × 24" W × 14" D – fit full sheet pans, stock pots, and bus tubs.
- 36" left-side drainboard with pitch & bead for fast water run-off and air drying.
- Full-height backsplash with tile edge for a watertight, code-compliant wall seal.
- Rolled front & side rims add strength and a comfortable work edge.
- 3/4" radius coved bowl corners meet NSF cleaning requirements.
- Two sets of 8" on-center faucet holes – ready for deck- or splash-mount faucets (sold separately).
- (3) 1-1/2" IPS stainless steel basket drains included, centered in each bowl.
- 1-5/8" O.D. stainless legs with adjustable side cross-bracing for rock-solid stability.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- All TIG-welded construction; welds are blended to a smooth satin finish.
Technical Specifications
| Model | FS-3-3024-36L |
|---|---|
| Compartments | 3 |
| Bowl Dimensions (each) | 30" L × 24" W × 14" D |
| Drainboard | 36" (Left) |
| Overall Dimensions | 129" L × 30" W × ≈44 ½" H (to backsplash) |
| Material & Gauge | 14 Ga. Type 304 Stainless Steel |
| Backsplash Height | 10 ½" with 8" O.C. faucet holes (2 sets) |
| Drains | (3) 1-1/2" IPS S/S basket drains (included) |
| Faucets Required | 2 (not included) |
| Approx. Shipping Weight | ≈540 lb |
| Certifications | NSF |
Designed for Demanding Kitchens
From commissaries and hotel kitchens to institutional cafeterias, the FS-3-3024-36L provides the throughput you need while meeting the latest health-code standards. The spacious bowls hold large wares without crowding, and the generous left drainboard keeps clean and dirty items separated to streamline workflow.
Don’t Forget
- Two 8" O.C. splash- or deck-mount faucets (sold separately).
- P-trap & any local code–mandated plumbing hardware.
Advance Tabco continually improves product design; therefore, dimensions & specifications are subject to change without notice.
