Advance Tabco FS-3-3024-30RL Compartment Sinks
Description

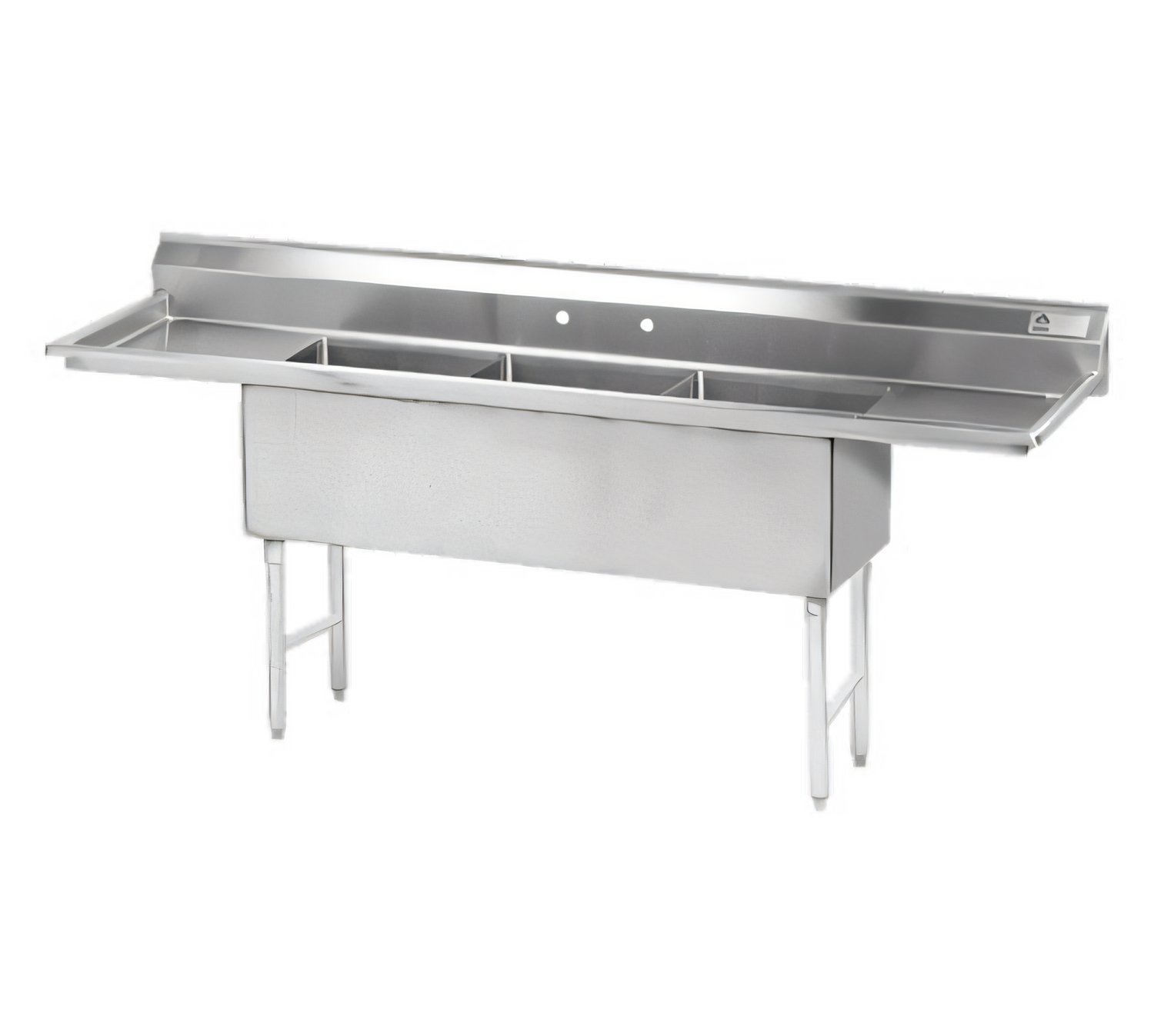

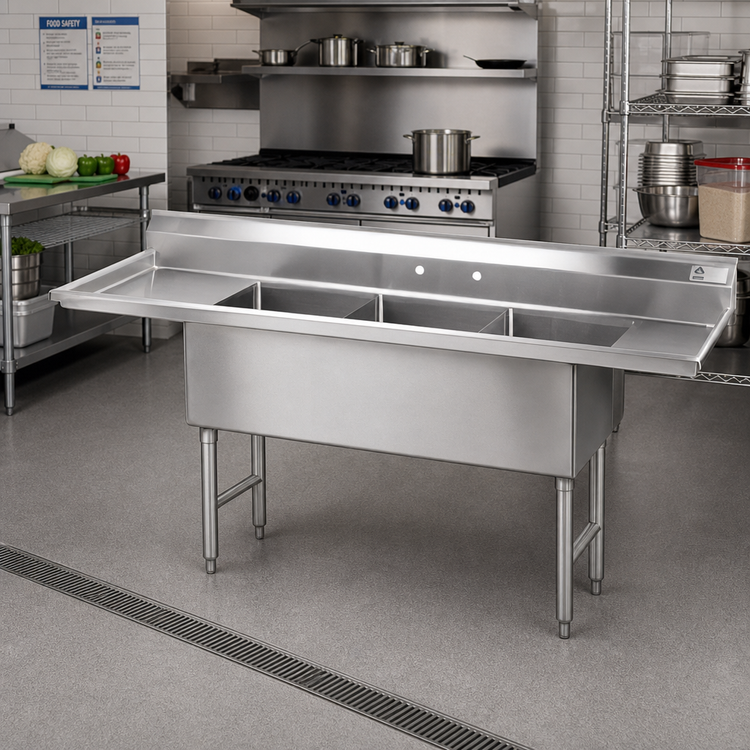

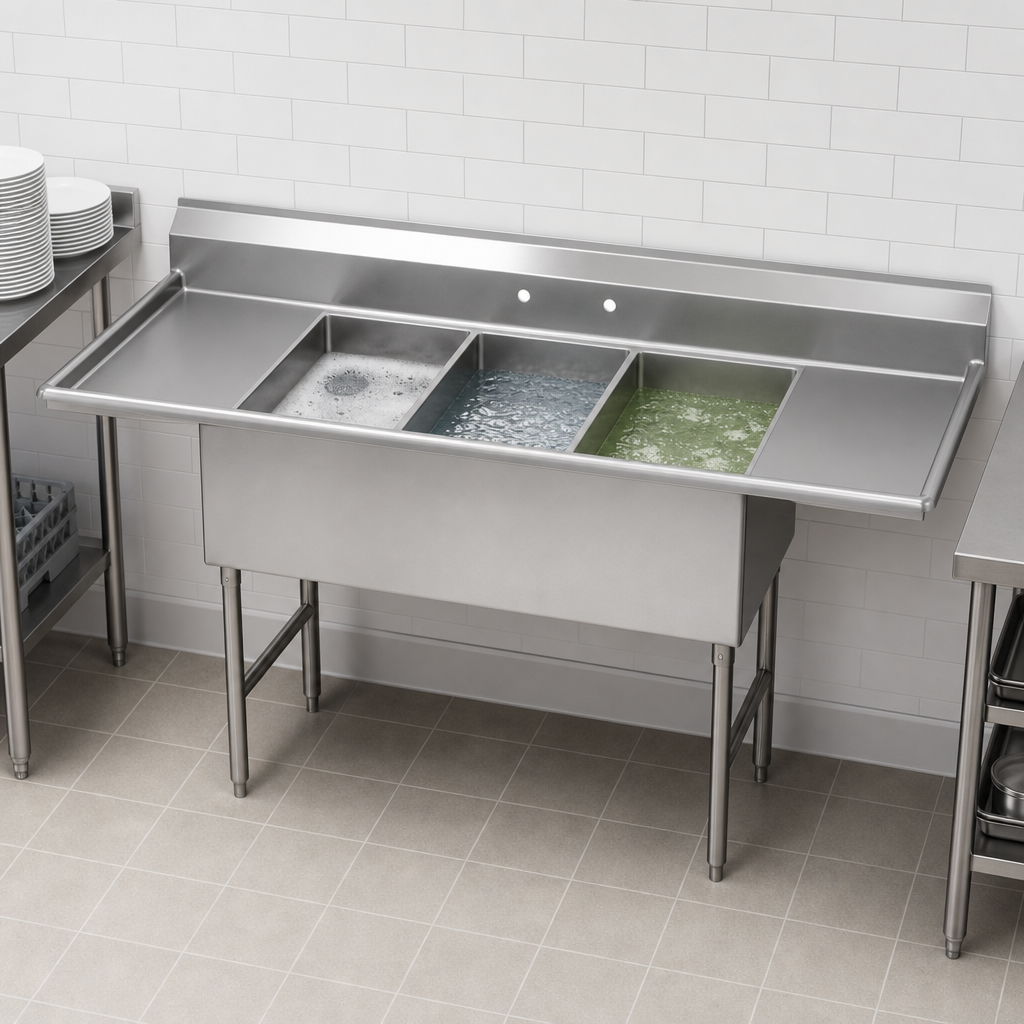

Advance Tabco FS-3-3024-30RL Fabricated 3-Compartment Sink
150" L/R overall with dual 30" drainboards • 14 ga 304 stainless steel • NSFBuilt to withstand the daily grind of the busiest commercial kitchens, the Advance Tabco FS-3-3024-30RL delivers a generous work area, high-capacity 3-bay washing, and rugged 14-gauge 304 stainless-steel construction. With 30" right & left drainboards and extra-large 30" × 24" × 14" deep bowls, this NSF-listed sink streamlines every step of your ware-washing workflow—from scrap and soak to rinse and sanitize.
Key Features
- Three fabricated bowls, each 30" L × 24" W × 14" D for maximum capacity.
- 14-gauge, type 304 stainless steel throughout—resists corrosion, dents, and warping.
- Rolled rim edge adds strength and protects against dings during pan transfer.
- Tile-edge 8" backsplash speeds installation and helps maintain a watertight seal.
- (2) 30" integral drainboards with pitched design for fast drainage.
- Pre-punched 8" on-center faucet holes—two faucets required, not included.
- 3/4" coved bowl corners satisfy NSF cleanability standards.
- Stainless steel legs with adjustable side cross-bracing for rock-solid stability.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- Includes 1 ½" IPS stainless steel basket-type drains—centered in each bowl.
Technical Specifications
| Model | FS-3-3024-30RL |
|---|---|
| Compartments | 3 |
| Bowl Dimensions (L × W × D) | 30" × 24" × 14" |
| Drainboard Length | 30" (right) + 30" (left) |
| Overall Dimensions (L × F/B) | 150" × 30" |
| Material & Gauge | 14 ga type 304 stainless steel |
| Backsplash Height | 8 1/2" with tile edge |
| Faucet Mount | 8" on-center (holes punched) |
| Water Supply | 1/2" IPS hot & cold (per faucet) |
| Drain Connection | 1 ½" IPS, basket-type (included) |
| Legs / Bracing | 1 5/8" Ø stainless legs with adjustable S/S cross-bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Shipping Weight | Approx. 535 lb |
| Certifications | NSF |
What’s Included
- (1) Advance Tabco FS-3-3024-30RL sink assembly
- (3) 1 ½" stainless steel basket drains (pre-installed)
- Stainless steel legs, cross-bracing, and bullet feet
- Installation & operation manual
Advance Tabco reserves the right to modify product design and specifications without notice. All dimensions are typical and subject to standard tolerances.
