Advance Tabco  |  SKU: FS-3-3024-24R

Advance Tabco FS-3-3024-24R Compartment Sinks

$5,077.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

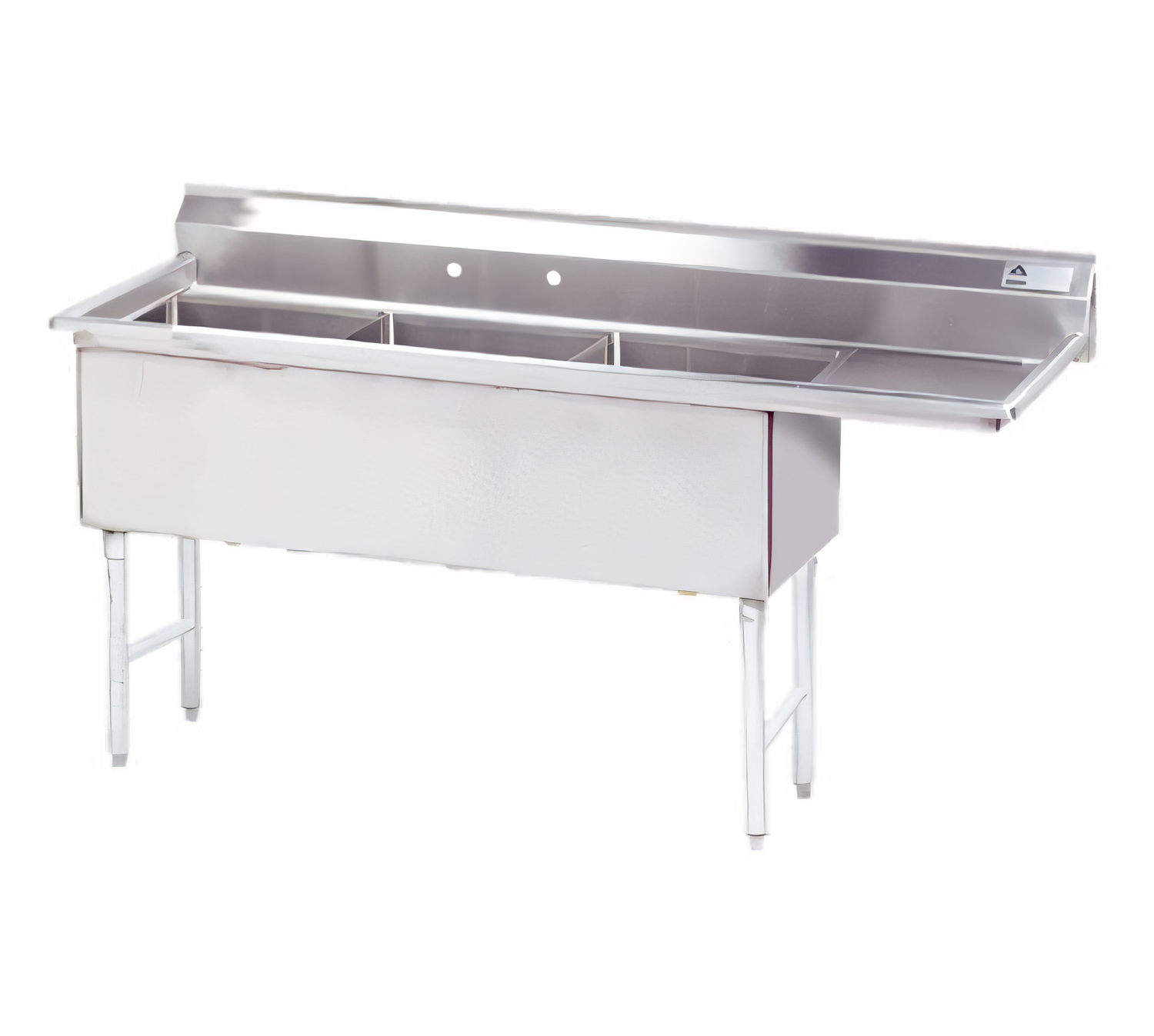

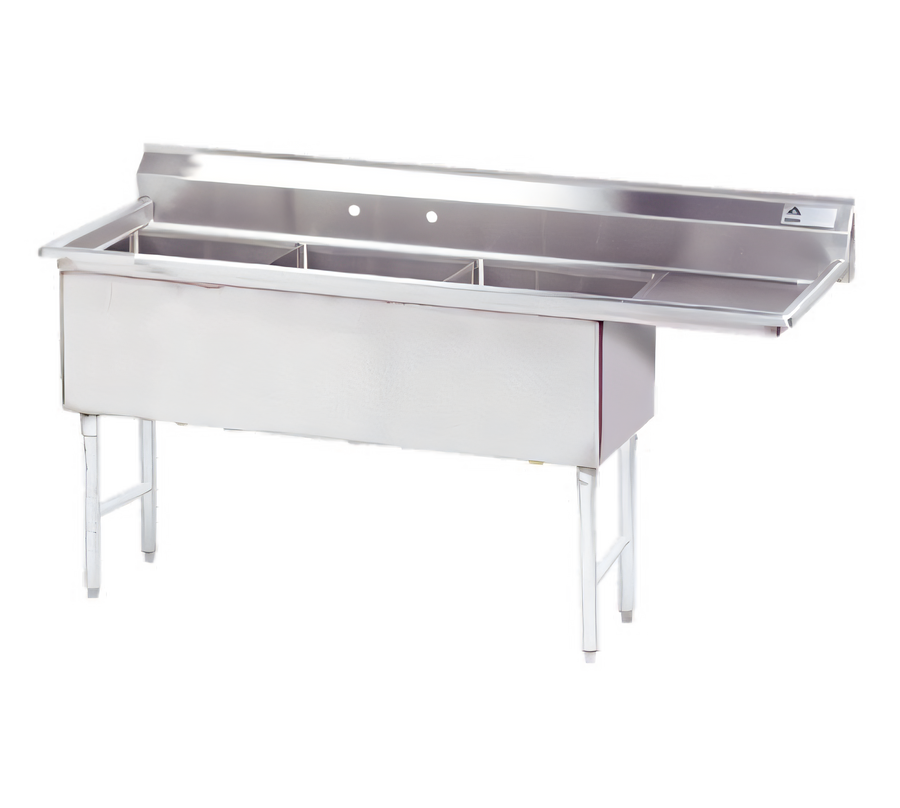

Advance Tabco 14 Ga. 3-Compartment Fabricated Sink w/ 24" Right Drainboard

117" L × 30" F/B • 30" × 24" × 14" Bowls • NSF Listed

Engineered for high-volume commercial kitchens, this heavy-duty Advance Tabco sink features three oversized compartments and a full 24-inch right-hand drainboard—providing the capacity, workflow and rugged durability you need for prep, wash and rinse stations.

Why It Belongs in Your Kitchen

  • 14 gauge type 304 stainless steel resists corrosion, dents and harsh cleaners.

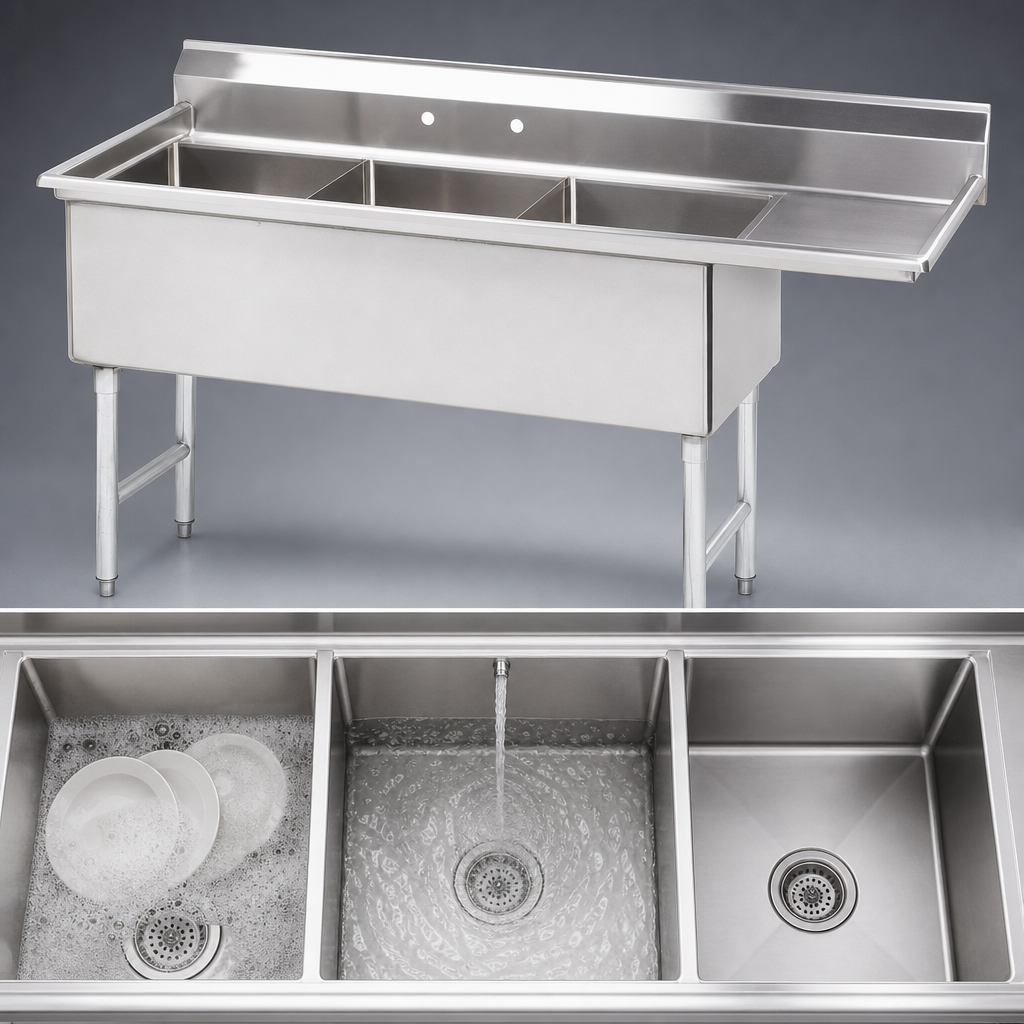

  • (3) spacious 30" L × 24" W × 14" D bowls with ¾" coved corners for effortless cleaning and NSF compliance.
  • Rolled rim edge adds strength, protects staff and reduces fatigue on welds.
  • 10" high backsplash with tile-edge design speeds up wall installation and sealing.
  • 24" right-side drainboard slopes toward the sink for positive drainage.
  • Pre-punched 8" on-center faucet holes—requires two deck-mount faucets (sold separately).
  • (3) 1½" IPS stainless steel basket drains (included) positioned in the center of each bowl.
  • 1⅝" Ø stainless steel legs with adjustable side cross-bracing keep the sink rock solid.
  • 1" adjustable stainless steel bullet feet level the unit on uneven floors.
  • All TIG-welded construction; welds are ground and polished to a matching satin finish.

Specifications

Model / Series Fabricated 3-Compartment Sink – Right Drainboard (FS Series)
Overall Dimensions 117" L × 30" F/B
Compartment Size (Qty 3) 30" L × 24" W × 14" D
Drainboard 24" Right-side
Material / Gauge 14 ga. type 304 stainless steel, satin finish
Backsplash 10" H, tile-edge
Faucet Holes (2) sets, 8" O.C., ½" IPS supply
Drains (3) 1½" IPS basket type (included)
Legs & Bracing 1⅝" Ø S/S legs with adjustable side cross-bracing
Feet 1" adjustable stainless steel bullet feet
Certifications NSF
Important: Faucets are not included. This sink requires two 8" on-center deck-mount faucets.

Looking for a left-hand or dual-drainboard configuration? Additional Advance Tabco models are available—contact us for details.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

117.0in

Depth

30.0in

Shipping Weight

450.0lbs

Base Type

legs

Overall Length

109" - 170"

Sink Depth (rim - drain)

14"

Compartment Width (side - side)

30"

Base Construction

stainless steel

Drainboards

with right-hand drainboard

Top Stainless Series

300 series

Splash Height

8-1/2"

Top Gauge

14 gauge

Compartment (front - back)

24"

Specifications

Fabricated Sink, 3-compartment, 24" right drainboard, bowl size 30" x 24" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 30" F/B x 117" L/R, NSF (requires 2 faucets)
