Description

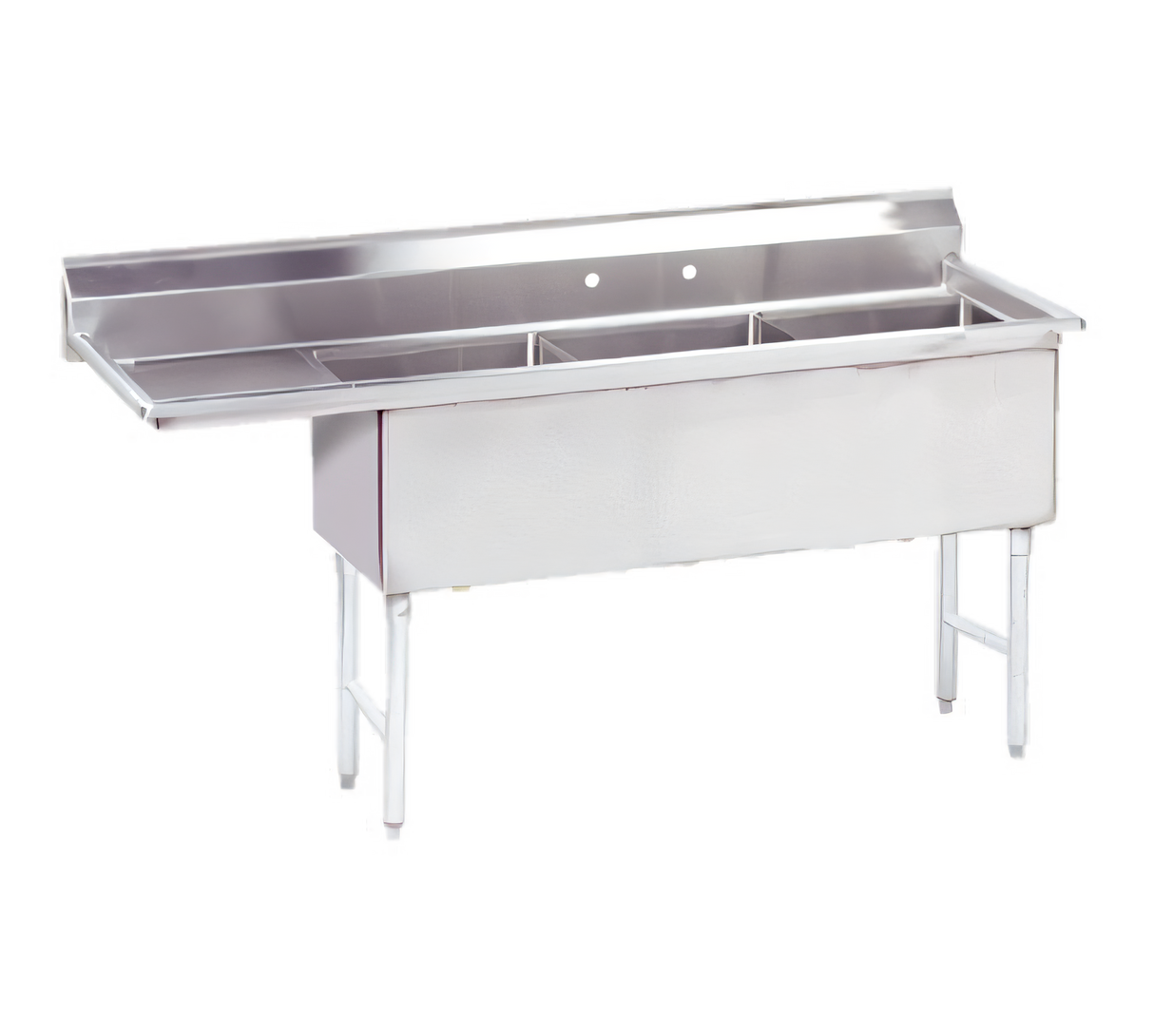

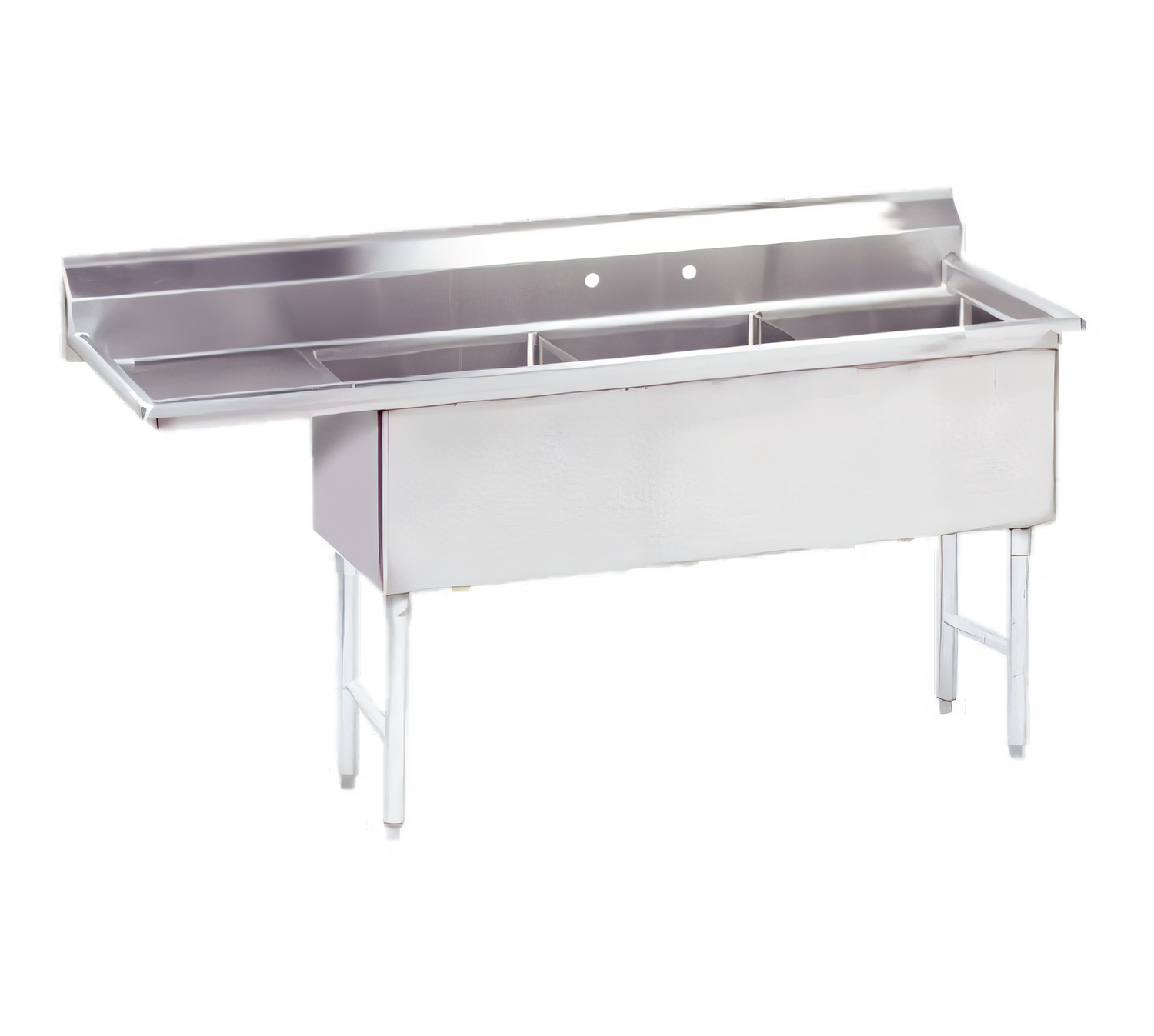

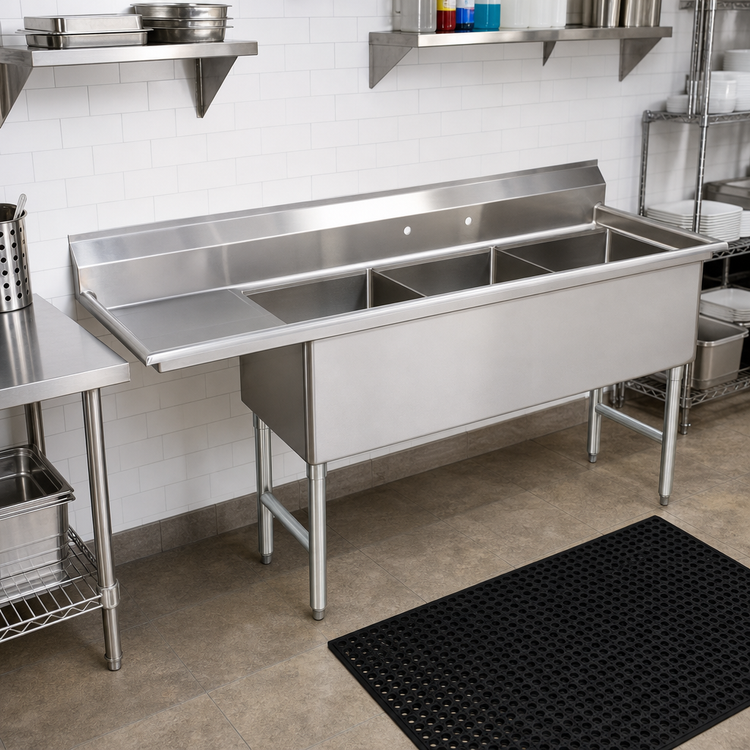

Advance Tabco FS-3-3024-24L 3-Compartment Fabricated Sink

117" L × 30" W overall  •  24" Left Drainboard  •  NSF Listed

Equip your dish-room with the rugged dependability of an Advance Tabco 14-gauge fabricated sink. Three oversized 30" × 24" × 14" deep bowls give you generous capacity for wash, rinse and sanitize tasks, while a full-size 24" drainboard on the left keeps workflow efficient and organized.

Key Features

  • Heavy-duty 14 ga. type 304 stainless steel construction – built for high-volume food-service use

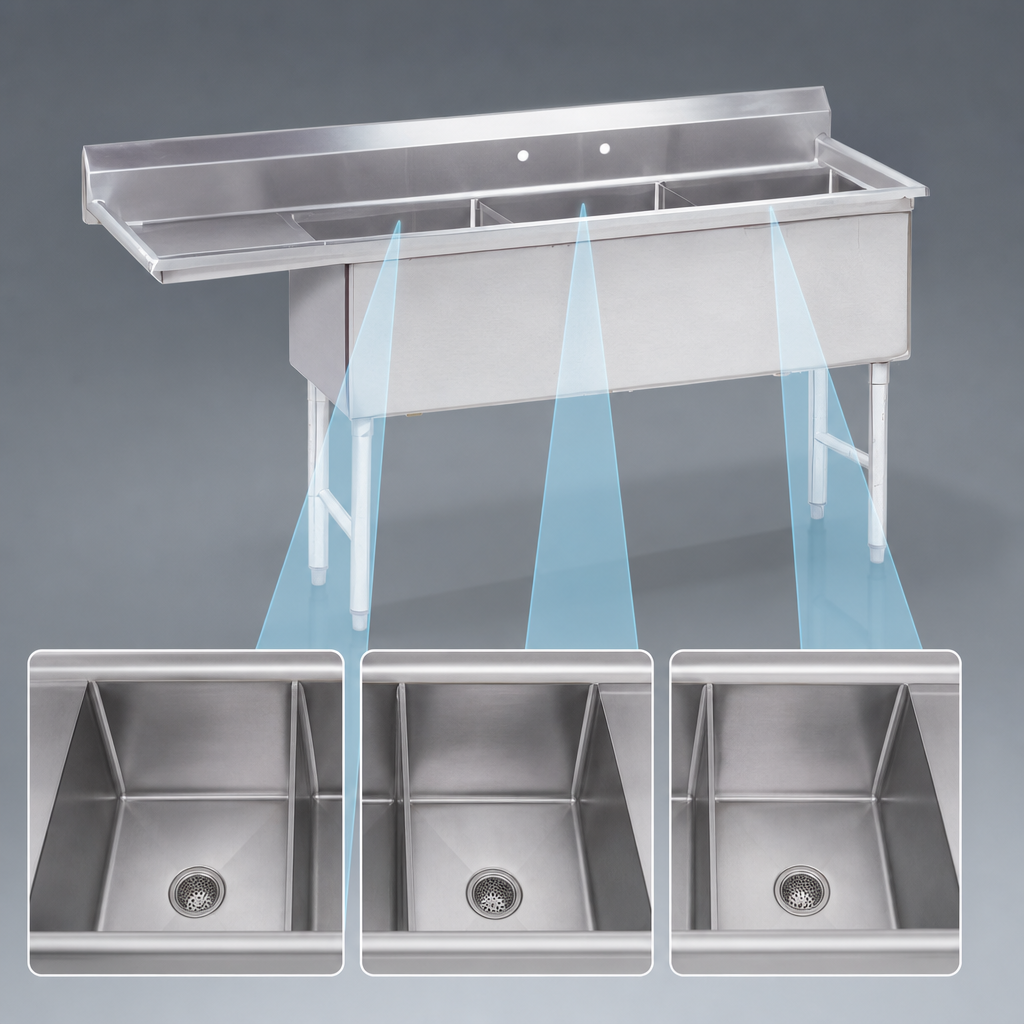

  • Three bowls with ¾" coved corners for quick, sanitary clean-up
  • Pitched 24" drainboard (left) speeds drying and keeps countertops clear
  • 8 ½" backsplash with tile edge for a watertight, code-compliant wall seal
  • Rolled rim edge adds strength and user safety
  • (2) sets of 8" on-center splash-mount faucet holes – faucets sold separately
  • (3) 1 ½" IPS stainless steel basket drains supplied & centered in each bowl
  • 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors
  • Fully TIG-welded; welds blended to a satin finish
  • NSF certified for food-contact safety

Specifications

Manufacturer Advance Tabco
Model FS-3-3024-24L
Compartments 3
Bowl size (L × W × D) 30" × 24" × 14"
Drainboard 24" – left side
Overall dimensions 117" L × 30" F/B
Backsplash height 8 ½"
Material / gauge 14-ga 304 stainless steel
Faucet holes (2) sets – 8" on-center
Drains (3) 1 ½" IPS basket strainers (included)
Legs / bracing Stainless, 1 ⅝" Ø with adjustable cross-bracing
Feet 1" adjustable stainless steel bullet feet
Approx. shipping weight 450 lb
Certifications NSF
Faucets required: Sink is pre-punched for two 8" OC splash-mount faucets. Order faucets separately to complete installation.

Questions about installation or compatible accessories? Our product specialists are ready to help.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

117.0in

Depth

30.0in

Shipping Weight

450.0lbs

Splash Height

8-1/2"

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Base Type

legs

Compartment (front - back)

24"

Drainboards

with left-hand drainboard

Top Stainless Series

300 series

Compartment Width (side - side)

30"

Top Gauge

14 gauge

Overall Length

109" - 170"

Specifications

Fabricated Sink, 3-compartment, 24" left drainboard, bowl size 30" x 24" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 30" F/B x 117" L/R, NSF (requires 2 faucets)
