Advance Tabco FS-3-2430 Compartment Sinks
Description

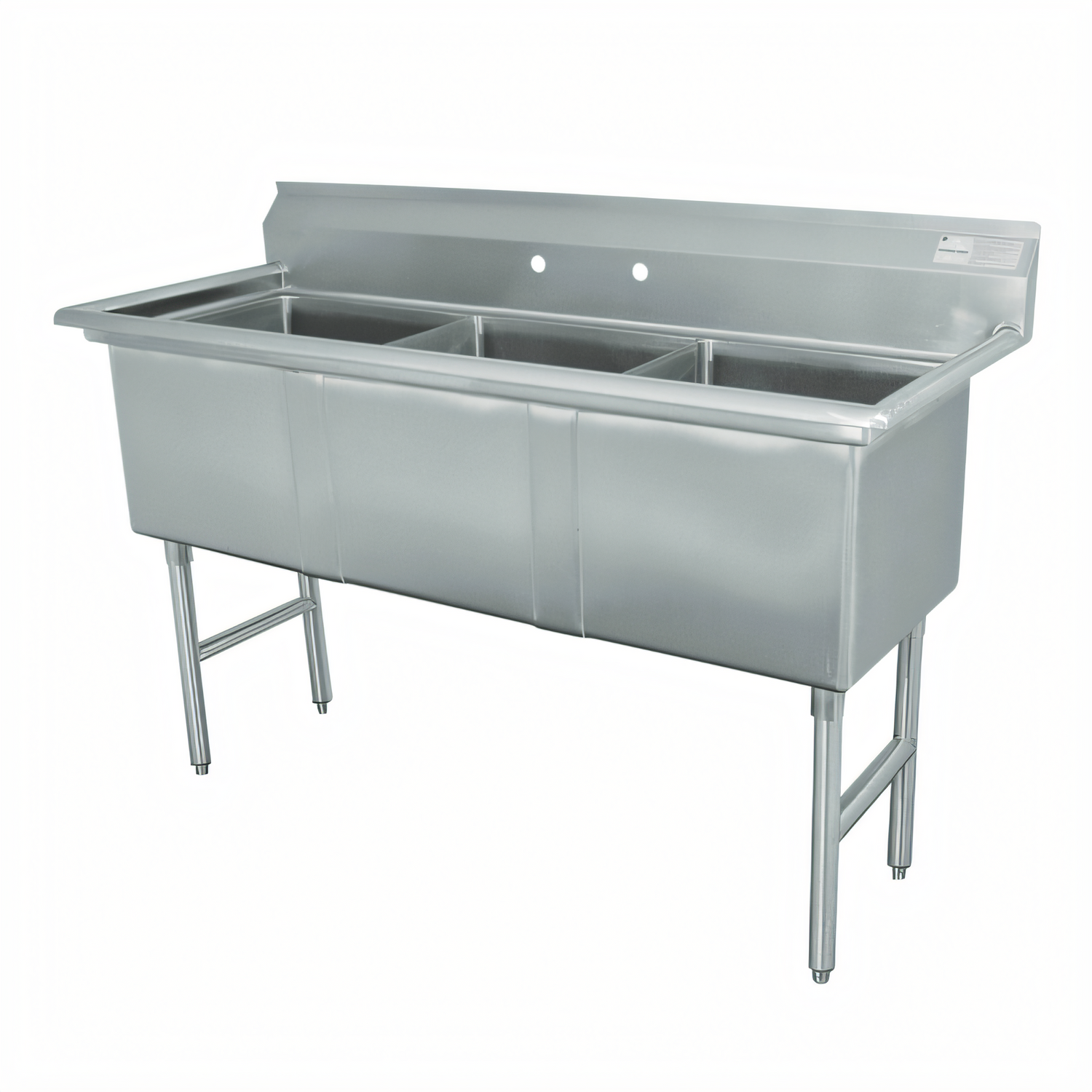

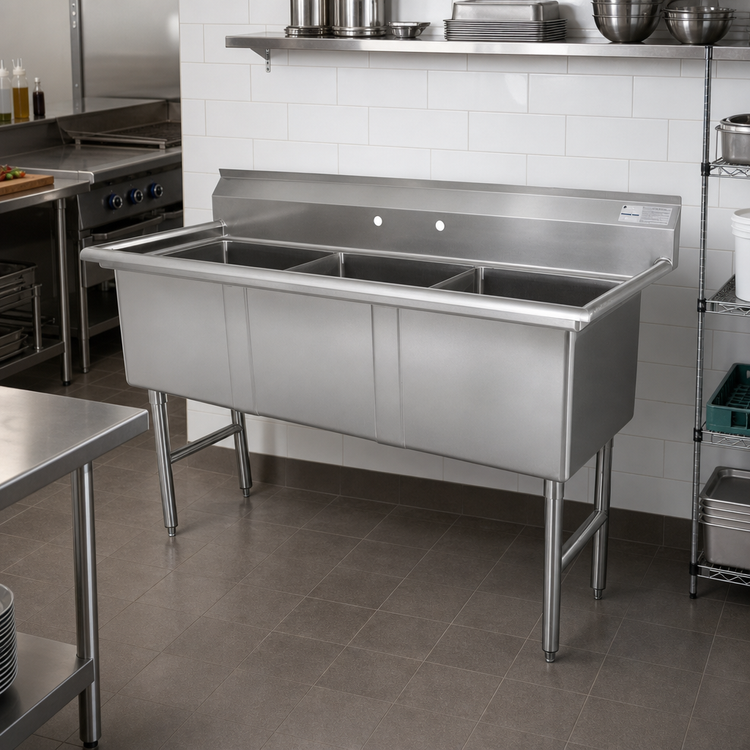

Advance Tabco FS-3-2430 3-Compartment Fabricated Sink
77" L x 36" F/B • 24" x 30" x 14" Bowls • No DrainboardsEngineered for the rigors of high-volume kitchens, this heavy-duty 14 gauge, 304 stainless steel sink delivers maximum capacity in a drainboard-free footprint—perfect for pot-washing, prep work, and frequent sanitizing cycles.
Key Features

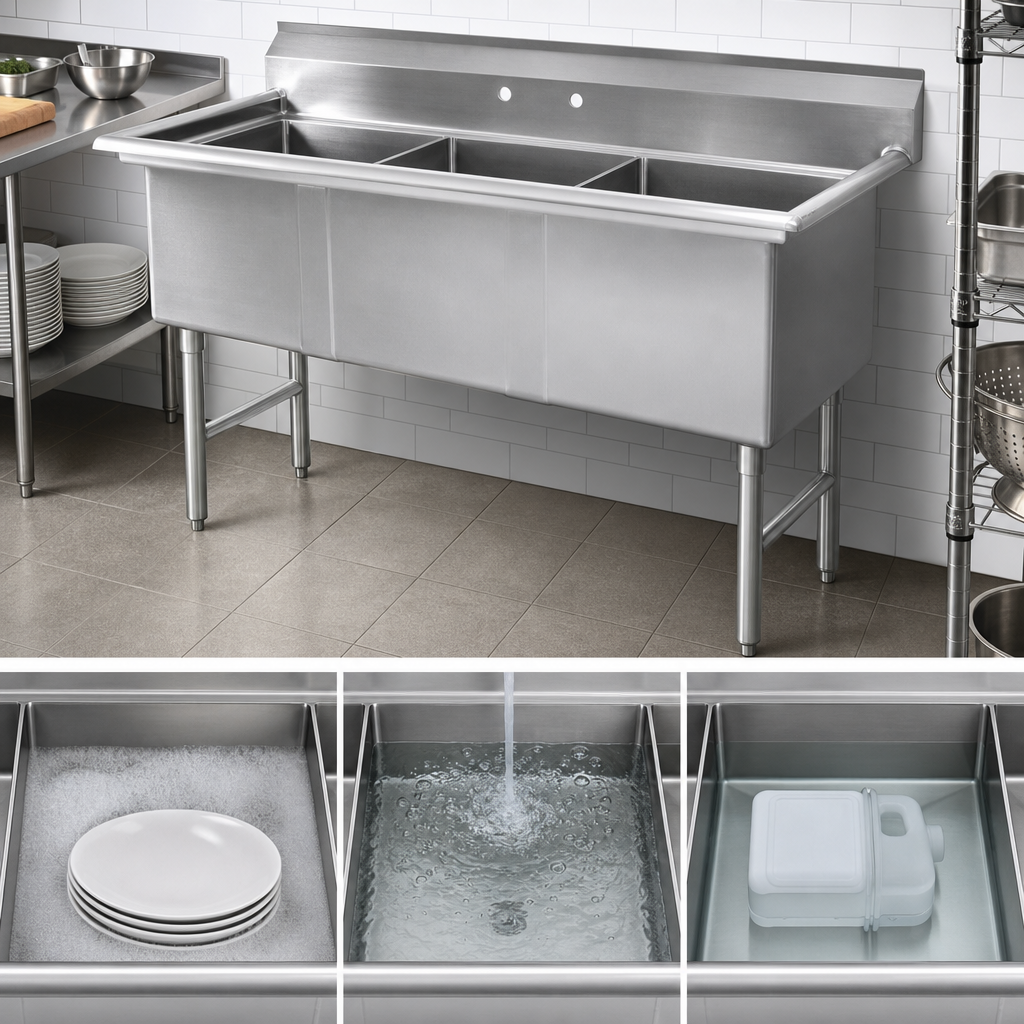

- Three spacious 24" W x 30" L x 14" D bowls handle sheet pans, stock pots, and bulky wares.
- All-welded 14 ga. 304 stainless steel resists corrosion, pitting, and heavy impacts.
- Rolled rim edge reinforces the top and provides a comfortable grip when loading items.
- 8 1/2" high backsplash with tile-edge design creates a watertight, grout-friendly seal against walls.
- (2) sets of 8" on-center faucet punchings accept standard commercial faucets for dual-operator use.
- 3/4" coved bowl corners meet NSF standards and speed up cleaning.
- (3) 1 1/2" IPS stainless steel basket drains included; centrally located for optimal drainage.
- 1 5/8" Ø stainless steel legs with adjustable side cross-bracing boost stability.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- Full skirt design neatly conceals all plumbing connections.
- NSF Listed for food-service sanitation.
Perfect For
- Restaurants & commissaries
- Bakeries & food production facilities
- Hospitals, hotels & institutional kitchens
Technical Specifications
| Model | FS-3-2430 |
|---|---|
| Compartments | 3 (no drainboards) |
| Bowl Dimensions (each) | 24" W x 30" L x 14" D |
| Overall Dimensions | 77" L x 36" F/B x 44 1/2" H (to top of backsplash) |
| Material | 14 Ga. 304 stainless steel |
| Backsplash Height | 8 1/2" with tile edge |
| Faucet Holes | (2) sets, 8" centers, 1 1/8" Ø |
| Drain Connection | 1 1/2" IPS (basket drains included) |
| Legs / Bracing | 1 5/8" Ø S/S legs with adjustable side cross-bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Approx. Shipping Weight | 240 lb |
| Certifications | NSF |
Looking for custom bowl configurations, drain upgrades, or add-on accessories? Reach out to our team— Advance Tabco’s Smart Fabrication™ specialists can build a sink tailored to your exact workflow.
