Advance Tabco FS-3-2430-24RL Compartment Sinks
$5,196.00
Unit price
/
Unavailable
Description

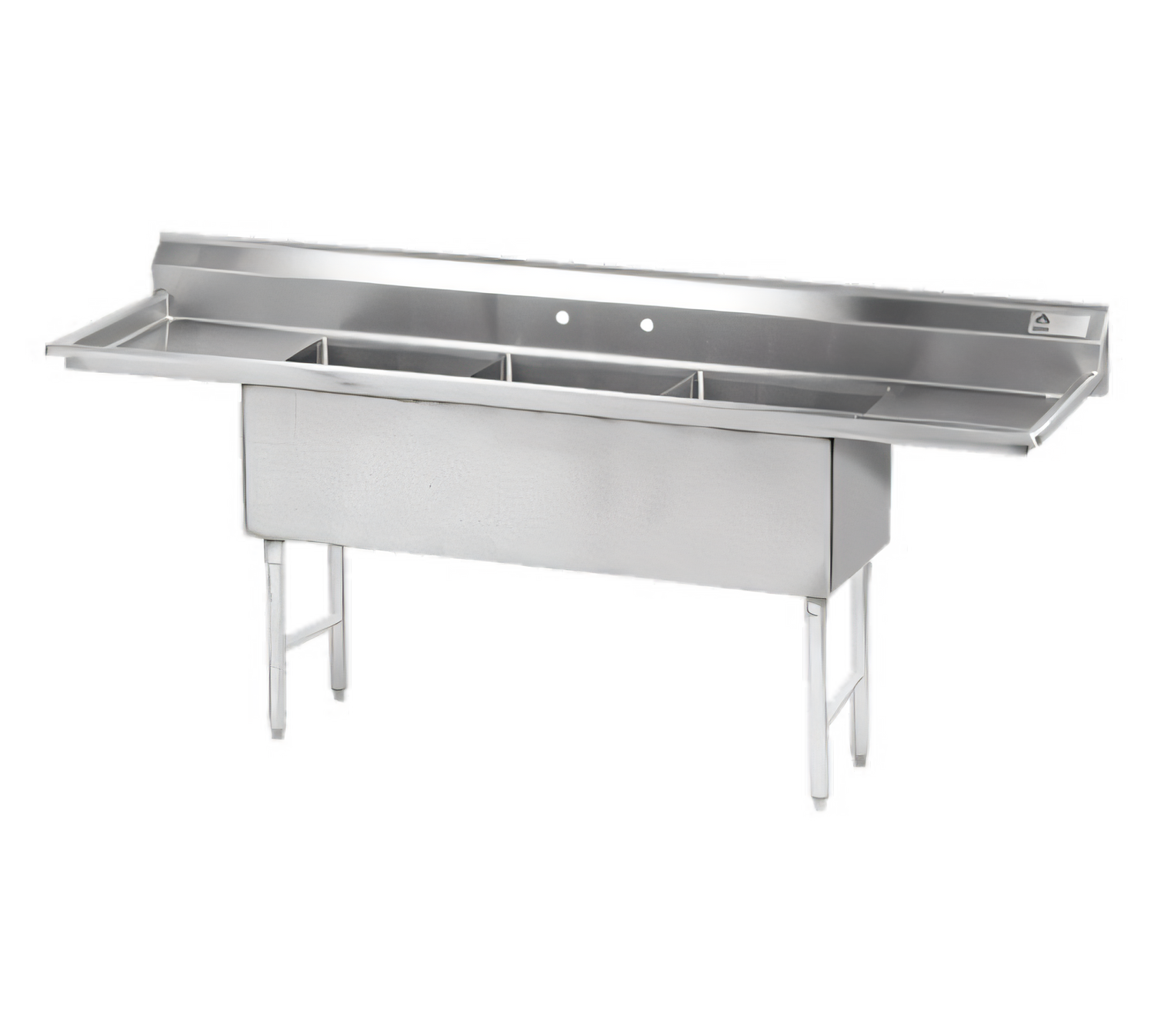

Advance Tabco 120" 3-Compartment Fabricated Sink with Dual 24" Drainboards
Model FS-3-2430-24RL · 14 ga 304 Stainless Steel · NSFEngineered for heavy-volume kitchens, this SpecLine sink combines three generous 24" × 30" compartments, welded 14-gauge stainless steel construction, and right & left 24" drainboards to keep your dishroom moving fast and hygienically.
Why You’ll Love It

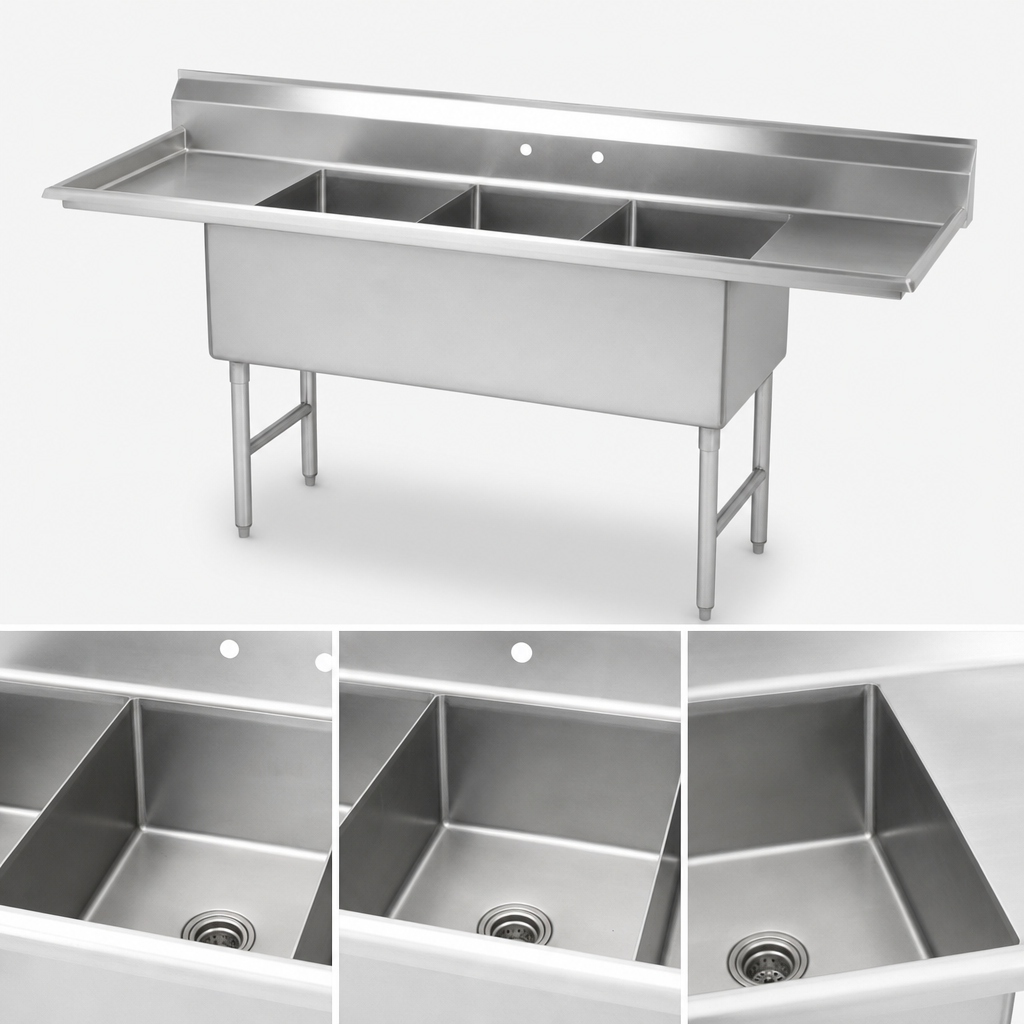

- (3) 24" L × 30" W × 14" D sink bowls—perfect for wash, rinse & sanitize.
- 14 ga type 304 stainless steel throughout for superior strength and corrosion resistance.
- Rolled rim edge and full TIG-welded seams blended to a satin finish.
- 8"-high tile-edge backsplash simplifies wall sealing and installation.
- Pre-punched 8" on-center faucet holes—two faucets required (sold separately).
- 24" right & 24" left drainboards with pitched design for quick drainage.
- 1 5/8" Ø stainless steel legs with adjustable side cross-bracing.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- (3) 1 1/2" IPS stainless steel basket drains included, centered in each bowl.
- NSF listed for food-contact safety.
Quick Specs
| Overall size | 120" L × 36" F/B |
|---|---|
| Compartment size (each) | 24" L × 30" W × 14" D |
| Drainboards | 24" Right & 24" Left (2 total) |
| Backsplash | 8" high with 2" return, tile edge |
| Material | 14 ga 304 stainless steel |
| Leg system | 1 5/8" Ø S/S legs, adjustable S/S cross-bracing & 1" bullet feet |
| Faucet holes | (2) sets, 8" on center, 1 1/8" Ø |
| Water supply | 1/2" IPS hot & cold (not included) |
| Waste outlets | 1 1/2" IPS basket drains (included) |
| Certifications | NSF |
Heads-up: Faucets are not included. Order (2) wall-mount faucets with 8" centers to complete installation.
Looking for custom sizing or accessories? Ask about Advance Tabco’s Smart Fabrication™ for fast, made-to-order solutions.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
43.0in
Width
120.0in
Depth
36.0in
Shipping Weight
480.0lbs
Drainboards
with left & right-hand drainboards
Base Type
legs
Compartment Width (side - side)
24"
Sink Depth (rim - drain)
14"
Base Construction
stainless steel
Splash Height
8-1/2"
Overall Length
109" - 170"
Compartment (front - back)
30"
Top Stainless Series
300 series
Top Gauge
14 gauge
Specifications
Fabricated Sink, 3-compartment, 24" right & left drainboards, bowl size 24" x 30" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 120" L/R, NSF (requires 2 faucets)
