Advance Tabco  |  SKU: FS-3-2430-24L  |  UPC: 747545213693

Advance Tabco FS-3-2430-24L Compartment Sinks

$4,554.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco FS-3-2430-24L 3-Compartment Fabricated Sink

24" Left Drainboard • 14 Ga. 304 Stainless Steel • NSF Certified

Built for demanding, high-volume kitchens, this heavy-duty 3-compartment sink combines a spacious 24" left drainboard with extra-deep 24" × 30" × 14" bowls, giving your team ample room for washing, rinsing, and sanitizing while keeping workflow moving fast and sanitary.

Why You’ll Love It

  • Extra-Rugged 14 Ga. 304 SS – resists dents, corrosion, and harsh cleaners.

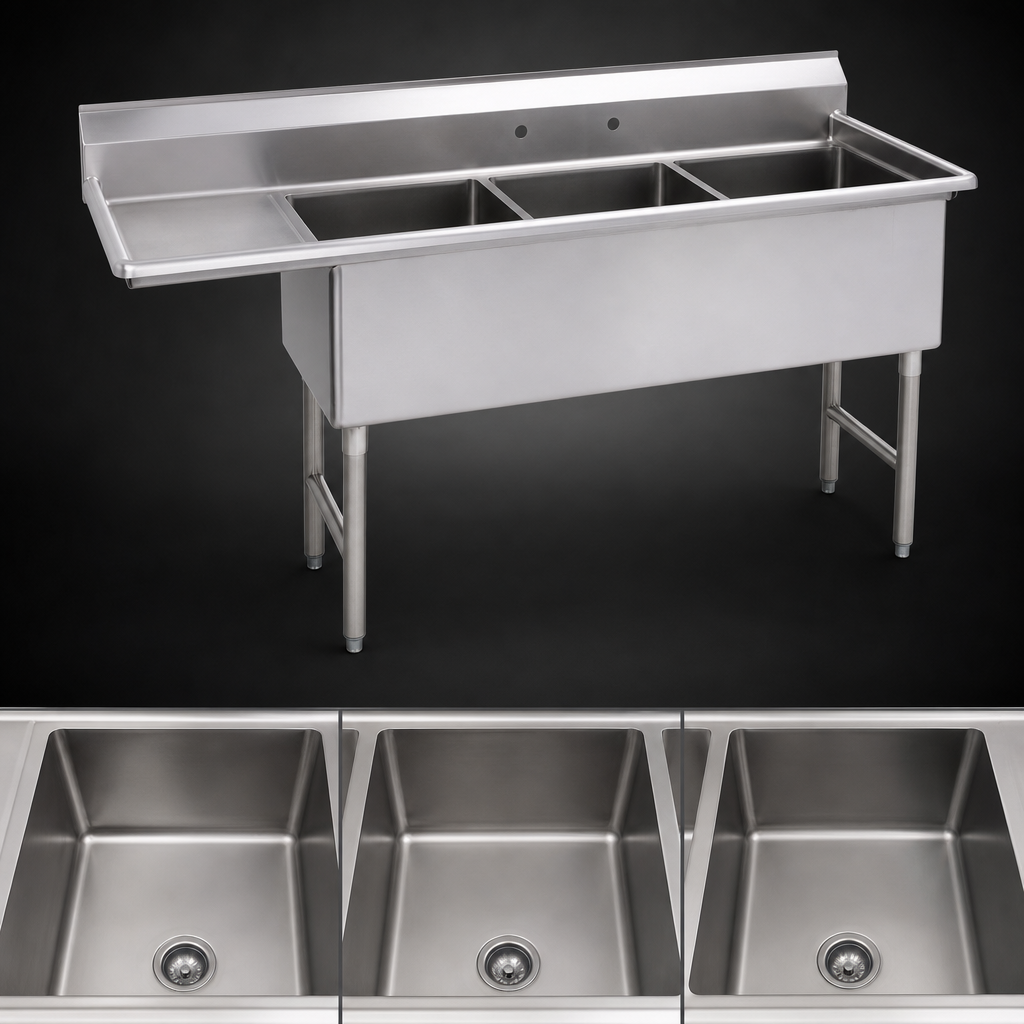

  • Full 14" Bowl Depth – handles large sheet pans, stock pots, and bus tubs with ease.
  • Rolled Rim Edge – adds strength and eliminates sharp corners for safer handling.
  • Tile-Edge Backsplash – speeds installation and creates a watertight seal against walls.
  • 8" O.C. Faucet Holes – two sets pre-punched to accept standard commercial faucets (sold separately).
  • Adjustable Side Cross-Bracing & Bullet Feet – level the sink quickly and lock in rock-solid stability.
  • NSF Listed – meets all food-safety and sanitation standards right out of the box.

Specifications

Model FS-3-2430-24L
Compartments 3
Bowl Size (W × F/B × D) 24" × 30" × 14"
Drainboard 24" (left-hand)
Overall Dimensions 99" L × 36" F/B
Material & Gauge 14-gauge type 304 stainless steel
Backsplash Height 8 1/2" with tile edge
Faucet Mounting 8" on-center holes (2 sets)
Drains 1 1/2" IPS stainless steel basket drains (included)
Legs / Feet 1 5/8" Ø stainless legs with adjustable side cross-bracing & 1" SS bullet feet
Shipping Weight Approx. 450 lb.
Certifications NSF

What’s Included

  • (1) 3-compartment sink with 24" left drainboard
  • (2) Stainless steel basket drains
  • Factory-installed legs, cross-bracing, and bullet feet
Installation Reminder: This sink is pre-drilled for two 8"-center faucets (hot & cold supply 1/2" IPS). Faucets are required but not included.

Advance Tabco sinks are TIG-welded and blended to a uniform satin finish. All dimensions are typical; tolerances ±0.5" overall.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

99.0in

Depth

36.0in

Shipping Weight

450.0lbs

Sink Depth (rim - drain)

14"

Drainboards

with left & right-hand drainboards

Base Type

legs

Splash Height

8-1/2"

Overall Length

97" - 108"

Base Construction

stainless steel

Compartment Width (side - side)

24"

Top Stainless Series

300 series

Compartment (front - back)

30"

Top Gauge

14 gauge

Specifications

Fabricated Sink, 3-compartment, 24" left drainboard, bowl size 24" x 30" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 99" L/R, NSF (requires 2 faucets)
