Advance Tabco  |  SKU: FS-3-2424  |  UPC: 747545132215

Advance Tabco FS-3-2424 Compartment Sinks

$3,850.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

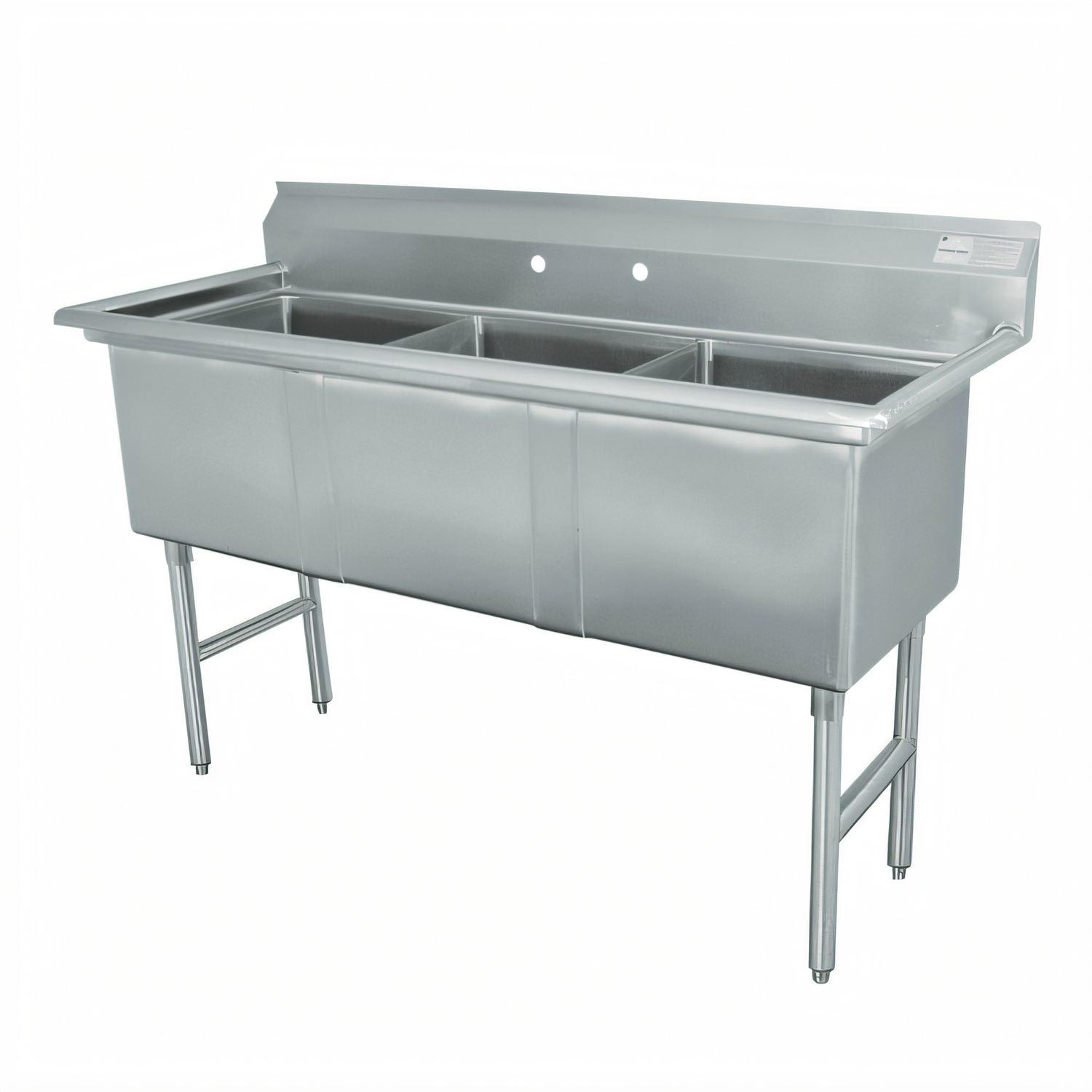

Advance Tabco FS-3-2424 14-Ga. 3-Compartment Fabricated Sink

77" L/R • 29-1/2" F/B • No Drainboards

Engineered for demanding food-service environments, this rugged 14-gauge sink features three roomy 24" x 24" x 14" bowls, a tile-edge backsplash, and heavy-duty stainless legs with adjustable cross-bracing—delivering the capacity you need and the durability you expect from Advance Tabco.

Key advantages

  • 14 Ga. type 304 stainless steel construction for superior strength and corrosion resistance.
  • Extra-deep 14" bowls accommodate bulky pots, sheet pans, and storage tubs.
  • Rolled rim edge increases rigidity and eliminates sharp seams.
  • Tile-edge backsplash simplifies wall sealing and installation.
  • (2) sets of 8" on-center faucet holes let you install separate wash & rinse faucets.
  • Fully TIG-welded with ¾" coved interior corners for quick, sanitary clean-up.
  • 1-5/8" dia. stainless steel legs, adjustable side cross-bracing, and 1" bullet feet for rock-solid stability on uneven floors.
  • NSF listed for use in all commercial kitchens.

Specifications

Model FS-3-2424
Compartments 3 (no drainboards)
Bowl size (L × W × D) 24" × 24" × 14"
Overall dimensions (L × F/B) 77" × 29-1/2"
Material / Gauge 14 Ga. type 304 stainless steel
Backsplash Tile edge, pre-punched (2) 8" O.C. faucet holes
Drains (included) (3) 1-1/2" IPS stainless basket drains, centered
Leg clearance (R-L / F-B) 65" / 17"
Legs & feet 1-5/8" Ø S/S legs with adjustable side cross-bracing & 1" bullet feet
Shipping weight Approx. 329 lb
Certifications NSF
Important: Unit requires two 8" O.C. faucets (sold separately).

Questions about installation or compatible faucets? Reach out—we’re happy to help you build the perfect sink setup.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

77.0in

Depth

29.5in

Shipping Weight

329.0lbs

Sink Depth (rim - drain)

14"

Compartment (front - back)

24"

Overall Length

73" - 84"

Splash Height

8-1/2"

Top Gauge

14 gauge

Compartment Width (side - side)

24"

Top Stainless Series

300 series

Base Type

legs with side crossrails

Drainboards

without drainboards

Base Construction

stainless steel

Specifications

Fabricated Sink, 3-compartment, no drainboards, bowl size 24" x 24" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, (2) sets of 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 77" L/R, NSF (requires (2) faucets)
