Advance Tabco  |  SKU: FS-3-2424-24RL  |  UPC: 747545132277

Advance Tabco FS-3-2424-24RL Compartment Sinks

$4,950.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

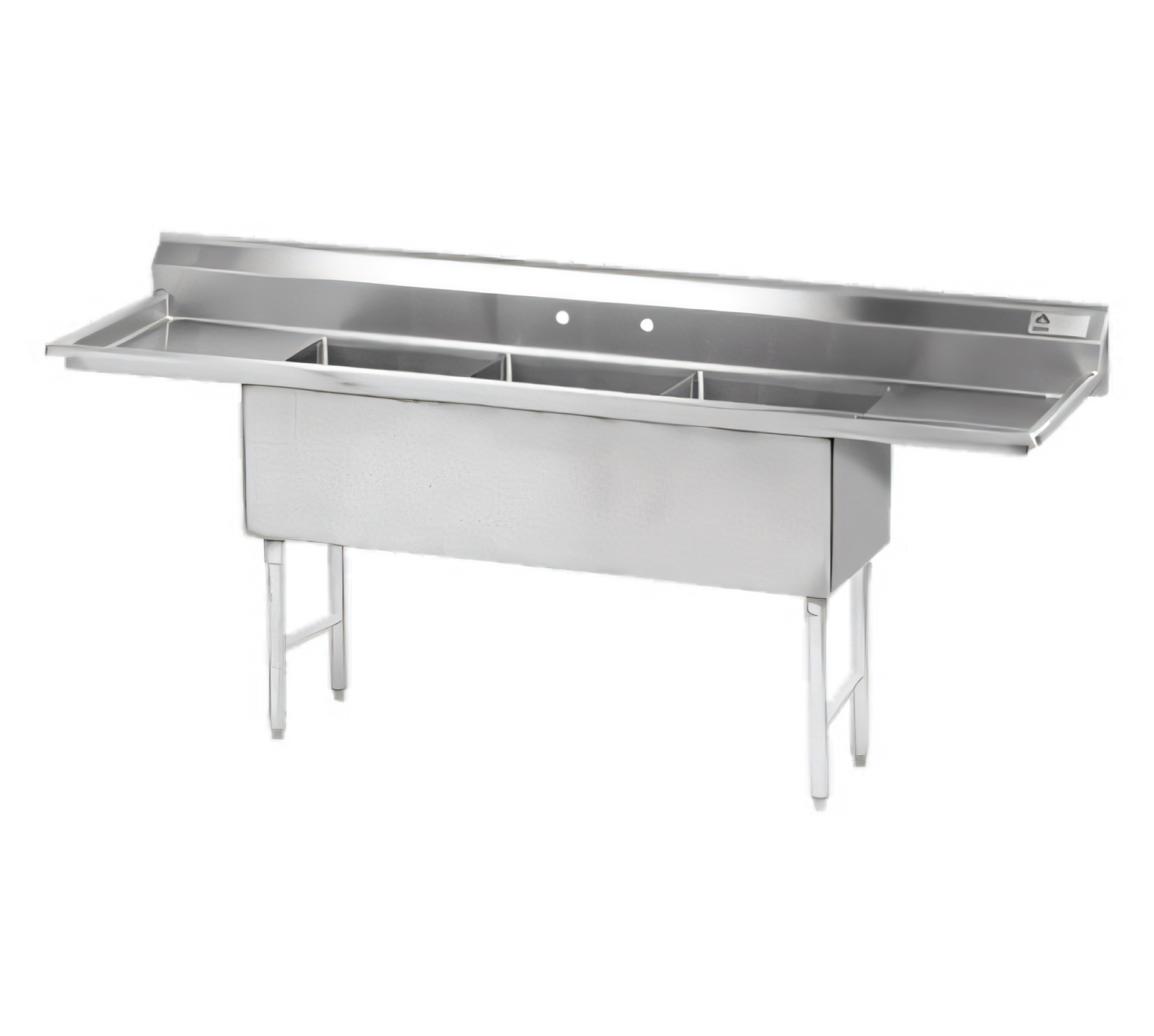

Advance Tabco 3-Compartment Fabricated Sink w/ Dual 24" Drainboards – 120"L

Model FS-3-2424-24RL • 14-Gauge 304 Stainless Steel • NSF Listed

Built for demanding commercial kitchens, this heavy-duty sink pairs three spacious 24" x 24" x 14" bowls with full-length drainboards on both sides, giving your warewashing team all the space they need for soaping, rinsing and sanitizing.

Key Features

  • Three extra-large 24" × 24" × 14" compartments handle sheet pans, stock pots and bus tubs with ease.
  • 24" right & left drainboards feature a rolled rim edge for superior strength and fast drying.
  • Fabricated from robust 14-gauge type 304 stainless steel for maximum corrosion resistance.
  • 8"-high tile-edge backsplash creates a water-tight, sanitary seal against the wall.
  • (2) sets of 8" on-center faucet holes—one for the left bowl pair, one for the right (faucets sold separately).
  • All TIG-welded construction; welds are ground and polished to a uniform satin finish.
  • 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing deliver rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the unit on uneven floors.
  • Supplied with (3) 1 ½" IPS stainless steel basket drains, centered in each bowl.

Specifications

Overall Dimensions (L × F/B) 120" L × 29 ½" F/B
Compartments 3
Bowl Interior (each) 24" L × 24" W × 14" D
Drainboards 24" Right & Left (2 total)
Material Thickness 14-Gauge (2.0 mm) 304 Stainless Steel
Backsplash Height 8" with tile edge
Faucet Mounting (2) sets of 8" O.C. holes – requires (2) wall-mount faucets
Drain Fittings (3) 1 ½" IPS basket strainers (included)
Legs / Bracing 1 ⅝" Ø S/S legs with adjustable side cross-bracing
Feet 1" adjustable stainless steel bullet feet
Certifications NSF

Ideal Applications

  • High-volume restaurants & cafeterias
  • Hotels, resorts & banquet facilities
  • Catering commissaries & ghost kitchens
  • Bakeries, breweries & food-processing plants
Important: This sink requires two 8" on-center wall-mount faucets (not included). View compatible faucets in the “Add-Ons” section before checkout.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

120.0in

Depth

29.5in

Shipping Weight

405.0lbs

Sink Depth (rim - drain)

14"

Compartment (front - back)

24"

Top Stainless Series

300 series

Splash Height

8-1/2"

Top Gauge

14 gauge

Compartment Width (side - side)

24"

Overall Length

109" - 170"

Base Type

legs with side crossrails

Drainboards

with left & right-hand drainboards

Base Construction

stainless steel

Specifications

Fabricated Sink, 3-compartment, 24" right & left drainboards, bowl size 24" x 24" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, (2) sets of 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 120" L/R, NSF (requires (2) faucets)
