Description

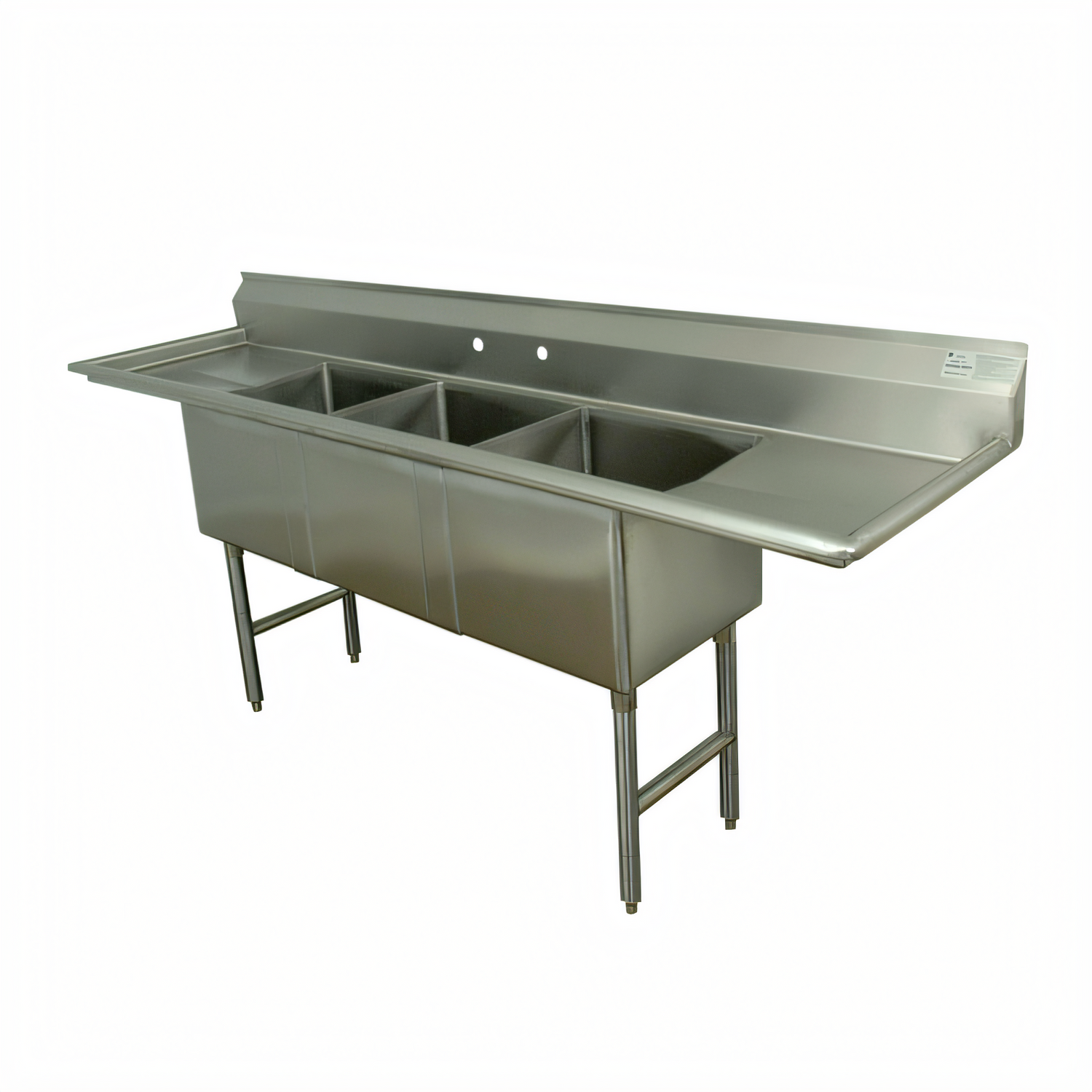

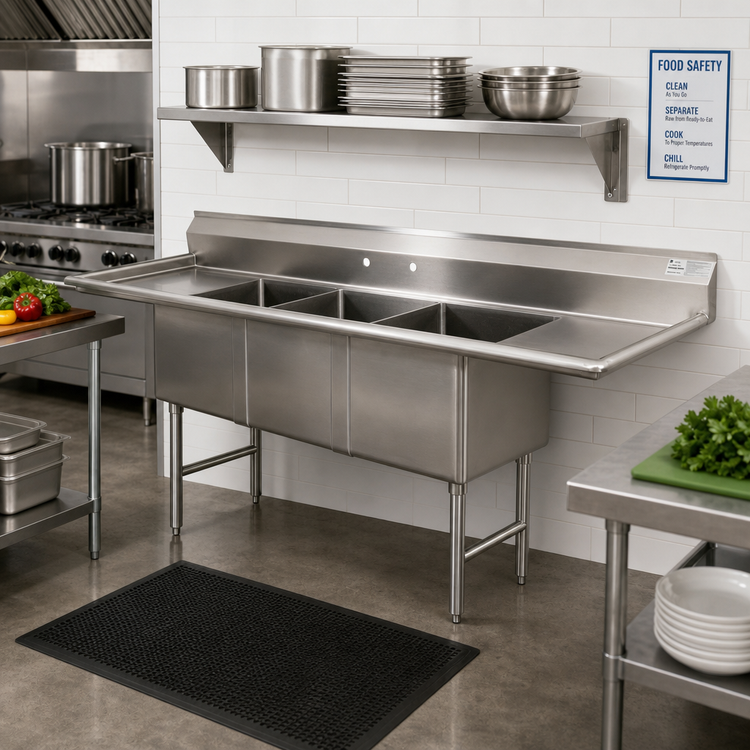

Advance Tabco 108" 3-Compartment Fabricated Sink with Dual 24" Drainboards

SpecLine Model FS-3-2030-24RL • 14 Ga. 304 Stainless Steel

Built for the busiest prep and ware-washing lines, this heavy-duty Advance Tabco sink combines three extra-large bowls, full-length drainboards on both sides, and a rugged 14-gauge, type 304 stainless steel body that stands up to years of commercial abuse while meeting NSF sanitation standards.

Key Features

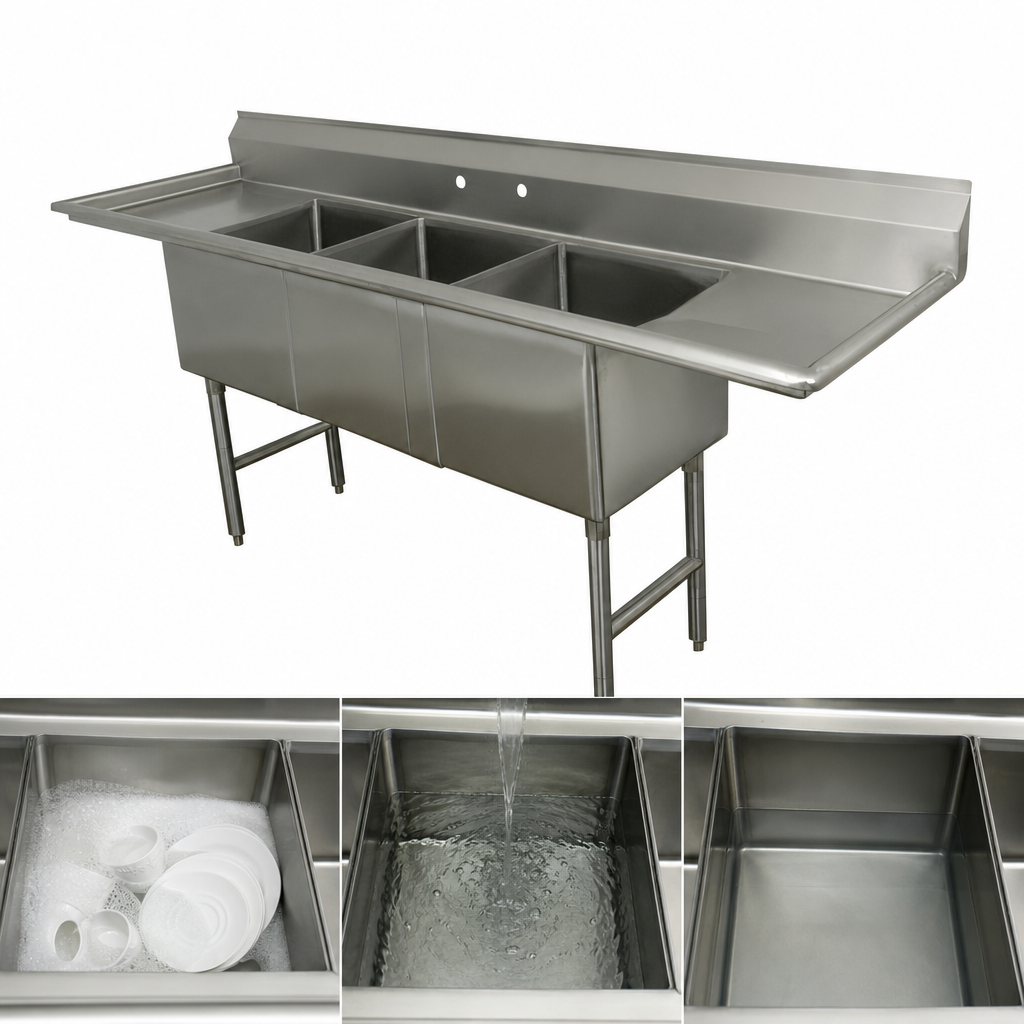

  • Three spacious 20" × 30" × 14" deep bowls speed up wash–rinse–sanitize workflows.
  • Integrated 24" right and left drainboards provide ample landing & drying space.
  • 8" backsplash with tile edge simplifies wall sealing; pre-punched 8"-on-center faucet holes.
  • Rolled rim edge adds strength and resists denting.
  • 1 ½" IPS stainless steel basket drains mounted in the bowl centers (included).
  • 1 ⅝" O.D. stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • All TIG-welded construction with satin-blended seams for a hygienic, easy-clean finish.
  • NSF listed for food-service use.

Specifications

Model No. FS-3-2030-24RL
Compartments 3
Bowl Dimensions (WxLxD) 20" × 30" × 14"
Drainboards 24" right & 24" left (integral)
Overall Dimensions 108" L × 36" F/B × 14" bowl depth
Material / Gauge 14 ga. type 304 stainless steel
Backsplash 8" H with tile edge; 8" O.C. faucet holes
Plumbing Connections ½" IPS hot & cold supplies; 1 ½" IPS drains
Legs & Bracing Stainless steel legs, adjustable side cross-bracing
Feet 1" adjustable stainless steel bullet feet
Approx. Ship Weight ≈ 330 lb
Certifications NSF

Faucets and plumbing trim are not included and are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.0in

Width

108.0in

Depth

36.0in

Shipping Weight

330.0lbs

Sink Depth (rim - drain)

14"

Drainboards

with left & right-hand drainboards

Overall Length

97" - 108"

Splash Height

8-1/2"

Base Type

legs with side crossrails

Compartment Width (side - side)

20"

Base Construction

stainless steel

Top Stainless Series

300 series

Compartment (front - back)

30"

Top Gauge

14 gauge

Specifications

Fabricated Sink, 3-compartment, 24" right & left drainboards, bowl size 20" x 30" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 108" L/R, NSF
