Advance Tabco FS-3-2030-20RL Compartment Sinks
Description

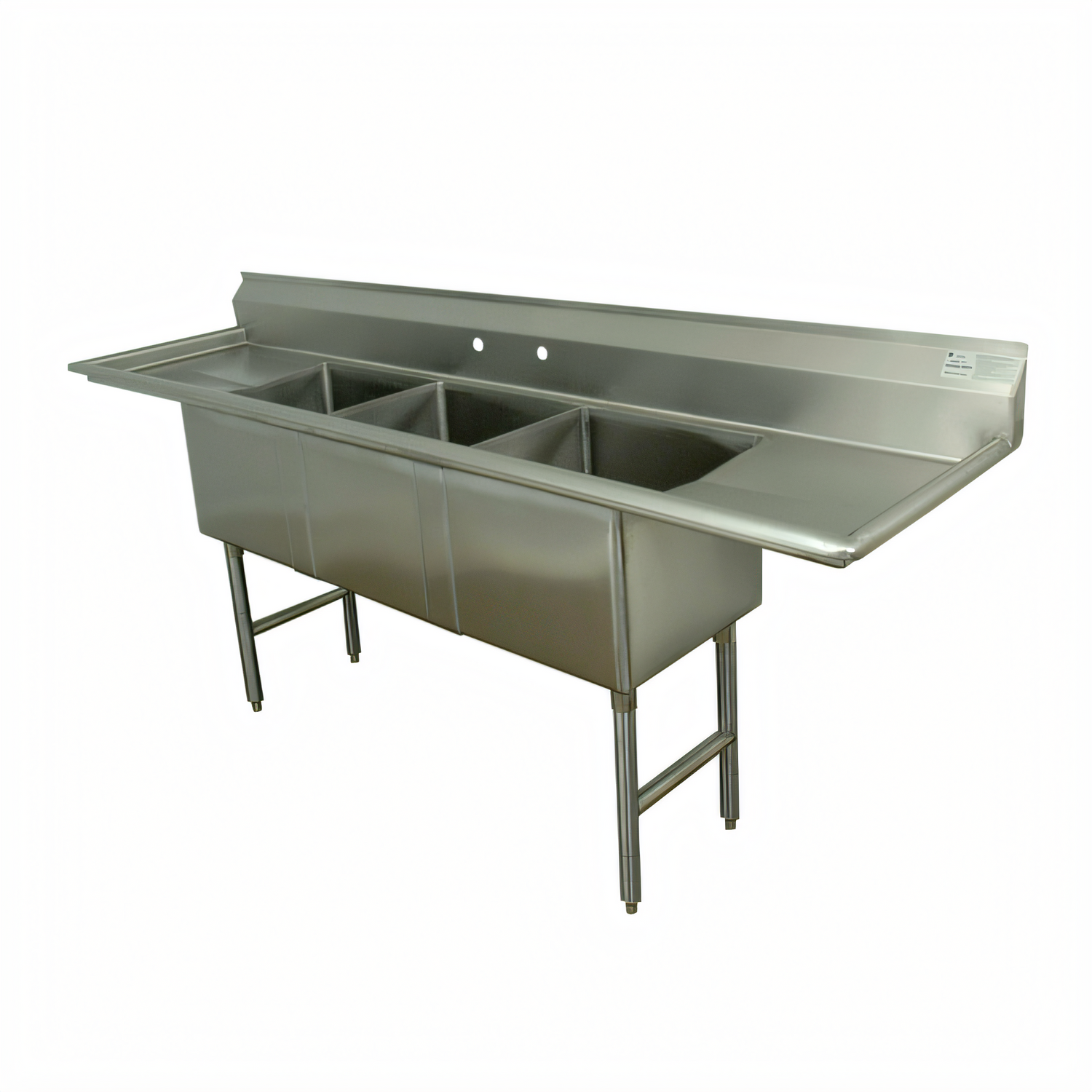

3-Compartment Fabricated Sink w/ Dual 20" Drainboards – 100" x 36", 14 Ga 304 SS
Advance Tabco SPEC-LINE • Model FS-3-2030-20RL • NSF ListedEngineered for heavy-duty ware-washing, produce prep and pot cleaning, the Advance Tabco FS-3-2030-20RL delivers professional capacity and rugged durability inside a single, easy-to-install unit. Three oversized 20" × 30" bowls handle the largest sheet pans, while 20" left & right drainboards keep workflow moving in either direction.
Why You’ll Love It
- 14 gauge, 304 stainless steel construction resists corrosion and everyday abuse.

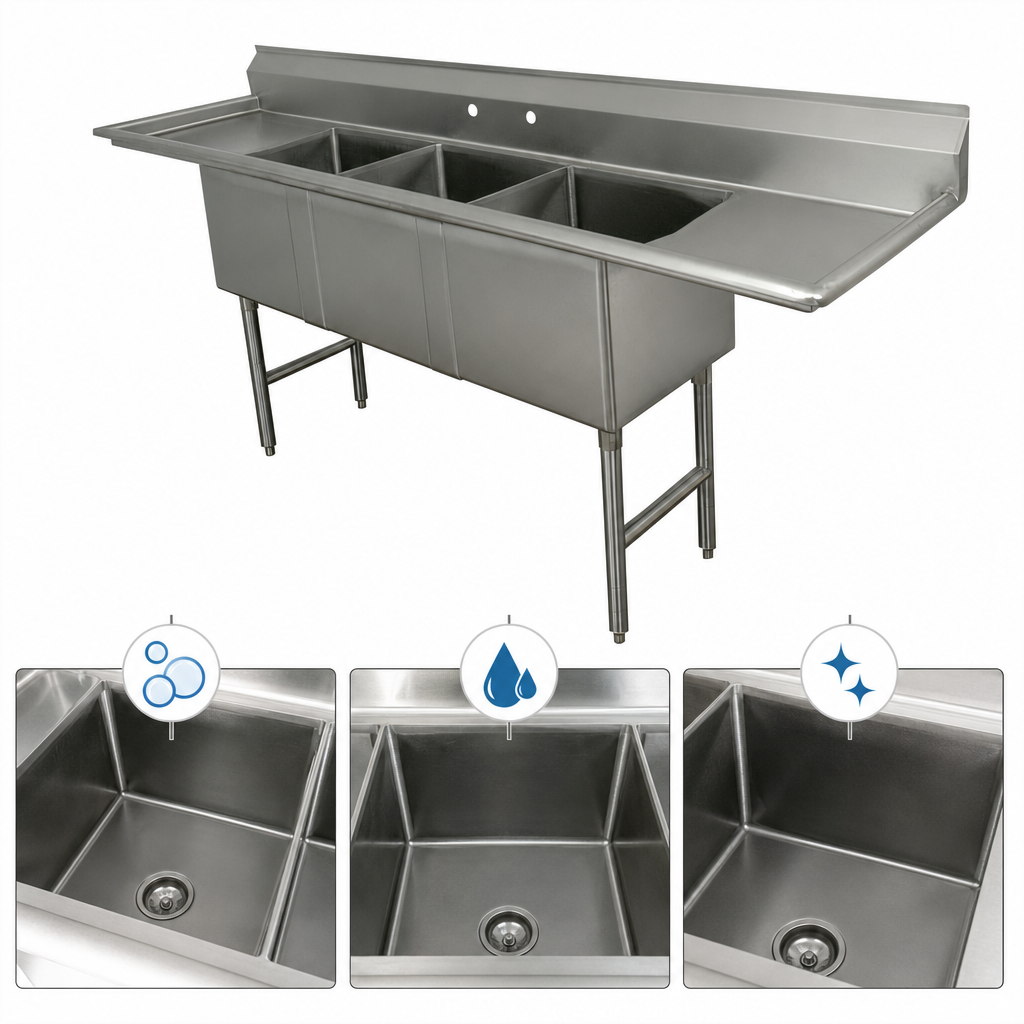

- (3) 20" × 30" × 14" deep bowls with ¾" coved corners meet NSF sanitation standards.
- Rolled rim edge adds strength and comfort while loading heavy pots and trays.
- Tile-edge 8" backsplash speeds up field installation and creates a watertight seal.
- Dual 20" drainboards (left & right) provide ample landing space for dirty and clean wares.
- 1 ⅝" Ø stainless legs with adjustable side cross-bracing for rock-solid stability.
- 1" height adjustable stainless bullet feet make quick work of leveling on uneven floors.
- TIG-welded & satin-blended seams for a smooth, easy-to-clean finish.
Technical Specs
| Overall Dimensions (L × F/B) | 100" L/R × 36" front-to-back |
|---|---|
| Compartments | 3 |
| Individual Bowl Size | 20" W × 30" L × 14" D |
| Drainboards | (2) 20" – left & right |
| Material / Gauge | 304 stainless steel, 14 ga |
| Backsplash | 8" H with tile edge |
| Faucet Mount | 8" on-center punch (½" IPS hot & cold) |
| Waste Drains | 1 ½" IPS stainless basket strainers (included, center-rear) |
| Legs / Bracing | 1 ⅝" Ø S/S legs, adjustable side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Shipping Weight | Approx. 318 lb |
| Certifications | NSF |
Installation Clearances
- Right-to-left leg clearance (under bowls): 53"
- Front-to-back leg clearance: 13"
- Additional 21" clearance under each 20" drainboard
Dimensions and clearances are ±½" per factory tolerances.
Ideal Applications
- Restaurants & commissaries washing full-size sheet pans
- High-volume bakeries or catering kitchens
- Food-processing and produce prep areas
- Institutional kitchens needing bi-directional workflow
