Advance Tabco  |  SKU: FS-3-2024-24L  |  UPC: 747545177940

Advance Tabco FS-3-2024-24L Compartment Sinks

$4,466.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

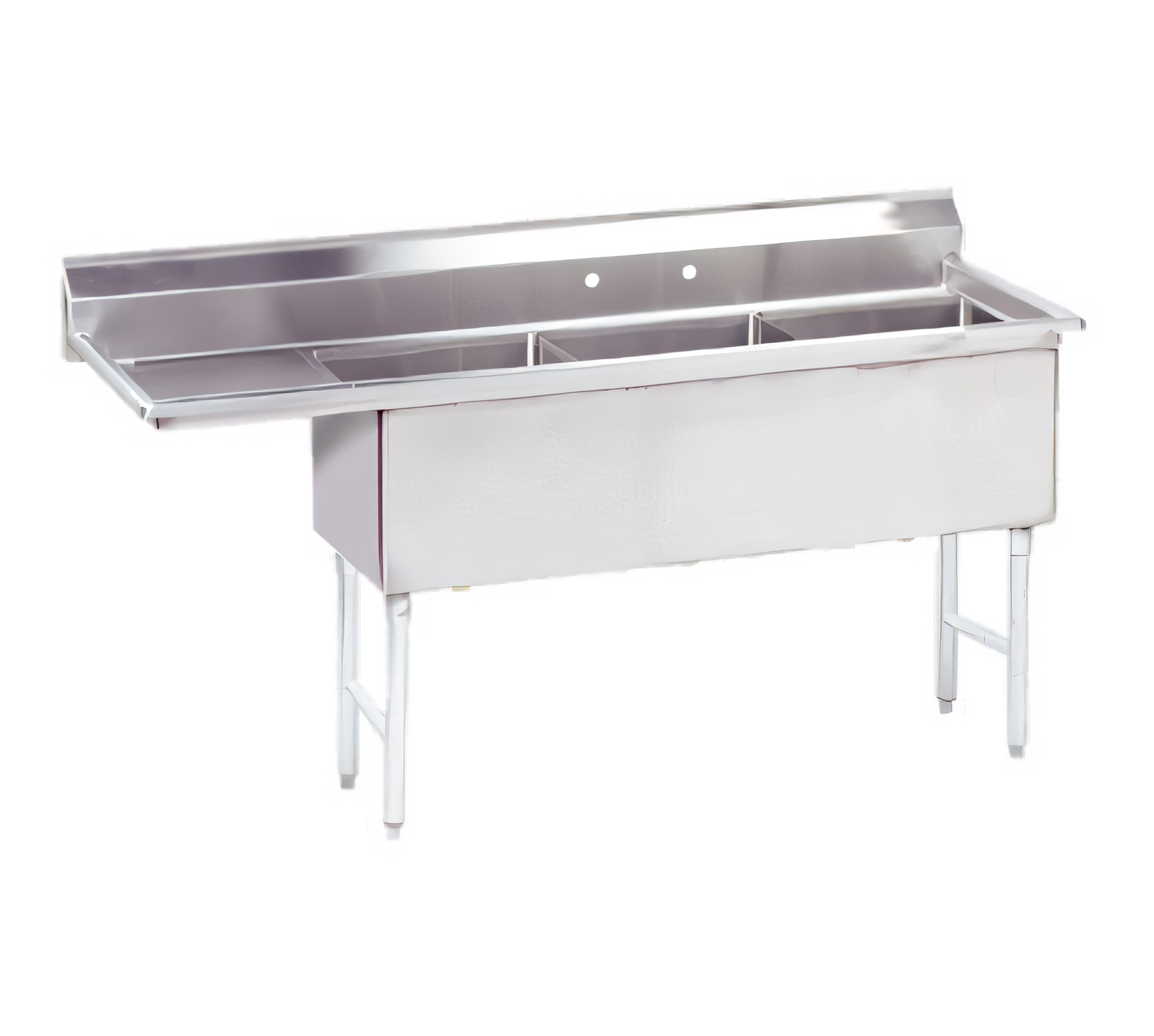

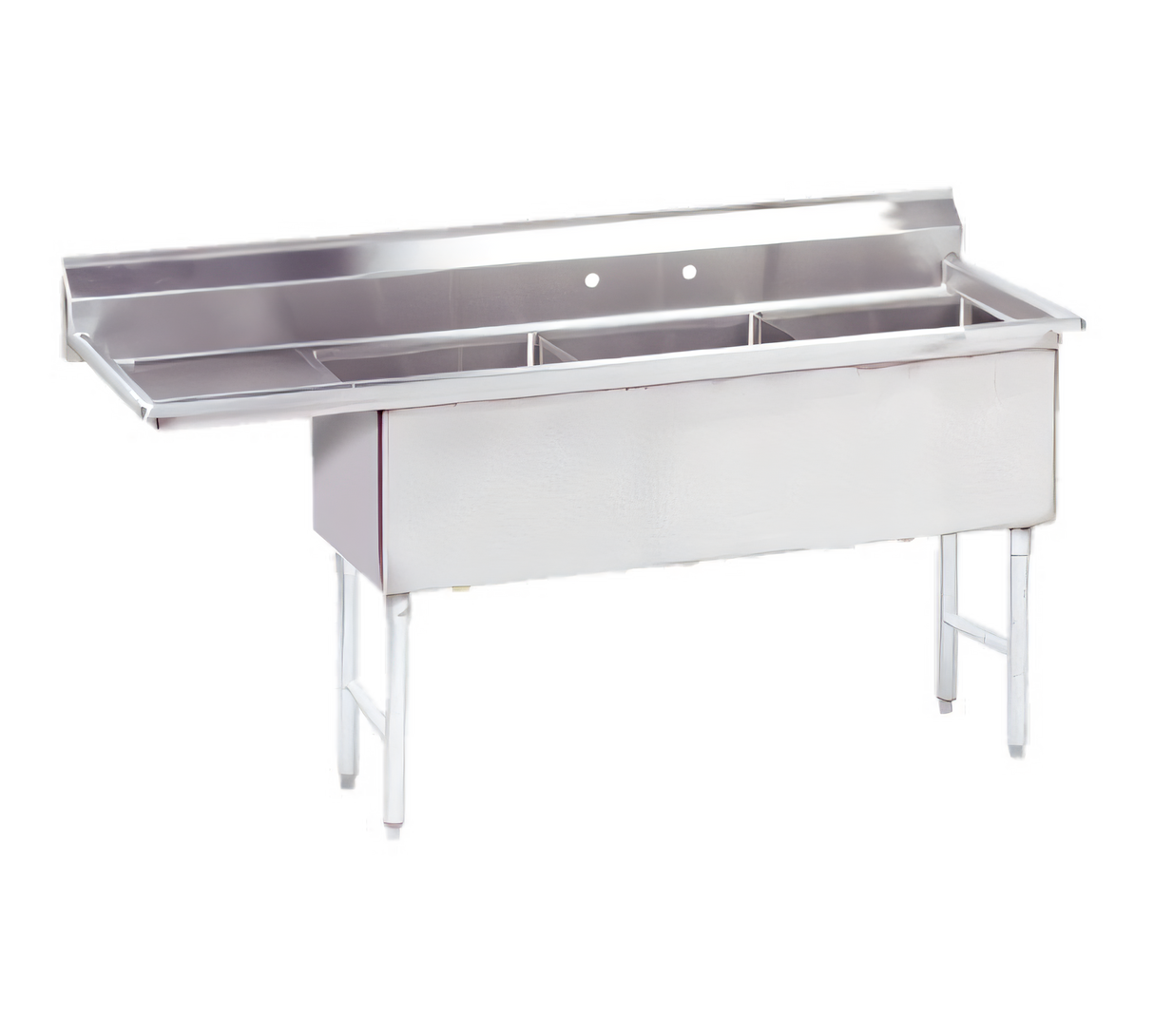

Advance Tabco FS-3-2024-24L 3-Compartment Fabricated Sink

86-1/2" L × 29-1/2" F/B • 24" Left Drainboard • 14 Ga. 304 Stainless Steel • NSF

Built for demanding commercial kitchens, this Advance Tabco Spec-Line sink delivers rugged 14-gauge strength, generous bowl capacity, and a convenient 24-inch left-side drainboard—all in one NSF-listed unit.

Key Advantages

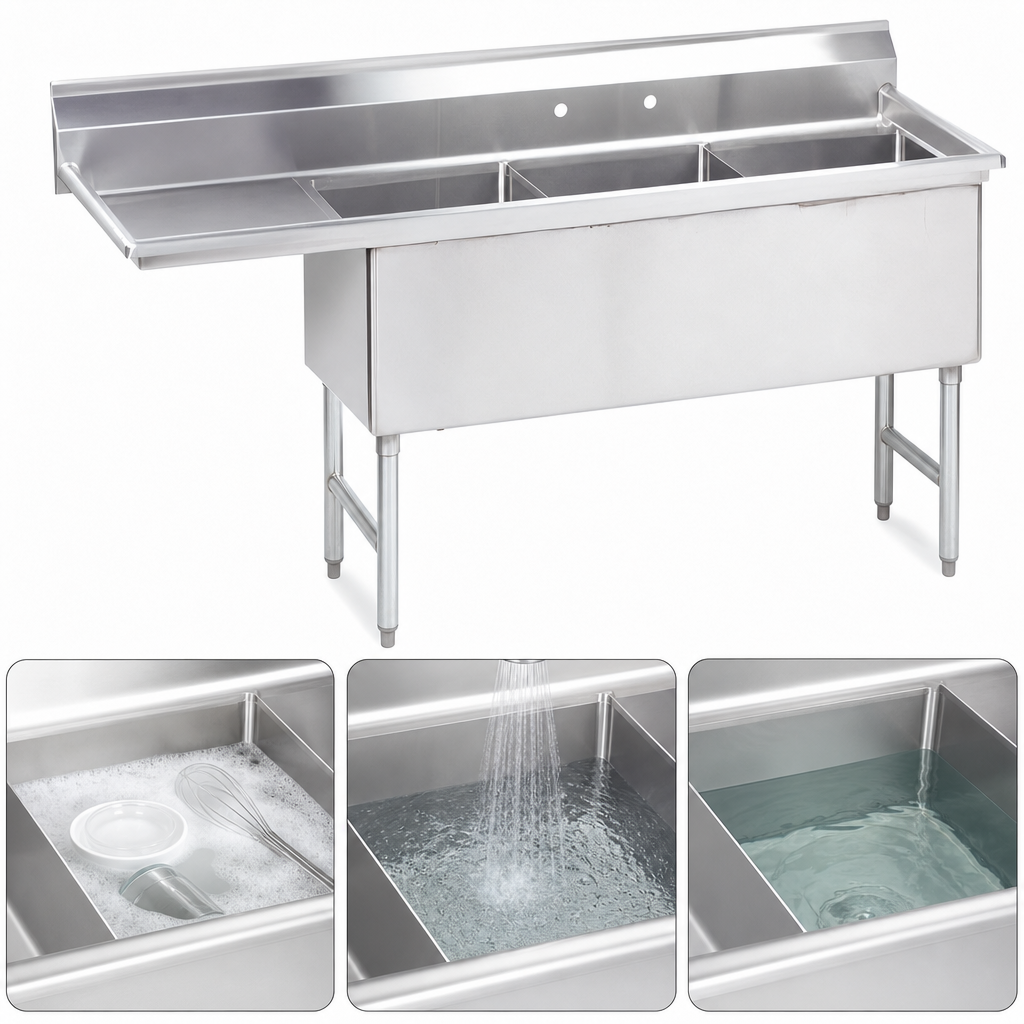

  • Three full-size bowls (20" × 24" × 14" D) handle prep, wash & rinse without crowding.
  • Rolled rim edge adds rigidity and helps resist denting.
  • 8-1/2" high backsplash with tile edge speeds up wall sealing and keeps water in the sink.
  • Factory-punched 8" on-center faucet holes—ready for any commercial deck-mount faucet.
  • Stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1-inch stainless bullet feet adjust for a level work surface on uneven floors.
  • All TIG-welded seams are ground and polished to a satin finish for easier cleaning.

Heavy-Duty Construction

  • Entire unit fabricated from 14 ga. type 304 stainless steel—ideal for high-volume use and harsh sanitizers.
  • 3/4" radius coved corners meet NSF requirements and wipe down in seconds.
  • Full skirt design conceals plumbing and presents a clean, professional look.
  • Reinforced drainboard with die-stamped drain lines speeds drying and wastewater flow.

Plumbing & Installation

  • (3) 1-1/2" IPS stainless basket drains supplied—centered in each bowl.
  • 1/2" IPS hot & cold water connections (faucet sold separately).
  • Front-to-back leg clearance: 17" • Right-to-left leg clearance (3-comp): 53".
Note: Faucets and overflow fittings are not included. Add a compatible 8" O.C. deck-mount faucet to complete installation.

Specifications

Model FS-3-2024-24L
Compartments 3
Bowl Dimensions (WxF/BxD) 20" × 24" × 14"
Drainboard 24" — Left side
Overall Dimensions 86-1/2" L × 29-1/2" F/B
Backsplash Height 8-1/2"
Material Thickness 14 ga. (0.078") type 304 stainless steel
Legs / Feet 1-5/8" Ø stainless legs with adjustable side cross-bracing & 1" bullet feet
Faucet Holes 8" on-center, 1-1/8" diameter
Certifications NSF, Made in USA
Shipping Weight Approx. 182 lb

Advance Tabco reserves the right to modify specifications without notice. Always verify cutout and rough-in dimensions prior to installation.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

86.5in

Depth

29.5in

Shipping Weight

350.0lbs

Drainboards

with left-hand drainboard

Compartment (front - back)

24"

Sink Depth (rim - drain)

14"

Base Type

legs with side crossrails

Overall Length

85" - 96"

Splash Height

8-1/2"

Top Stainless Series

300 series

Base Construction

stainless steel

Compartment Width (side - side)

20"

Top Gauge

14 gauge

Specifications

Fabricated Sink, 3-compartment, 24" left drainboard, bowl size 20" x 24" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 86-1/2" L/R, NSF
