Advance Tabco  |  SKU: FS-3-1818-18RL  |  UPC: 747545132123

Advance Tabco FS-3-1818-18RL Compartment Sinks

$4,001.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

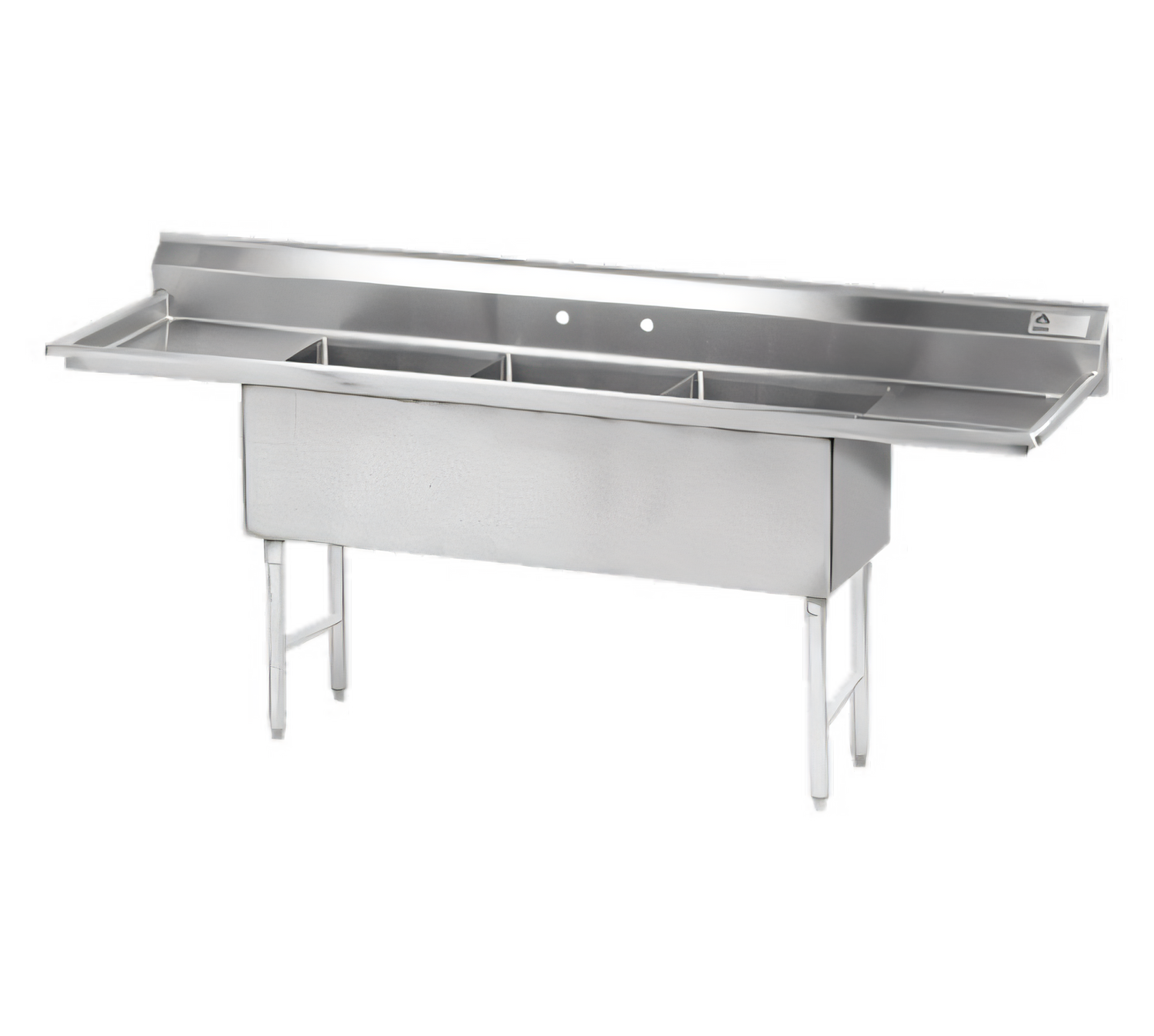

Advance Tabco FS-3-1818-18RL 3-Compartment Fabricated Sink with Dual 18" Drainboards

90" L x 23-1/2" D | 14 Ga 304 SS | NSF Listed

Tackle the heaviest ware-washing loads with the Advance Tabco FS-3-1818-18RL. This rugged, fully TIG-welded sink features three spacious 18" x 18" x 14" bowls and 18" drainboards on both sides to keep soiled and cleaned items moving efficiently through your kitchen. Fabricated from extra-thick 14-gauge, 304 stainless steel and reinforced with rolled rim edges, it’s built to thrive in the most demanding commercial environments.

Key Features

  • 14 Ga 304 stainless steel — resists corrosion, impact and harsh chemicals.
  • Three 14"-deep bowls easily accommodate stock pots, sheet pans & mixing bowls.
  • 18" right & left drainboards speed up loading, rinsing and air-drying.
  • Rolled rim edge adds strength and a smooth, comfortable work surface.
  • 8-1/2" backsplash with tile edge simplifies wall sealing for a sanitary install.
  • Pre-punched 8" on-center faucet holes accept most commercial faucets (sold separately).
  • 1 ⅝" Ø stainless legs with adjustable side cross-bracing for exceptional stability.
  • 1" adjustable stainless bullet feet level the unit on uneven floors.
  • (3) 1 ½" IPS stainless basket drains included; centered in each bowl.
  • NSF certified for food-service sanitation and safety.

Specifications

Model FS-3-1818-18RL
Compartments 3
Bowl size (W x F/B x Depth) 18" x 18" x 14"
Drainboards 18" Right & 18" Left
Overall dimensions 90" L x 23-1/2" D
Backsplash height 8-1/2" with tile edge
Material thickness 14 Ga (0.078") 304 SS
Faucet mounting (2) holes on 8" centers
Water supply 1/2" IPS hot & cold (faucet not included)
Drain outlet 1-1/2" IPS stainless basket type (included)
Legs / bracing 1 ⅝" Ø SS legs & adjustable side cross-bracing
Feet 1" adjustable stainless bullet feet
Shipping weight Approx. 170 lb
Certifications NSF

Faucets and overflow fittings are sold separately, allowing you to choose the exact accessories your operation requires.

Installation Tip: Apply a continuous bead of food-grade silicone between the tile-edge backsplash and the wall to ensure a watertight, code-compliant seal before making final plumbing connections.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

90.0in

Depth

23.5in

Shipping Weight

170.0lbs

Overall Length

85" - 96"

Splash Height

8-1/2"

Sink Depth (rim - drain)

14"

Top Stainless Series

300 series

Compartment (front - back)

18"

Compartment Width (side - side)

18"

Top Gauge

14 gauge

Drainboards

with left & right-hand drainboards

Base Type

legs with side crossrails

Base Construction

stainless steel

Specifications

Fabricated Sink, 3-compartment, 18" right & left drainboards, bowl size 18" x 18" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 23-1/2" F/B x 90" L/R, NSF
