Advance Tabco  |  SKU: FS-3-1620-36RL  |  UPC: 747545210432

Advance Tabco FS-3-1620-36RL Compartment Sinks

$4,308.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Advance Tabco FS-3-1620-36RL 3-Compartment Fabricated Sink with 36" Drainboards

120" L/R × 26" F/B • 14 Gauge 304 Stainless Steel • NSF Certified

Engineered for demanding commercial kitchens, the Advance Tabco FS-3-1620-36RL pairs heavy-duty construction with expansive work space. Dual 36" drainboards bookend three deep 16" × 20" × 14" bowls, delivering an efficient wash-rinse-sanitize workflow while keeping prep and ware-washing areas organized and sanitary.

Key Benefits

  • Thick 14 ga. 304 stainless steel resists dents, pitting and corrosion.
  • Rolled rim edge and full TIG-welded seams provide exceptional rigidity and a sleek, easy-to-clean finish.
  • Generous 36" right & left drainboards with positive pitch speed drying and staging.

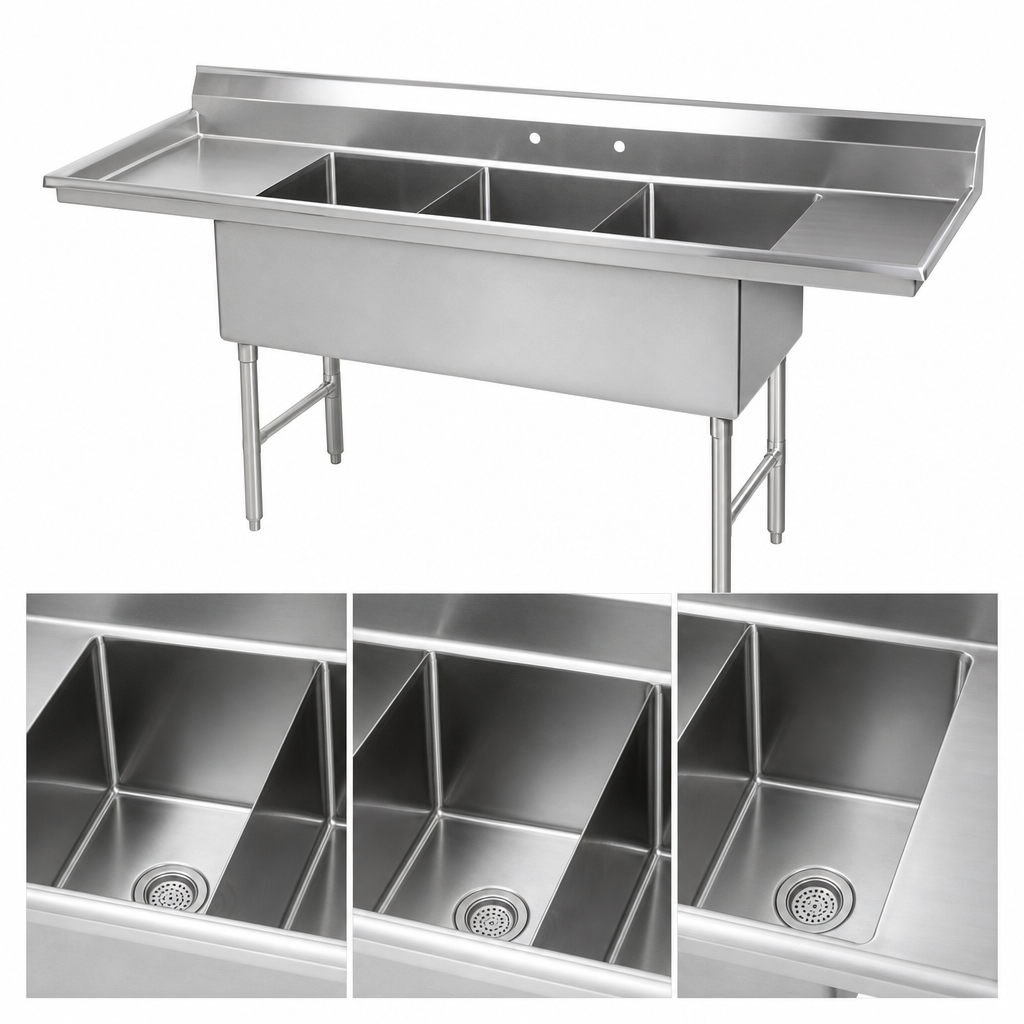

  • Three 14"-deep bowls feature ¾" radius coved corners that comply with NSF sanitation standards.
  • 8"-high backsplash with tile edge for fast, watertight installation against finished walls.
  • Pre-punched 8" O.C. deck holes accept standard commercial faucets (sold separately).
  • (3) 1 ½" IPS stainless steel basket drains included—center-mounted for optimal flow.
  • 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing keep the sink rock-solid.
  • 1" adjustable stainless steel bullet feet level the unit on uneven floors.
  • NSF listed for safe use in restaurants, cafeterias, commissaries and more.

At-a-Glance Specifications

Model FS-3-1620-36RL
Compartments 3
Bowl Interior (L × W × D) 16" × 20" × 14"
Drainboards 36" Right & 36" Left (2 total)
Overall Dimensions (L × F/B) 120" × 26"
Backsplash Height 8" with tile edge
Material / Gauge 304 Stainless Steel, 14 ga.
Faucet Mount Deck, 8" on-center holes
Drains 1 ½" IPS stainless steel basket drains (included)
Legs / Feet 1 ⅝" Ø S/S legs & side cross-bracing with 1" adjustable bullet feet
Shipping Weight Approx. 280 lb
Certifications NSF

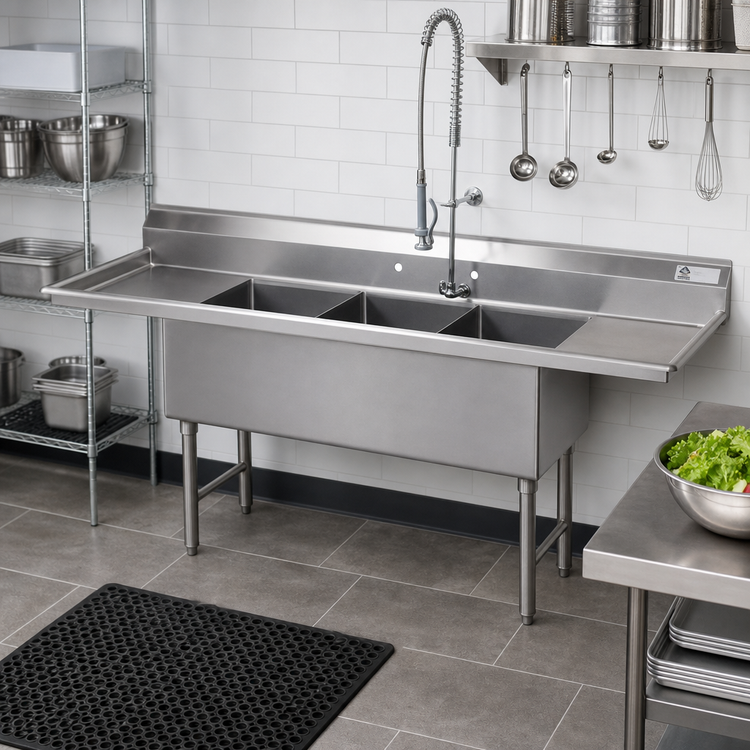

Faucets and other accessories are shown for illustration only and are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.0in

Width

120.0in

Depth

26.0in

Shipping Weight

280.0lbs

Splash Height

8-1/2"

Compartment Width (side - side)

16"

Top Stainless Series

300 series

Compartment (front - back)

20"

Base Construction

stainless steel

Sink Depth (rim - drain)

14"

Drainboards

with left & right-hand drainboards

Base Type

legs with side crossrails

Overall Length

109" - 170"

Top Gauge

14 gauge

Specifications

Fabricated Sink, 3-compartment, 36" right & left drainboards, bowl size 16" x 20" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 26" F/B x 120" L/R, NSF
