Advance Tabco | SKU:
FS-3-1620-18L
Advance Tabco FS-3-1620-18L Compartment Sinks
$3,526.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FS-3-1620-18L Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FS-3-1620-18L Compartment Sinks
$3,526.00
Unit price
/
Unavailable
Description

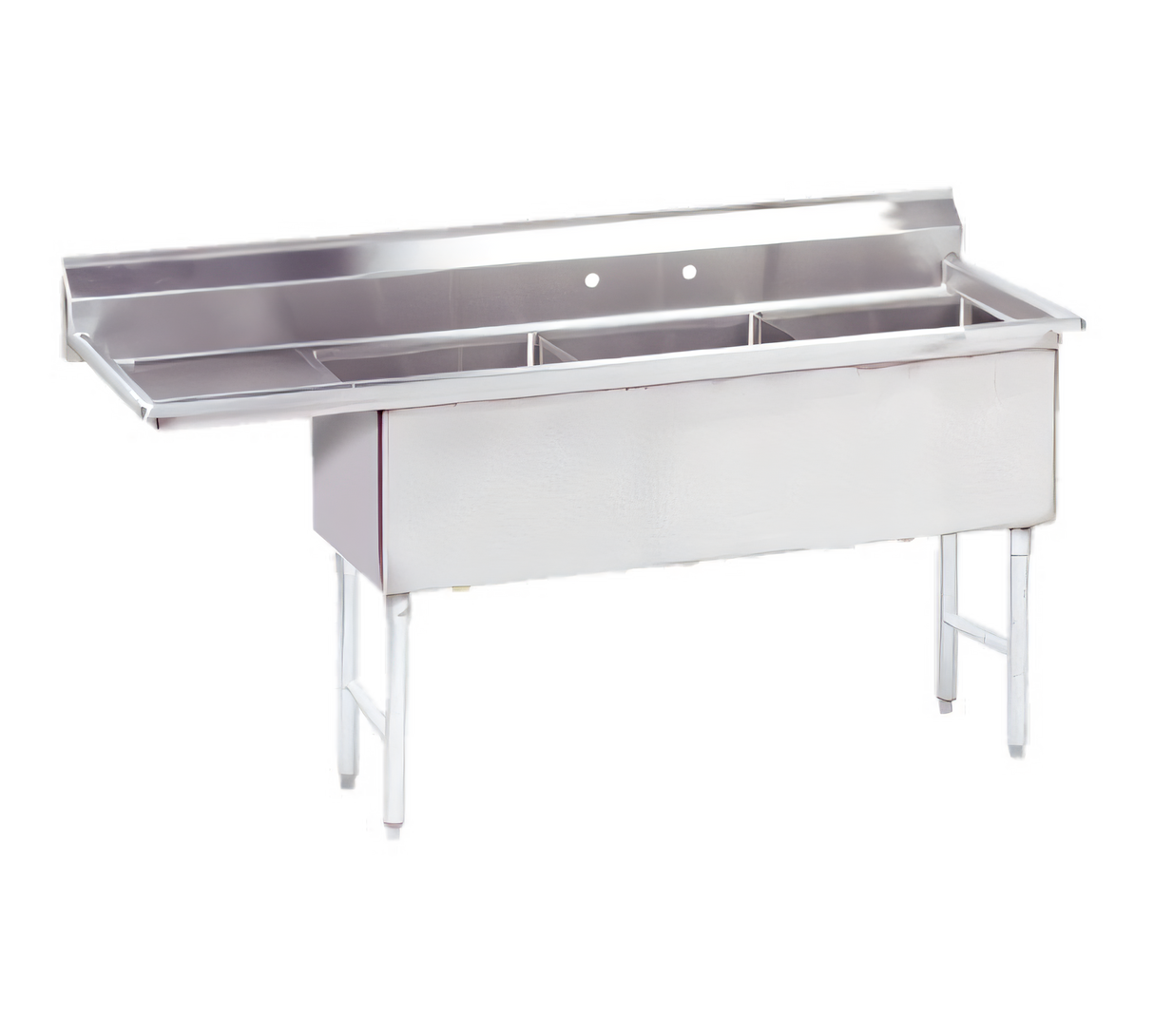

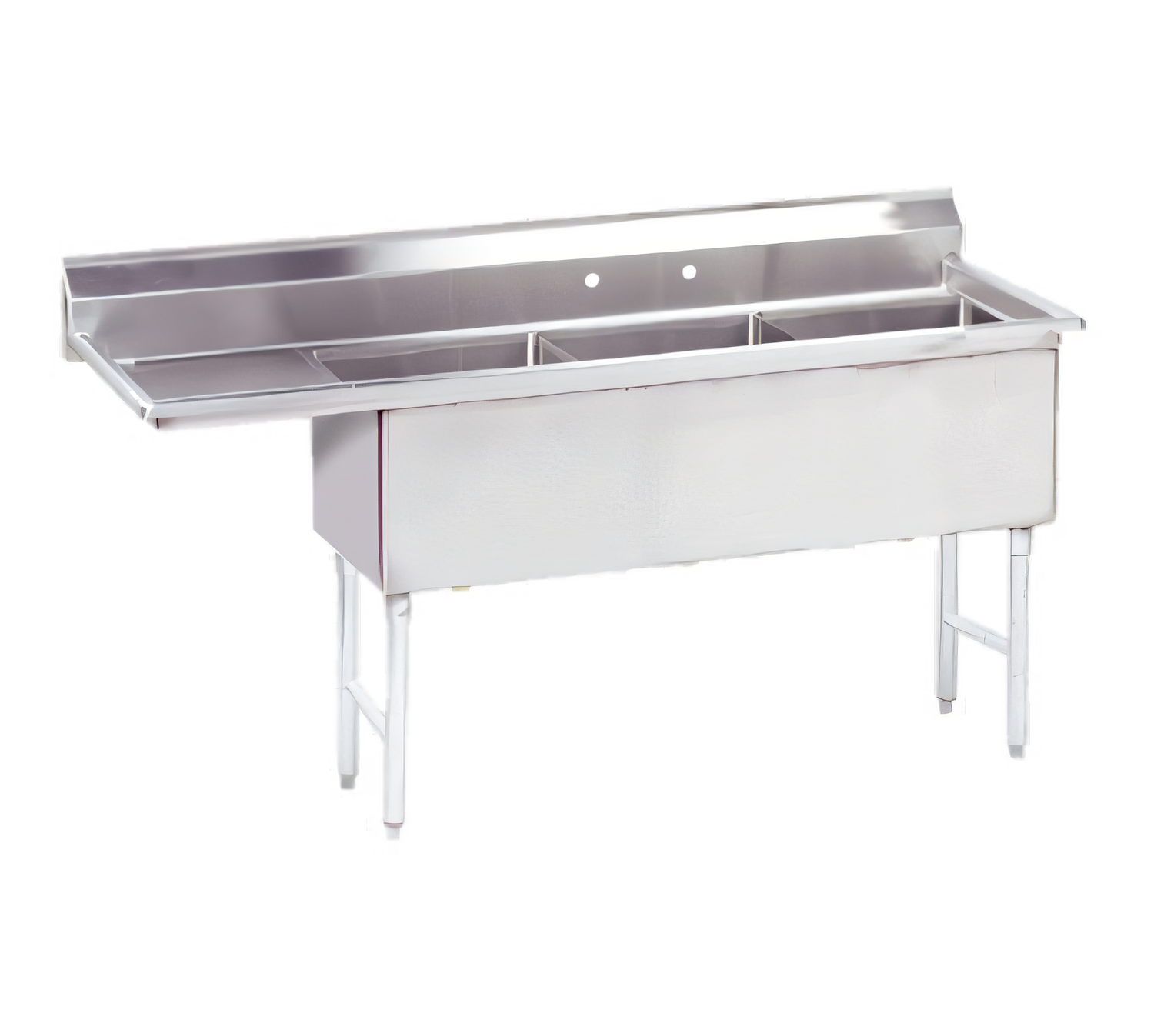

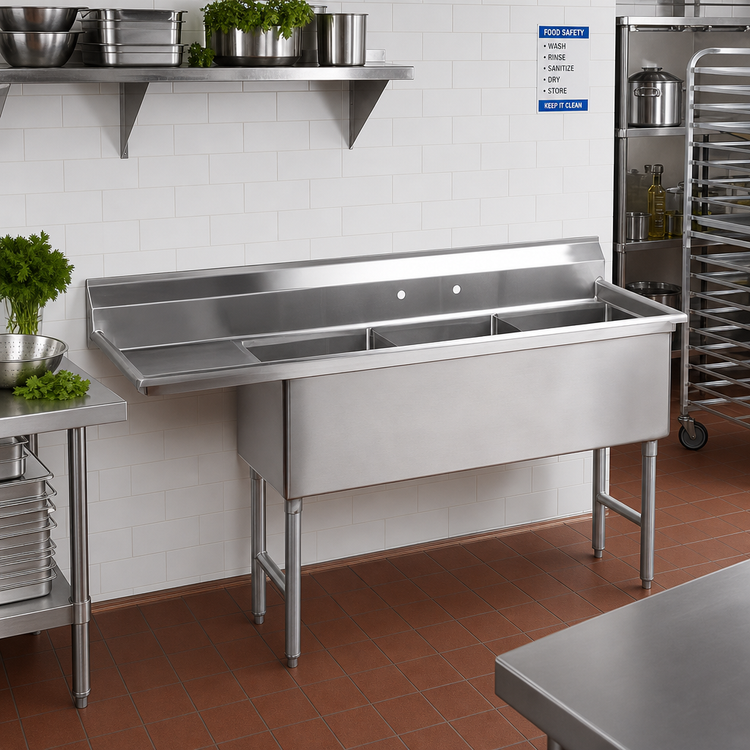

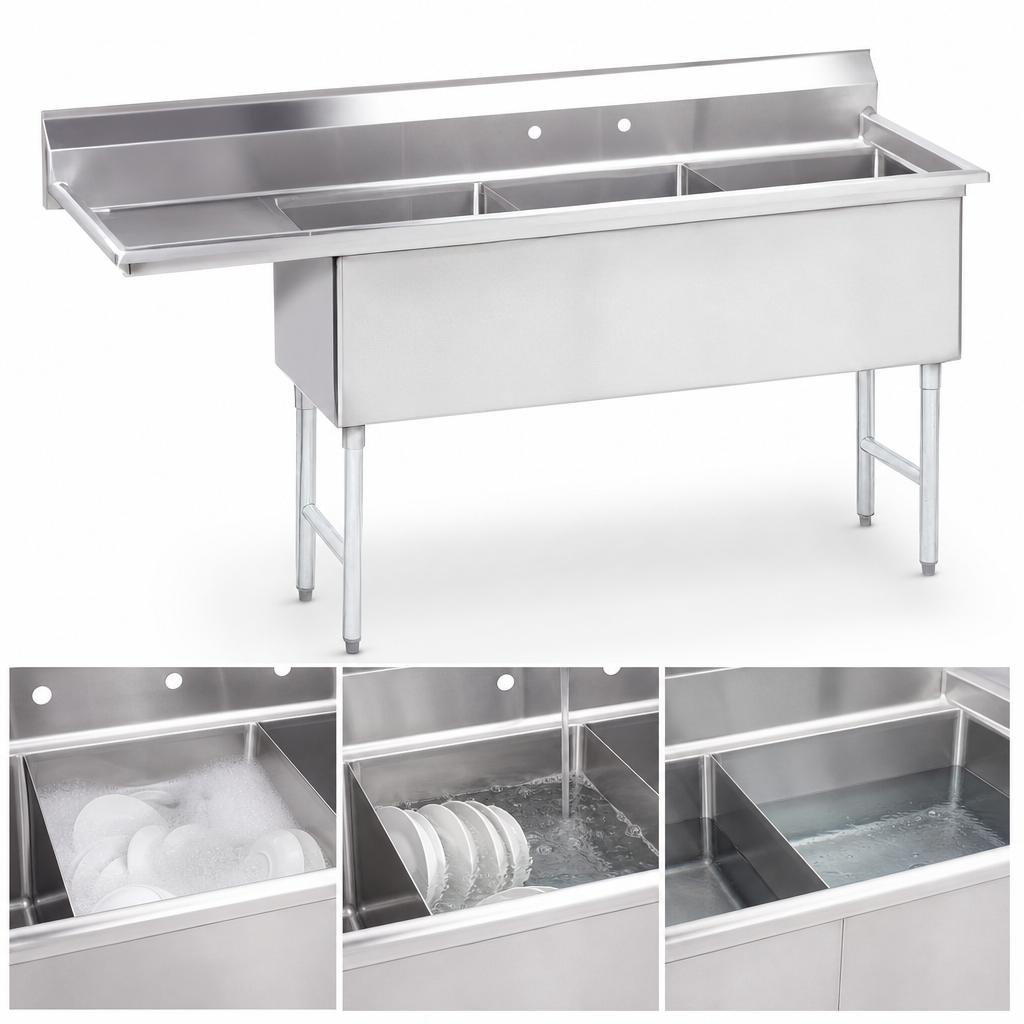

Advance Tabco FS-3-1620-18L Three-Compartment Fabricated Sink
68-1/2" L x 26" W with 18" Left Drainboard • 14 Gauge 304 SS • NSFBuilt for demanding commercial kitchens, this heavy-duty Advance Tabco sink delivers generous washing capacity, a space-saving footprint, and the rugged reliability of fully TIG-welded 14 gauge stainless steel.
Top Features
- 14 ga. type 304 stainless steel—thicker, stronger and highly corrosion-resistant.
- Three 16" × 20" bowls, each 14" deep, easily accommodate stock pots, sheet pans and bus tubs.
- Integrated 18" left-hand drainboard with positive drain slope for fast drying and scrap control.
- 8-1/2" high backsplash with tile edge creates a sanitary, watertight wall seal.
- 8" on-center faucet holes pre-punched for quick installation (faucet sold separately).
- Rolled rim edge and 3/4" coved bowl corners enhance strength and speed cleaning.
- 1-5/8" Ø stainless steel legs with adjustable side cross-bracing fight wobble and racking.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- NSF listed—meets the latest food-service sanitation standards.
What’s Included
- (3) 1-1/2" IPS stainless steel basket drains (center-set).
- Stainless steel side cross-brace set (adjustable).
Faucet, disposer and overflow fittings are sold separately.
Technical Specifications
| Model | FS-3-1620-18L |
|---|---|
| Compartments | 3 |
| Bowl size | 16" W × 20" L × 14" D |
| Drainboard | 18" left-hand, integrally welded |
| Overall dimensions | 68-1/2" L × 26" W (front-to-back) |
| Backsplash height | 8-1/2" |
| Material / gauge | 304 stainless steel / 14 ga. |
| Faucet holes | (2) holes on 8" centers, 1-1/8" Ø |
| Water inlet | 1/2" IPS hot & cold |
| Drain outlet | 1-1/2" IPS per compartment |
| Legs | 1-5/8" Ø stainless steel, welded gussets |
| Feet | 1" adjustable stainless steel bullet feet |
| Certification | NSF |
Pro Tip: Add an Advance Tabco splash-mount faucet and lever waste drain kit to create a fully compliant ware-washing station.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
42.0in
Width
68.5in
Depth
26.0in
Shipping Weight
160.0lbs
Top Stainless Series
300 series
Drainboards
with left-hand drainboard
Splash Height
8-1/2"
Compartment (front - back)
20"
Base Type
legs with side crossrails
Compartment Width (side - side)
16"
Overall Length
63" - 72"
Sink Depth (rim - drain)
14"
Base Construction
stainless steel
Top Gauge
14 gauge
Specifications
Fabricated Sink, 3-compartment, 18" left drainboard, bowl size 16" x 20" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 26" F/B x 68-1/2" L/R, NSF
