Advance Tabco  |  SKU: FS-1-3024-24L  |  UPC: 747545131676

Advance Tabco FS-1-3024-24L Compartment Sinks

$2,699.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

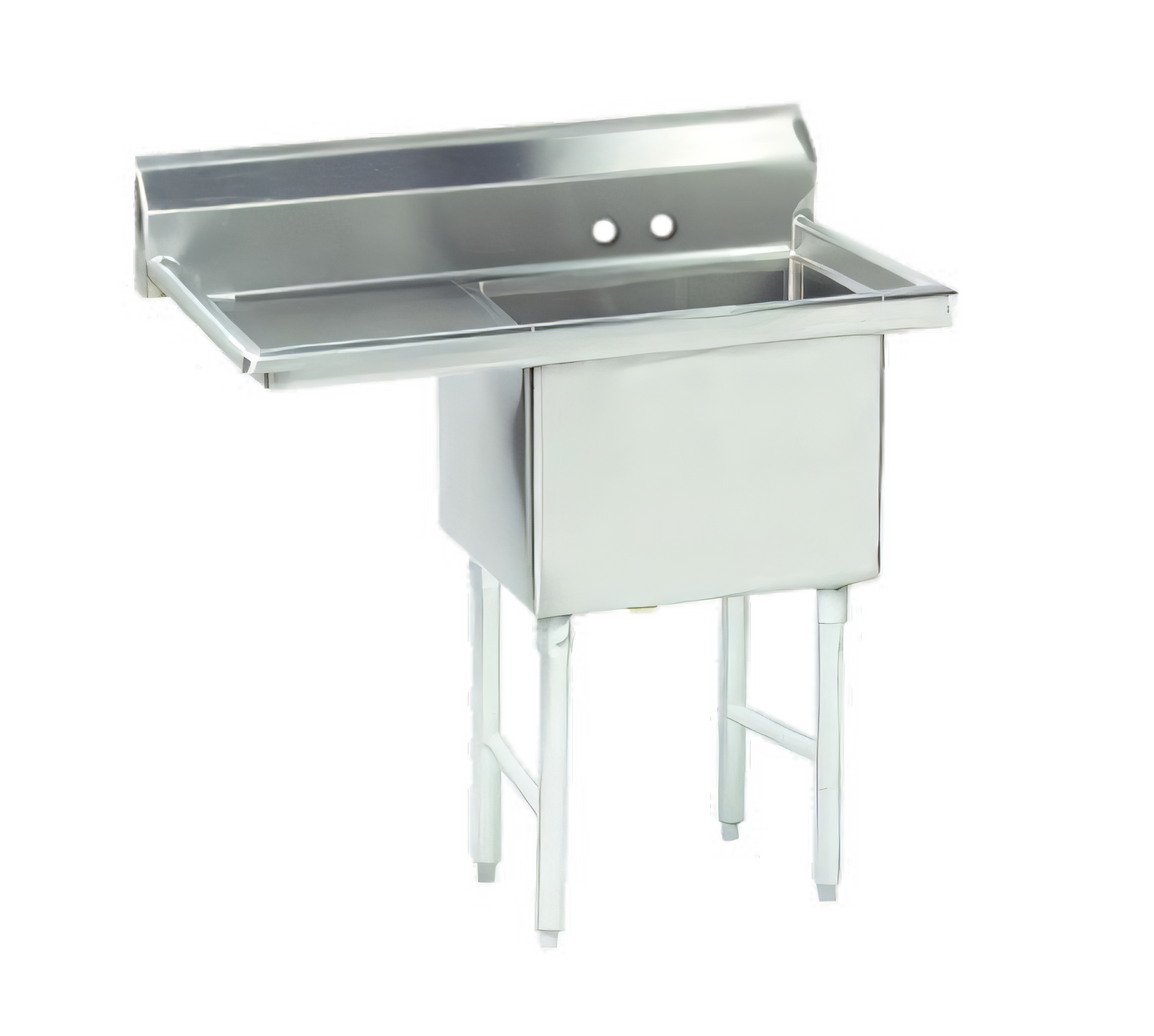

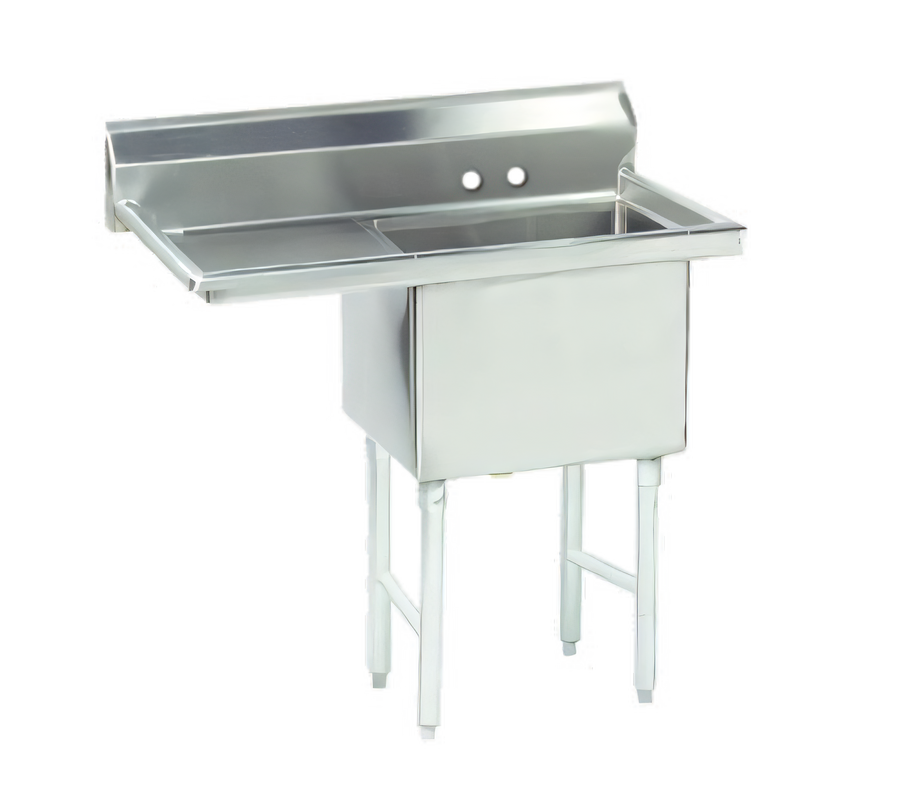

Advance Tabco FS-1-3024-24L 14 Ga. Fabricated Sink

1-Compartment • 24" Left Drainboard • 30" × 24" × 14" Bowl

Built from extra-heavy 14-gauge 304 stainless steel, this NSF-listed sink is engineered to thrive in the busiest prep rooms, commissaries, and dish stations. A spacious 30" × 24" bowl handles oversize cookware with ease, while the 24" left drainboard keeps your workflow organized and sanitary.

Key Features

  • 14 Ga. 304 stainless steel construction – rugged, corrosion-resistant & easy to sanitize
  • 14" deep, coved-corner bowl for high-capacity washing and fast clean-up
  • 24" left-side drainboard with creased pitch for superior drainage
  • Tile-edge backsplash simplifies wall sealing; rolled rim edge adds strength & comfort
  • Factory-punched 8" on-center faucet holes (faucet sold separately)
  • 1 ½" IPS stainless steel basket drain supplied & centrally located
  • TIG-welded seams blended to a satin finish for a unified, professional look
  • 1 5/8" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability
  • 1" adjustable stainless steel bullet feet to level the sink on uneven floors
  • NSF certified & meets all applicable health-code requirements

Specifications

Model FS-1-3024-24L
Compartments 1
Bowl Size (L × W × D) 30" × 24" × 14"
Drainboard 24" (left side)
Overall Dimensions (F/B × L/R) 29 ½" × 56 ½"
Backsplash Height 8 ½"
Faucet Holes 8" on-center, 1 ⅛" Ø
Material / Gauge 304 stainless steel / 14 Ga.
Legs / Feet 1 5/8" Ø S/S legs with adjustable cross-bracing & 1" bullet feet
Supply Connections ½" IPS hot & cold (fittings not included)
Waste Outlet 1 ½" IPS basket drain (included)
Certifications NSF
Faucet & accessories not included. Compatible wall-mount faucets, pre-rinse units, and additional accessories are sold separately.

Need a custom bowl depth, extra drainboard, or other modifications? Reach out to our Smart Fabrication™ team for a fast quote.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

56.5in

Depth

29.5in

Shipping Weight

190.0lbs

Base Type

legs with side crossrails

Drainboards

with left-hand drainboard

Top Gauge

14 gauge

Overall Length

54" - 62"

Splash Height

8-1/2"

Compartment Width (side - side)

30"

Top Stainless Series

300 series

Compartment (front - back)

24"

Base Construction

stainless steel

Sink Depth (rim - drain)

14"

Specifications

Fabricated Sink, 1-compartment, 24" left drainboard, bowl size 30" x 24" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 56-1/2" L/R, NSF
