Advance Tabco  |  SKU: FS-1-2424-24RL  |  UPC: 747545131652

Advance Tabco FS-1-2424-24RL Compartment Sinks

$2,801.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Leg clearances
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

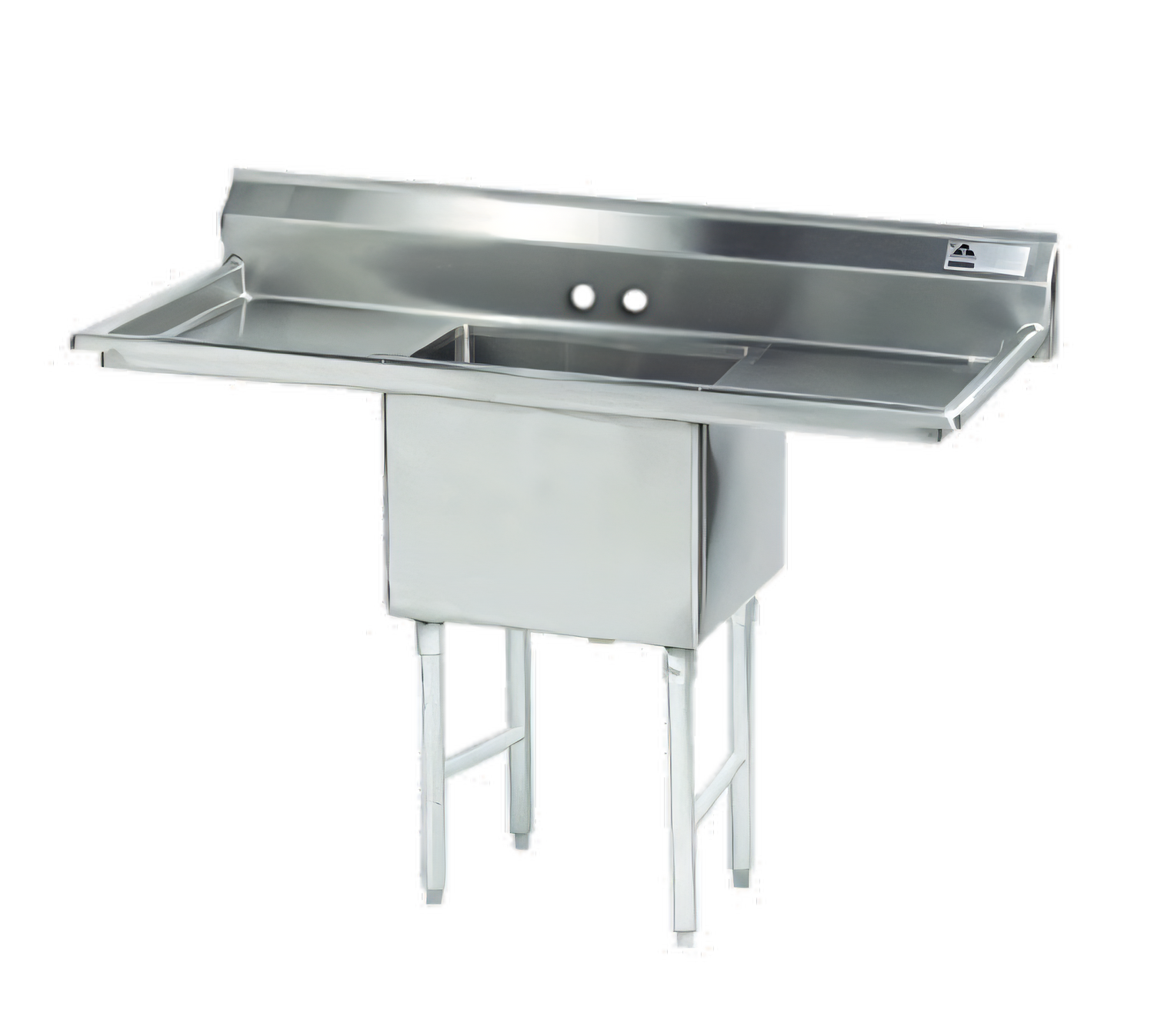

Advance Tabco FS-1-2424-24RL 14 Ga. Fabricated Sink – 1 Compartment, Dual 24" Drainboards

72" W × 29 1⁄2" D overall | 24" × 24" × 14" bowl | NSF Certified

Built from extra-heavy 14-gauge 304 stainless steel, this Advance Tabco single-compartment sink is made to endure the punishing demands of commercial kitchens while providing generous workspace on its right and left 24" drainboards.

Key Benefits

  • Oversized 24" × 24" × 14" deep bowl accommodates large stock pots, sheet pans and mixing bowls.
  • Two integral 24" drainboards (creased & pitched) speed drying and staging.
  • 14 ga. type 304 stainless steel with TIG-welded, satin-blended seams for superior strength and corrosion resistance.
  • Rolled rim edge adds rigidity and protects hands during busy prep hours.
  • 8" on-center faucet holes in an 8 1⁄2" high, tile-edge backsplash for a neat, sanitary wall seal (faucet sold separately).
  • 1 5⁄8" Ø stainless steel legs with adjustable side cross-bracing eliminate wobble.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • Center-mounted 1 1⁄2" IPS stainless steel basket drain included.
  • NSF listed – meets the latest food-safety and sanitation standards.

Specifications

Manufacturer Advance Tabco
Model FS-1-2424-24RL
Compartments 1
Bowl Dimensions (W × L × D) 24" × 24" × 14"
Drainboards 24" Right & 24" Left (2 total)
Overall Size 72" L × 29 1⁄2" F/B
Gauge / Material 14-gauge 304 stainless steel
Backsplash Height 8 1⁄2"
Faucet Holes 8" centers (3 holes)
Drain Outlet 1 1⁄2" IPS basket drain
Legs & Bracing 1 5⁄8" Ø S/S legs with side cross-bracing
Feet 1" adjustable stainless steel bullet feet
Shipping Weight ≈ 209 lb
Certifications NSF

Perfect For

  • Restaurant prep and pot washing stations
  • Supermarket & commissary back-rooms
  • Institutional kitchens – schools, hospitals & correctional facilities
  • Catering and ghost-kitchen operations

Faucet, supply lines and splash-mounted accessories are sold separately. View compatible options in our sink accessories collection.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

72.0in

Depth

29.5in

Shipping Weight

209.0lbs

Base Type

legs with side crossrails

Drainboards

with left & right-hand drainboards

Top Gauge

14 gauge

Compartment (front - back)

24"

Splash Height

8-1/2"

Base Construction

stainless steel

Top Stainless Series

300 series

Overall Length

63" - 72"

Sink Depth (rim - drain)

14"

Compartment Width (side - side)

24"

Specifications

Fabricated Sink, 1-compartment, 24" right & left drainboards, bowl size 24" x 24" x 14" deep, 14 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 29-1/2" F/B x 72" L/R, NSF
