Advance Tabco FS-1-2424-18L Compartment Sinks
Description

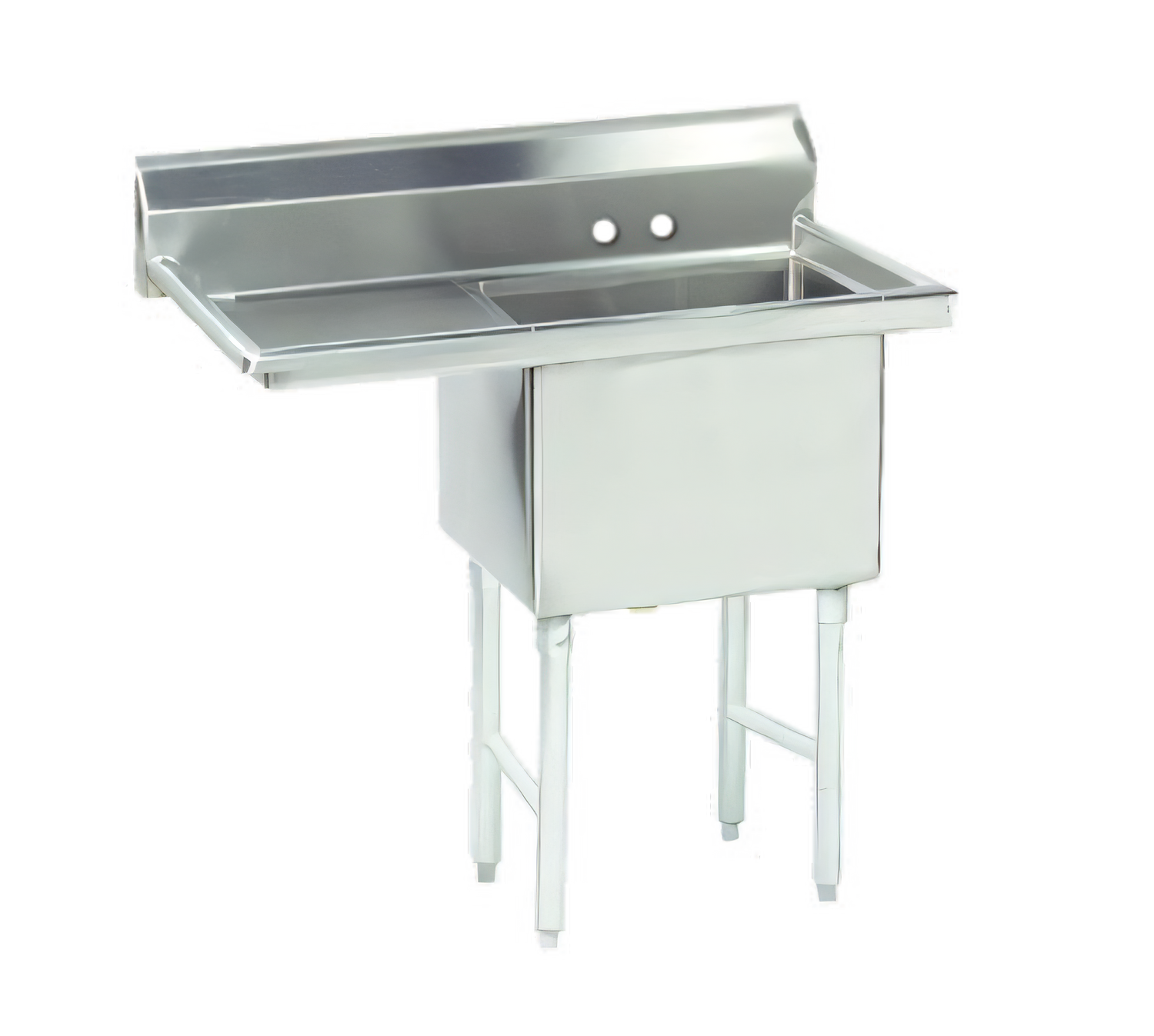

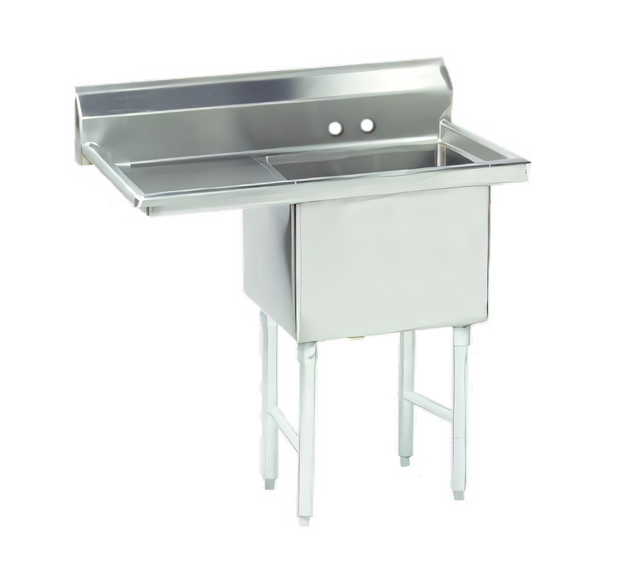

Advance Tabco FS-1-2424-18L Fabricated Sink
1-Compartment • 18" Left Drainboard • 14 Gauge 304 Stainless SteelEngineered for demanding prep and ware-washing stations, the Advance Tabco FS-1-2424-18L combines a spacious 24" x 24" x 14" deep bowl with an integrated 18" left-side drainboard. Heavy-duty 14 gauge, type 304 stainless steel construction, a strength-boosting rolled rim, and NSF certification make this sink a long-lasting performer in any commercial kitchen.
Key Features
- 14 gauge, 304 stainless steel bowl, drainboard, and apron for superior strength and corrosion resistance.
- Extra-deep 14" bowl with 3/4" coved corners meets NSF sanitary standards and simplifies clean-up.
- 18" left drainboard is creased and pitched toward the bowl for efficient water runoff.
- Rolled rim edge adds rigidity and protects against dents in high-traffic areas.
- 8" on-center faucet holes punched in the 8 1/2" high tile-edge backsplash—ideal for wall or deck-mount faucets.
- 1 5/8" Ø stainless steel legs with adjustable side cross-bracing maximize stability.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- Center-mounted 1 1/2" IPS stainless steel basket drain included.
- NSF listed for food-service use.
Specifications
| Manufacturer / Model | Advance Tabco FS-1-2424-18L |
|---|---|
| Compartments | 1 |
| Bowl Size (W × L × D) | 24" × 24" × 14" |
| Drainboard | 18" – Left side |
| Overall Dimensions | 44 1/2" L × 29 1/2" F/B |
| Material / Gauge | 304 stainless steel / 14 ga |
| Backsplash | 8 1/2" H with tile-edge & 8" O.C. faucet holes |
| Drain | 1 1/2" IPS S/S basket strainer (centered) |
| Legs & Feet | 1 5/8" Ø S/S tubular legs, side cross-bracing, 1" adjustable S/S bullet feet |
| Weight | Approx. 110 lb. |
| Certifications | NSF |
Installation & Use
- 1/2" IPS hot & cold water connections (faucet supplied separately).
- Leg assembly ships knocked down for easier handling; simple tools required for set-up.
- Adjust feet until the sink is level and all four feet are in full contact with the floor.
Faucet, drainboard shelf, and other accessories shown in some images are sold separately.
