Advance Tabco FS-1-1620-18R Compartment Sinks
Description

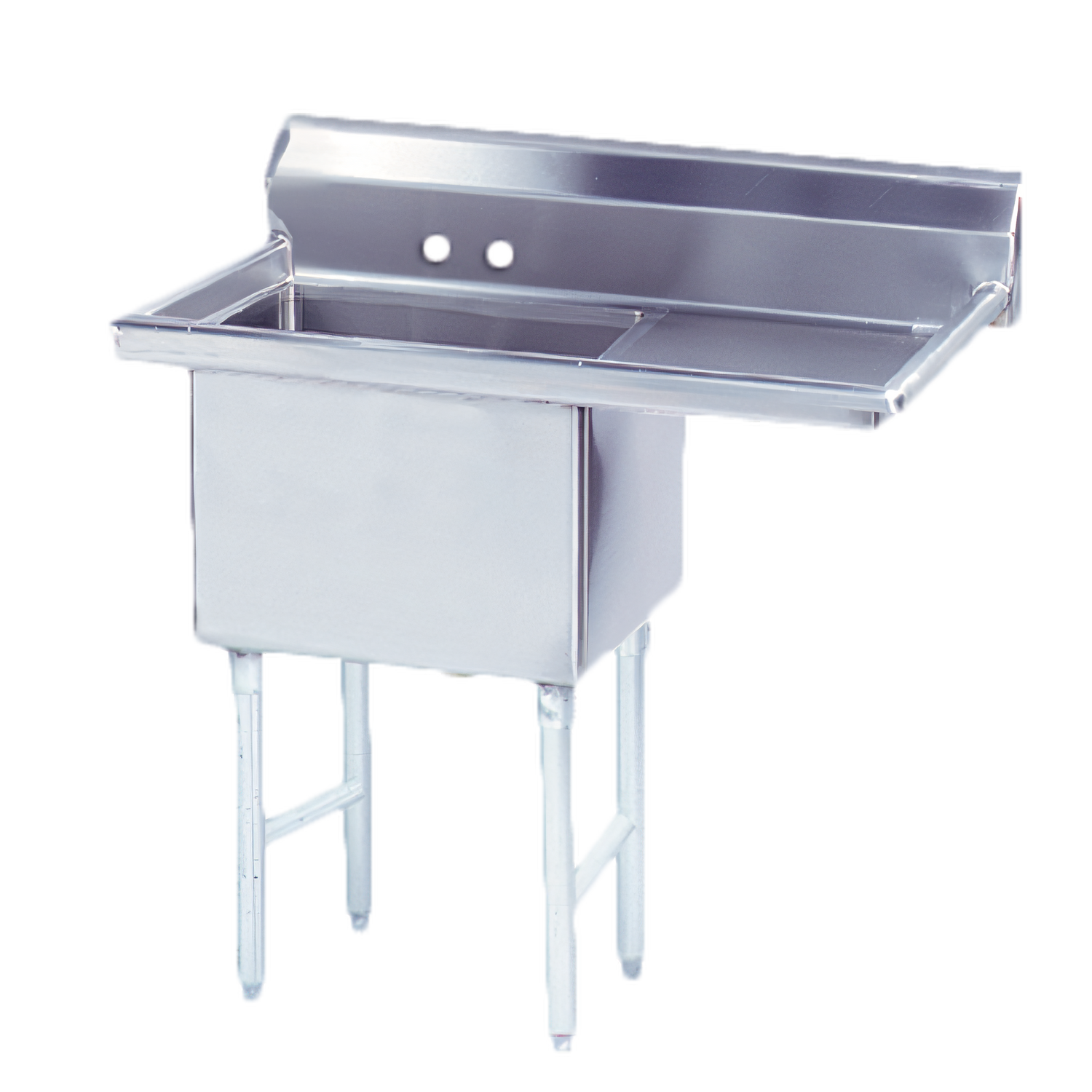

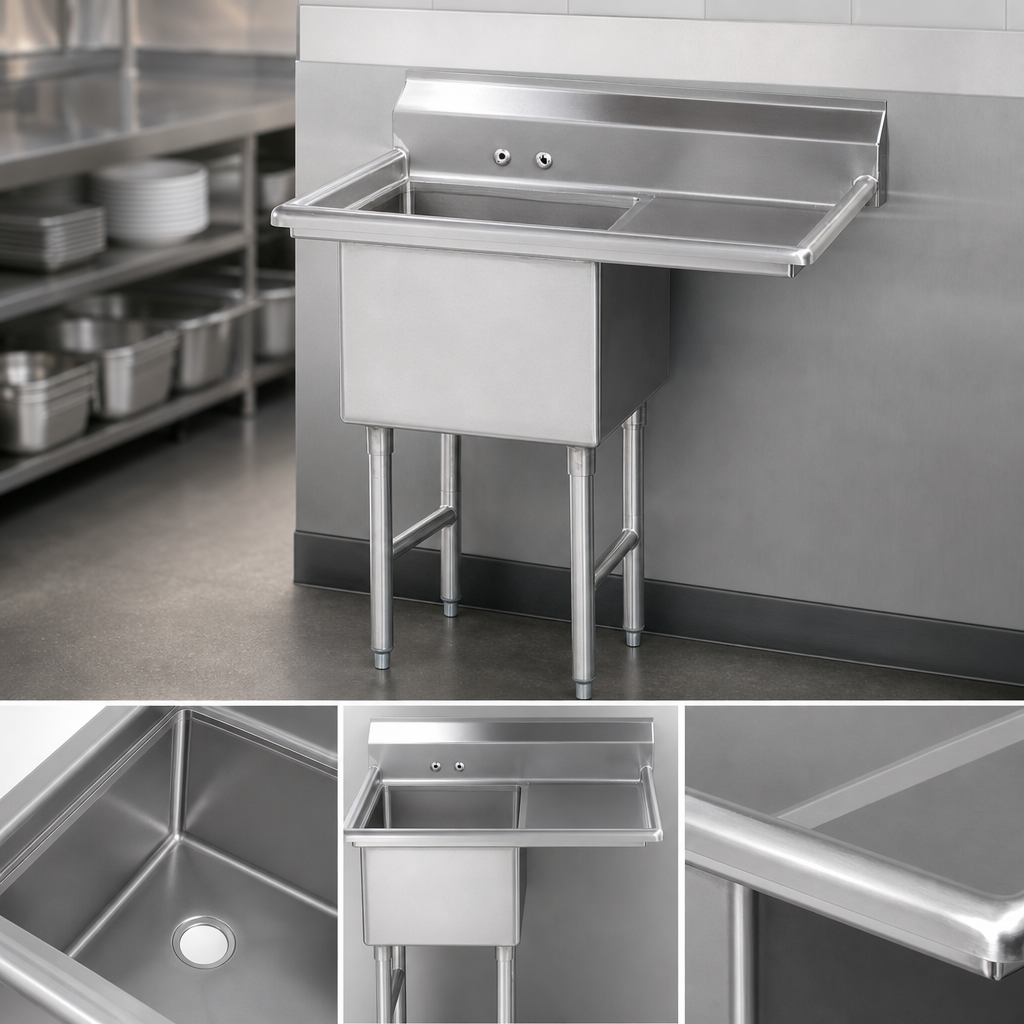

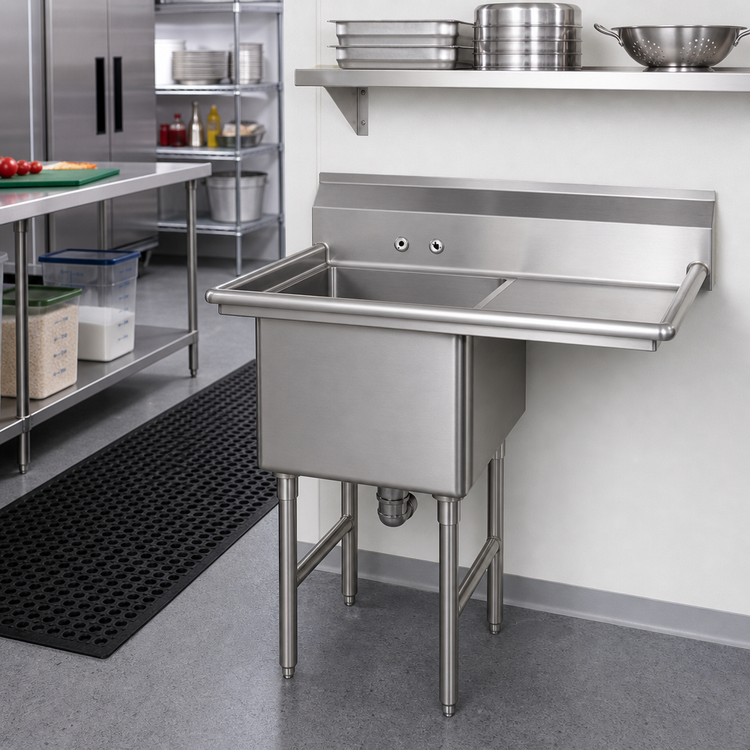

Advance Tabco FS-1-1620-18R 1-Compartment Fabricated Sink with 18" Right Drainboard
16" × 20" × 14" Bowl • 14-Gauge 304 Stainless Steel • NSF ListedEngineered for heavy-duty use, the Advance Tabco FS-1-1620-18R combines a deep 14" bowl and convenient 18" right-hand drainboard in a compact 36 ½" footprint. Its rugged 14-gauge 304 stainless-steel construction, TIG-welded seams, and rolled rim edge deliver the strength, sanitation, and longevity demanded by busy commercial kitchens.
Key Features
- Single compartment bowl measures 16" W × 20" L × 14" D for high-capacity washing.
- 18" right-side drainboard with creased pitch quickly channels water to the bowl.
- 14-gauge, type 304 stainless steel—heavier and more corrosion-resistant than 16- or 18-gauge sinks.
- Rolled rim edge adds structural rigidity and resists denting.
- Integral 8" backsplash with tile edge simplifies wall installation and protects surrounding surfaces.
- Pre-punched 8" on-center faucet holes; ½" IPS hot & cold supply connections.
- 1 ½" IPS stainless-steel basket drain (center of bowl) included.
- 1 ⅝" dia. stainless-steel legs with adjustable side cross-bracing for maximum stability.
- 1" height-adjustable stainless-steel bullet feet level the sink on uneven floors.
- NSF certified & meets all applicable sanitation standards.
Specifications
| Model | FS-1-1620-18R |
|---|---|
| Compartments | 1 |
| Bowl Size (W × L × D) | 16" × 20" × 14" |
| Drainboard | 18" (Right-Hand) |
| Overall Dimensions (L × W) | 36 ½" × 26" |
| Working Height | 37" (to rim) |
| Material & Gauge | 14-Gauge Type 304 Stainless Steel |
| Backsplash | 8" H with tile edge & 8"-O.C. faucet holes |
| Drain Connection | 1 ½" IPS stainless basket drain (included) |
| Legs / Feet | 1 ⅝" Ø S/S legs with adjustable side cross-bracing & 1" bullet feet |
| Ship Weight | ≈ 80 lb |
| Certifications | NSF |
What’s Included
- Fabricated sink with welded drainboard & backsplash
- Stainless-steel legs, side cross-bracing, and bullet feet
- 1 ½" basket drain assembly
Popular Accessories (Sold Separately)
- Deck-mount faucets (8" centers)
- K-450 additional drains
- Scrap baskets, pre-rinse sprayers, & wall mounting kits
Advance Tabco reserves the right to modify product design and specifications without notice.
